Issue while trying to create create a template component in MAUI XAML

Auquier Cyril 35 Points de réputation
2024-08-06T06:46:15.0533333+00:00

Hello I am currently trying to create a component that will be like a template used by other.

I wanted to create a component that render a text and can render child given in the xaml code.

Here is the code:

<?xml version="1.0" encoding="utf-8" ?>
<ContentView xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Quiz.ForNative.Components.Form.BaseInput">
    <VerticalStackLayout>
        <HorizontalStackLayout>
            <Label
                x:Name="Label"
                Text="{Binding LabelText}" />
            <Label
                x:Name="Label3"
                Text="Coucou" />
        </HorizontalStackLayout>
    </VerticalStackLayout>
    <ContentView.Content>
        <ContentPresenter />
    </ContentView.Content>
</ContentView>

Here is the code behind:

public partial class BaseInput : ContentView
{
    public static readonly BindableProperty LabelTextProperty = BindableProperty.Create(
        nameof(LabelText),
        typeof(string),
        typeof(BaseInput),
        default(string));

    public string LabelText
    {
        get => (string)GetValue(LabelTextProperty);
        set => SetValue(LabelTextProperty, value);
    }

    public BaseInput()
    {
        InitializeComponent();
        this.BindingContext = this;
	}
}

And i wanted to be able to used it in an other component like this

<?xml version="1.0" encoding="utf-8" ?>
<ContentView xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="Quiz.ForNative.Components.Form.DateInput"
             xmlns:local="clr-namespace:Quiz.ForNative.Components.Form">
    <local:BaseInput>
        <DatePicker x:Name="Value" WidthRequest="250"/>
    </local:BaseInput>
</ContentView>

Here the code behing of the previous component:

public partial class DateInput : ContentView
{
    public static readonly BindableProperty LabelProperty = BindableProperty.Create(
        nameof(Label),
        typeof(string),
        typeof(DateInput),
        default(string));

    public string Label
    {
        get => (string)GetValue(LabelProperty);
        set => SetValue(LabelProperty, value);
    }

    public DateInput()
    {
        InitializeComponent();
        this.BindingContext = this;
    }
}

But for some reason the property Label which is given to the BaseInput isn't displayed
User's image Is there something that i missed or that i did really wrong?

C#
C#
Langage de programmation orienté objet et sécurisé au niveau des types, qui prend ses racines dans la famille des langages C et inclut la prise en charge de la programmation orientée vers les composants.
13 questions
Développement
Développement
Processus de recherche, de productisation et d’affinement de technologies nouvelles ou existantes.
11 questions
0 commentaires Aucun commentaire
{count} votes

Réponse acceptée
  1. Alexis Thorez (CONCENTRIX CORPORATION) 10,810 Points de réputation Fournisseur Microsoft
    2024-08-07T06:30:52.6466667+00:00

    Solution proposée et validée par @Auquier Cyril

    I've resolved this issue by doing one simple thing: I used a ControlTemplate and some template biing in the compenent that needed to render its children

    Here the code (I only changed the xaml code)

    <ContentView xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
                 xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
                 x:Class="Quiz.ForNative.Components.Form.BaseInput"
                 x:Name="baseInput">
        <ContentView.ControlTemplate>
            <ControlTemplate>
                <VerticalStackLayout>
                    <Label
                        x:Name="Label"
                        Text="{TemplateBinding LabelText}" />
                    <ContentPresenter />
                </VerticalStackLayout>
            </ControlTemplate>
        </ContentView.ControlTemplate>
    </ContentView>

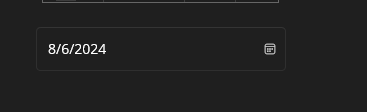

    And the result

    User's image

    0 commentaires Aucun commentaire

1 réponse supplémentaire

Trier par : Le plus utile
  1. Auquier Cyril 35 Points de réputation
    2024-08-06T11:54:38.31+00:00

    I've resolve this issue by doing one simple thing: I used a ControlTemplate and some template biing in the compenent that needed to render its children

    Here the code (I only changed the xaml code)

    <ContentView xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
                 xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
                 x:Class="Quiz.ForNative.Components.Form.BaseInput"
                 x:Name="baseInput">
        <ContentView.ControlTemplate>
            <ControlTemplate>
                <VerticalStackLayout>
                    <Label
                        x:Name="Label"
                        Text="{TemplateBinding LabelText}" />
                    <ContentPresenter />
                </VerticalStackLayout>
            </ControlTemplate>
        </ContentView.ControlTemplate>
    </ContentView>



    And the result

    User's image

    2 personnes ont trouvé cette réponse utile.
