Jetpack Window Manager for Unity
Jetpack Window Manager is available as a package that can be included in your Unity project. Customize the gradle build system and implement a custom base activity class, and then add a C# helper class that calls the native Java API.
The WindowManagerHelper.cs code provides these methods that expose information supplied by the Jetpack Window Manager:
WindowManagerHelper.GetCurrentWindowMetricsBounds
. The bounds (left, top, width, height) of the entire area the application occupies.WindowManagerHelper.IsSeparating
. Whether the folding feature is separating screen areas. This is alwaysTRUE
on the Surface Duo. It'sTRUE
on some other foldable devices only when they are folded butFALSE
when they're flat.WindowManagerHelper.Orientation
. The orientation of the folding feature, if there is one.HORIZONTAL
orVERTICAL
.WindowManagerHelper.OcclusionType
. Whether the folding feature obscures content.FULL
orNONE
.WindowManagerHelper.State
. The state of the fold.FLAT
orHALF_OPEN
.WindowManagerHelper.Bounds
. The bounds (left, top, width, height) of the folding feature, if there is one.

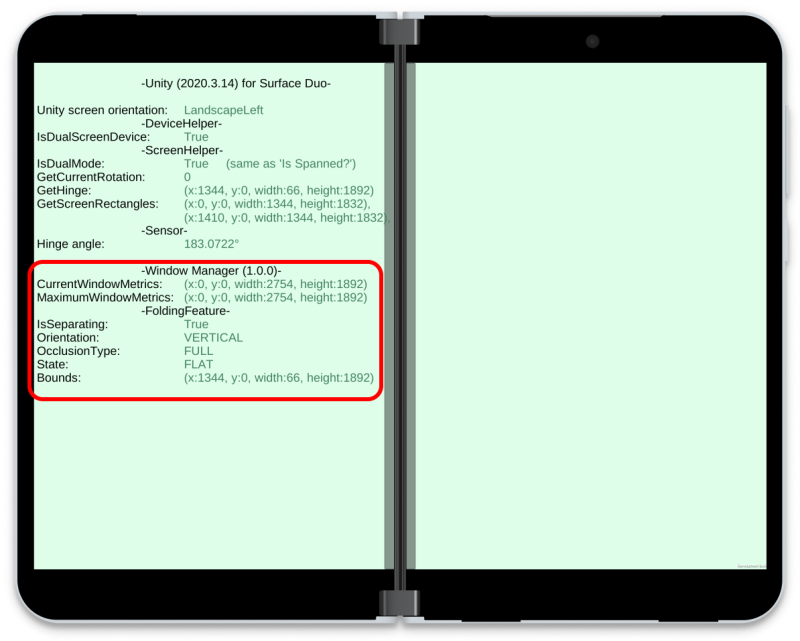

Here's a screenshot of the API demonstration sample showing device information from the Jetpack Window Manager package:
Follow these steps to customize your Android app build configuration and implement Jetpack Window Manager. You can also review the code in this sample.

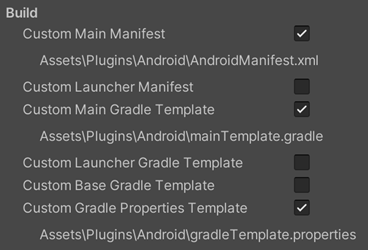

In Unity, go to Edit > Project Settings… > Player > (Android) > Publishing Settings and select these Build options:
This step places new items in the project's Assets/Plugins/Android, which are then customized to support the Window Manager package.
Update the mainTemplate.gradle to include Jetpack Window Manager in the project, by adding the following dependencies:
dependencies { implementation "androidx.window:window:1.0.0" implementation "org.jetbrains.kotlin:kotlin-stdlib-jdk7:1.3.61" implementation 'androidx.appcompat:appcompat:1.2.0' implementation 'androidx.core:core-ktx:1.3.2' }
Update the gradleTemplate.properties file by adding the following line:
android.useAndroidX = true
The app needs a custom activity to implement the window manager functionality and expose information to C#. Create a file FoldablePlayerActivity.java in the same folder Assets/Plugins/Android, and then update AndroidManifest.xml to reference the new class:
<activity android:name="com.microsoft.device.dualscreen.unity.FoldablePlayerActivity"
Add the complete class from FoldablePlayerActivity.java on GitHub.
Copy the WindowManagerHelper.cs helper class from GitHub into the project. The folder is Assets/SurfaceDuo/Plugins in the sample.

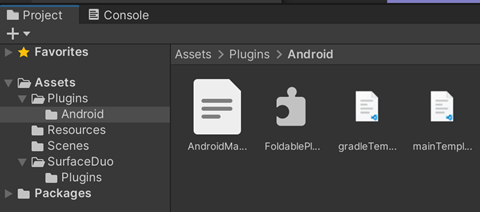

The Assets/Plugins/Android now contains these items, customized in the steps above:
The WindowManagerHelper.cs file is in the Assets/SurfaceDuo/Plugins folder in the sample, but this helper class can be located anywhere in your game code.
Once you have implemented layout changes based on the presence of a folding feature, you can test your game on Surface Duo and other foldable devices that support Jetpack Window Manager.
Review these samples.
