Setting the size of objects in a toolstrip

Question

Thursday, February 1, 2018 8:31 PM

This is what I am trying:

        tStrip.ImageScalingSize = New System.Drawing.Size(tSize * 1.3, tSize * 1.3)

        For Each obj As Object In tStrip.Items
            If TypeOf obj Is ToolStripButton Then
                obj.Size = New System.Drawing.Size(tSize, tSize)
            ElseIf TypeOf obj Is ToolStripSplitButton Then
                obj.Size = New System.Drawing.Size(tSize * obj.width / obj.height, tSize)
            End If
        Next

The size change for the ToolStripButtons are working just fine,

but the ToolStripSplitButton do not want to join in.

Suggestions?

Appleforce

All replies (5)

Friday, February 2, 2018 3:17 AM

Hi

Have you tried experimenting with ToolStrip.AutoSize = False and ToolStripSplitButton.AutoSize = False

Some combination would probably work.

Regards Les, Livingston, Scotland


Friday, February 2, 2018 6:20 AM

Hi appleforce,

If you change AutoSize property of ToolStripButton to false, you'll be able to change the width of button.

If you change AutoSize property of ToolStrip to false, you'll be able to change its height and the ToolStripButton will change its height automatically to fit into the tool strip.

 If you want to increase not only size of the button, but also the size of the button image, you must either use the bigger image, or you can try to resize the original one. Then you must also change toolstrip's ImageScalingSize property. Try to use the following code:

So you need to set ToolStripButton's AutoSize=false, ToolStripSplitButton's AutoSize=false.

Here is the same thread , you could refer to:

https://stackoverflow.com/questions/3432025/how-to-increase-the-size-of-the-buttons-on-a-tool-strip

Best Regards,

Cherry

MSDN Community Support
Please remember to click "Mark as Answer" the responses that resolved your issue, and to click "Unmark as Answer" if not. This can be beneficial to other community members reading this thread. If you have any compliments or complaints to MSDN Support, feel free to contact MSDNFSF@microsoft.com.


Friday, February 2, 2018 8:04 AM

Thanks, but using the autosize property does not help.
And, as I mentioned, the resizing of the ToolStrip and the ToolStripButtons are working just fine, without touching the autosize property.

Appleforce


Friday, February 2, 2018 10:57 AM

 Setting the AutoSize property to False and the Size property of the Buttons,  even split buttons,  seems to work for me.

Public Class Form1
    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        ToolStripSplitButton1.AutoSize = False
        ToolStripSplitButton1.Size = New Size(140, 80)
        ToolStripSplitButton1.DropDownButtonWidth = 20

        ToolStripButton1.AutoSize = False
        ToolStripButton1.Size = New Size(140, 80)
    End Sub
End Class

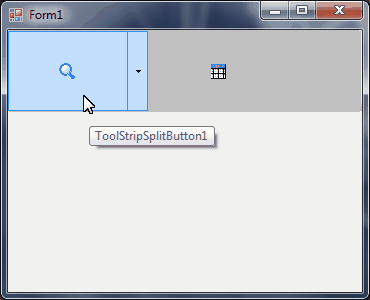

 As you can see,  the button on the left is a split button.

If you say it can`t be done then i`ll try it


Friday, February 2, 2018 12:09 PM

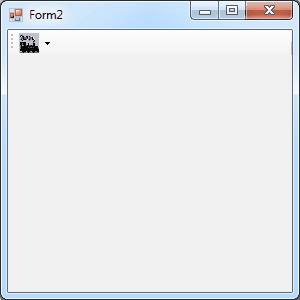

If you have an image you need to adjust those things.

Plus the order of the statements seems to affect the results.

Public Class Form2
    Private Sub Form2_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        ToolStrip1.AutoSize = True
        ToolStrip1.ImageScalingSize = New Size(20, 20)
        ToolStripSplitButton1.ImageScaling = ToolStripItemImageScaling.SizeToFit
        ToolStripSplitButton1.AutoSize = True
        ToolStripSplitButton1.Image = New Bitmap("c:\bitmaps\cr logo icon.png")

    End Sub

    Private Sub ToolStripSplitButton1_ButtonClick(sender As Object, e As EventArgs) Handles ToolStripSplitButton1.ButtonClick
        If ToolStripSplitButton1.AutoSize Then
            ToolStripSplitButton1.AutoSize = False
            ToolStrip1.ImageScalingSize = New Size(50, 50)
            ToolStripSplitButton1.Size = New Size(50, 50)
        Else
            ToolStrip1.ImageScalingSize = New Size(20, 20)
            ToolStripSplitButton1.AutoSize = True
        End If
    End Sub
End Class
