Display Windows Directory Contents using TreeView Control in a Visual Studio 2010 program

2017-07-13

Question

_{Thursday, July 13, 2017 8:53 PM | 1 vote}

I would like to be able to display the C: drive directory contents in a tree structure using the TreeView Control. I'm trying to use Visual Basic to accomplish this task. I would like to be able to use the "+" symbol next to each directory in order to display the contents/files of each directory or hide the contents/files of each directory.

I'm just wondering if this can be accomplished using Visual Basic in Visual Studio 2010?

The first step that I'm trying to figure out is how do you get the C: drive directory contents to display in a TreeView control on a Visual Basic Form?

Thanks in advance,

Jim

All replies (7)

_{Friday, July 14, 2017 7:16 AM}

Hello,

This forum(Word for Developers) is for development issues related to Word Object Model and your problem is more related to Visual Basic Form, so I would move this thread into Visual Basic.
Thanks for your understanding.
Best Regards,
Terry

_{Friday, July 14, 2017 8:35 AM | 2 votes}

Hi jnhutchi3,

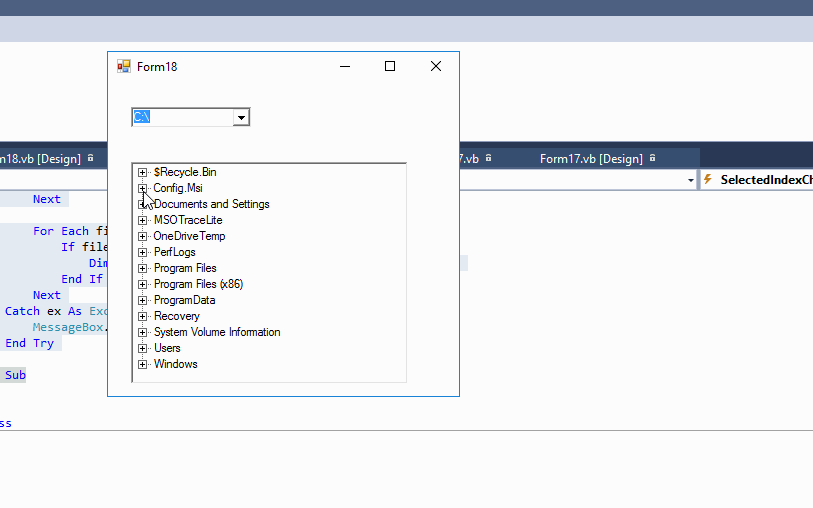

According to your description, you can refer to the code below.

I use one ComboBox and Treeview in the form.

 Private Sub Form18_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        Dim drives As DriveInfo() = DriveInfo.GetDrives()
        For i As Integer = 0 To drives.Length - 1
            ComboBox1.Items.Add(drives(i).Name)
            ComboBox1.SelectedIndex = -1
        Next

    End Sub

    Private Sub TreeView1_BeforeExpand(sender As Object, e As TreeViewCancelEventArgs) Handles TreeView1.BeforeExpand
        Try

            Dim courentNode As TreeNode = e.Node
            Dim folderPaht As New DirectoryInfo(ComboBox1.SelectedItem + courentNode.FullPath)

            For Each dir As DirectoryInfo In folderPaht.GetDirectories()
                Dim fileName As String = dir.Name
                Dim node As TreeNode = courentNode.Nodes.Add(fileName)
                node.Nodes.Add(" ")
            Next

            For Each file As FileInfo In folderPaht.GetFiles()
                Dim ext As String = file.Extension
                If ext.ToLower() = ".txt" Then
                    Dim newNode As TreeNode = courentNode.Nodes.Add(file.Name)

                End If
            Next
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try

    End Sub

    Private Sub ComboBox1_SelectedIndexChanged(sender As Object, e As EventArgs) Handles ComboBox1.SelectedIndexChanged
        TreeView1.Nodes.Clear()
        Dim path As New DirectoryInfo(ComboBox1.SelectedItem.ToString())
        Try
            For Each dir As DirectoryInfo In path.GetDirectories()
                Dim node As TreeNode = TreeView1.Nodes.Add(dir.Name)
                node.Nodes.Add(" ")
            Next

            For Each file As FileInfo In path.GetFiles()
                If file.Extension.ToLower() = ".txt" Then
                    Dim node As TreeNode = TreeView1.Nodes.Add(file.Name)
                End If
            Next
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try

    End Sub

Best Regards,

Cherry

MSDN Community Support
Please remember to click "Mark as Answer" the responses that resolved your issue, and to click "Unmark as Answer" if not. This can be beneficial to other community members reading this thread. If you have any compliments or complaints to MSDN Support, feel free to contact MSDNFSF@microsoft.com.

_{Friday, July 14, 2017 7:24 PM | 1 vote}

Their are several files and folders that you will not have permissions to iterate through for security reasons so, no you can not list all the files and folders exactly like windows explorer but, you can mimic it with a TreeView pretty close. The link below is for a tutorial i wrote for doing this. It is a bit beyond the beginner level but, perhaps it will help you.

TreeView Drive, Folder, and File Explorer

As seen here, it uses the actual folder and file icons. It will list all the drives on the computer as root directories and you can also add your choice of the special folders as root directories too, as i did with the Desktop and Documents folders in the below image.

If you say it can`t be done then i`ll try it

_{Friday, July 14, 2017 8:54 PM | 1 vote}

The below link has a complete project solution:

https://www.codeproject.com/Articles/301943/TreeView-Explorer-using-VB-NET

Paul ~~~~ Microsoft MVP (Visual Basic)

_{Monday, July 17, 2017 3:15 AM}

Hi,

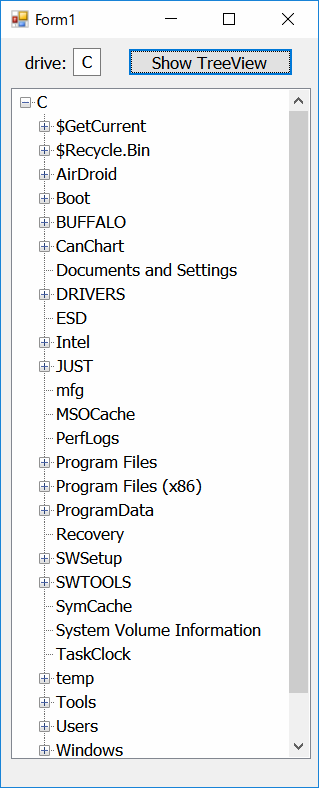

This is my sample:

Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
    Me.TreeView1.Nodes.Clear()  ' -- Clear all nodes
    Dim driveLetter As String = Me.TextBox1.Text    ' -- get Drive Letter
    Me.TreeView1.Nodes.Add(driveLetter)
    '  Populate this root node
    PopulateTreeView(driveLetter & ":\", Me.TreeView1.Nodes(0))
    '  Expand Parent node
    Call Me.prc_Node_Expand_Parent()
    MessageBox.Show("TreeView completed!")
End Sub
'  PopulateTreeView
Private Sub PopulateTreeView(ByVal driveLetter As String, ByVal parentNode As TreeNode)
    SuspendLayout()
    Dim folder As String = ""
    Try
        Dim folders() As String = IO.Directory.GetDirectories(driveLetter)
        If (folders.Length <> 0) Then
            Dim childNode As TreeNode = Nothing
            For Each folder In folders
                '  ノードを追加
                childNode = New TreeNode(folder)
                childNode.Text = Me.fnc_Get_LastFolder(childNode.Text)
                parentNode.Nodes.Add(childNode)
                PopulateTreeView(folder, childNode)
            Next
        End If
    Catch ex As UnauthorizedAccessException
        ' -- parentNode.Nodes.Add(folder & ": Access Denied")
    End Try
End Sub
    '  get last folder name: exclude parent/prior folder name
    Private Function fnc_Get_LastFolder(ByVal childNodeText As String) As String
        Dim pos As Integer = childNodeText.LastIndexOf("\")
        Dim lastDir As String = childNodeText.Substring(pos + 1, childNodeText.Length - pos - 1)
        Return lastDir
    End Function
    '  Expand only Parent node
    Public Sub prc_Node_Expand_Parent()
        Me.TreeView1.SelectedNode = Me.TreeView1.Nodes(0).Nodes(0)
        Me.TreeView1.SelectedNode = Me.TreeView1.Nodes(0)
        Me.TreeView1.Nodes(0).EnsureVisible()
    End Sub

Ashidacchi

_{Wednesday, July 19, 2017 7:40 AM}

Hi jnhutchi3,

Please remember to close your thread by marking the helpful post as answer, it is very beneficial to other community members who face the same issue.

Thanks for your understanding.

Best Regards,

Cherry

_{Monday, November 18, 2019 6:25 PM}

Thanks Cherry. The above code with some modification to suit my need has worked.
