PICTUREBOX ROUND CORNER

Question

_{Saturday, September 22, 2018 6:20 AM}

HI

I used this class

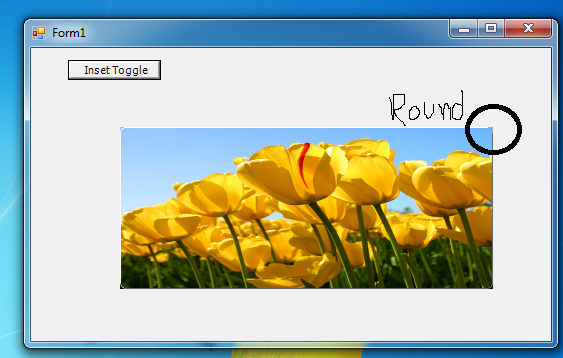

To ROUND CORNER OF PICTUREBOX
But the problem appears poorly when you place a background image

Public Class RoundPictureBox
    Inherits PictureBox

    Protected Overrides Sub OnPaint(ByVal e As System.Windows.Forms.PaintEventArgs)

        Dim rect As Rectangle = MyBase.ClientRectangle
        Dim g As Graphics = e.Graphics
        Dim br As New SolidBrush(MyBase.BackColor)
        g.FillRectangle(br, rect)
        MyBase.OnPaint(e)

        Dim CtrlPen, LightPen, DarkPen As Pen
        CtrlPen = SystemPens.ControlDark


            LightPen = SystemPens.ControlLightLight
            DarkPen = SystemPens.ControlDarkDark

        Dim width As Int32 = 12
        Dim height As Int32 = 12
        Dim x As Int32 = 0
        Dim y As Int32 = 0
        Dim startAngle As Int32 = 270
        Dim sweepAngle As Int32 = -90
        g.DrawArc(LightPen, x, y, width, height - 1, startAngle, sweepAngle)

        x = rect.Width - width
        y = 0
        startAngle = 270
        sweepAngle = 90
        g.DrawArc(CtrlPen, x, y, width - 1, height, startAngle, sweepAngle)

        x = rect.Width - width
        y = rect.Height - height
        startAngle = 0
        sweepAngle = 90
        g.DrawArc(DarkPen, x, y, width - 1, height - 1, startAngle, sweepAngle)

        x = 0
        y = rect.Height - height
        startAngle = 90
        sweepAngle = 90
        g.DrawArc(CtrlPen, x, y, width, height - 1, startAngle, sweepAngle)

        g.DrawLine(LightPen, (width \ 2) - 1, 0, rect.Right - (width \ 2), 0)
        g.DrawLine(DarkPen, rect.Right - 1, (height \ 2), rect.Right - 1, rect.Bottom - (height \ 2) - 1)
        g.DrawLine(DarkPen, (width \ 2) - 1, rect.Bottom - 1, rect.Right - (width \ 2), rect.Bottom - 1)
        g.DrawLine(LightPen, 0, (height \ 2), 0, rect.Bottom - (height \ 2) - 1)

    End Sub

    Protected Overrides Sub OnResize(ByVal e As System.EventArgs)
        MyBase.Invalidate(MyBase.ClientRectangle)
    End Sub
End Class

All replies (1)

_{Saturday, September 22, 2018 3:16 PM ✅Answered}

Hi

Here is some code I had experimented with a long time ago. The code is a mixture from various snippets found on the Web (as far as I remember).

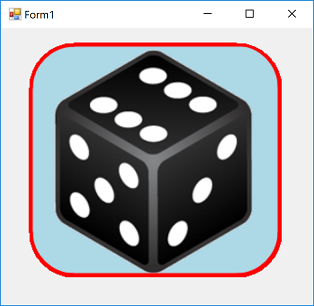

This creates a new control called RoundedPB, which Inherits from a PictureBox and add some functionality for rounding corners, border color and border width.

To add a new control in the Designer, you would first need to ReBuild the code to put the RoundedPB into the browsable control list in the ToolBox.

I haven't played around much with this code, but from this example, seems it is mostly working.

Option Strict On
Option Explicit On
Imports System.ComponentModel
Imports System.Drawing.Drawing2D

Public Class Form1
  Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
    ' RoundedPB1 added from ToolBox
    ' in Designer
    With RoundedPB1
      .Edge = 100
      .penWidth = 5.0F
      .BorderColor = Color.Red
      .BackColor = Color.LightBlue
      .SizeMode = PictureBoxSizeMode.Zoom

      '  ' comment out if static
      '  ' PB wanted
      .Anchor = AnchorStyles.Bottom Or AnchorStyles.Left Or AnchorStyles.Right Or AnchorStyles.Top

      .Image = Image.FromFile("C:\Users\lesha\Desktop\Plans\Dice 2\62.png")
    End With

  End Sub
End Class

Public Class RoundedPB
  Inherits PictureBox

  Protected Overrides Sub OnPaint(ByVal e As PaintEventArgs)
    MyBase.OnPaint(e)
    ExtendedDraw(e)
    DrawSingleBorder(e.Graphics)
  End Sub

  Private _penWidth As Single = 4.0F
  <Browsable(True)>
  Public Property penWidth() As Single
    Get
      Return _penWidth
    End Get
    Set(ByVal Value As Single)
      _penWidth = Value
      Invalidate()
    End Set
  End Property

  Private _borderColor As Color
  <Browsable(True)>
  Public Property BorderColor() As Color
    Get
      Return _borderColor
    End Get
    Set(ByVal Value As Color)
      _borderColor = Value
      Invalidate()
    End Set
  End Property

  Private _edge As Integer = 50
  <Browsable(True)>
  Public Property Edge() As Integer
    Get
      Return _edge
    End Get
    Set(ByVal Value As Integer)
      _edge = Value
      Invalidate()
    End Set
  End Property

  Private Function GetLeftUpper(ByVal e As Integer) As Rectangle
    Return New Rectangle(0, 0, e, e)
  End Function

  Private Function GetRightUpper(ByVal e As Integer) As Rectangle
    Return New Rectangle(Width - e, 0, e, e)
  End Function

  Private Function GetRightLower(ByVal e As Integer) As Rectangle
    Return New Rectangle(Width - e, Height - e, e, e)
  End Function

  Private Function GetLeftLower(ByVal e As Integer) As Rectangle
    Return New Rectangle(0, Height - e, e, e)
  End Function

  Private Sub ExtendedDraw(ByVal e As PaintEventArgs)
    e.Graphics.SmoothingMode = SmoothingMode.AntiAlias
    Dim path As GraphicsPath = New GraphicsPath()
    path.StartFigure()
    path.StartFigure()
    path.AddArc(GetLeftUpper(Edge), 180, 90)
    path.AddLine(Edge, 0, Width - Edge, 0)
    path.AddArc(GetRightUpper(Edge), 270, 90)
    path.AddLine(Width, Edge, Width, Height - Edge)
    path.AddArc(GetRightLower(Edge), 0, 90)
    path.AddLine(Width - Edge, Height, Edge, Height)
    path.AddArc(GetLeftLower(Edge), 90, 90)
    path.AddLine(0, Height - Edge, 0, Edge)
    path.CloseFigure()
    Region = New Region(path)
  End Sub

  Private Sub DrawSingleBorder(ByVal graphics As Graphics)
    Dim pen As New Pen(BorderColor, penWidth)
    graphics.DrawArc(pen, New Rectangle(0, 0, Edge, Edge),
                     180, 90)
    graphics.DrawArc(pen, New Rectangle(Width - Edge - 1, -1,
                     Edge, Edge), 270, 90)
    graphics.DrawArc(pen, New Rectangle(Width - Edge - 1,
                     Height - Edge - 1, Edge, Edge), 0, 90)
    graphics.DrawArc(pen, New Rectangle(0, Height - Edge - 1,
                     Edge, Edge), 90, 90)
    graphics.DrawRectangle(pen, 0.0F, 0.0F, CType((Width - 1),
                           Single), CType((Height - 1), Single))
  End Sub
End Class

Regards Les, Livingston, Scotland
