How do I make it so if one picture box touches another picture box the form's back ground changes?

2018-06-03

Question

_{Sunday, June 3, 2018 8:37 PM}

Hello,

I am a beginner in visual basic

I was wondering if there was a way to make it so that if one picture box touches another picture box

the background of the fourm changes?

All replies (4)

_{Sunday, June 3, 2018 9:30 PM}

Here is some code to illustrate a simple collision between 2 Picture Boxes.

The .IntersectsWith would be what you are looking for - perhaps. Just add a Timer1 to a new Form1 and replace default code with this code to try it out.

' Form1 with Timer1
Option Strict On
Option Explicit On
Public Class Form1
  Dim pb1, pb2 As New PictureBox
  Private Sub Form1_Shown(sender As Object, e As EventArgs) Handles Me.Shown

    With pb1
      .Size = New Size(50, 50)
      .Location = New Point(10, 10)
      .BackColor = Color.Black
    End With
    With pb2
      .Size = New Size(50, 50)
      .Location = New Point(100, 25)
      .BackColor = Color.Blue
    End With
    Controls.AddRange({pb1, pb2})
    With Timer1
      .Interval = 50
      .Enabled = True
    End With
  End Sub
  Private Sub Timer1_Tick(sender As Object, e As EventArgs) Handles Timer1.Tick
    pb1.Location = New Point(pb1.Location.X + 1, pb1.Location.Y)

    If pb1.Bounds.IntersectsWith(pb2.Bounds) Then
      pb1.BackColor = Color.Red
    Else
      pb1.BackColor = Color.Black
    End If
  End Sub
End Class

Regards Les, Livingston, Scotland

_{Monday, June 4, 2018 9:36 PM}

Well you should use an event to detect the movement of Man or Box to see when they intersect. And then provide a full path to the file of the image you want used for the BackgroundImage.

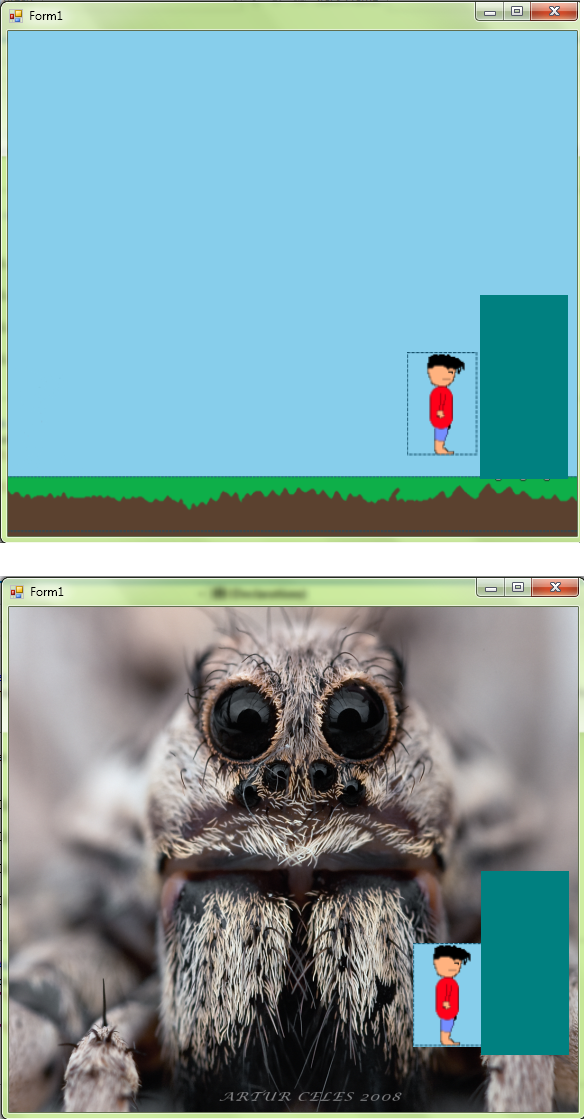

I used two panels moving the left panel, Panel1, into the right panel, Panel2.

Option Strict On

Public Class Form1

    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        Me.Location = New Point(CInt((Screen.PrimaryScreen.WorkingArea.Width / 2) - (Me.Width / 2)), CInt((Screen.PrimaryScreen.WorkingArea.Height / 2) - (Me.Height / 2)))
        Me.DoubleBuffered = True
    End Sub

    Private Sub Form1_KeyDown(sender As Object, e As KeyEventArgs) Handles Me.KeyDown
        Select Case e.KeyCode
            Case Is = Keys.Right
                Panel1.Location = New Point(Panel1.Location.X + 5, Panel1.Location.Y)
            Case Is = Keys.Left
                Panel1.Location = New Point(Panel1.Location.X - 5, Panel1.Location.Y)
            Case Is = Keys.Up
                Panel1.Location = New Point(Panel1.Location.X, Panel1.Location.Y - 5)
            Case Is = Keys.Down
                Panel1.Location = New Point(Panel1.Location.X, Panel1.Location.Y + 5)
        End Select
    End Sub

    Private Sub Panel1_Move(sender As Object, e As EventArgs) Handles Panel1.Move
        If Panel1.Bounds.IntersectsWith(Panel2.Bounds) Then
            Me.BackgroundImage = Image.FromFile("C:\Users\John\Desktop\Lycosa Tarantula.Bmp")
        Else
            Me.BackgroundImage = Image.FromFile("C:\Users\John\Desktop\Background Image.Png")
        End If
    End Sub
End Class

La vida loca

_{Tuesday, June 5, 2018 3:23 AM | 1 vote}

Hi Zero2infinity,

You can also try the following code, I use Timer to mointor picturebox.location.x.

  Private Sub Form2_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        PictureBox1.Image = Image.FromFile("D:\Image\1.jpg")
        PictureBox2.Image = Image.FromFile("D:\Image\2.jpg")
        Timer1.Start()

    End Sub
       Dim Offset As Point
    Private Sub PictureBox1_MouseMove(sender As Object, e As MouseEventArgs) Handles PictureBox1.MouseMove
        If e.Button = Windows.Forms.MouseButtons.Left Then
            Dim Pos As Point = Me.PointToClient(MousePosition)
            Pos.Offset(Offset.X, Offset.Y)
            PictureBox1.Location = Pos
        End If
    End Sub

    Private Sub PictureBox1_MouseDown(sender As Object, e As MouseEventArgs) Handles PictureBox1.MouseDown
        Offset = New Point(-e.X, -e.Y)
    End Sub

    Private Sub Timer1_Tick(sender As Object, e As EventArgs) Handles Timer1.Tick
        If PictureBox1.Location.X + PictureBox1.Size.Width > PictureBox2.Location.X OrElse PictureBox2.Location.X < PictureBox1.Location.X + PictureBox1.Size.Width Then
            Me.BackgroundImage = Image.FromFile("D:\Image\4.jpg")
        Else
            Me.BackgroundImage = Image.FromFile("D:\Image\3.jpg")
        End If

    End Sub

    Private Sub PictureBox2_MouseDown(sender As Object, e As MouseEventArgs) Handles PictureBox2.MouseDown
        Offset = New Point(-e.X, -e.Y)
    End Sub
    Private Sub PictureBox2_MouseMove(sender As Object, e As MouseEventArgs) Handles PictureBox2.MouseMove
        If e.Button = Windows.Forms.MouseButtons.Left Then
            Dim Pos As Point = Me.PointToClient(MousePosition)
            Pos.Offset(Offset.X, Offset.Y)
            PictureBox2.Location = Pos
        End If
    End Sub

Best Regards,

Cherry

MSDN Community Support
Please remember to click "Mark as Answer" the responses that resolved your issue, and to click "Unmark as Answer" if not. This can be beneficial to other community members reading this thread. If you have any compliments or complaints to MSDN Support, feel free to contact MSDNFSF@microsoft.com.

_{Tuesday, June 5, 2018 12:06 PM}

As noted, the key problem is that you have your test for intersection in the Form.Load event handler. This code only executes once after the form is loaded for the first time so there is no way for it to continue to test for collision. You should move the test into whatever code you use to move the "Man" object. This might be a mouse or keyboard event handler... whatever you are using for user input. After moving the man based on user input, test for collision with the box.

That said, you may soon find that using panels or picture boxes does not lend itself well to a game. The collision looks sloppy; your man will collide when the dotted box around him hits the other object - visually this will still be several pixels away from an "actual visible collision" due to the transparency around the man. You also cannot easily rotate or animate the images, if that later becomes desirable.

I've spoken a lot about making games in the past; if you search these forums for "video games vb.net" you should find a lot of relevant material. You may also want to review and/or utilize my PuppyBreath game engine implementation for Windows Forms. While I've stalled a bit on some of the planned future features, the framework is already quite robust and should give you a good leg-up on developing this kind of side-scrolling game. The GitHub page includes links to a NuGet installation as well as a simple walk-through example of a top-down game.

Reed Kimble - "When you do things right, people won't be sure you've done anything at all"
