Azure DevOps Task for Azure Data Explorer

Azure DevOps Services provides development collaboration tools such as high-performance pipelines, free private Git repositories, configurable Kanban boards, and extensive automated and continuous testing capabilities. Azure Pipelines is an Azure DevOps capability that enables you to manage CI/CD to deploy your code with high-performance pipelines that work with any language, platform, and cloud. Azure Data Explorer - Pipeline Tools is the Azure Pipelines task that enables you to create release pipelines and deploy your database changes to your Azure Data Explorer databases. It's available for free in the Visual Studio Marketplace. This extension includes the following basic tasks:

• Azure Data Explorer Command - Run Admin Commands against an Azure Data Explorer cluster

• Azure Data Explorer Query - Run Queries against an Azure Data Explorer cluster and parse the results

• Azure Data Explorer Query Server Gate - Agentless task to Gate releases depending on the query outcome



This document describes a simple example on the use of the Azure Data Explorer - Pipeline Tools task to deploy your schema changes to your database. For complete CI/CD pipelines, refer to Azure DevOps documentation.

Prerequisites

• An Azure subscription. Create a free Azure account.
• An Azure Data Explorer cluster and database. Create a cluster and database.
• Azure Data Explorer cluster setup:
  • Create Microsoft Entra app by provisioning a Microsoft Entra application.
  • Grant access to your Microsoft Entra App on your Azure Data Explorer database by managing Azure Data Explorer database permissions.
• Azure DevOps setup:
  • Sign up for a free organization.
  • Create an organization.
  • Create a project in Azure DevOps.
  • Code with Git.
• Extension Installation:

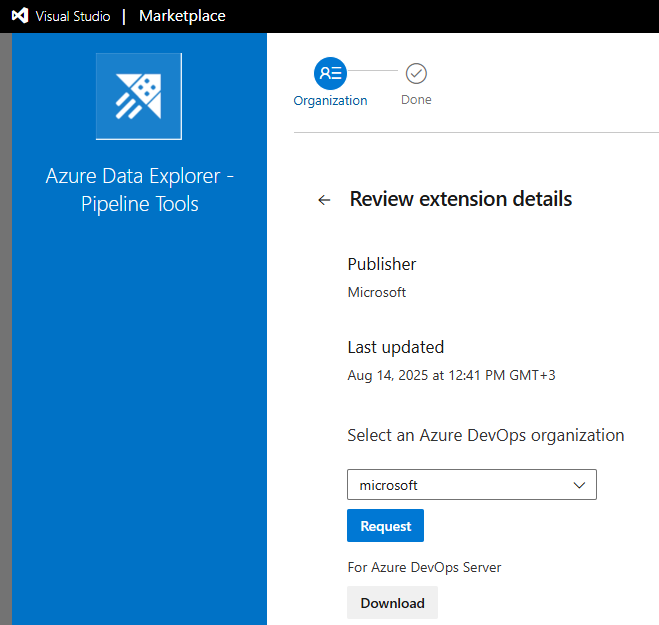

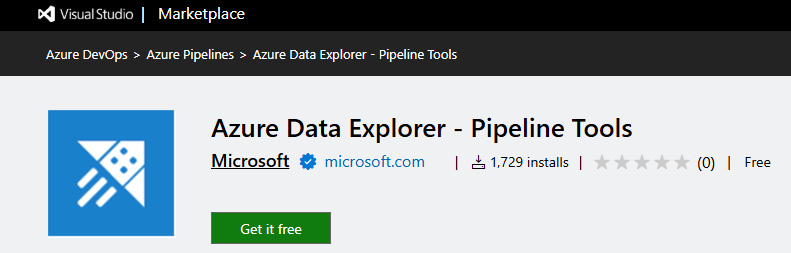

  • If you're the Azure DevOps instance owner, install the extension from the Marketplace, otherwise contact your Azure DevOps instance owner and ask them to install it.





Prepare your content for release

You can use the following methods to execute admin commands against a cluster within a task:

• Use a search pattern to get multiple command files from a local agent folder (Build sources or Release artifacts)

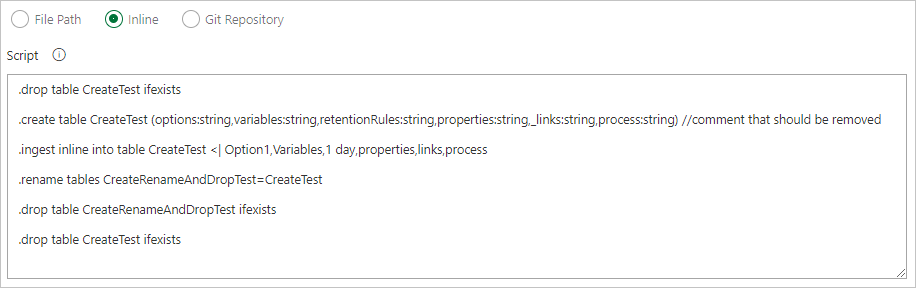

• Write commands inline

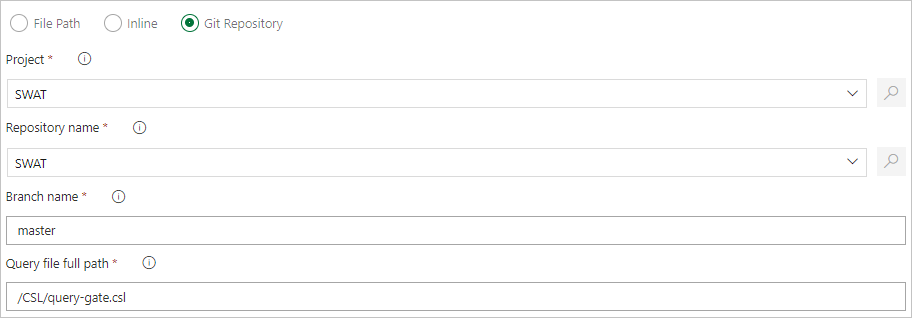

• Specify a file path to get command files directly from git source control (recommended)

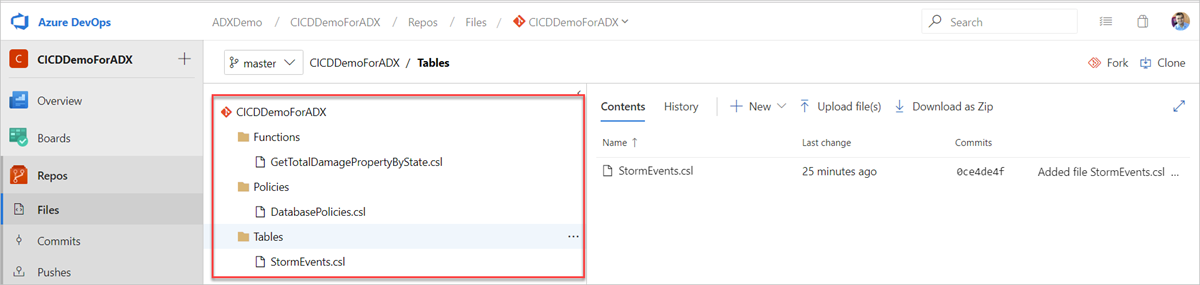

  Create the following sample folders (Functions, Policies, Tables) in your Git repository. Copy the files from the samples repo into the respective folders and commit the changes. The sample files are provided to execute the following workflow.



  Tip

  When creating your own workflow, we recommend making your code idempotent. For example, use .create-merge table instead of .create table, and use .create-or-alter function instead of .create function.

Create a release pipeline

1. Sign in to your Azure DevOps organization.

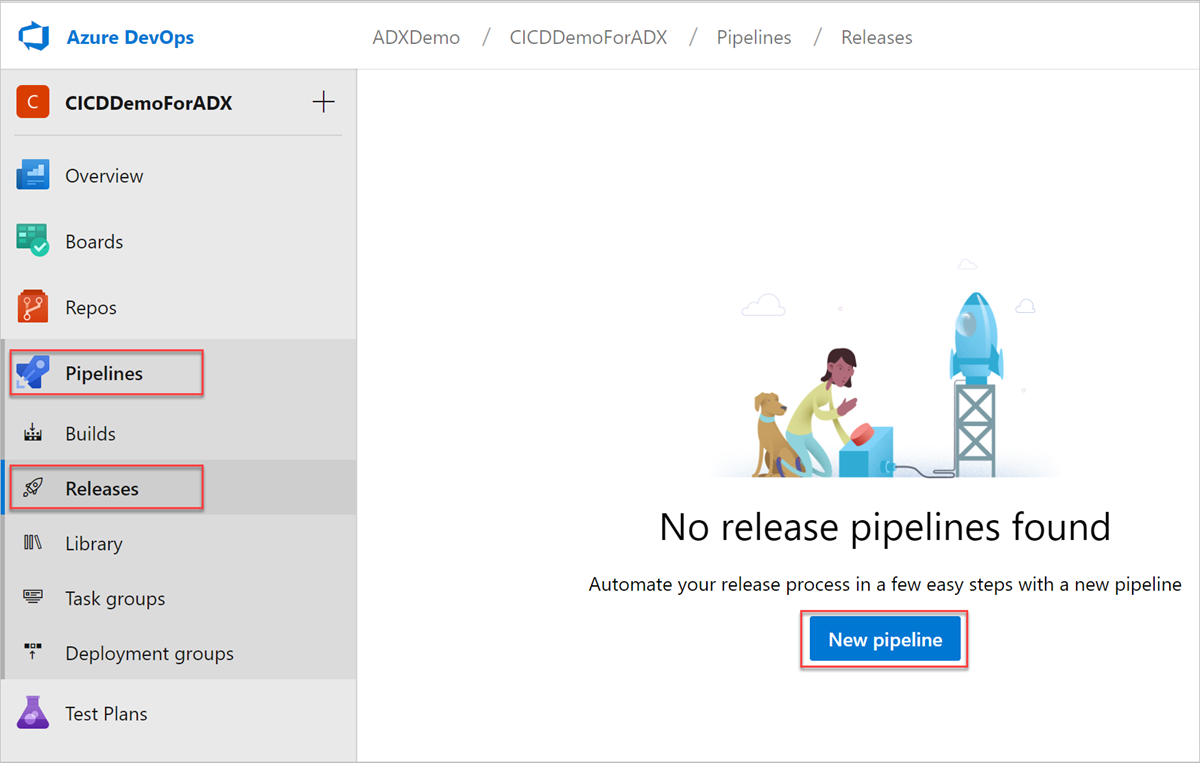

2. Select Pipelines > Releases from left-hand menu and select New pipeline.

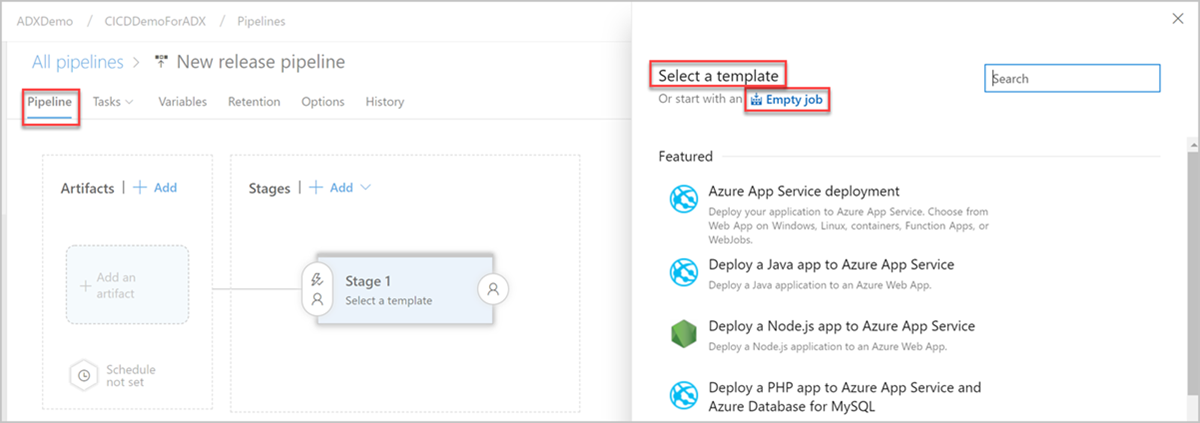

3. The New release pipeline window opens. In the Pipelines tab, in the Select a template pane, select Empty job.



4. Select Stage button. In Stage pane, add the Stage name. Select Save to save your pipeline.

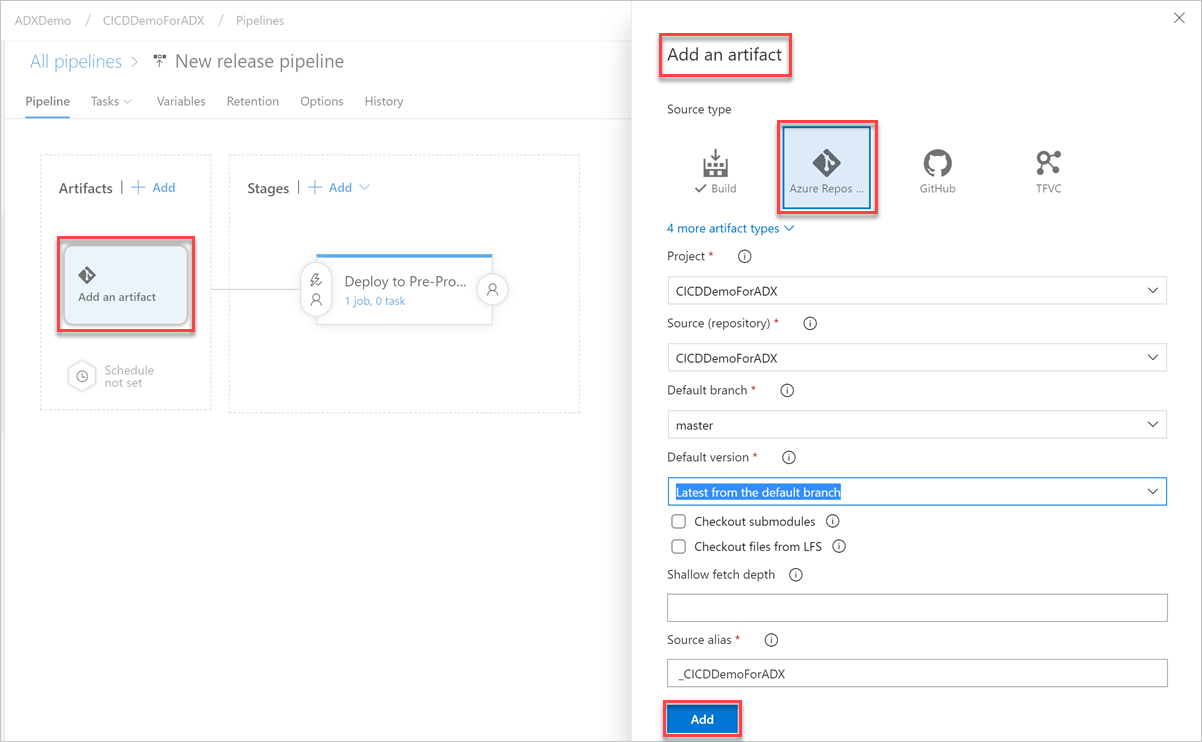

5. Select Add an artifact button. In the Add an artifact pane, select the repository where your code exists, fill out relevant information, and select Add. Select Save to save your pipeline.

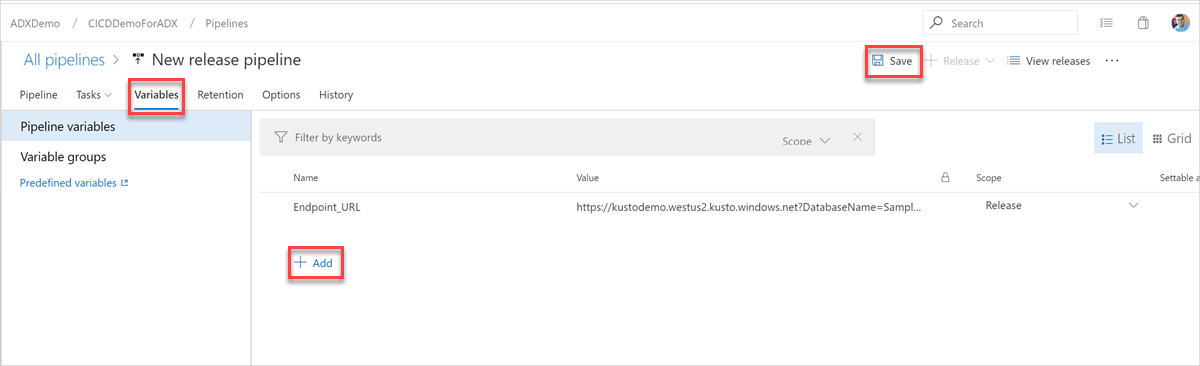

6. In the Variables tab, select + Add to create a variable for Endpoint URL that is used in the task. Write the Name and the Value of the endpoint. Select Save to save your pipeline.



   To find your endpoint URL, go to the overview page of your Azure Data Explorer cluster in the Azure portal and copy the cluster URI. Construct the variable URI in the following format https://<ClusterURI>?DatabaseName=<DBName>. For example, https://kustodocs.westus.kusto.windows.net?DatabaseName=SampleDB



Create a task deploy the folders

1. In the Pipeline tab, select on 1 job, 0 task to add tasks.



2. Repeat the following steps to create command tasks to deploy files from the Tables, Functions, and Policies folders:

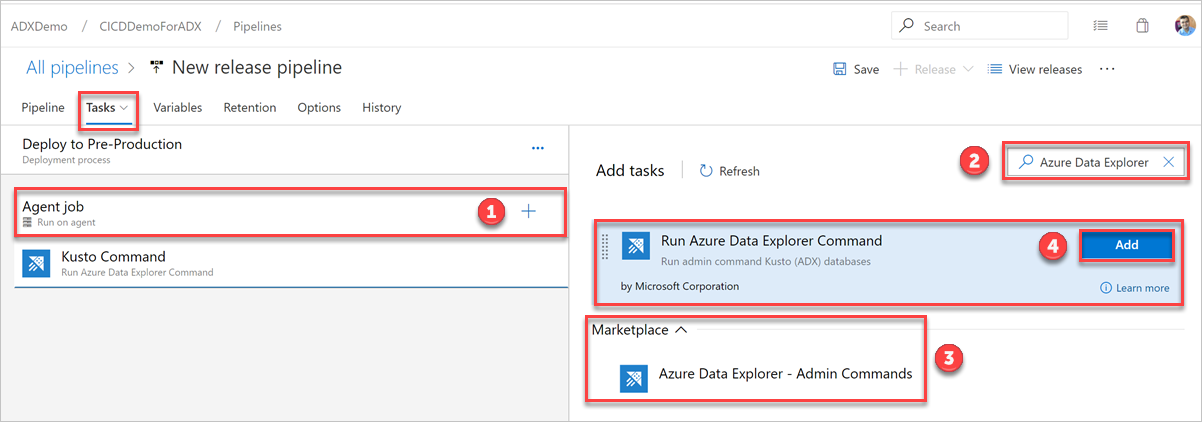

   1. In the Tasks tab, select + by Agent job and search for Azure Data Explorer.

   2. Under Run Azure Data Explorer Command, select Add.

   3. Select Kusto Command and update the task with the following information:

      • Display name: Name of the task. For example, Deploy <FOLDER> where <FOLDER> is the name of the folder for the deployment task you're creating.

      • File path: For each folder, specify the path as */<FOLDER>/*.csl where <FOLDER> is the relevant folder for the task.

      • Endpoint URL: Specify the EndPoint URL variable created in previous step.

      • Use Service Endpoint: Select this option.

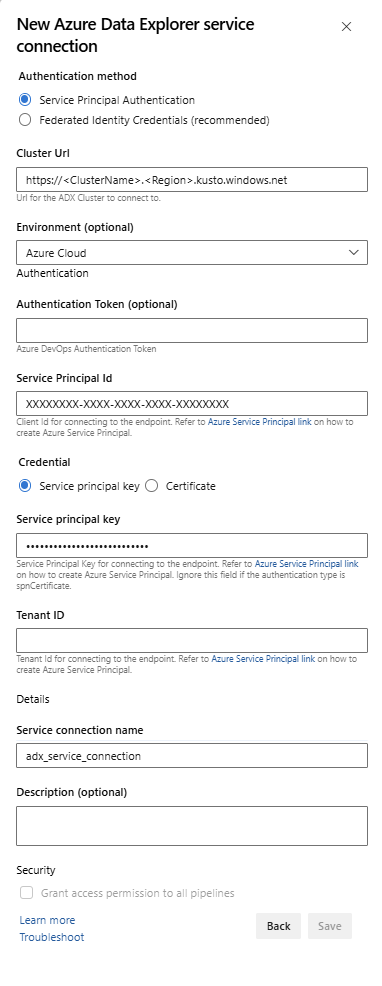

      • Service Endpoint: Select an existing service endpoint or create a new one (+ New) providing the following information in the Add Azure Data Explorer service connection window:

        Setting	Suggested value
        Authentication method	Set up Federated Identity Credentials (FIC) (recommended), or Select Service Principal Authentication (SPA).
        Connection name	Enter a name to identify this service endpoint
        Cluster Url	Value can be found in the overview section of your Azure Data Explorer Cluster in the Azure portal
        Service Principal Id	Enter the Microsoft Entra App ID (created as prerequisite)
        Service Principal App Key	Enter the Microsoft Entra App Key (created as prerequisite)
        Microsoft Entra tenant ID	Enter your Microsoft Entra tenant (such as microsoft.com or contoso.com)

      Select Allow all pipelines to use this connection checkbox and then select OK.

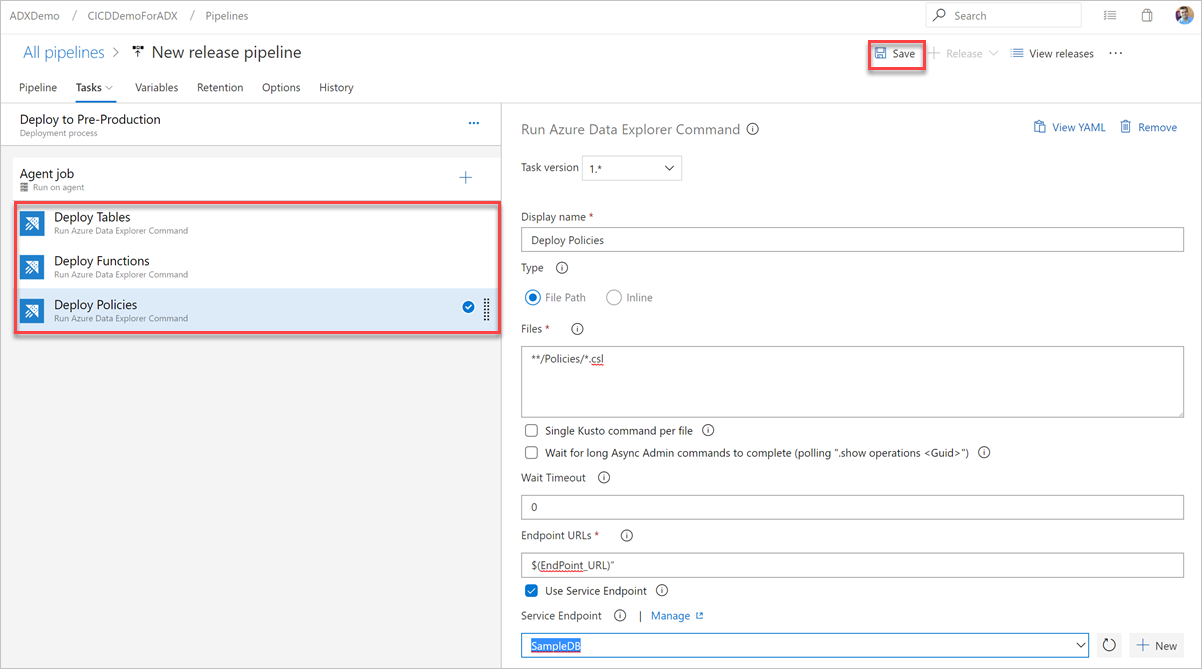

3. Select Save and then in the Tasks tab, verify that there are three tasks: Deploy Tables, Deploy Functions, and Deploy Policies.



Create a Query task

If necessary, create a task to run a query against the cluster. Running queries in a Build or Release pipeline can be used to validate a dataset and have a step succeed or fail based on the query results. The tasks success criteria can be based on a row count threshold or a single value depending on what the query returns.

1. In the Tasks tab, select + by Agent job and search for Azure Data Explorer.

2. Under Run Azure Data Explorer Query, select Add.

3. Select Kusto Query and update the task with the following information:

   • Display name: Name of the task. For example, Query cluster.
   • Type: Select Inline.
   • Query: Enter the query you want to run.
   • Endpoint URL: Specify the EndPoint URL variable created earlier.
   • Use Service Endpoint: Select this option.
   • Service Endpoint: Select a service endpoint.



4. Under Task Results, select the task's success criteria based on the results of your query, as follows:

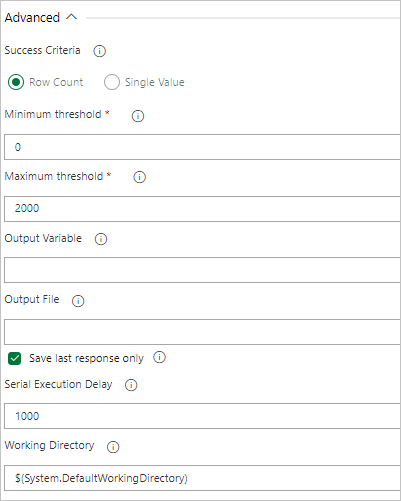

   • If your query returns rows, select Row Count and provide the criteria you require.



   • If your query returns a value, select Single Value and provide the expected result.



Create a Query Server Gate task

If necessary, create a task to run a query against a cluster and gate the release progress pending Query Results Row Count. The Server Query Gate task is an agentless job, meaning that the query runs directly on the Azure DevOps Server.

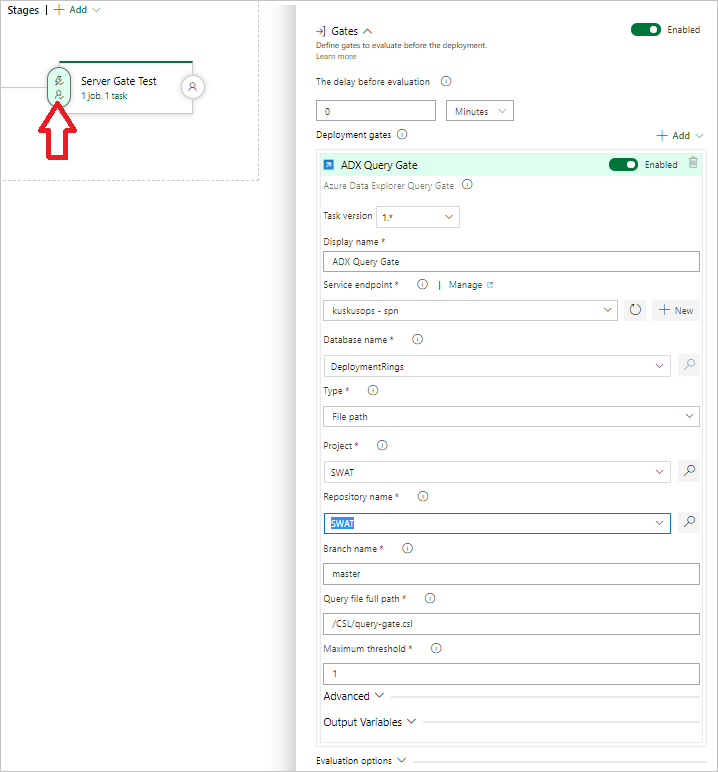

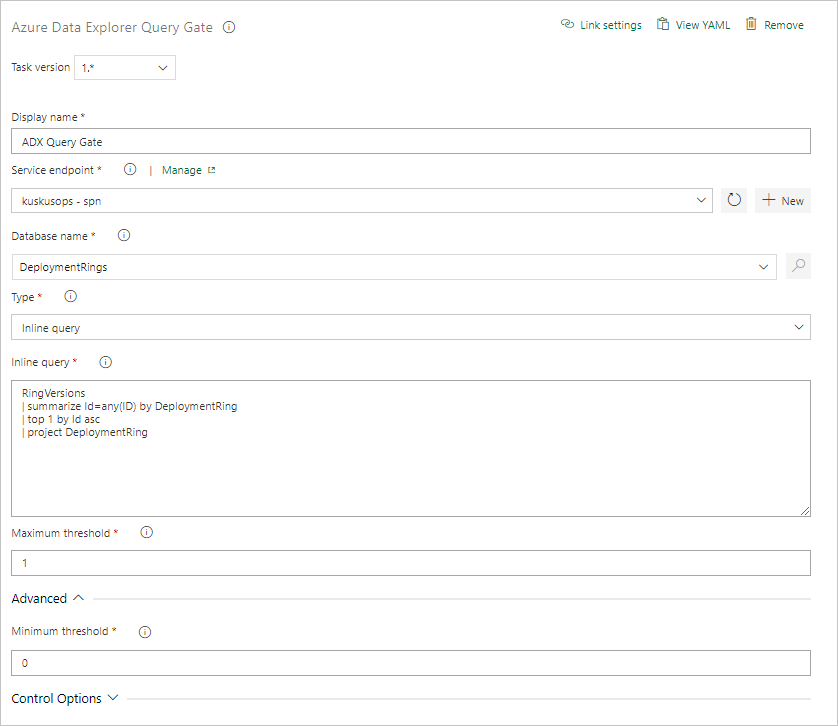

1. In the Tasks tab, select + by Agentless job and search for Azure Data Explorer.

2. Under Run Azure Data Explorer Query Server Gate, select Add.

3. Select Kusto Query Server Gate and then select Server Gate Test.



4. Configure the task providing the following information:

   • Display name: Name of the gate.
   • Service Endpoint: Select a service endpoint.
   • Database name: Specify the database name.
   • Type: Select Inline query.
   • Query: Enter the query you want to run.
   • Maximum threshold: Specify the maximum row count for the query's success criteria.



Note

You should see results like the following When running the release.

Run the release

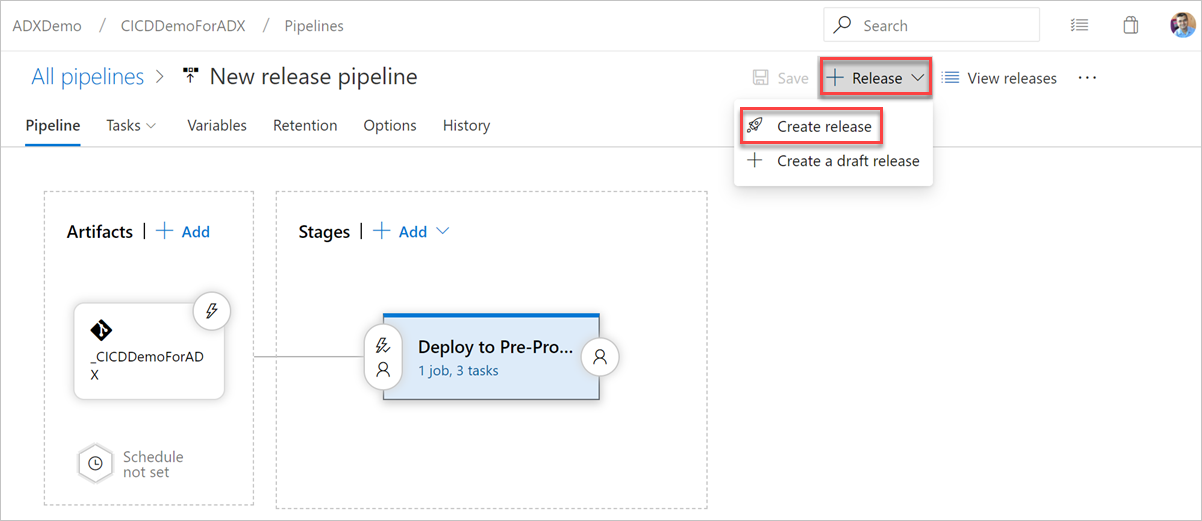

1. Select + Release > Create release to create a release.

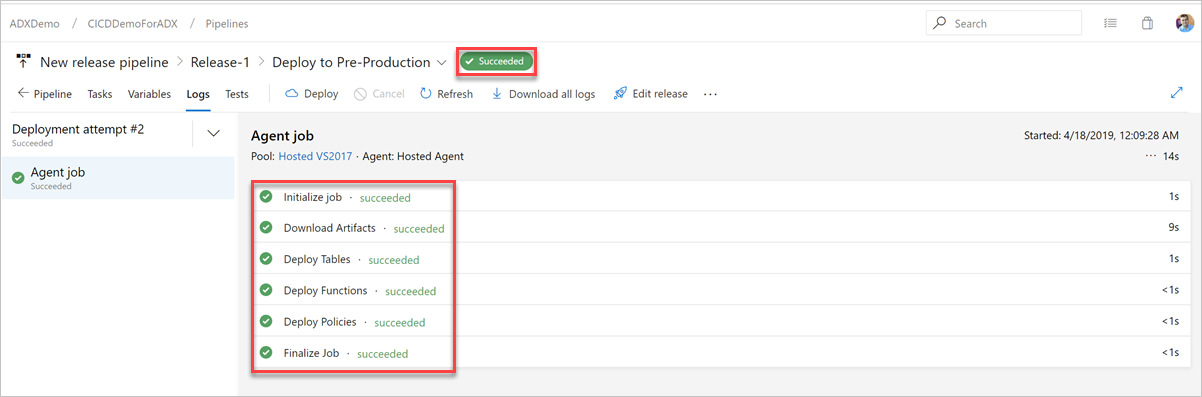

2. In the Logs tab, check the deployment status is successful.



Now the creation of a release pipeline for deployment to preproduction is complete.

Keyless authentication support for Azure Data Explorer DevOps tasks

The extension supports keyless authentication for Azure Data Explorer clusters. Keyless authentication allows you to authenticate to Azure Data Explorer clusters without using a key and is more secure and easier to manage than using a key.

Use Federated Identity Credentials (FIC) authentication in an Azure Data Explorer service connection

1. In your DevOps instance, go to Project Settings > Service connections > New service connection > Azure Data Explorer.

2. Select Federated Identity Credentials, and enter your cluster URL, service principal ID, tenant ID, a service connection name, and then select Save.

3. In the Azure portal, open the Microsoft Entra app for the specified service principal.

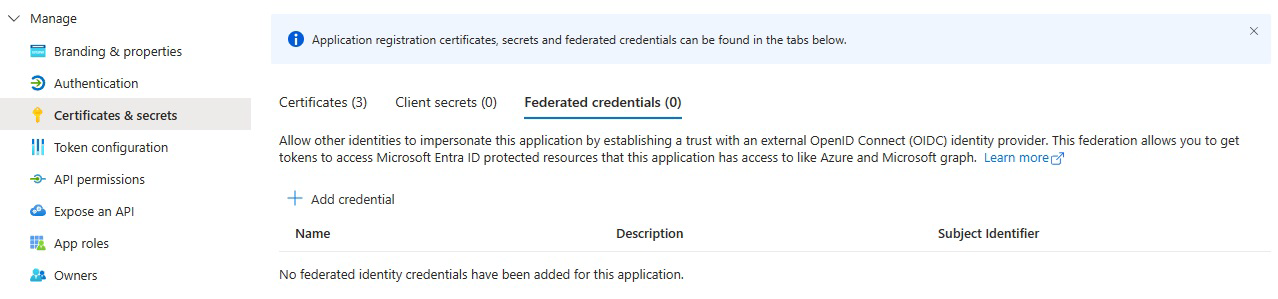

4. Under Certificates & secrets, select Federated credentials.

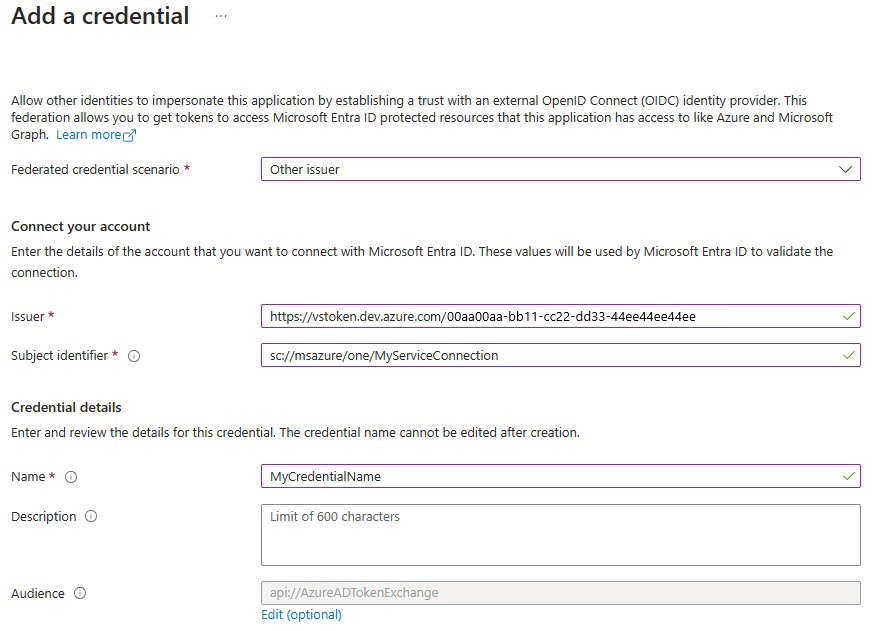

5. Select Add credential and then for Federated credential scenario, select Other issuer, and fill out the settings using the following information:

   • Issuer: <https://vstoken.dev.azure.com/{System.CollectionId}> where {System.CollectionId} is the collection ID of your Azure DevOps organization. You can find the collection ID in the following ways:

     • In the Azure DevOps classic release pipeline, select Initialize job. The collection ID is displayed in the logs.

   • Subject identifier: <sc://{DevOps_Org_name}/{Project_Name}/{Service_Connection_Name}> where {DevOps_Org_name} is the Azure DevOps organization name, {Project_Name} is the project name, and {Service_Connection_Name} is the service connection name you created earlier.

     Note

     If there is space in your service connection name, you can using it with space in the field. For example: sc://MyOrg/MyProject/My Service Connection.

   • Name: Enter a name for the credential.



6. Select Add.

Use Federated Identity Credentials or Managed Identity in an Azure Resource Manager (ARM) service connection

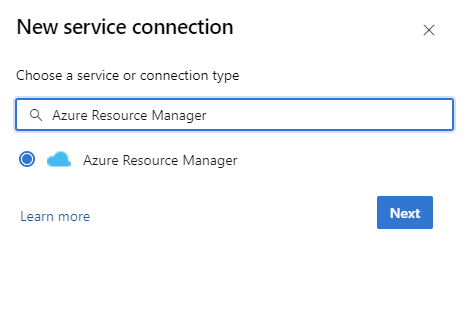

1. In your DevOps instance, go to Project Settings > Service connections > New service connection > Azure Resource Manager.

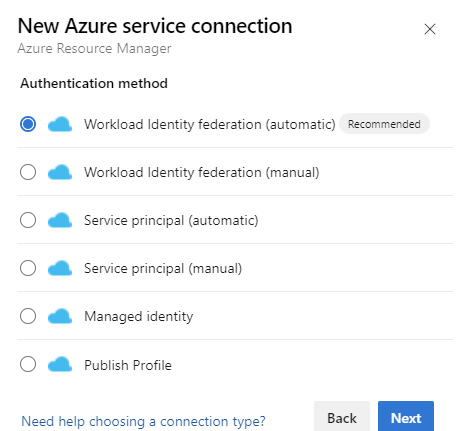

2. Under Authentication method, select Workload Identity Federation (automatic). Alternatively, you can use the manual Workload Identity Federation (manual) option to specify the Workload Identity Federation details, or use the Managed Identity option. For more information about setting up a managed identity using Azure Resource Management, see Azure Resource Manager (ARM) Service Connections.



3. Fill out the required details, select Verify, and then select Save.

Yaml Pipeline configuration

The tasks can be configured both via Azure DevOps Web UI and via Yaml code within the pipeline schema.

Admin command sample usage

steps:
- task: Azure-Kusto.PublishToADX.PublishToADX.PublishToADX@4
  displayName: '<Task Name>'
  inputs:
    targetType: 'inline'
    script: '<inline Script>'
    waitForOperation: true
    kustoUrls: '$(CONNECTIONSTRING):443?DatabaseName=""'
    authType: 'armserviceconn'
    connectedServiceARM: '<ARM Service Endpoint Name>'
    serialDelay: 1000
  continueOnError: true
  condition: ne(variables['ProductVersion'], '') ## Custom condition Sample

Query sample usage

steps:
- task: Azure-Kusto.PublishToADX.ADXQuery.ADXQuery@4
  displayName: '<Task Display Name>'
  inputs:
    targetType: 'inline'
    script: |
     let badVer=
     RunnersLogs | where Timestamp > ago(30m)
         | where EventText startswith "$$runnerresult" and Source has "ShowDiagnostics"
         | extend State = extract(@"Status='(.*)', Duration.*",1, EventText)
         | where State == "Unhealthy"
         | extend Reason = extract(@'"NotHealthyReason":"(.*)","IsAttentionRequired.*',1, EventText)
         | extend Cluster = extract(@'Kusto.(Engine|DM|CM|ArmResourceProvider).(.*).ShowDiagnostics',2, Source)
         | where Reason != "Merge success rate past 60min is < 90%"
         | where Reason != "Ingestion success rate past 5min is < 90%"
         | where Reason != "Ingestion success rate past 5min is < 90%, Merge success rate past 60min is < 90%"
         | where isnotempty(Cluster)
         | summarize max(Timestamp) by Cluster,Reason
         | order by  max_Timestamp desc
         | where Reason startswith "Differe"
         | summarize by Cluster
     ;
      DimClusters | where Cluster in (badVer)
     | summarize by Cluster , CmConnectionString , ServiceConnectionString ,DeploymentRing
     | extend ServiceConnectionString = strcat("#connect ", ServiceConnectionString)
     | where DeploymentRing == "$(DeploymentRing)"
    kustoUrls: 'https://<ClusterName>.kusto.windows.net?DatabaseName=<DataBaneName>'
    authType: 'kustoserviceconn'
    connectedServiceName: '<connection service name>'
    minThreshold: '0'
    maxThreshold: '10'
  continueOnError: true
