Pricing example: Data integration in Azure Data Factory Managed VNET

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

In this scenario, you want to delete original files on Azure Blob Storage and copy data from Azure SQL Database to Azure Blob Storage on an hourly schedule for 8 hours per day. We calculate the price for 30 days. You do this execution twice on different pipelines for each run. The execution time of these two pipelines is overlapping.

The prices used in this example are hypothetical and aren't intended to imply exact actual pricing. Read/write and monitoring costs aren't shown since they're typically negligible and won't impact overall costs significantly. Activity runs are also rounded to the nearest 1000 in pricing calculator estimates.

Refer to the Azure Pricing Calculator for more specific scenarios and to estimate your future costs to use the service.

Configuration

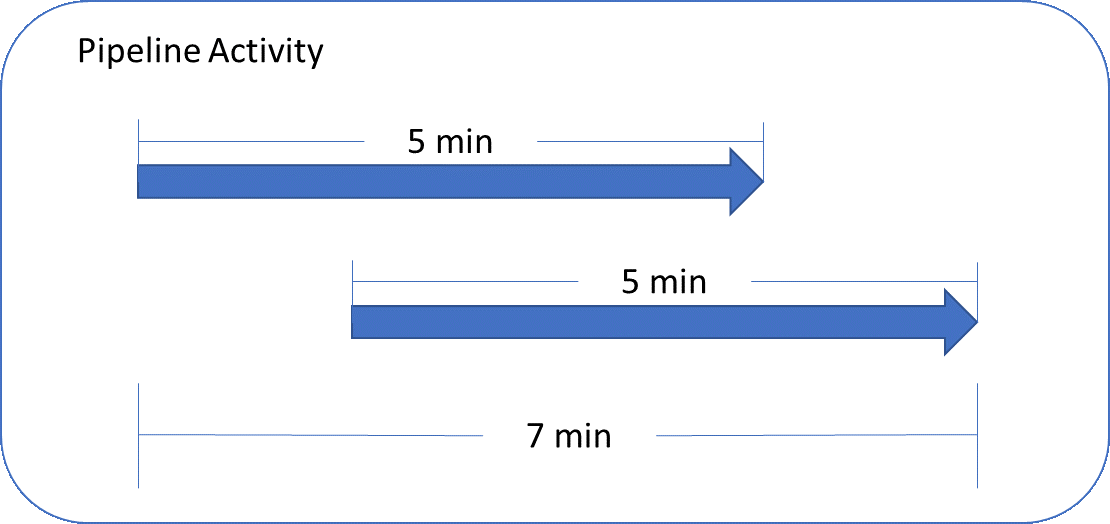

Diagram showing overlapping pipeline activity. To accomplish the scenario, you need to create two pipelines with the following items:

  • A pipeline activity - Delete Activity.
  • A copy activity with an input dataset for the data to be copied from Azure Blob storage.
  • An output dataset for the data on Azure SQL Database.
  • A schedule trigger to execute the pipeline. When you want to run a pipeline, you can either trigger it immediately or schedule it. In addition to the pipeline itself, each trigger instance counts as a single Activity run.

Costs estimation

Operations Types and Units
Run Pipeline 6 Activity runs per execution (2 for trigger runs, 4 for activity runs) = 1440, rounded up since the calculator only allows increments of 1000.
Execute Delete Activity: pipeline execution time per execution = 7 min. If the Delete Activity execution in the first pipeline is from 10:00 AM UTC to 10:05 AM UTC and the Delete Activity execution in second pipeline is from 10:02 AM UTC to 10:07 AM UTC. Total (7 min + 60 min) / 60 min * 30 monthly executions = 33.5 pipeline activity execution hours in Managed VNET. Pipeline activity supports up to 50 concurrent executions per node in Managed VNET. There's a 60 minutes Time To Live (TTL) for pipeline activity.
Copy Data Assumption: DIU execution time per execution = 10 min if the Copy execution in first pipeline is from 10:06 AM UTC to 10:15 AM UTC and the Copy Activity execution in second pipeline is from 10:08 AM UTC to 10:17 AM UTC. [(10 min + 2 min (queue time charges up to 2 minutes)) / 60 min * 4 Azure Managed VNET Integration Runtime (default DIU setting = 4)] * 2 = 1.6 daily data movement activity execution hours in Managed VNET. For more information on data integration units and optimizing copy performance, see this article

Pricing calculator example

Total scenario pricing for 30 days: $83.50

Screenshot of the pricing calculator configured for data integration with Managed VNET.
