Handle content types in Azure Logic Apps

Applies to: Azure Logic Apps (Consumption + Standard)

Various content types can flow through a logic app, for example, JSON, XML, flat files, and binary data. While Logic Apps supports all content types, some have native support and don't require casting or conversion in your logic apps. Other types might require casting or conversion as necessary. This article describes how Logic Apps handles content types and how you can correctly cast or convert these types when necessary.

To determine the appropriate way for handling content types, Logic Apps relies on the Content-Type header value in HTTP calls, for example:

application/json

Logic Apps stores and handles any request with the application/json content type as a JavaScript Notation (JSON) object. By default, you can parse JSON content without any casting. To parse a request that has a header with the "application/json" content type, you can use an expression. This example returns the value dog from the animal-type array without casting:

@body('myAction')['animal-type'][0]

{
  "client": {
     "name": "Fido",
     "animal-type": [ "dog", "cat", "rabbit", "snake" ]
  }
}

If you're working with JSON data that doesn't specify a header, you can manually cast that data to JSON by using the json() function, for example:

@json(triggerBody())['animal-type']

Create tokens for JSON properties

Logic Apps provides the capability for you to generate user-friendly tokens that represent the properties in JSON content so you can reference and use those properties more easily in your logic app's workflow.

  • Request trigger

    When you use this trigger in the Logic App Designer, you can provide a JSON schema that describes the payload you expect to receive. The designer parses JSON content by using this schema and generates user-friendly tokens that represent the properties in your JSON content. You can then easily reference and use those properties throughout your logic app's workflow.

    If you don't have a schema, you can generate the schema.

    1. In the Request trigger, select Use sample payload to generate schema.

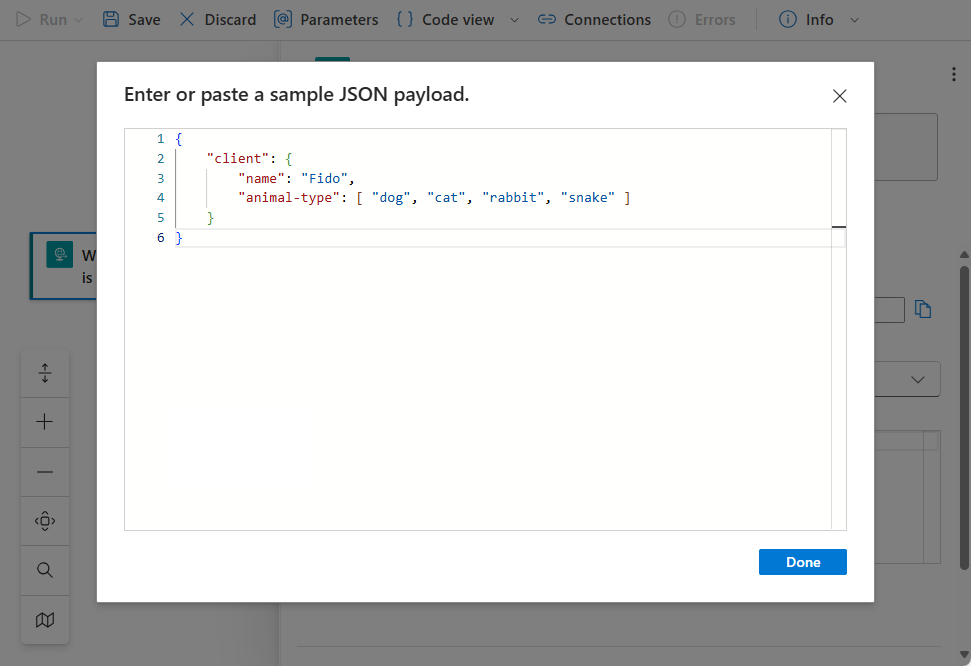

    2. Under Enter or paste a sample JSON payload, provide a sample payload and then choose Done. For example:

      Screenshot that shows the "When a HTTP request is received" action with a sample JSON payload.

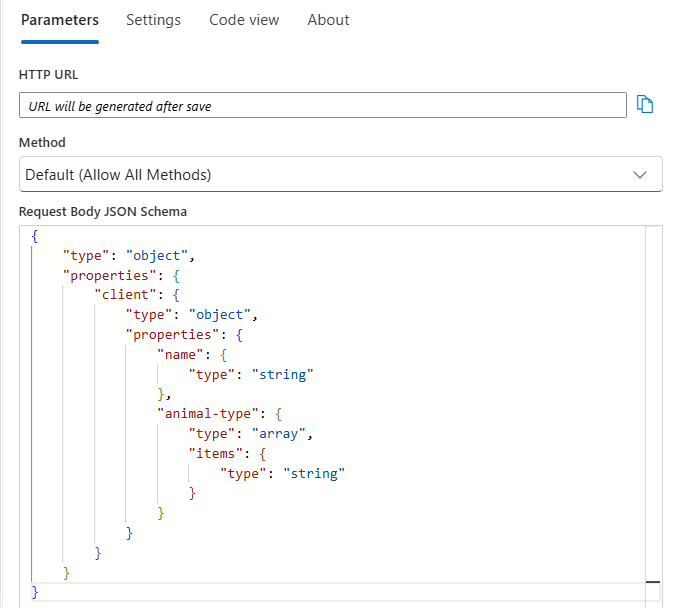

      The generated schema now appears in your trigger.

      Provide sample JSON payload

      Here is the underlying definition for your Request trigger in the code view editor:

      "triggers": {
         "manual": {
            "type": "Request",
            "kind": "Http",
            "inputs": {
               "schema": {
                  "type": "object",
                  "properties": {
                     "client": {
                        "type": "object",
                        "properties": {
                           "animal-type": {
                              "type": "array",
                              "items": {
                                 "type": "string"
                              },
                           },
                           "name": {
                              "type": "string"
                           }
                        }
                     }
                  }
               }
            }
         }
      }

    3. In the HTTP request that your client app sends to Azure Logic Apps, make sure that you include a header named Content-Type, and set the header's value to application/json.

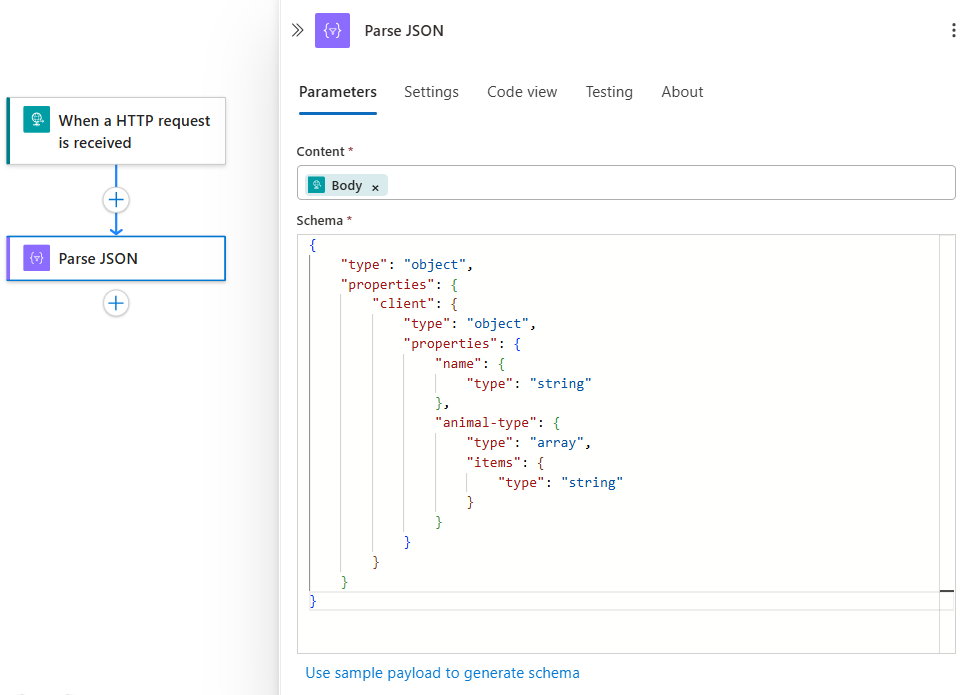

  • Parse JSON action

    When you use this action in the Logic App Designer, you can parse JSON output and generate user-friendly tokens that represent the properties in your JSON content. You can then easily reference and use those properties throughout your logic app's workflow. Similar to the Request trigger, you can provide or generate a JSON schema that describes the JSON content you want to parse. That way, you can more easily consume data from Azure Service Bus, Azure Cosmos DB, and so on.

    Parse JSON

text/plain

When your logic app receives HTTP messages that have the Content-Type header set to text/plain, your logic app stores those messages in raw form. If you include these messages in subsequent actions without casting, requests go out with the Content-Type header set to text/plain.

For example, when you're working with a flat file, you might get an HTTP request with the Content-Type header set to text/plain content type:

Date,Name,Address
Oct-1,Frank,123 Ave

If you then send this request on in a later action as the body for another request, for example, @body('flatfile'), that second request also has a Content-Type header that's set to text/plain. If you're working with data that is plain text but didn't specify a header, you can manually cast that data to text by using the string() function such as this expression:

@string(triggerBody())

application/xml and application/octet-stream

Logic Apps always preserves the Content-Type in a received HTTP request or response. So if your logic app receives content with Content-Type set to application/octet-stream, and you include that content in a later action without casting, the outgoing request also has Content-Type set to application/octet-stream. That way, Logic Apps can guarantee that data doesn't get lost while moving through the workflow. However, the action state, or inputs and outputs, is stored in a JSON object while the state moves through the workflow.

Converter functions

To preserve some data types, Logic Apps converts content to a binary base64-encoded string with appropriate metadata that preserves both the $content payload and the $content-type, which are automatically converted.

This list describes how Logic Apps converts content when you use these functions:

  • json(): Casts data to application/json
  • xml(): Casts data to application/xml
  • binary(): Casts data to application/octet-stream
  • string(): Casts data to text/plain
  • base64(): Converts content to a base64-encoded string
  • base64toString(): Converts a base64-encoded string to text/plain
  • base64toBinary(): Converts a base64-encoded string to application/octet-stream
  • dataUri(): Converts a string to a data URI
  • dataUriToBinary(): Converts a data URI to a binary string
  • dataUriToString(): Converts a data URI to a string

For example, if you receive an HTTP request where Content-Type set to application/xml, such as this content:

<?xml version="1.0" encoding="UTF-8" ?>
<CustomerName>Frank</CustomerName>

You can cast this content by using the @xml(triggerBody()) expression with the xml() and triggerBody() functions and then use this content later. Or, you can use the @xpath(xml(triggerBody()), '/CustomerName') expression with the xpath() and xml() functions.

Other content types

Logic Apps works with and supports other content types, but might require that you manually get the message body by decoding the $content variable.

For example, suppose your logic app gets triggered by a request with the application/x-www-url-formencoded content type. To preserve all the data, the $content variable in the request body has a payload that's encoded as a base64 string:

CustomerName=Frank&Address=123+Avenue

Because the request isn't plain text or JSON, the request is stored in the action as follows:

"body": {
   "$content-type": "application/x-www-url-formencoded",
   "$content": "AAB1241BACDFA=="
}

Logic Apps provides native functions for handling form data, for example:

Or, you can manually access the data by using an expression such as this example:

@string(body('formdataAction'))

If you wanted the outgoing request to have the same application/x-www-url-formencoded content type header, you can add the request to the action's body without any casting by using an expression such as @body('formdataAction'). However, this method only works when the body is the only parameter in the body input. If you try to use the @body('formdataAction') expression in an application/json request, you get a runtime error because the body is sent encoded.
