Setting up package restore with Team Foundation Build

  • מאמר

This article provides a detailed walkthrough on how to restore packages as part of the Team Services Build both, for both Git and Team Services Version Control.

Although this walkthrough is specific for the scenario of using Visual Studio Team Services, the concepts also apply to other version control and build systems.

Applies To:

  • Custom MSBuild projects running on any version of TFS
  • Team Foundation Server 2012 or earlier
  • Custom Team Foundation Build Process Templates migrated to TFS 2013 or later
  • Build Process Templates With Nuget Restore functionality removed

If you're using Visual Studio Team Services or Team Foundation Server 2013 with its build process templates, automatic package restore happens as part of the build process.

The general approach

An advantage of using NuGet is that you can use it to avoid checking in binaries to your version control system.

This is especially interesting if you are using a distributed version control system like git because developers need to clone the entire repository, including the full history, before they can start working locally. Checking in binaries can cause significant repository bloat as binary files are typically stored without delta compression.

NuGet has supported restoring packages as part of the build for a long time now. The previous implementation had a chicken-and-egg problem for packages that want to extend the build process because NuGet restored packages while building the project. However, MSBuild doesn't allow extending the build during the build; one could argue that this an issue in MSBuild but I would argue that this is an inherent problem. Depending on which aspect you need to extend it might be too late to register by the time your package is restored.

The cure to this problem is making sure that packages are restored as the first step in the build process:

nuget restore path\to\solution.sln

When your build process restores packages before building the code, you don't need to check-in .targets files

Note

Packages must be authored to allow loading in Visual Studio. Otherwise, you may still want to check in .targets files so that other developers can simply open the solution without having to restore packages first.

The following demo project shows how to set up the build in such a way that the packages folders and .targets files don't need to be checked-in. It also shows how to set up an automated build on the Team Foundation Service for this sample project.

Repository structure

Our demo project is a simple command line tool that uses the command line argument to query Bing. It targets the .NET Framework 4 and uses many of the BCL packages (Microsoft.Net.Http, Microsoft.Bcl, Microsoft.Bcl.Async, and Microsoft.Bcl.Build).

The structure of the repository looks as follows:

<Project>
    │   .gitignore
    │   .tfignore
    │   build.proj
    │
    ├───src
    │   │   BingSearcher.sln
    │   │
    │   └───BingSearcher
    │       │   App.config
    │       │   BingSearcher.csproj
    │       │   packages.config
    │       │   Program.cs
    │       │
    │       └───Properties
    │               AssemblyInfo.cs
    │
    └───tools
        └───NuGet
                nuget.exe

You can see that we haven't checked-in the packages folder nor any .targets files.

We have, however, checked-in the nuget.exe as it's needed during the build. Following widely used conventions we've checked it in under a shared tools folder.

The source code is under the src folder. Although our demo only uses a single solution, you can easily imagine that this folder contains more than one solution.

Ignore files

Note

There is currently a [known bug in the NuGet client](https://nuget.codeplex.com/workitem/4072) that causes the client to still add the packages folder to version control. A workaround is to disable the source control integration. In order to do that, you need a Nuget.Config file in the .nuget folder that is parallel to your solution. If this folder doesn't exist yet, you need to create it. In Nuget.Config, add the following content:

<configuration>
    <solution>
        <add key="disableSourceControlIntegration" value="true" />
    </solution>
</configuration>

To communicate to version control that we don’t intent to check-in the packages folders, we've also added ignore files for both git (.gitignore) as well as TF version control (.tfignore). These files describe patterns of files you don't want to check-in.

The .gitignore file looks as follows:

syntax: glob
*.user
*.suo
bin
obj
packages
*.nupkg
project.lock.json
project.assets.json

The .gitignore file is quite powerful. For example, if you want to generally not check-in the contents of the packages folder but want to go with previous guidance of checking in the .targets files you could have the following rule instead:

packages
!packages/**/*.targets

This will exclude all packages folders but will re-include all contained .targets files. By the way, you can find a template for .gitignore files that is specifically tailored for the needs of Visual Studio developers here.

TF version control supports a very similar mechanism via the .tfignore file. The syntax is virtually the same:

*.user
*.suo
bin
obj
packages
*.nupkg
project.lock.json
project.assets.json

build.proj

For our demo, we keep the build process fairly simple. We'll create an MSBuild project that builds all solutions while making sure that packages are restored before building the solutions.

This project will have the three conventional targets Clean, Build and Rebuild as well as a new target RestorePackages.

  • The Build and Rebuild targets both depend on RestorePackages. This makes sure that you can both run Build and Rebuild and rely on packages being restored.
  • Clean, Build and Rebuild invoke the corresponding MSBuild target on all solution files.
  • The RestorePackages target invokes nuget.exe for each solution file. This is accomplished by using MSBuild's batching functionality.

The result looks as follows:

<?xml version="1.0" encoding="utf-8"?>
<Project ToolsVersion="4.0"
            DefaultTargets="Build"
            xmlns="http://schemas.microsoft.com/developer/msbuild/2003">

    <PropertyGroup>
    <OutDir Condition=" '$(OutDir)'=='' ">$(MSBuildThisFileDirectory)bin\</OutDir>
    <Configuration Condition=" '$(Configuration)'=='' ">Release</Configuration>
    <SourceHome Condition=" '$(SourceHome)'=='' ">$(MSBuildThisFileDirectory)src\</SourceHome>
    <ToolsHome Condition=" '$(ToolsHome)'=='' ">$(MSBuildThisFileDirectory)tools\</ToolsHome>
    </PropertyGroup>

    <ItemGroup>
    <Solution Include="$(SourceHome)*.sln">
        <AdditionalProperties>OutDir=$(OutDir);Configuration=$(Configuration)</AdditionalProperties>
    </Solution>
    </ItemGroup>

    <Target Name="RestorePackages">
    <Exec Command="&quot;$(ToolsHome)NuGet\nuget.exe&quot; restore &quot;%(Solution.Identity)&quot;" />
    </Target>

    <Target Name="Clean">
    <MSBuild Targets="Clean"
                Projects="@(Solution)" />
    </Target>

    <Target Name="Build" DependsOnTargets="RestorePackages">
    <MSBuild Targets="Build"
                Projects="@(Solution)" />
    </Target>

    <Target Name="Rebuild" DependsOnTargets="RestorePackages">
    <MSBuild Targets="Rebuild"
                Projects="@(Solution)" />
    </Target>
</Project>

Configuring Team Build

Team Build offers various process templates. For this demonstration, we're using the Team Foundation Service. On-premises installations of TFS will be very similar though.

Git and TF Version Control have different Team Build templates, so the following steps will vary depending on which version control system you are using. In both cases, all you need is selecting the build.proj as the project you want to build.

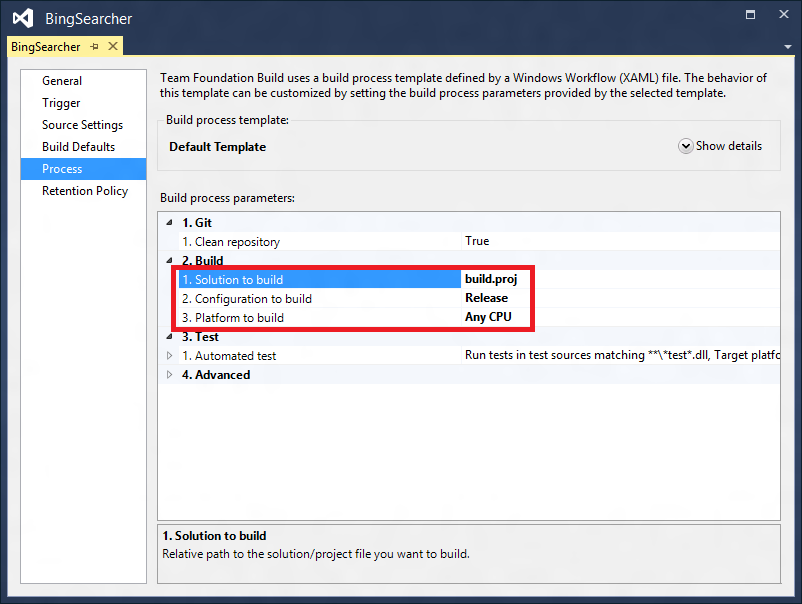

First, let's look at the process template for git. In the git based template the build is selected via the property Solution to build:

Build Process for git

Please note that this property is a location in your repository. Since our build.proj is in the root, we simply used build.proj. If you place the build file under a folder called tools, the value would be tools\build.proj.

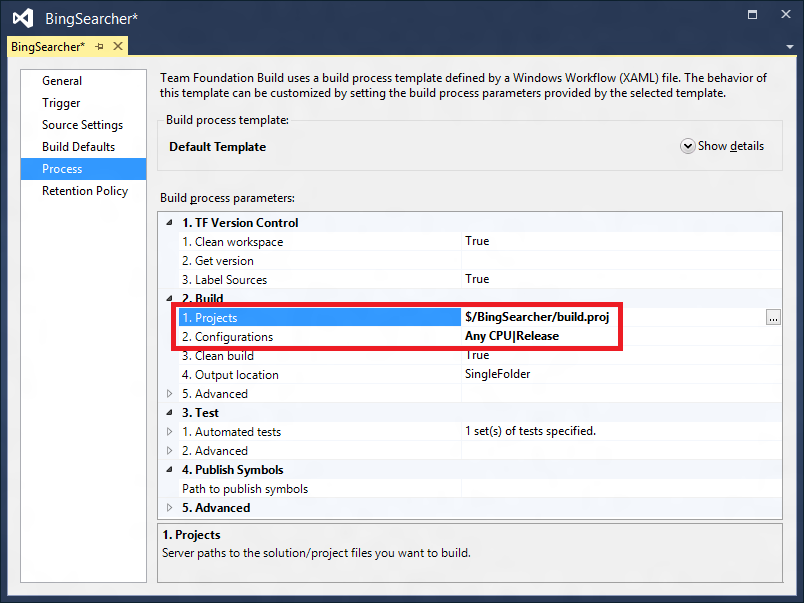

In the TF version control template the project is selected via the property Projects:

Build Process for TFVC

In contrast to the git based template the TF version control supports pickers (the button on the right hand side with the three dots). So in order to avoid any typing errors we suggest you use them to select the project.
