Android emulator troubleshooting

  • מאמר

This article describes the most common warning messages and issues that occur while configuring and running the Android Emulator. In addition, it describes solutions for resolving these errors as well as various troubleshooting tips to help you diagnose emulator problems.

Deployment issues on Windows

Some error messages may be displayed by the emulator when you deploy your app. The most common errors and solutions are explained here.

Deployment errors

If you see an error about a failure to install the APK on the emulator or a failure to run the Android Debug Bridge (adb), verify that the Android SDK can connect to your emulator. To verify emulator connectivity, use the following steps:

  1. Launch the emulator from the Android Device Manager (select your virtual device and click Start).

  2. Open a command prompt and go to the folder where adb is installed. If the Android SDK is installed at its default location, adb is located at C:\Program Files (x86)\Android\android-sdk\platform-tools\adb.exe; if not, modify this path for the location of the Android SDK on your computer.

  3. Type the following command:

    adb devices

  4. If the emulator is accessible from the Android SDK, the emulator should appear in the list of attached devices. For example:

    List of devices attached
emulator-5554   device

  5. If the emulator does not appear in this list, start the Android SDK Manager, apply all updates, then try launching the emulator again.

MMIO access error

If the message An MMIO access error has occurred is displayed, restart the emulator.

Missing Google Play Services

If the virtual device you are running in the emulator does not have Google Play Services or Google Play Store installed, this condition is often caused by creating a virtual device without including these packages. When you create a virtual device (see Managing Virtual Devices with the Android Device Manager), be sure to select one or both of the following options:

  • Google APIs – includes Google Play Services in the virtual device.
  • Google Play Store – includes Google Play Store in the virtual device.

For example, this virtual device will include Google Play Services and Google Play Store:

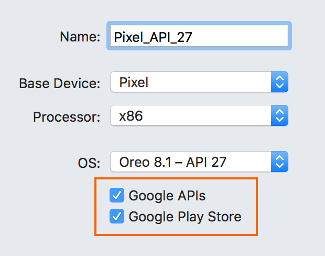

Example AVD with Google Play Services and Google Play Store enabled

Note

Google Play Store images are available only for some base device types such as Pixel, Pixel 2, Nexus 5, and Nexus 5X.

Performance issues

Performance issues are typically caused by one of the following problems:

  • The emulator is running without hardware acceleration.

  • The virtual device running in the emulator is not using an x86-based system image.

The following sections cover these scenarios in more detail.

Hardware acceleration is not enabled

If hardware acceleration is not enabled, starting a virtual device from the Device Manager will produce a dialog with an error message indicating that the Windows Hypervisor Platform (WHPX) is not configured properly:

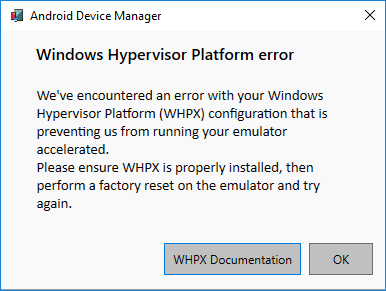

Example Device Manager warning

If this error message is displayed, see Hardware acceleration issues below for steps you can take to verify and enable hardware acceleration.

Acceleration is enabled but the emulator runs too slowly

A common cause for this problem is not using an x86-based image in your virtual device (AVD). When you create a virtual device (see Managing Virtual Devices with the Android Device Manager), be sure to select an x86-based system image:

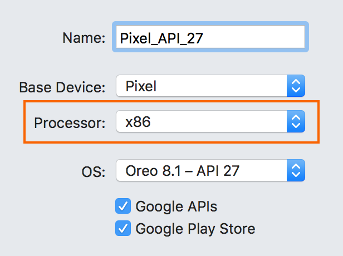

Selecting an x86 system image for a virtual device

Hardware acceleration issues

Whether you are using Hyper-V or HAXM for hardware acceleration, you may run into configuration problems or conflicts with other software on your computer. You can verify that hardware acceleration is enabled (and which acceleration method the emulator is using) by opening a command prompt and entering the following command:

"C:\Program Files (x86)\Android\android-sdk\emulator\emulator-check.exe" accel

This command assumes that the Android SDK is installed at the default location of C:\Program Files (x86)\Android\android-sdk; if not, modify the above path for the location of the Android SDK on your computer.

Hardware acceleration not available

If Hyper-V is available, a message like the following example will be returned from the emulator-check.exe accel command:

HAXM is not installed, but Windows Hypervisor Platform is available.

If HAXM is available, a message like the following example will be returned:

HAXM version 6.2.1 (4) is installed and usable.

If hardware acceleration is not available, a message like the following example will be displayed (the emulator looks for HAXM if it is unable to find Hyper-V):

HAXM is not installed on this machine

If hardware acceleration is not available, see Accelerating with Hyper-V to learn how to enable hardware acceleration on your computer.

Incorrect BIOS settings

If the BIOS has not been configured properly to support hardware acceleration, a message similar to the following example will be displayed when you run the emulator-check.exe accel command:

VT feature disabled in BIOS/UEFI

To correct this problem, reboot into your computer's BIOS and enable the following options:

  • Virtualization Technology (may have a different label depending on motherboard manufacturer).
  • Hardware Enforced Data Execution Prevention.

If hardware acceleration is enabled and the BIOS is configured properly, the emulator should run successfully with hardware acceleration. However, problems may still result due to issues that are specific to Hyper-V and HAXM, as explained next.

Hyper-V issues

In some cases, enabling both Hyper-V and Windows Hypervisor Platform in the Turn Windows features on or off dialog may not properly enable Hyper-V. To verify that Hyper-V is enabled, use the following steps:

  1. Enter powershell in the Windows search box.

  2. Right-click Windows PowerShell in the search results and select Run as administrator.

  3. In the PowerShell console, enter the following command:

    Get-WindowsOptionalFeature -FeatureName Microsoft-Hyper-V-All -Online

    If Hyper-V is not enabled, a message similar to the following example will be displayed to indicate that the state of Hyper-V is Disabled:

    FeatureName      : Microsoft-Hyper-V-All
DisplayName      : Hyper-V
Description      : Provides services and management tools for creating and running virtual machines and their resources.
RestartRequired  : Possible
State            : Disabled
CustomProperties :

  4. In the PowerShell console, enter the following command:

    Get-WindowsOptionalFeature -FeatureName HypervisorPlatform -Online

    If the Hypervisor is not enabled, a message similar to the following example will be displayed to indicate that the state of HypervisorPlatform is Disabled:

    FeatureName      : HypervisorPlatform
DisplayName      : Windows Hypervisor Platform
Description      : Enables virtualization software to run on the Windows hypervisor
RestartRequired  : Possible
State            : Disabled
CustomProperties :

If Hyper-V and/or HypervisorPlatform are not enabled, use the following PowerShell commands to enable them:

Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V -All
Enable-WindowsOptionalFeature -Online -FeatureName HypervisorPlatform -All

After these commands complete, reboot.

For more information about enabling Hyper-V (including techniques for enabling Hyper-V using the Deployment Image Servicing and Management tool), see Install Hyper-V.

HAXM issues

HAXM issues are often the result of conflicts with other virtualization technologies, incorrect settings, or an out-of-date HAXM driver.

HAXM process is not running

If HAXM is installed, you can verify that the HAXM process is running by opening a command prompt and entering the following command:

sc query intelhaxm

If the HAXM process is running, you should see output similar to the following result:

SERVICE_NAME: intelhaxm
    TYPE               : 1  KERNEL_DRIVER
    STATE              : 4  RUNNING
                            (STOPPABLE, NOT_PAUSABLE, IGNORES_SHUTDOWN)
    WIN32_EXIT_CODE    : 0  (0x0)
    SERVICE_EXIT_CODE  : 0  (0x0)
    CHECKPOINT         : 0x0
    WAIT_HINT          : 0x0

If STATE is not set to RUNNING, see How to Use the Intel Hardware Accelerated Execution Manager to resolve the problem.

HAXM virtualization conflicts

HAXM can conflict with other technologies that use virtualization, such as Hyper-V, Windows Device Guard, and some antivirus software:

  • Hyper-V – If you are using a version of Windows before the Windows 10 April 2018 update (build 1803) and Hyper-V is enabled, follow the steps in Disabling Hyper-V so that HAXM can be enabled.

  • Device Guard – Device Guard and Credential Guard can prevent Hyper-V from being disabled on Windows machines. To disable Device Guard and Credential Guard, see Disabling Device Guard.

  • Antivirus Software – If you are running antivirus software that uses hardware-assisted virtualization (such as Avast), disable or uninstall this software, reboot, and retry the Android emulator.

Incorrect BIOS settings

If you are using HAXM on a Windows PC, HAXM will not work unless virtualization technology (Intel VT-x) is enabled in the BIOS. If VT-x is disabled, you will get an error similar to the following when you attempt to start the Android Emulator:

This computer meets the requirements for HAXM, but Intel Virtualization Technology (VT-x) is not turned on.

To correct this error, boot the computer into the BIOS, enable both VT-x and SLAT (Second-Level Address Translation), then restart the computer back into Windows.

Disabling Hyper-V

If you are using a version of Windows before the Windows 10 April 2018 Update (build 1803) and Hyper-V is enabled, you must disable Hyper-V and reboot your computer to install and use HAXM. If you are using Windows 10 April 2018 Update (build 1803) or later, Android Emulator version 27.2.7 or later can use Hyper-V (instead of HAXM) for hardware acceleration, so it is not necessary to disable Hyper-V.

You can disable Hyper-V from the Control Panel by following these steps:

  1. Enter windows features in the Windows search box and select Turn Windows features on or off in the search results.

  2. Uncheck Hyper-V:

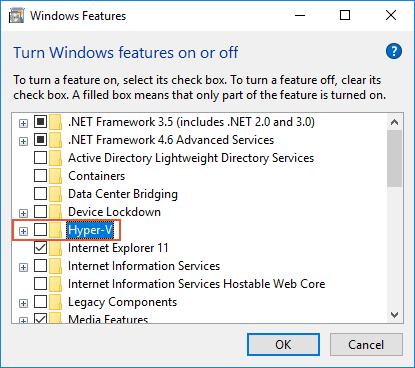

    Disabling Hyper-V in the Windows Features dialog

  3. Restart the computer.

Alternately, you can use the following PowerShell command to disable the Hyper-V Hypervisor:

Disable-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V-Hypervisor

Intel HAXM and Microsoft Hyper-V cannot both be active at the same time. Unfortunately, there is no way to switch between Hyper-V and HAXM without restarting your computer.

In some cases, using the above steps will not succeed in disabling Hyper-V if Device Guard and Credential Guard are enabled. If you are unable to disable Hyper-V (or it seems to be disabled but HAXM installation still fails), use the steps in the next section to disable Device Guard and Credential Guard.

Disabling Device Guard

Device Guard and Credential Guard can prevent Hyper-V from being disabled on Windows machines. This situation is often a problem for domain-joined machines that are configured and controlled by an owning organization. On Windows 10, use the following steps to see if Device Guard is running:

  1. Enter System info in the Windows search box and select System Information in the search results.

  2. In the System Summary, look to see if Device Guard Virtualization based security is present and is in the Running state:

    Device Guard is present and running

If Device Guard is enabled, use the following steps to disable it:

  1. Ensure that Hyper-V is disabled (under Turn Windows Features on or off) as described in the previous section.

  2. In the Windows Search Box, enter gpedit.msc and select the Edit group policy search result. These steps launch the Local Group Policy Editor.

  3. In the Local Group Policy Editor, navigate to Computer Configuration > Administrative Templates > System > Device Guard:

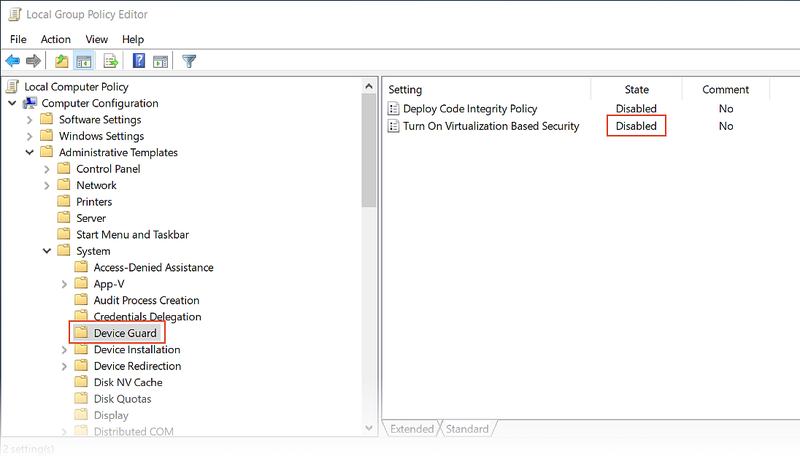

    Device Guard in Local Group Policy Editor

  4. Change Turn On Virtualization Based Security to Disabled (as shown above) and exit the Local Group Policy Editor.

  5. In the Windows Search Box, enter cmd. When Command Prompt appears in the search results, right-click Command Prompt and select Run as Administrator.

  6. Copy and paste the following commands into the command prompt window (if drive Z: is in use, pick an unused drive letter to use instead):

    mountvol Z: /s
copy %WINDIR%\System32\SecConfig.efi Z:\EFI\Microsoft\Boot\SecConfig.efi /Y
bcdedit /create {0cb3b571-2f2e-4343-a879-d86a476d7215} /d "DebugTool" /application osloader
bcdedit /set {0cb3b571-2f2e-4343-a879-d86a476d7215} path "\EFI\Microsoft\Boot\SecConfig.efi"
bcdedit /set {bootmgr} bootsequence {0cb3b571-2f2e-4343-a879-d86a476d7215}
bcdedit /set {0cb3b571-2f2e-4343-a879-d86a476d7215} loadoptions DISABLE-LSA-ISO,DISABLE-VBS
bcdedit /set {0cb3b571-2f2e-4343-a879-d86a476d7215} device partition=Z:
mountvol Z: /d

  7. Restart your computer. On the boot screen, you should see a prompt similar to the following message:

    Do you want to disable Credential Guard?

    Press the indicated key to disable Credential Guard as prompted.

  8. After the computer reboots, check again to ensure that Hyper-V is disabled (as described in the previous steps).

If Hyper-V is still not disabled, the policies of your domain-joined computer may prevent you from disabling Device Guard or Credential Guard. In this case, you can request an exemption from your domain administrator to allow you to opt out of Credential Guard. Alternately, you can use a computer that is not domain-joined if you must use HAXM.

Additional troubleshooting tips

The following suggestions are often helpful in diagnosing Android emulator issues.

Starting the emulator from the command line

If the emulator is not already running, you can start it from the command line (rather than from within Visual Studio) to view its output. Typically, Android emulator AVD images are stored at the following location (replace username with your Windows user name):

C:\Users\username\.android\avd

You can launch the emulator with an AVD image from this location by passing in the folder name of the AVD. For example, this command launches an AVD named Pixel_API_27:

"C:\Program Files (x86)\Android\android-sdk\emulator\emulator.exe" -partition-size 512 -no-boot-anim -verbose -feature WindowsHypervisorPlatform -avd Pixel_API_27 -prop monodroid.avdname=Pixel_API_27

This example assumes that the Android SDK is installed at the default location of C:\Program Files (x86)\Android\android-sdk; if not, modify the above path for the location of the Android SDK on your computer.

When you run this command, it will produce many lines of output while the emulator starts up. In particular, lines such as the following example will be printed if hardware acceleration is enabled and working properly (in this example, HAXM is used for hardware acceleration):

emulator: CPU Acceleration: working
emulator: CPU Acceleration status: HAXM version 6.2.1 (4) is installed and usable.

Viewing Device Manager logs

Often you can diagnose emulator problems by viewing the Device Manager logs. These logs are written to the following location:

C:\Users\username\AppData\Local\Xamarin\Logs\16.0

You can view each DeviceManager.log file by using a text editor such as Notepad. The following example log entry indicates that HAXM was not found on the computer:

Component Intel x86 Emulator Accelerator (HAXM installer) r6.2.1 [Extra: (Intel Corporation)] not present on the system

Deployment issues on macOS

Some error messages may be displayed by the emulator when you deploy your app. The most common errors and solutions are explained below.

Deployment errors

If you see an error about a failure to install the APK on the emulator or a failure to run the Android Debug Bridge (adb), verify that the Android SDK can connect to your emulator. To verify connectivity, use the following steps:

  1. Launch the emulator from the Android Device Manager (select your virtual device and click Start).

  2. Open a command prompt and go to the folder where adb is installed. If the Android SDK is installed at its default location, adb is located at ~/Library/Developer/Xamarin/android-sdk-macosx/platform-tools/adb; if not, modify this path for the location of the Android SDK on your computer.

  3. Type the following command:

    adb devices

  4. If the emulator is accessible from the Android SDK, the emulator should appear in the list of attached devices. For example:

    List of devices attached
emulator-5554   device

  5. If the emulator does not appear in this list, start the Android SDK Manager, apply all updates, then try launching the emulator again.

MMIO access error

If An MMIO access error has occurred is displayed, restart the emulator.

Missing Google Play Services

If the virtual device you are running in the emulator does not have Google Play Services or Google Play Store installed, this condition is usually caused by creating a virtual device without including these packages. When you create a virtual device (see Managing Virtual Devices with the Android Device Manager), be sure to select one or both of the following:

  • Google APIs – includes Google Play Services in the virtual device.
  • Google Play Store – includes Google Play Store in the virtual device.

For example, this virtual device will include Google Play Services and Google Play Store:

Example AVD with Google Play Services and Google Play Store enabled

Note

Google Play Store images are available only for some base device types such as Pixel, Pixel 2, Nexus 5, and Nexus 5X.

Performance issues

Performance issues are typically caused by one of the following problems:

  • The emulator is running without hardware acceleration.

  • The virtual device running in the emulator is not using an x86-based system image.

The following sections cover these scenarios in more detail.

Hardware acceleration is not enabled

If hardware acceleration is not enabled, a dialog may pop up with a message such as device will run unaccelerated when you deploy your app to the Android emulator. If you are not certain whether hardware acceleration is enabled on your computer (or you would like to know which technology is providing the acceleration), see Hardware acceleration issues below for steps you can take to verify and enable hardware acceleration.

Acceleration is enabled but the emulator runs too slowly

A common cause for this problem is not using an x86-based image in your virtual device. When you create virtual device (see Managing Virtual Devices with the Android Device Manager), be sure to select an x86-based system image:

Selecting an x86 system image for a virtual device

Hardware acceleration issues

Whether you are using the Hypervisor Framework or HAXM for hardware acceleration of the emulator, you may run into problems caused by installation issues or an out-of-date version of macOS. The following sections can help you resolve this issue.

Hypervisor Framework issues

If you are using macOS 10.10 or later on a newer Mac, the Android emulator will automatically use the Hypervisor Framework for hardware acceleration. However, some older Macs or Macs running a version of macOS earlier than 10.10 may not provide Hypervisor Framework support.

To determine whether or not your Mac supports the Hypervisor Framework, open a Terminal and enter the following command:

sysctl kern.hv_support

If your Mac supports the Hypervisor Framework, the above command will return the following result:

kern.hv_support: 1

If the Hypervisor Framework is not available on your Mac, you can follow the steps in Accelerating with HAXM to use HAXM for acceleration instead.

HAXM issues

If the Android Emulator does not start properly, this problem is often caused by problems with HAXM. HAXM issues are often the result of conflicts with other virtualization technologies, incorrect settings, or an out-of-date HAXM driver. Try reinstalling the HAXM driver, using the steps detailed in Installing HAXM.

Additional troubleshooting tips

The following suggestions are often helpful in diagnosing Android emulator issues.

Starting the emulator from the command line

If the emulator is not already running, you can start it from the command line (rather than from within Visual Studio for Mac) to view its output. Typically, Android emulator AVD images are stored at the following location:

~/.android/avd

You can launch the emulator with an AVD image from this location by passing in the folder name of the AVD. For example, this command launches an AVD named Pixel_2_API_28:

~/Library/Developer/Xamarin/android-sdk-macosx/emulator/emulator -partition-size 512 -no-boot-anim -verbose -feature WindowsHypervisorPlatform -avd Pixel_2_API_28 -prop monodroid.avdname=Pixel_2_API_28

If the Android SDK is installed at its default location, the emulator is located in the ~/Library/Developer/Xamarin/android-sdk-macosx/emulator directory; if not, modify this path for the location of the Android SDK on your Mac.

When you run this command, it will produce many lines of output while the emulator starts up. In particular, lines such as the following example will be printed if hardware acceleration is enabled and working properly (in this example, Hypervisor Framework is used for hardware acceleration):

emulator: CPU Acceleration: working
emulator: CPU Acceleration status: Hypervisor.Framework OS X Version 10.13

Issues with Naming Intent Extras

When you set Intent Extras in your Android Run Configuration, only A-Z, a-z, ‘_’, '-', and numbers are supported. Additionally, all key values must be unique.

Viewing Device Manager logs

Often you can diagnose emulator problems by viewing the Device Manager logs. These logs are written to the following location:

~/Library/Logs/XamarinDeviceManager

You can view each Android Devices.log file by double-clicking it to open it in the Console app. The following example log entry indicates that HAXM was not found:

Component Intel x86 Emulator Accelerator (HAXM installer) r6.2.1 [Extra: (Intel Corporation)] not present on the system
