System Center DPM Release Notes

  • מאמר

Important

Service Provider Foundation (SPF) is discontinued from System Center 2025. However, SPF 2022 will continue to work with System Center 2025 components.

This article lists the release notes for System Center 2025 - Data Protection Manager (DPM), including the known issues and workarounds for DPM 2025.

We recommend you to see the following articles for detailed information about what DPM supports and can back up:

DPM 2025 release notes

Communication with the SQL instance might fail

Description: Communication with the SQL instances (existing SQL, SharePoint backups or SQL instance enumeration) might fail post upgrading to DPM 2025 if OLEDB 19 isn't installed.

Workaround: Install latest version of OLEDB 19 (19.3 and above) on all the machines where SQL instances are present and are being backed-up by the DPM server. Also, install on DPM server before enabling backups for DPM database.

In addition, following are the improvements:

  • Upgrading a licensed DPM server to Eval build is blocked.
  • Upgrading Eval to a licensed build is blocked.
  • Improved/fixed duplicate summary manager jobs post upgrade.

This article lists the release notes for System Center 2019 - Data Protection Manager (DPM), including the known issues and workarounds for DPM 2019, DPM 2019 UR1, DPM 2019 UR2, DPM 2019 UR3, DPM 2019 UR4, 2019 UR5, and 2019 UR6 as applicable.

We recommend you see the following articles for detailed information about what DPM supports and can back up:

This article lists the release notes for System Center 2022 - Data Protection Manager (DPM), including the known issues and workarounds for DPM 2022, 2022 UR1 and 2022 UR2.

This article also includes the release notes for DPM 2022 Hotfix KB 5015376.

We recommend you to see the following articles for detailed information about what DPM supports and can back up:

DPM 2022 release notes

DPM 2022 has the known issues that are observed in DPM 2019 RTM.

In addition, the following known issues are observed.

No DPM SQL Self-Service Recovery Tool in DPM 2022 RTM

DPM SQL Self-Service Recovery isn't available in DPM 2022 RTM. Support for SQL Self-Service Recovery is available from DPM 2022 UR1. Learn More.

DPM self-service recoveries doesn't list any recovery points for client machines

Description: DPM client machine backups aren't listed for domain users in the local administrators’ group for self-service recoveries.

Workaround: Upgrade to DPM 2022 UR2 to fix this issue and add non-administrative users manually via Authorization Manager.

Upgrade from DPM 2019 to DPM 2022 might fail when the DPM database name is DPMDB

Description: If the name of the existing DPM database is DPMDB, the upgrade will fail.

The DPM upgrade process will always rename the DPM database name to DPMDB. If the same SQL Instance is used by multiple DPM servers, the subsequent upgrade of the other DPM server will fail as there's already a database with the name DPMDB.

Workaround: Rename the corresponding DPM database before you start the upgrade.

Use these steps to rename the database:

  1. Stop the DPM service on the DPM server.

  2. Run the following SQL commands to rename the database; update the DPM server name in the query below.

    USE master
GO
ALTER DATABASE DPMDB
SET SINGLE_USER
WITH ROLLBACK IMMEDIATE
GO
EXEC master..sp_renamedb 'DPMDB','DPMDB_<DPMSERVERNAME>'
GO
ALTER DATABASE DPMDB_<DPMSERVERNAME>
SET MULTI_USER
GO

  3. Update the following registry keys to reflect the updated database name.

    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft Data Protection Manager\DB\ConnectionString

    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft Data Protection Manager\DB\DatabaseName

    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft Data Protection Manager\DB\GlobalDatabaseName

    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft Data Protection Manager\DB\GlobalDbConnectionString

    Screenshot showing registry editor that reflects the database name.

  4. Run DPMsync on the DPM server using the DPM management shell.

    DPMSync -Sync

Online recovery point creation of a data source might fail with error ID 33505 or 100195

Description: In some scenarios, the online recovery point creation of a data source might fail intermittently with error ID 33505 or 100195.

Screenshot showing error when creating online recovery point.

Screenshot showing error message when creating online recovery point.

Workaround:

  1. Upgrade the MARS agent to the latest version.

  2. Retry the online backup for the failed data source.

  3. Create a new disk recovery point and then try the online recovery point again.

  4. Run the consistency check and try the online backup again.

  5. If the online backup is still failing, contact the support team.

DPM 2022 Hotfix (KB 5015376) release notes

In addition to the issues listed in DPM 2022 release notes, the following additional issues are identified in DPM 2022 and are fixed in Hotfix (KB 5015376); we recommend you apply the hotfix. For more information, see the KB article.

  • Intermittent online backup failures with error 100195.
  • Secondary protection consistency check failure with VSS non-transient error.
  • Remote admin console crash right after opening the console.
  • Backup failures due to DpmFilter.sys not loading on DPM agent.
  • DPM crashes when tape backup failure alerts are inactive.

DPM 2022 UR1 release notes

The following issues were identified after the release of DPM 2022 UR1 (KB 5019645) and are fixed in Hotfix for DPM 2022 UR1 (KB 5026073); We recommend that you apply the hotfix if you are running into the following issues. For more information, see the KB article for the Hotfix.

Backups for VMware VMs that have VMware Tools start failing with error "Disk SubSystem 0x80990EF1"

Description: DPM 2022 UR1 had a bug where backups VMware VMs would fail if VMware tools is installed. This was due to a faulty configuration in DPM.

Workaround: Apply Hotfix for DPM 2022 UR1 or DPM 2022 UR2.

DPM 2022 RTM and Update Rollup 1 can't discover databases in SQL Server 2017 and 2016 over TLS 1.2.

Description: DPM 2022 RTM and UR1 did not support MSOLEDB 18 for SQL Server 2017 and 2016 which is required to perform discovery and protection of SQL Server over TLS 1.2. This issue is observed after KB5021128 or KB5021127 is installed for SQL Server 2016 and 2017 respectively to mandate TLS 1.2 or when TLS 1.0 and 1.1 are disabled on the protected server.

Workaround: Apply Hotfix for DPM 2022 UR1 or DPM 2022 UR2, update the DPM Agents and then install MSOLEDB 18 on the protected SQL Servers.

DPM 2022 UR2 release notes

We are recalling the release of Update Rollup 2 for System Center DPM 2022 due to the known issues listed below:

  1. Hyper-V scheduled backups take a long time to complete because each backup job triggers a consistency check. Error message: The replica of Microsoft Hyper-V RCT on <Machine Name> is not consistent with the protected data source. DPM has detected changes in file locations or volume configurations of protected objects since the data source was configured for protection. (ID 30135).
  2. Removing a data source from protection group or stopping backup, results in an error with ID 33469 - This operation is not supported on the current version of the MARS agent.
  3. DPM console occasionally crashes when SMTP alerts or reports are configured.

An updated build (Update Rollup 2 Refresh for System Center DPM 2022) fixing the known issues has been released.

If you had installed Update Rollup 2 for System Center DPM 2022 (10.22.189.0), We recommend you to install Update Rollup 2 Refresh (10.22.197.0) on your DPM server and update the protection agents.

Reach out to Microsoft Support for queries or additional information.

In addition to the issues documented above, DPM 2022 UR2 has the following issues:

DPM 2022 UR1 email reports with Microsoft 365 credentials fail after upgrading to DPM 2022 UR2

Description: DPM 2022 UR2 adds support for Windows and Basic SMTP authentication methods. Basic SMTP authentication will work for Microsoft 365 and other mail providers who support it. But if you are using DPM 2022 UR1 with Microsoft 365 credentials, your email reports and alerts will start failing since the credentials can’t be read by DPM 2022 UR2.

Workaround: Re-configure email credentials for Microsoft 365 using the basic authentication type added in DPM 2022 UR2.

DPM can’t enumerate SQL databases for protection

Description: DPM can’t enumerate SQL databases for protection when MSOLEDB 18 is missing on the protected server since DPM requires MSOLEDB18 to enumerate databases for protection. 

Workaround: Install SQL MSOLEDB 18 driver if it is missing on the protected server. SQL Server 2022 ships with MSOLEDB 18 by default. 

Stop protection with delete online data fails from remote management console

Description: The stop protection with delete online data operation fails from the remote management console when enhanced Hybrid security option is enabled on the vault. 

Workaround: To prevent this, perform stop protection with delete online data directly from the DPM console. 

Stopping protection of a data source from fails with ID: 33469

Description: Removing a data source from protection group or stopping backup results in an error with ID 33469 - This operation is not supported on the current version of the MARS agent.

This issue occurs because DPM erroneously checks for an installed version of MARS (Microsoft Azure Recovery Services) agent 2.0.9262.0 or later and fails when no MARS agent is available on the DPM server.

Workaround: Install Update Rollup 2 Refresh for System Center DPM 2022.

DPM 2022 UR2 Refresh release notes

DPM 2022 UR2 Refresh fixes the known issues in DPM 2022 UR2.

This article lists the release notes for System Center 2016 - Data Protection Manager (DPM).

DPM 2019 release notes

The following sections summarize the release notes for DPM 2019 and include the applicable known issues and workarounds.

DPM console crashes due to MSDPM Service crash

Description: The presence of duplicate summary management jobs, after DPM upgrade, might lead to failure of any in-progress jobs at zero hours, eventually leading to a crash. As a result, you might observe the following:

  • Replica is inconsistent.
  • Storage bloat caused due to non-deletions of recovery points.
  • Outdated DPM reports.
  • No clean-up for job history and garbage collection jobs.

Workaround:

  1. Back up the current DPM database.

  2. Open SQL Management Studio and connect to the SQL Instance hosting the DPMDB for this server.

  3. Run the following query and check if you've two or more summary manager jobs scheduled and see which the older schedule was:

     SELECT SCH.ScheduleId, SCH.JobDefinitionId, jd.CreationTime
 FROM tbl_JM_JobDefinition JD
 JOIN tbl_SCH_ScheduleDefinition SCH
 ON JD.JobDefinitionId = SCH.JobDefinitionId
 WHERE JD.Type = '282faac6-e3cb-4015-8c6d-4276fcca11d4'
 AND JD.IsDeleted = 0
 AND SCH.IsDeleted = 0

  4. If you've more than one row returned, take the resulting ScheduleID and JobDefinitionID of the older entry and mark them as deleted.

     update tbl_SCH_ScheduleDefinition
 set IsDeleted = 1
 where ScheduleId = ‘ScheduleID '               --- Replace with Your ScheduleID
 update dbo.tbl_JM_JobDefinition
 set IsDeleted = 1
 where JobDefinitionId = ‘JobDefinitionID'             --- Replace with Your JobDefinitionID

  5. Delete the SQL job that is matching the ScheduleID under the SQL Server Agent – JOBS. Once deleted, the crash at zero hours would be resolved.

    ScheduleId is the SQL Jobs under SQL agent:

    UPDATE MSDB.dbo.sysjobs
SET Enabled = 0
WHERE [Name] LIKE ‘ScheduleID’  --- Replace with Your ScheduleID

Hyper-V VMs are protected twice on VM upgrade

Description: When upgrading a Hyper-V VM from Windows Server 2012 R2 to Windows Server 2016, two versions of the VM appear in the Create Protection Group wizard.

Workaround: For protected VMs that are about to be upgraded, ensure that you stop protection with retain data before upgrading the VM. Then upgrade the VM and reprotect it in a new protection group. While configuring reprotection, do a refresh on the VM host for DPM to detect the VM upgrade and protect it as RCT VM.

Restoration of a previous version for an upgraded Hyper-V VM causes future recovery points to fail

Description: When you upgrade a protected 2012 R2 Hyper-V VM to the 2016 version, stop protecting the VM (but retain data) and then re-enable protection. If you then recover a 2012 R2 copy at the original location, further backups might fail.

Workaround: After recovery, change the VM version to 2016 and then run a consistency check.

Bare Metal Recovery protection failures

Description: If you configure Bare Metal Recovery (BMR) protection, the BMR protection job might fail with the message that the replica size isn't sufficiently large.

Workaround: Use the following registry path to change the default replica size for BMR data sources. Open the registry editor and increase the replica size for the following key:

HKLM\Software\Microsoft\Microsoft Data Protection Manager\ConfigurationReplicaSizeInGBForSystemProtectionWithBMR (DWORD)

DPM database protection stops in case of upgrade scenarios

Description: When you upgrade DPM, database name might change in some scenarios.

Workaround: If you're protecting a DPM database, ensure that you enable the protection for the new DPM database. Once the DPM upgrade is validated, you can remove protection for the previous DPM database.

Hyper-V RCT - recover as files for D-T backup fails

Description: Recovery of Hyper-V RCT VMs as files created directly on tape (D-T) fails. D-D-T backups do not exhibit this issue.

Workaround: Use Alternate Location Recovery as a VM, and then transfer those files to the desired location.

Note

This feature is fixed in DPM 2019 UR1. You can install UR1 to get this issue fixed. For detailed information about installing UR1, see the KB article for UR1.

DPM 2019 does not support file server end user recovery with Modern Backup Storage (MBS)

Description: DPM 2019 doesn't support end user recovery (EUR) with Modern Backup Storage (MBS).

Workaround: None. File Server EUR isn't supported when using MBS.

Recovery Points not being pruned, leading to an accumulation of Recovery Points

Description: DPM prunes recovery points older than the retention range. During the pruning process, DPM calculates the storage consumed by those recovery points to be pruned. Storage calculation delays pruning.

Workaround: Configure DPM to skip calculating the size of recovery points to be pruned. As a result, the pruning script runs faster and prunes all recovery points older than the retention range, relieving any storage pressures. The storage consumed per data source isn't updated until DPM finishes pruning. The storage consumption per volume continues to reflect the correct values. Use a PowerShell script to turn on size calculation. The following script runs complete size calculations.

Location: Program Files\Microsoft System Center\DPM\DPM\bin\Manage-DPMDSStorageSizeUpdate.ps1

Script: Manage-DPMDSStorageSizeUpdate.ps1 -ManageStorageInfo [StopSizeAutoUpdate | StartSizeAutoUpdate | GetSizeAutoUpdateStatus | UpdateSizeInfo ] [-UpdateSizeForDS <FilePath>] [-UpdatedDSSizeReport <FilePath>] [-FailedDSSizeUpdateFile <FilePath>]

  • ManageStorageInfo: Specifies the kind of operation needed.

    • StopSizeAutoUpdate: Stops the size calculations completely. Both UI and PowerShell won't report sizes.

    • StartSizeAutoUpdate: Resumes the size calculations. Immediately after enabling size calculations, use UpdateSizeInfo (in the following options) to recalculate sizes for all the data sources, until which sizes reported in PowerShell and UI might not be correct.

    • GetSizeAutoUpdateStatus: Tells whether size calculations are enabled or disabled.

    • UpdateSizeInfo: Triggers the size calculation and reports the size consumed by the data source. As this can be a long-running operation, use it only when needed, for scenarios such as billing. During this time, backups might fail with vhd mount errors.

  • UpdateSizeForDS: Path to a text file with a list of Datasource IDs for which size needs to be calculated with a datasourceID on each line. When not passed, size calculation is triggered for all the data sources. Use after using UpdateSizeInfo in ManageStorageInfo. To get the Datasource IDs of specific data sources, use Get-DPMProtectionGroup | Get-DPMDatasource | Format-table -Property Computer,name,ObjectType,Id.

  • UpdatedDSSizeReport: Path to a file that stores the updated data source sizes. When not passed, sizes.csv file is created in the execution directory. Use after UpdateSizeInfo in ManageStorageInfo.

  • FailedDSSizeUpdateFile: Path to a file to store the Datasource IDs for the data sources for which the storage consumption couldn’t be calculated. This might happen due to reasons such as ongoing backups. When not passed, failedDS.txt file is created in the execution directory. This file can be given as input to “UpdateSizeForDS” to update the sizes of all the data sources. This should be used after using UpdateSizeInfo in ManageStorageInfo.

DPM Datasources not being reflected on Recovery Services Vault

Description: Some data sources in the Backup items (DPM) view from recovery service vault in Azure portal aren't getting refreshed/updated.

Cause: You might have decommissioned a protected server and stopped protection of the data sources but chosen to maintain the online recovery points and then you uninstalled the DPM/MABS agent from the console.

You can verify if this is the cause by opening the GatewayProvider0Curr.errlog file in C:\ProgramFiles\Microsoft Azure Backup Server\DPM\MARS\Temp folder in notepad and search for the word Mis-Match.

If you find an entry as the following, it will detail the protected server that is mis-matched.

In the example below, the agent for the server called mjlc-dc.Contoso.com was uninstalled and missing from the DPM/MABS server.

GetData of Provider failed. |Backup Service Exception: FMException: [ErrorCode:GPPowershellScriptHrError, DetailedCode:-2146233079, Source:   at System.Management.Automation.MshCommandRuntime.ThrowTerminatingError(ErrorRecord errorRecord), Message:Production Server **mis-match** DSId :9adaec12-5b5a-455e-86b9-1fac2d605fe1 DSName : S:\ DSType : Volume PSName :**mjlc-dc.Contoso.com** PSId: a494f940-b480-41d2-9ef5-4194ad737c7b]

Workaround

  1. If the original protected server is still available, reinstall the DPM agent even if you plan on taking that server offline in the future. You can disable the agent in DPM/MABS; don’t remove it until you delete the online recovery points.
  2. If the online recovery points for the decommissioned server are no longer needed, then you can delete the data sources on the DPM/MABS server that are in stopped protection.

DPM 2019 UR1 release notes

VM restore with excluded disk (to alternate host) restores empty disk

Description: Restoring the VM with excluded disk to alternate host will restore the excluded disk as empty disk. The excluded disk won't be attached to the VM. The disk can be deleted to save the storage space.

Workaround: None

For issues fixed in DPM 2019 UR1, see the KB article.

DPM 2019 UR2 release notes

The following sections detail the known issues and workarounds for DPM 2019 UR2.

For issues fixed in DPM 2019 UR2, see the KB article.

Protection group details are not displayed in DPM console

Description: After installing DPM 2019 UR2, sometimes, DPM console might not display Protection Group details in the Details pane.

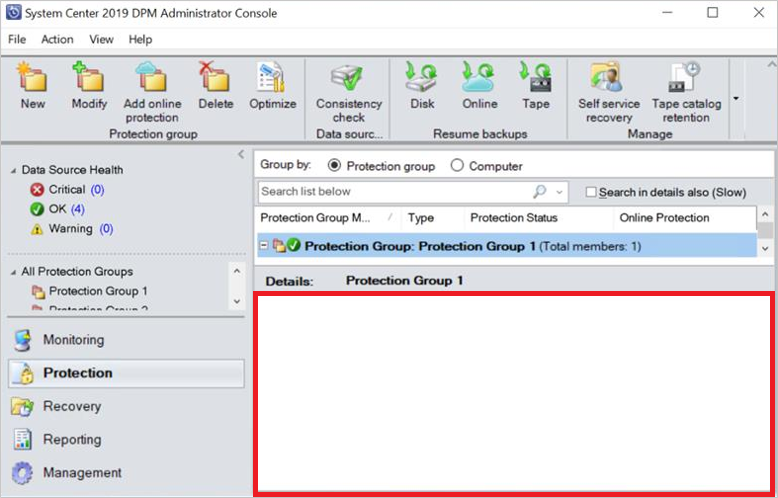

console with no details for Protection Group

Workaround: Use Get-DPMProtectionGroup PowerShell command to view the Protection Group details.

Note

This issue is fixed in DPM 2019 UR3. For more information about the issues fixed in UR3, see the KB article.

Latest report files are not automatically updated

Description: With DPM 2019 UR2, issue with DPM report formatting and volume-to-volume migration reporting is fixed. However, the existing report files aren't automatically replaced with the updated files.

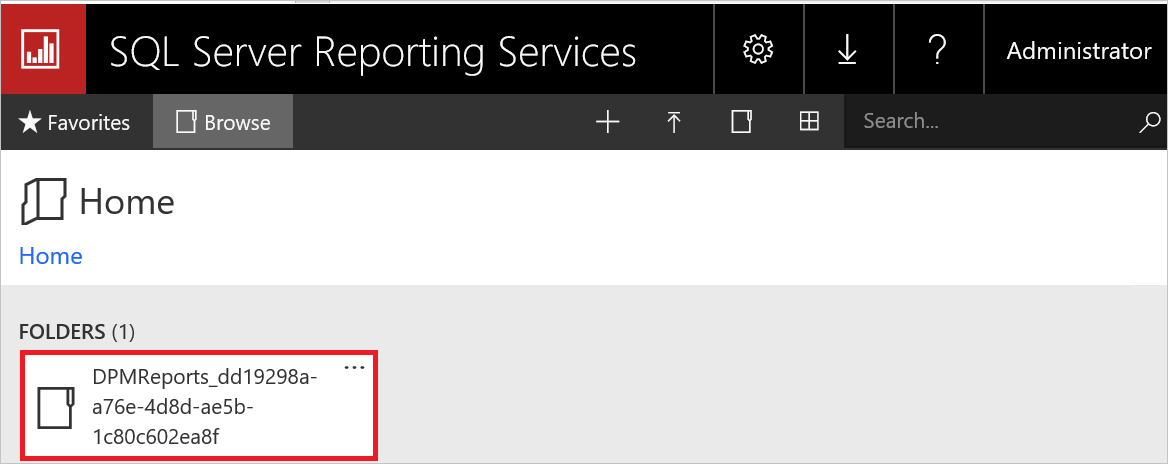

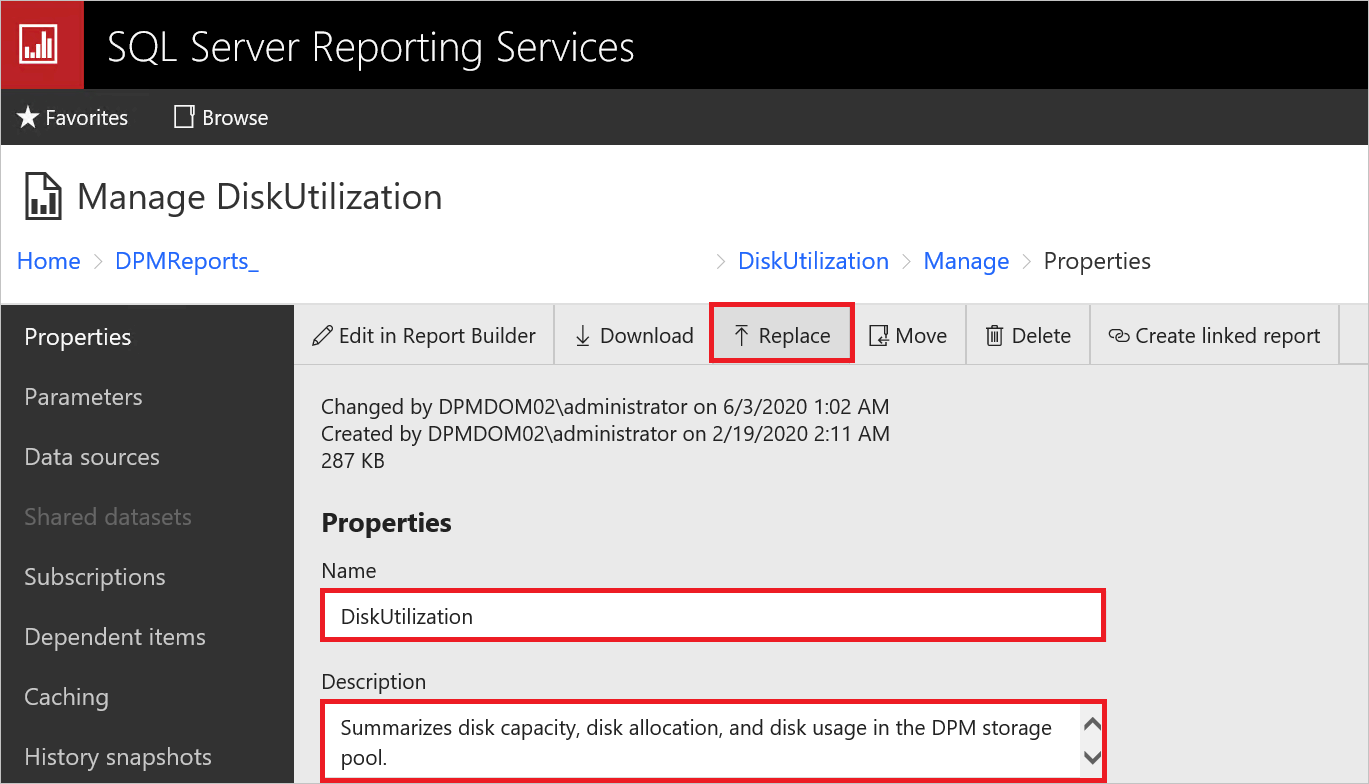

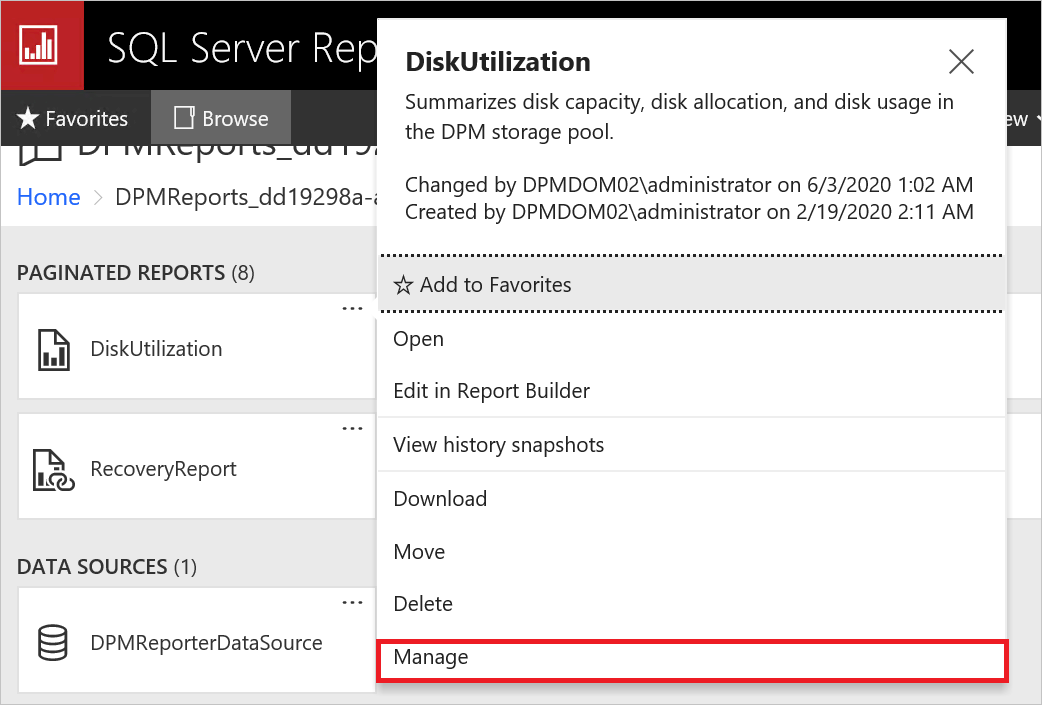

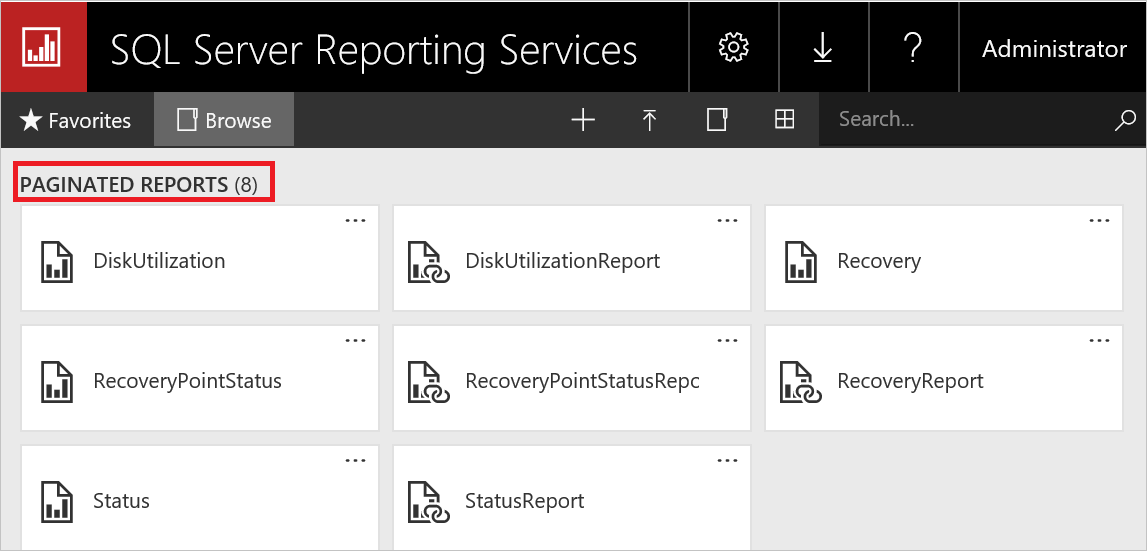

Workaround: Follow these steps to replace the existing report files:

Replace the ReportSRV10.dll

  1. Stop the SQL Server Reporting service.
  2. Select the updated ReportSRV10.dll file present in C:\Program Files\Microsoft System Center\DPM\DPM\bin and replace the existing DLL files in the following folders:
    • For SQL Server 2017 and later - C:\Program Files\Microsoft SQL Server Reporting Services\SSRS\ReportServer\bin
    • For SQL Server 2016 - C:\Program Files\Microsoft SQL Server\MSRS13.MSDPM2012\Reporting Services\ReportServer\bin
  3. Start the SQL Server Reporting service.

Replace the RDL files

  1. On DPM, open the SQL Reporting Services portal URL.

  2. On the portal, the DPMReports folder is present in the format DPMReports_<GUID>.

    Reports folder

    Note

    You can see only one folder with this naming convention. If DPM is upgraded from a previous version, the previous folder might still exist but you can’t open it.

  3. Select and open the DPMReports_<GUID> folder. The individual report files are displayed.

    List of individual report files

  4. Select the report files that don't end with Report, right-click Option, and then select Manage.

    Manage report files

  5. On the new page, select Replace to replace with the latest report files.

    Replace report files

    The latest report files are available in the DPM installation path:

    For example: C:\Program Files\Microsoft System Center\DPM\DPM\bin\DpmReports

  6. After the files are replaced, ensure that the Name and Description are intact and aren't empty.

  7. Restart DPM and use the report files.

DPM 2019 UR3 release notes

The following section provides details of the known issue in DPM 2019 UR3 and the workaround.

DPM Remote console might fail to connect to DPM server, after upgrading to Update Rollup 3

Description: After upgrading DPM Remote Administration Console to Update Rollup 3, it might fail to connect to DPM server with an error The DPM Administrator Console version is incompatible with the DPM server version.

Workaround:

  1. On the server running the DPM Remote Administration console, run the following PowerShell command (enter the DPM server name as applicable); this command copies the required DLL files from the DPM server:

    $RemoteUIPath = "C:\Program Files\Microsoft Data Protection Manager\DPM2019\bin"
$RemoteUidlls = Get-Item "$RemoteUIPath\*" | ? {$_.name -match ".dll"}
Write-Host -MessageData "Copying required $($RemoteUidlls.count) DLL's for Remote UI"
foreach ($dll in $RemoteUidlls) {
Copy-Item -Path "\\<FQDN of the DPM Server>\c$\Program Files\Microsoft System Center\DPM\DPM\bin\$($dll.name)" -Destination $RemoteUIPath
}
$RemoteUIUR3Dlls = "Microsoft.ApplicationInsights.dll",
"Microsoft.Diagnostics.Tracing.EventSource.dll",
"Microsoft.SystemCenter.DPM.Instrumentation.dll",
"Microsoft.SystemCenter.DPM.InstrumentationScheduler.dll",
"Microsoft.SystemCenter.Instrumentation.dll",
"Microsoft.WindowsAzure.Storage.dll",
"Newtonsoft.Json.dll"
foreach ($dll in $RemoteUIUR3Dlls) {
$SourceDllPath = "\\<FQDN of the DPM Server>\c$\Program Files\Microsoft System Center\DPM\DPM\bin\" + $dll
Copy-Item -Path $SourceDllPath -Destination $RemoteUIPath
}
Write-Host -MessageData "All required DLL files for DPM Remote UI UR3 has been copied"

    Note

    If you're using DPM Remote UI on a SCOM machine then copy for below files might fail, this can be ignored.

    • SCOMHelperLibrary.dll
    • ScopingCommonHelper.dll
    • ViewAlertsAndAffectedItemsHelper.dll
    • Wpfhelpers.dll

  2. If you're using a language other than English, copy the respective language folder from the DPM server. Update the DPM server name and language folder in the following command, and then run the command.

    Copy-Item -Path \\<FQDN of the DPM_Server>\c$\Program Files\Microsoft System Center\DPM\DPM\bin\<Language folder>\*.dll -Destination C:\Program Files\Microsoft Data Protection Manager\DPM2019\bin\<Language folder>

    Note

    This command uses the default installation path for DPM. If you've changed the installation path, update the path accordingly.

DPM 2019 UR4 release notes

The following section provides details of the known issue in DPM 2019 UR4 and the workaround.

Remote UI and Central Console UR4 update installation

Description: Remote UI and Central Console must be installed on RTM, UR1, UR2.

Workaround: If Remote UI and Central Console are on UR3, you need to uninstall it, install RTM version and then upgrade to UR4. Only UR4 remote UI can connect to DPM 2019 UR4.

DPM 2019 UR5 release notes

Currently there are no known issues in DPM 2019 UR5.

DPM 2019 UR6 release notes

The following section provides details of the known issue in DPM 2019 UR6 and the workaround.

For the issues fixed in UR6 and the installation instructions for UR6, see the KB article.

Offline Seeding does not work with MARS agent 2.0.9254.0 and later

Description: Subsequent online recovery points creation fails after the first online recovery point is successfully created for data sources backed up through Databox only, when the MARS agent version is greater than 2.0.9254.0.

Workaround: None. Contact Microsoft support for assistance.

System Center DPM 2016 Release Notes

The following sections summarize the release notes for DPM 2016 and include the applicable known issues and workarounds.

Silent Installation of System Center DPM with SQL Server 2008

Description: DPM 2016 RTM won't silently install on SQL Server 2008.

Workaround: Deploy DPM 2016 RTM on a version of SQL Server higher than 2008 or use the DPM 2016 Setup user interface.

Remove-DPMDiskStorage cmdlet might delete volumes with active or inactive backups

Description: If the volume's data sources are being backed up (actively or inactively), when the Remove-DPMDiskStorage cmdlet is used to remove volumes from DPM, the data sources can be removed too.

Workaround: Before using the cmdlet to remove the volumes, ensure that the volume's data sources aren't in use (actively or inactively).

DPM 2016 on Windows Server 2016 hangs

Description: Memory consumption on the DPM Server increases continuously until it reaches 90%. Memory consumption slows the DPM server.

Workaround: Upgrade DPM to DPM UR2 and install KB4013429 to fix this issue.

Hyper-V VMs are protected twice on VM upgrade

Description: When upgrading a Hyper-V VM from Windows Server 2012 R2 to Windows Server 2016, two versions of the VM appear in the Create Protection Group Wizard.

Workaround: For the VMs that haven't been upgraded, stop protection with Retain Data. Upgrade the VM and create a new protection group. Then refresh the data sources and protect the VMs. When you reapply protection, the VMs are protected using Resilient Change Tracking (RCT).

Agent installation fails on Windows Server 2008, Windows Server 2008 R2

Description: When protecting Windows Server 2008 or Windows Server 2008 R2, installing the agent can fail.

Workaround: Upgrade the Windows Management Framework (WMF) on the production server to 4.0. Download the WMF from Windows Management Frame 5.1(https://www.microsoft.com/download/details.aspx?id=54616). Install WMF and then install the agent.

Restoring a previous version of an upgraded Hyper-V VM causes future recovery points to fail.

Description: If you upgrade a protected 2012 R2 Hyper-V VM to the 2016 version, then stop protecting the VM (but retain data) and then re-enable protection. If you then recover a 2012 R2 copy at the original location, further backups might fail.

Workaround: After recovery, change the VM Version to 2016 and then run a Consistency Check.

Bare Metal Recovery protection failures

Description: If you configure Bare Metal Recovery (BMR) protection, the BMR protection job might fail with the message that the replica size isn't sufficiently large.

Workaround: Use the following registry path to change the default replica size for BMR data sources. Open the registry editor and increase the replica size for the following key:

HKLM\Software\Microsoft\Microsoft Data Protection Manager\ConfigurationReplicaSizeInGBForSystemProtectionWithBMR (DWORD)

Reprotecting the DPM database after upgrading to DPM 2016

Description: When you upgrade from System Center DPM 2012 R2 to System Center Data Protection Manager 2016, the DPM database name can change in some scenarios.

Workaround: If you're protecting a DPM database, be sure to enable protection for the new DPM database. Once the DPM upgrade is validated, you can remove protection for the old DPM database.

Recovery Points not being pruned, leading to an accumulation of Recovery Points

Description: DPM prunes recovery points older than the retention range. During the pruning process, DPM calculates the storage consumed by those recovery points to be pruned. Storage calculation delays pruning.

Workaround: Configure DPM to skip calculating the size of recovery points to be pruned. As a result, the pruning script runs faster and prunes all recovery points older than the retention range, relieving any storage pressures. The storage consumed per data source isn't updated until DPM finishes pruning. The storage consumption per volume continues to reflect the correct values. Use a PowerShell script to turn on size calculation. The following script runs complete size calculations.

Location: Program Files\Microsoft System Center 2016\DPM\DPM\bin\Manage-DPMDSStorageSizeUpdate.ps1

Script: Manage-DPMDSStorageSizeUpdate.ps1 -ManageStorageInfo [StopSizeAutoUpdate | StartSizeAutoUpdate | GetSizeAutoUpdateStatus | UpdateSizeInfo ] [-UpdateSizeForDS <FilePath>] [-UpdatedDSSizeReport <FilePath>] [-FailedDSSizeUpdateFile <FilePath>]

  • ManageStorageInfo: - Specifies the kind of operation needed.

    • StopSizeAutoUpdate: Stops the size calculations completely. Both UI and PowerShell won't report sizes.

    • StartSizeAutoUpdate: Resumes the size calculations. Immediately after enabling size calculations, use UpdateSizeInfo (in the following options) to recalculate sizes for all the data sources, until which sizes reported in PowerShell and UI might not be correct.

    • GetSizeAutoUpdateStatus: Tells whether size calculations are enabled or disabled.

    • UpdateSizeInfo: Triggers the size calculation and reports the size consumed by data source. As this can be a long-running operation, use it only when needed, for scenarios such as billing. During this time, backups might fail with vhd mount errors.

  • UpdateSizeForDS: Path to a text file with a list of Datasource IDs for which size needs to be calculated with a datasourceID on each line. When not passed, size calculation is triggered for all the data sources. Use after using UpdateSizeInfo in ManageStorageInfo. To get the Datasource IDs of specific data sources, use Get-DPMProtectionGroup | Get-DPMDatasource | Format-table -Property Computer,name,ObjectType,Id.

  • UpdatedDSSizeReport: Path to a file that stores the updated data source sizes. When not passed, sizes.csv file is created in the execution directory. Use after UpdateSizeInfo in ManageStorageInfo.

  • FailedDSSizeUpdateFile: Path to a file to store the Datasource IDs for the data sources for which the storage consumption couldn’t be calculated. This might happen due to reasons such as ongoing backups. When not passed, failedDS.txt file is created in the execution directory. This file can be given as input to “UpdateSizeForDS” to update the sizes of all the data sources. This should be used after using UpdateSizeInfo in ManageStorageInfo.

Hyper-V RCT - recover as files for D-T backup fails

Description: Recovery of Hyper-V RCT VMs as files created directly on tape (D-T) fails. D-D-T backups won't exhibit this issue.

Workaround: Use Alternate Location Recovery as a VM, and then transfer those files to the desired location.

File Server end user recovery (EUR) not available when using Modern Backup Storage (MBS)

Description: If you use Modern Backup Storage (MBS) with DPM 2016, File Server end user recovery (EUR) isn't available.

Workaround: None. File Server EUR isn't supported when using MBS.

Error 4387 might appear while installing DPM

Description: While installing the Data Protection Manager, when you enter a SQL Instance in the Data Protection Manager Setup > Prerequisites check> Instance of SQL server text box, error 4387 might appear.

Workaround: Perform the required actions as detailed in this KB article and try the DPM setup again.

Latest report files are not automatically updated

Description: With DPM 2016 UR10, issue with DPM report formatting and volume to volume migration reporting is fixed. However, the existing report files aren't automatically replaced with the updated files.

Workaround: Follow these steps to replace the existing report files:

Replace the ReportSRV10.dll

  1. Stop the SQL Server Reporting service

  2. Select the updated ReportSRV10.dll file present in C:\Program Files\Microsoft System Center\DPM\DPM\bin and replace the existing DLL files in the following folder:

    C:\Program Files\Microsoft SQL Server\MSRS13.MSDPM2012\Reporting Services\ReportServer\bin

  3. Start the SQL Server Reporting service.

Replace the RDL files

  1. On DPM, open the SQL Reporting Services portal URL.

  2. On the portal, the DPMReports folder is present in the format DPMReports_<GUID>.

    Reports folder

    Note

    You can see only one folder with this naming convention. If DPM is upgraded from a previous version, the previous folder might still exist but you can’t open it.

  3. Select and open the DPMReports_<GUID> folder. The individual report files are displayed.

    List of individual report files

  4. Select the report files that don't end with Report, right-click Option, and then select Manage.

    Manage report files

  5. On the new page, select Replace to replace with the latest report files.

    Replace report files

    The latest report files are available in the DPM installation path:

    For example: C:\Program Files\Microsoft System Center\DPM\DPM\bin\DpmReports

  6. After the files are replaced, ensure that the Name and Description are intact and aren't empty.

  7. Restart DPM and use the report files.

Next steps
