Transaction connections - Link actuals of different transaction types

Applies To: Project Operations Integrated with ERP, Project Operations Core

Transaction connection records are created to link actuals of different types as time, expense, or material usage moves in its lifecycle from the quote or pre-sales stage to the contract stage, approvals and/or recalls, invoicing, and potentially credit or corrective invoicing.

The following example shows the typical processing of time entries in a Project Operations project lifecycle.

The processing of time entries in a Project Operations project lifecycle follows these steps:

1. Submission of a time entry causes two journal lines to be created: one for cost and one for unbilled sales.
2. Eventual approval of the time entry causes two actuals to be created: one for cost and one for unbilled sales. These 2 actuals are linked using transaction connections.
3. When the user creates a project invoice, the invoice line transaction is created by using data from the unbilled sales actual.
4. When the invoice is confirmed, this creates two new actuals : an unbilled sales reversal and a billed sales actual. The unbilled sales reversal and the original unbilled sales actual are connected using reversing transaction connections. The billed sales and the original unbilled sales actuals are also connected to show the links between what was once backlog or work in progress (WIP) revenue to what is now billed revenue.

Each event in the processing workflow triggers the creation of records in the Transaction connection table. This helps to build a trace of the relationships between the records that are created across time entry, journal line, actual, and invoice line details.

The following table shows the records in the Transaction connection entity for the preceding workflow.

Event	Transaction 1	Transaction 1 role	Transaction 1 type	Transaction 2	Transaction 2 role	Transaction 2 type
Time Entry Submission	Journal Line (Sales) GUID	Unbilled Sales	msdyn_journalline	Journal Line (cost) GUID	Cost	msdyn_journalline
Time Approval	Unbilled Actual (Sales) GUID	Unbilled Sales	msdyn_actual	Cost Actual(cost) GUID	Cost	msdyn_actual
Invoice Creation	Invoice Line Detail GUID	Billed Sales	msdyn_invoicelinetransaction	Unbilled Sales Actual GUID	Unbilled Sales	msdyn_actual
Invoice Confirmation	Reversing Actual GUID	Reversing	msdyn_actual	Original unbilled sales GUID	Original	msdyn_actual
	Billed Sales GUID	Billed Sales	msdyn_actual	Unbilled Sales Actual GUID	Unbilled Sales	msdyn_actual
Draft Invoice Correction	Invoice Line Transaction GUID	Replacing	msdyn_invoicelinetransaction	Billed Sales GUID	Original	msdyn_actual
Confirm Invoice Correction	Billed Sales Reversal GUID	Reversing	msdyn_actual	Billed Sales GUID	Original	msdyn_actual
	New Unbilled Sales GUID	Replacing	msdyn_actual	Billed Sales GUID	Original	msdyn_actual

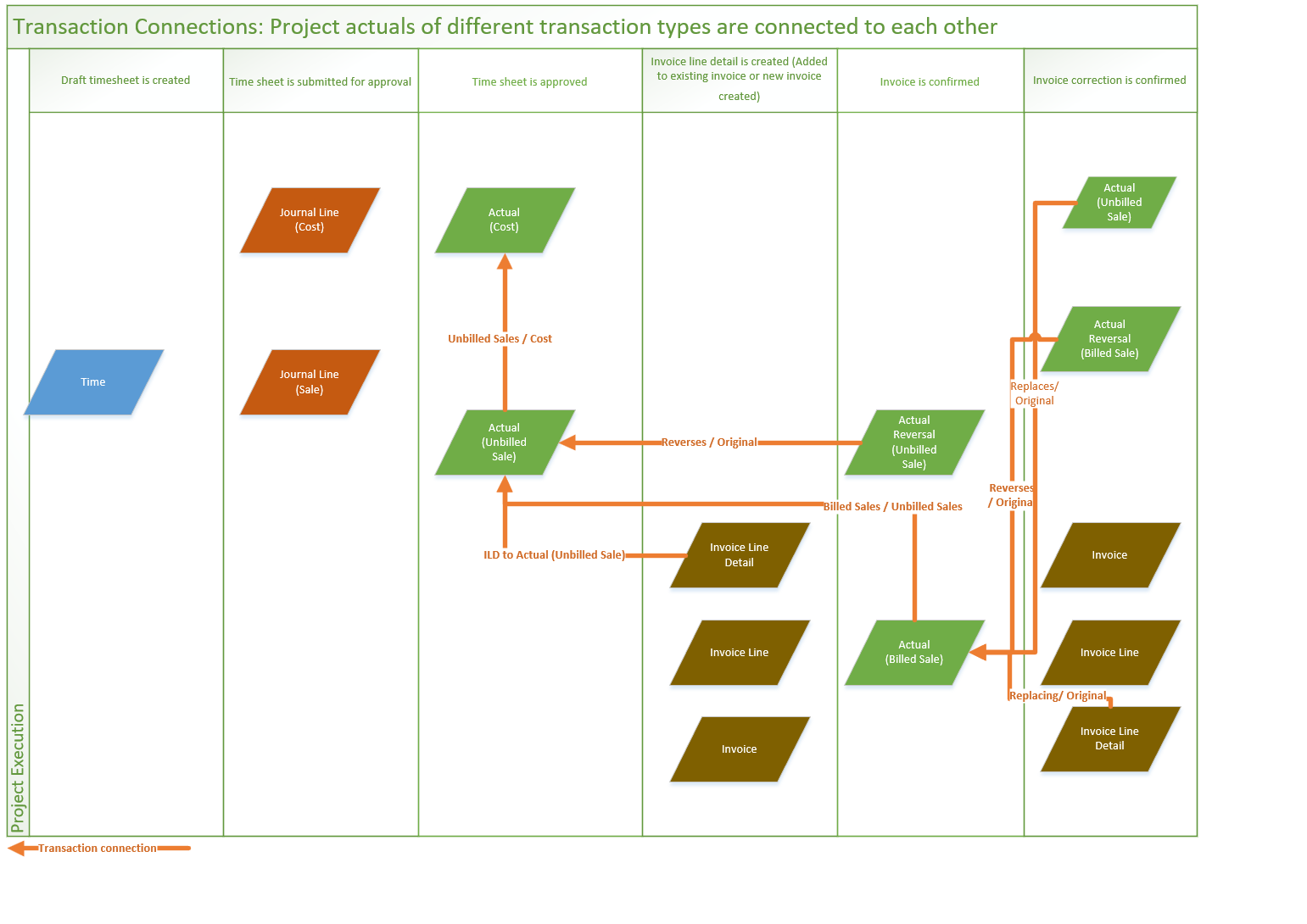

The following illustration shows the links that are created between different types of actuals at various events using the example of time entries in Project Operations.
