Python Tutorial: Deploy a linear regression model with SQL machine learning

Applies to: SQL Server 2017 (14.x) and later Azure SQL Managed Instance

In part four of this four-part tutorial series, you'll deploy a linear regression model developed in Python into a SQL Server database using Machine Learning Services or Big Data Clusters.

In part four of this four-part tutorial series, you'll deploy a linear regression model developed in Python into a SQL Server database using Machine Learning Services.

In part four of this four-part tutorial series, you'll deploy a linear regression model developed in Python into an Azure SQL Managed Instance database using Machine Learning Services.

In this article, you'll learn how to:

  • Create a stored procedure that generates the machine learning model
  • Store the model in a database table
  • Create a stored procedure that makes predictions using the model
  • Execute the model with new data

In part one, you learned how to restore the sample database.

In part two, you learned how to load the data from a database into a Python data frame, and prepare the data in Python.

In part three, you learned how to train a linear regression machine learning model in Python.

Prerequisites

  • Part four of this tutorial assumes you have completed part one and its prerequisites.

Create a stored procedure that generates the model

Now, using the Python scripts you developed, create a stored procedure generate_rental_py_model that trains and generates the linear regression model using LinearRegression from scikit-learn.

Run the following T-SQL statement in Azure Data Studio to create the stored procedure to train the model.

-- Stored procedure that trains and generates a Python model using the rental_data and a linear regression algorithm
DROP PROCEDURE IF EXISTS generate_rental_py_model;
go
CREATE PROCEDURE generate_rental_py_model (@trained_model varbinary(max) OUTPUT)
AS
BEGIN
    EXECUTE sp_execute_external_script
      @language = N'Python'
    , @script = N'
from sklearn.linear_model import LinearRegression
import pickle

df = rental_train_data

# Get all the columns from the dataframe.
columns = df.columns.tolist()

# Store the variable well be predicting on.
target = "RentalCount"

# Initialize the model class.
lin_model = LinearRegression()

# Fit the model to the training data.
lin_model.fit(df[columns], df[target])

# Before saving the model to the DB table, convert it to a binary object
trained_model = pickle.dumps(lin_model)'

, @input_data_1 = N'select "RentalCount", "Year", "Month", "Day", "WeekDay", "Snow", "Holiday" from dbo.rental_data where Year < 2015'
, @input_data_1_name = N'rental_train_data'
, @params = N'@trained_model varbinary(max) OUTPUT'
, @trained_model = @trained_model OUTPUT;
END;
GO

Store the model in a database table

Create a table in the TutorialDB database and then save the model to the table.

  1. Run the following T-SQL statement in Azure Data Studio to create a table called dbo.rental_py_models which is used to store the model.

    USE TutorialDB;
    DROP TABLE IF EXISTS dbo.rental_py_models;
    GO
    CREATE TABLE dbo.rental_py_models (
        model_name VARCHAR(30) NOT NULL DEFAULT('default model') PRIMARY KEY,
        model VARBINARY(MAX) NOT NULL
    );
    GO

  2. Save the model to the table as a binary object, with the model name linear_model.

    DECLARE @model VARBINARY(MAX);
    EXECUTE generate_rental_py_model @model OUTPUT;

    INSERT INTO rental_py_models (model_name, model) VALUES('linear_model', @model);


Create a stored procedure that makes predictions

  1. Create a stored procedure py_predict_rentalcount that makes predictions using the trained model and a set of new data. Run the T-SQL below in Azure Data Studio.

    DROP PROCEDURE IF EXISTS py_predict_rentalcount;
    GO
    CREATE PROCEDURE py_predict_rentalcount (@model varchar(100))
    AS
    BEGIN
        DECLARE @py_model varbinary(max) = (select model from rental_py_models where model_name = @model);

        EXECUTE sp_execute_external_script
                    @language = N'Python',
                    @script = N'

    # Import the scikit-learn function to compute error.
    from sklearn.metrics import mean_squared_error
    import pickle
    import pandas

    rental_model = pickle.loads(py_model)

    df = rental_score_data

    # Get all the columns from the dataframe.
    columns = df.columns.tolist()

    # Variable you will be predicting on.
    target = "RentalCount"

    # Generate the predictions for the test set.
    lin_predictions = rental_model.predict(df[columns])
    print(lin_predictions)

    # Compute error between the test predictions and the actual values.
    lin_mse = mean_squared_error(lin_predictions, df[target])
    #print(lin_mse)

    predictions_df = pandas.DataFrame(lin_predictions)

    OutputDataSet = pandas.concat([predictions_df, df["RentalCount"], df["Month"], df["Day"], df["WeekDay"], df["Snow"], df["Holiday"], df["Year"]], axis=1)
    '
    , @input_data_1 = N'Select "RentalCount", "Year" ,"Month", "Day", "WeekDay", "Snow", "Holiday"  from rental_data where Year = 2015'
    , @input_data_1_name = N'rental_score_data'
    , @params = N'@py_model varbinary(max)'
    , @py_model = @py_model
    with result sets (("RentalCount_Predicted" float, "RentalCount" float, "Month" float,"Day" float,"WeekDay" float,"Snow" float,"Holiday" float, "Year" float));

    END;
    GO

  2. Create a table for storing the predictions.

    DROP TABLE IF EXISTS [dbo].[py_rental_predictions];
    GO

    CREATE TABLE [dbo].[py_rental_predictions](
     [RentalCount_Predicted] [int] NULL,
     [RentalCount_Actual] [int] NULL,
     [Month] [int] NULL,
     [Day] [int] NULL,
     [WeekDay] [int] NULL,
     [Snow] [int] NULL,
     [Holiday] [int] NULL,
     [Year] [int] NULL
    ) ON [PRIMARY]
    GO

  3. Execute the stored procedure to predict rental counts

    --Insert the results of the predictions for test set into a table
    INSERT INTO py_rental_predictions
    EXEC py_predict_rentalcount 'linear_model';

    -- Select contents of the table
    SELECT * FROM py_rental_predictions;

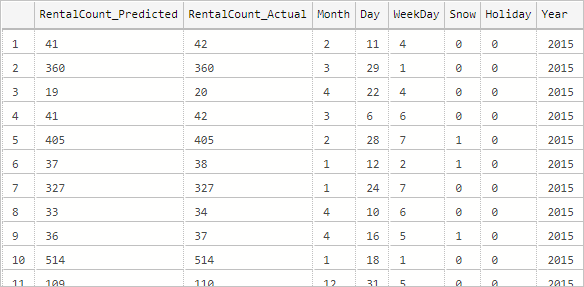

    You should see results similar to the following.

    Prediction results from stored procedure

You have successfully created, trained, and deployed a model. You then used that model in a stored procedure to predict values based on new data.

Next steps

In part four of this tutorial series, you completed these steps:

  • Create a stored procedure that generates the machine learning model
  • Store the model in a database table
  • Create a stored procedure that makes predictions using the model
  • Execute the model with new data

To learn more about using Python with SQL machine learning, see:
