Block connector usage in Azure Logic Apps

  • Članak

Applies to: Azure Logic Apps (Consumption + Standard)

If your organization doesn't permit connecting to restricted or unapproved resources using their managed connectors in Azure Logic Apps, you can block the capability to create and use those connections in logic app workflows. With Azure Policy, you can define and enforce policies that prevent creating or using connections for connectors that you want to block. For example, for security reasons, you might want to block connections to specific social media platforms or other services and systems.

This article shows how to set up a policy that blocks specific connections by using the Azure portal, but you can create policy definitions in other ways. For example, you can use the Azure REST API, Azure PowerShell, Azure CLI, and Azure Resource Manager templates. For more information, see Tutorial: Create and manage policies to enforce compliance.

Prerequisites

Find connector reference ID

If you already have a logic app with the connection that you want to block, follow the steps for the Azure portal. Otherwise, follow these steps:

Connector reference doc

  1. Review Connectors for Azure Logic Apps.

  2. Find the reference page for the connector that you want to block.

    For example, if you want to block the Instagram connector, which is deprecated, go to this page:

    https://learn.microsoft.com/connectors/instagram/

  3. From the page's URL, copy and save the connector reference ID at the end without the forward slash (/), for example, instagram.

    Later, when you create your policy definition, you use this ID in the definition's condition statement, for example:

    "like": "*managedApis/instagram"

Azure portal

  1. In the Azure portal, find and open your logic app workflow.

  2. On the logic app menu, select one of the following options:

    • Consumption logic app: Under Development Tools, select API connections.

    • Standard logic app: Under Workflows, select Connections. On the Connections pane, select API Connections if not already selected.

    1. On the API connections pane, select the connection. When the connection pane opens, in the upper right corner, select JSON View.

    2. Find the api object, which contains an id property and value that has the following format:

      "id": "/subscriptions/{Azure-subscription-ID}/providers/Microsoft.Web/locations/{Azure-region}/managedApis/{connection-name}"

      The following example shows the id property and value for an Instagram connection:

      "id": "/subscriptions/xxxxxXXXXXxxxxxXXXXXxxxxxXXXXX/providers/Microsoft.Web/locations/westus/managedApis/instagram"

    3. From the id property value, copy and save the connector reference ID at the end, for example, instagram.

      Later, when you create your policy definition, you use this ID in the definition's condition statement, for example:

      "like": "*managedApis/instagram"

Block creating connections

To block creating a connection altogether in a logic app workflow, follow these steps:

  1. In the Azure portal search box, enter policy, and select Policy.

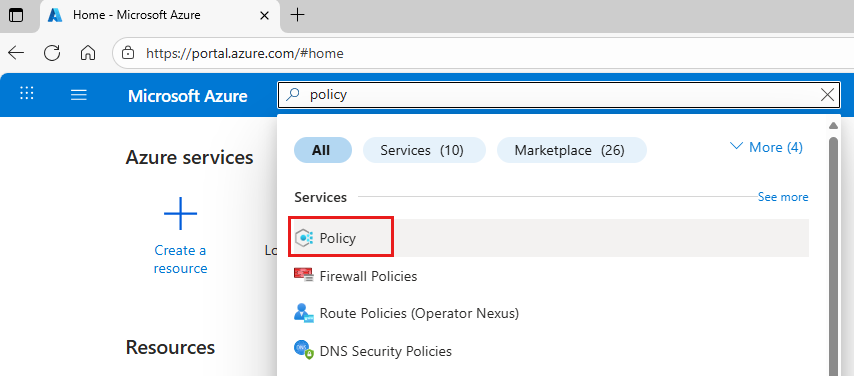

    Screenshot showing main Azure portal search box with "policy" entered and "Policy* selected.

  2. On the Policy menu, under Authoring, select Definitions. On the Definitions pane toolbar, select Policy definition.

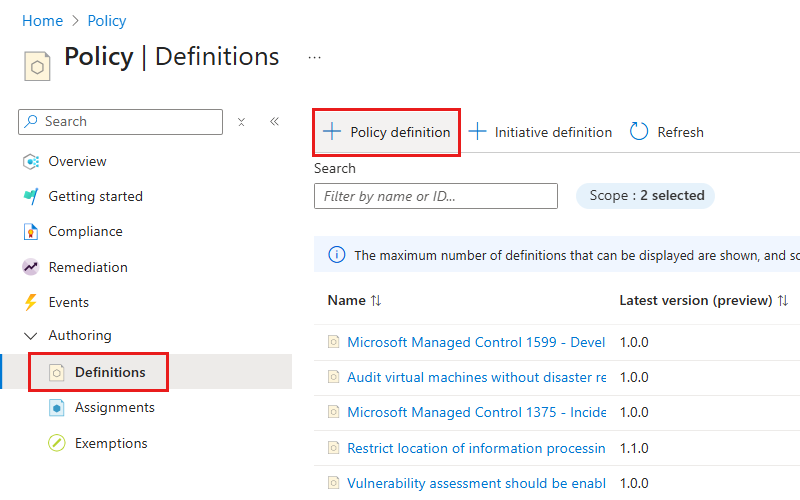

    Screenshot showing the "Definitions" pane toolbar with "Policy definition" selected.

  3. On the Policy definition pane, provide the information for your policy definition, based on the properties described under the example:

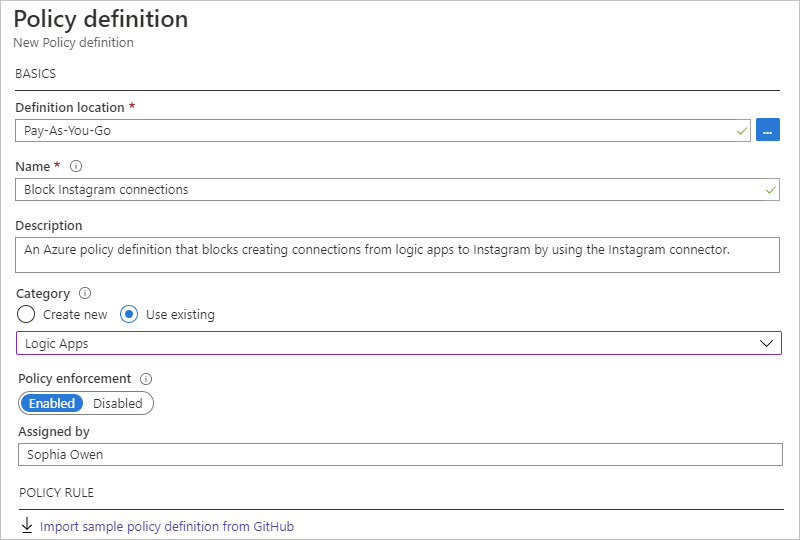

    Screenshot showing the policy definition properties.

    Property Required Value Description
    Definition location Yes <Azure-subscription-name> The Azure subscription to use for the policy definition

    1. To find your subscription, select the ellipses (...) button.
    2. From the Subscription list, find and select your subscription.
    3. When you're done, select Select.
    Name Yes <policy-definition-name> The name to use for the policy definition
    Description No <policy-definition-name> A description for the policy definition
    Category Yes Logic apps The name for an existing category or new category for the policy definition
    Policy enforcement Yes Enabled This setting specifies whether to enable or disable the policy definition when you save your work.

  4. Under POLICY RULE, the JSON edit box is prepopulated with a policy definition template. Replace this template with your policy definition based on the properties described in the table below and by following this syntax:

    {
   "mode": "All",
   "policyRule": {
      "if": {
         "field": "Microsoft.Web/connections/api.id",
         "like": "*managedApis/{connector-name}"
      },
      "then": {
         "effect": "deny"
      }
   },
   "parameters": {}
 }
    Property Value Description
    mode All The mode that determines the resource types that the policy evaluates.

    This scenario sets mode to All, which applies the policy to Azure resource groups, subscriptions, and all resource types.

    For more information, see Policy definition structure - mode.
    if {condition-to-evaluate} The condition that determines when to enforce the policy rule

    In this scenario, the {condition-to-evaluate} determines whether the api.id value in Microsoft.Web/connections/api.id matches on *managedApis/{connector-name}, which specifies a wildcard (*) value.

    For more information, see Policy definition structure - Policy rule.
    field Microsoft.Web/connections/api.id The field value to compare against the condition

    In this scenario, the field uses the alias, Microsoft.Web/connections/api.id, to access the value in the connector property, api.id.
    like *managedApis/{connector-name} The logical operator and value to use for comparing the field value

    In this scenario, the like operator and the wildcard (*) character both make sure that the rule works regardless of region, and the string, *managedApis/{connector-name}, is the value to match where {connector-name} is the ID for the connector that you want to block.

    For example, suppose that you want to block creating connections to social media platforms or databases:

    - X: x
    - Instagram: instagram
    - Facebook: facebook
    - Pinterest: pinterest
    - SQL Server or Azure SQL: sql

    To find these connector IDs, see Find connector reference ID earlier in this topic.
    then {effect-to-apply} The effect to apply when the if condition is met

    In this scenario, the {effect-to-apply} is to block and fail a request or operation that doesn't comply with the policy.

    For more information, see Policy definition structure - Policy rule.
    effect deny The effect is to block the request, which is to create the specified connection

    For more information, see Understand Azure Policy effects - Deny.

    For example, suppose that you want to block creating connections with the Instagram connector. Here's the policy definition that you can use:

    {
   "mode": "All",
   "policyRule": {
      "if": {
         "field": "Microsoft.Web/connections/api.id",
         "like": "*managedApis/instagram"
      },
      "then": {
         "effect": "deny"
      }
   },
   "parameters": {}
}

    Here's the way that the POLICY RULE box appears:

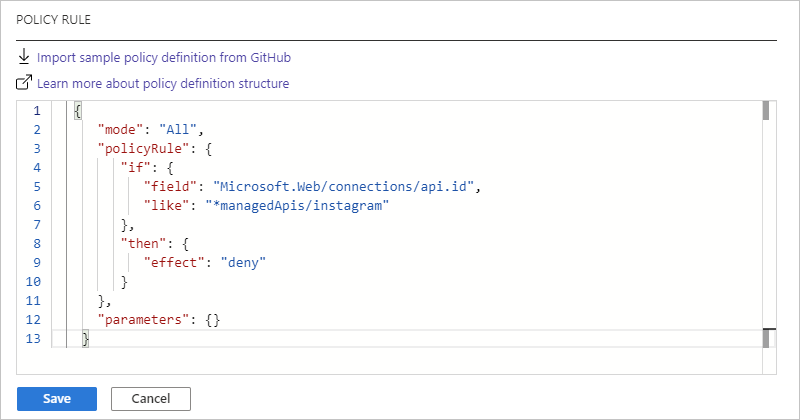

    Screenshot showing the "POLICY RULE" box with a policy rule example.

    For multiple connectors, you can add more conditions, for example:

    {
   "mode": "All",
   "policyRule": {
      "if": {
         "anyOf": [
            {
               "field": "Microsoft.Web/connections/api.id",
               "like": "*managedApis/instagram"
            },
            {
               "field": "Microsoft.Web/connections/api.id",
               "like": "*managedApis/x"
            },
            {
               "field": "Microsoft.Web/connections/api.id",
               "like": "*managedApis/facebook"
            },
            {
               "field": "Microsoft.Web/connections/api.id",
               "like": "*managedApis/pinterest"
            }
         ]
      },
      "then": {
         "effect": "deny"
      }
   },
   "parameters": {}
 }

  5. When you're done, select Save. After you save the policy definition, Azure Policy generates and adds more property values to the policy definition.

  6. Next, to assign the policy definition where you want to enforce the policy, create a policy assignment.

For more information about Azure Policy definitions, see these topics:

Block associating connections with logic apps

When you create a connection in a logic app workflow, this connection exists as separate Azure resource. If you delete only the logic app workflow, the connection resource isn't automatically deleted and continues to exist until deleted. You might have a scenario where the connection resource already exists or where you have to create the connection resource for use outside the logic app. You can still block the capability to associate the connection with a different logic app workflow by creating a policy that prevents saving logic app workflows that try to use the restricted or unapproved connection. This policy affects only logic app workflows that don't already use the connection.

  1. In the Azure portal search box, enter policy, and select Policy.

    Screenshot showing the Azure portal search box with "policy" entered and "Policy" selected.

  2. On the Policy menu, under Authoring, select Definitions. On the Definitions pane toolbar, select Policy definition.

    Screenshot showing "Definitions" pane toolbar with "Policy definition" selected.

  3. Under Policy definition, provide the information for your policy definition, based on the properties described under the example and continues by using Instagram as the example:

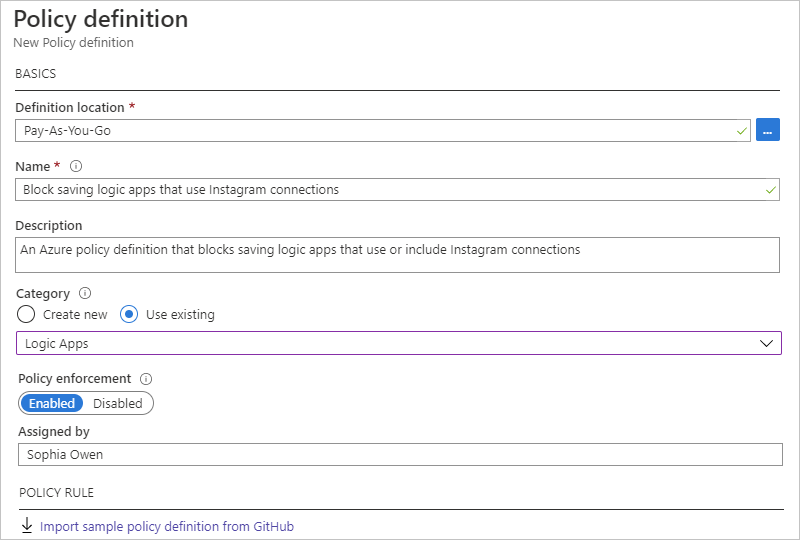

    Screenshot showing policy definition properties.

    Property Required Value Description
    Definition location Yes <Azure-subscription-name> The Azure subscription to use for the policy definition

    1. To find your subscription, select the ellipses (...) button.
    2. From the Subscription list, find and select your subscription.
    3. When you're done, select Select.
    Name Yes <policy-definition-name> The name to use for the policy definition
    Description No <policy-definition-name> A description for the policy definition
    Category Yes Logic apps The name for an existing category or new category for the policy definition
    Policy enforcement Yes Enabled This setting specifies whether to enable or disable the policy definition when you save your work.

  4. Under POLICY RULE, the JSON edit box is prepopulated with a policy definition template. Replace this template with your policy definition based on the properties described in the table below and by following this syntax:

    {
   "mode": "All",
   "policyRule": {
      "if": {
         "value": "[string(field('Microsoft.Logic/workflows/parameters'))]",
         "contains": "{connector-name}"
      },
      "then": {
         "effect": "deny"
      }
   },
   "parameters": {}
 }
    Property Value Description
    mode All The mode that determines the resource types that the policy evaluates.

    This scenario sets mode to All, which applies the policy to Azure resource groups, subscriptions, and all resource types.

    For more information, see Policy definition structure - mode.
    if {condition-to-evaluate} The condition that determines when to enforce the policy rule

    In this scenario, the {condition-to-evaluate} determines whether the string output from [string(field('Microsoft.Logic/workflows/parameters'))], contains the string, {connector-name}.

    For more information, see Policy definition structure - Policy rule.
    value [string(field('Microsoft.Logic/workflows/parameters'))] The value to compare against the condition

    In this scenario, the value is the string output from [string(field('Microsoft.Logic/workflows/parameters'))], which converts the $connectors object inside the Microsoft.Logic/workflows/parameters object to a string.
    contains {connector-name} The logical operator and value to use for comparing with the value property

    In this scenario, the contains operator makes sure that the rule works regardless where {connector-name} appears, where the string, {connector-name}, is the ID for the connector that you want to restrict or block.

    For example, suppose that you want to block using connections to social media platforms or databases:

    - X: x
    - Instagram: instagram
    - Facebook: facebook
    - Pinterest: pinterest
    - SQL Server or Azure SQL: sql

    To find these connector IDs, see Find connector reference ID earlier in this topic.
    then {effect-to-apply} The effect to apply when the if condition is met

    In this scenario, the {effect-to-apply} is to block and fail a request or operation that doesn't comply with the policy.

    For more information, see Policy definition structure - Policy rule.
    effect deny The effect is to deny or block the request to save a logic app that uses the specified connection

    For more information, see Understand Azure Policy effects - Deny.

    For example, suppose that you want to block saving logic apps that use Instagram connections. Here's the policy definition that you can use:

    {
   "mode": "All",
   "policyRule": {
      "if": {
         "value": "[string(field('Microsoft.Logic/workflows/parameters'))]",
         "contains": "instagram"
      },
      "then": {
         "effect": "deny"
      }
   },
   "parameters": {}
 }

    Here's the way that the POLICY RULE box appears:

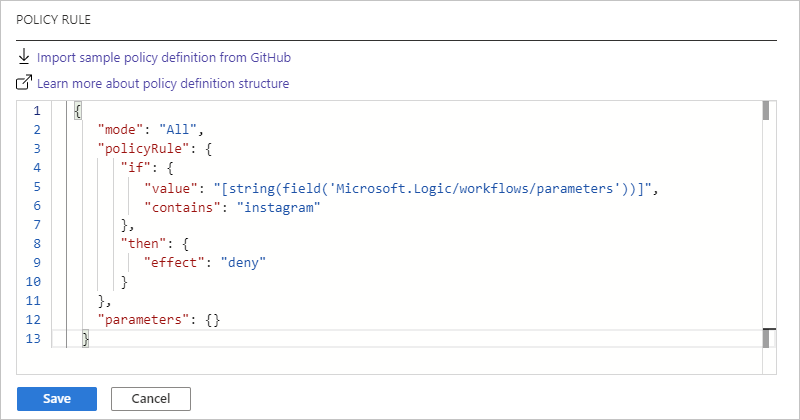

    Screenshot showing policy definition rule.

  5. When you're done, select Save. After you save the policy definition, Azure Policy generates and adds more property values to the policy definition.

  6. Next, to assign the policy definition where you want to enforce the policy, create a policy assignment.

For more information about Azure Policy definitions, see these topics:

Create policy assignment

Next, you need to assign the policy definition where you want to enforce the policy, for example, to a single resource group, multiple resource groups, Microsoft Entra tenant, or Azure subscription. For this task, follow these steps to create a policy assignment:

  1. In the Azure portal, portal search box, enter policy, and select Policy.

    Screenshot showing Azure portal search box with "policy" entered and "Policy" selected.

  2. On the Policy menu, under Authoring, select Assignments. On the Assignments pane toolbar, select Assign policy.

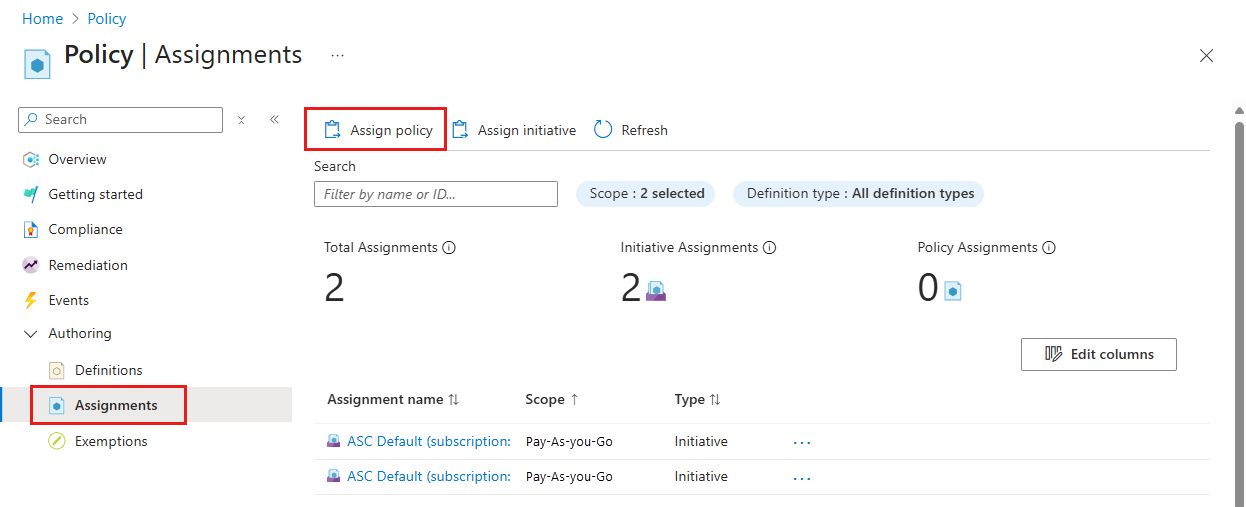

    Screenshot showing "Assignments" pane toolbar with "Assign policy" selected.

  3. On the Assign policy pane, under Basics, provide this information for the policy assignment:

    Property Required Description
    Scope Yes The resources where you want to enforce the policy assignment.

    1. Next to the Scope box, select the ellipses (...) button.
    2. From the Subscription list, select the Azure subscription.
    3. Optionally, from the Resource Group list, select the resource group.
    4. When you're done, select Select.
    Exclusions No Any Azure resources to exclude from the policy assignment.

    1. Next to the Exclusions box, select the ellipses (...) button.
    2. From the Resource list, select the resource > Add to Selected Scope.
    3. When you're done, select Save.
    Policy definition Yes The name for the policy definition that you want to assign and enforce. This example continues with the example Instagram policy, "Block Instagram connections".

    1. Next to the Policy definition box, select the ellipses (...) button.
    2. Find and select the policy definition by using the Type filter or Search box.
    3. When you're done, select Select.
    Assignment name Yes The name to use for the policy assignment, if different from the policy definition
    Assignment ID Yes The automatically generated ID for the policy assignment
    Description No A description for the policy assignment
    Policy enforcement Yes The setting that enables or disables the policy assignment
    Assigned by No The name for the person who created and applied the policy assignment

    For example, to assign the policy to an Azure resource group by using the Instagram example:

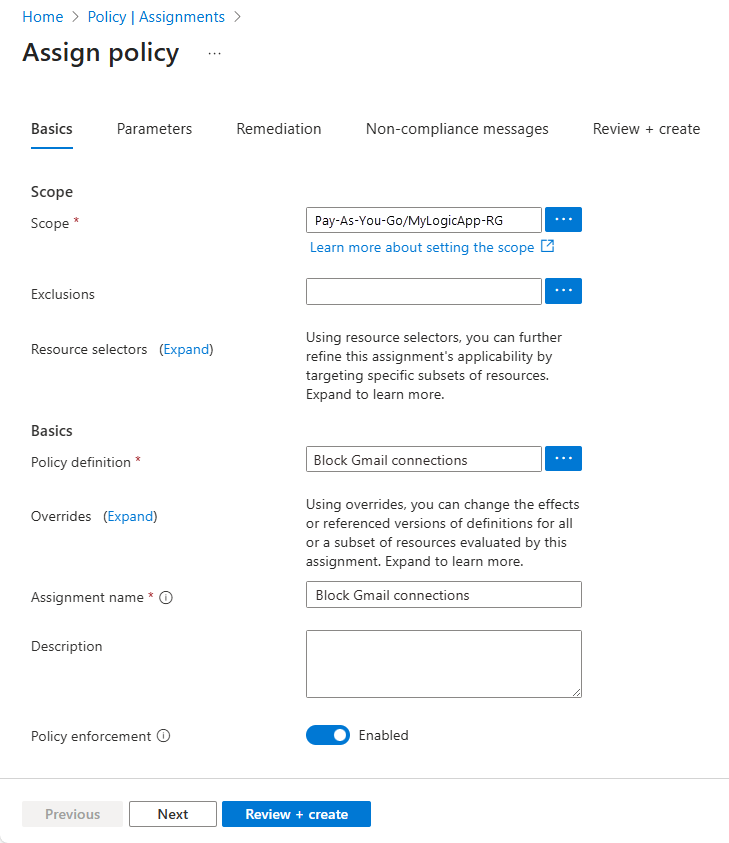

    Screenshot showing policy assignment properties.

  4. When you're done, select Review + create.

    After you create a policy, you might have to wait up to 15 minutes before the policy takes effect. Changes might also have similar delayed effects.

  5. After the policy takes effect, you can test your policy.

For more information, see Quickstart: Create a policy assignment to identify noncompliant resources.

Test the policy

To try your policy, start creating a connection by using the now restricted connector in the workflow designer. Continuing with the Instagram example, when you sign in to Instagram, you get this error that your logic app failed to create the connection:

Screenshot showing connection failure due to applied policy.

The message includes this information:

Description Content
Reason for the failure "Resource 'instagram' was disallowed by policy."
Assignment name "Block Instagram connections"
Assignment ID "/subscriptions/xxxxxXXXXXxxxxxXXXXXxxxxxXXXXX/resourceGroups/MyLogicApp-RG/providers/Microsoft.Authorization/policyAssignments/4231890fc3bd4352acb0b673"
Policy definition ID "/subscriptions/xxxxxXXXXXxxxxxXXXXXxxxxxXXXXX/providers/Microsoft.Authorization/policyDefinitions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e"
