ASP.NET MVC 5 app with SMS and email Two-Factor Authentication

  • Cikk

by Rick Anderson

This tutorial shows you how to build an ASP.NET MVC 5 web app with Two-Factor Authentication. You should complete Create a secure ASP.NET MVC 5 web app with log in, email confirmation and password reset before proceeding. You can download the completed application here. The download contains debugging helpers that let you test email confirmation and SMS without setting up an email or SMS provider.

This tutorial was written by Rick Anderson ( Twitter: @RickAndMSFT ).

Create an ASP.NET MVC app

Start by installing and running Visual Studio Express 2013 for Web or higher.

Note

Warning: You should complete Create a secure ASP.NET MVC 5 web app with log in, email confirmation and password reset before proceeding. You must install Visual Studio 2013 Update 3 or higher to complete this tutorial.

  1. Create a new ASP.NET Web project and select the MVC template. Web Forms also supports ASP.NET Identity, so you could follow similar steps in a web forms app.

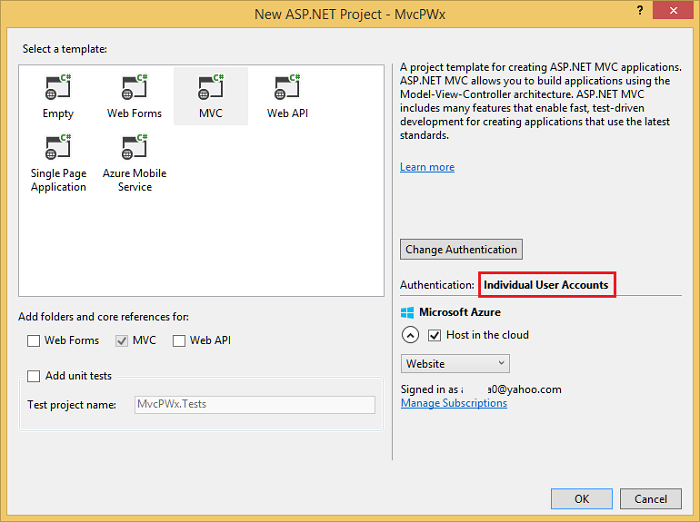

    Screenshot that shows the New A S P dot NET Project window. The default authentication, Individual User Accounts, is highlighted.
  2. Leave the default authentication as Individual User Accounts. If you'd like to host the app in Azure, leave the check box checked. Later in the tutorial we will deploy to Azure. You can open an Azure account for free.
  3. Set the project to use SSL.

Set up SMS for Two-factor authentication

This tutorial provides instructions for using either Twilio or ASPSMS but you can use any other SMS provider.

  1. Creating a User Account with an SMS provider

    Create a Twilio or an ASPSMS account.

  2. Installing additional packages or adding service references

    Twilio:
    In the Package Manager Console, enter the following command:
    Install-Package Twilio

    ASPSMS:
    The following service reference needs to be added:

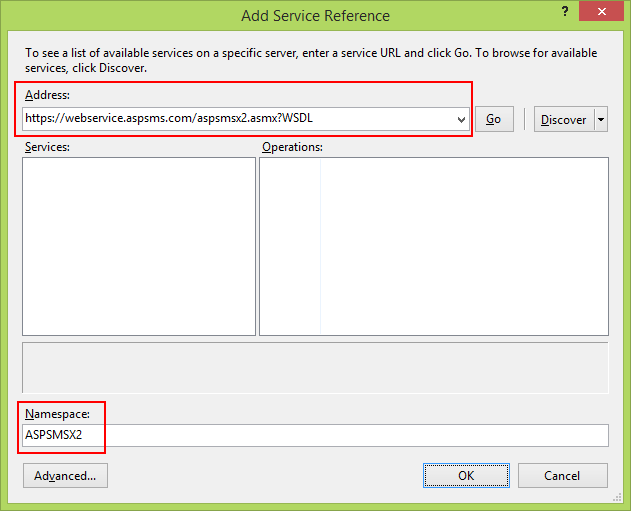

    Screenshot that shows the Add Service Reference window. The Address and Namespace input bars are highlighted.

    Address:
    https://webservice.aspsms.com/aspsmsx2.asmx?WSDL

    Namespace:
    ASPSMSX2

  3. Figuring out SMS Provider User credentials

    Twilio:
    From the Dashboard tab of your Twilio account, copy the Account SID and Auth token.

    ASPSMS:
    From your account settings, navigate to Userkey and copy it together with your self-defined Password.

    We will later store these values in the web.config file within the keys "SMSAccountIdentification" and "SMSAccountPassword" .

  4. Specifying SenderID / Originator

    Twilio:
    From the Numbers tab, copy your Twilio phone number.

    ASPSMS:
    Within the Unlock Originators Menu, unlock one or more Originators or choose an alphanumeric Originator (Not supported by all networks).

    We will later store this value in the web.config file within the key "SMSAccountFrom" .

  5. Transferring SMS provider credentials into app

    Make the credentials and sender phone number available to the app. To keep things simple we will store these values in the web.config file. When we deploy to Azure, we can store the values securely in the app settings section on the web site configure tab.

    </connectionStrings>
   <appSettings>
      <add key="webpages:Version" value="3.0.0.0" />
      <!-- Markup removed for clarity. -->
      <!-- SendGrid-->
      <add key="mailAccount" value="account" />
      <add key="mailPassword" value="password" />
      <add key="SMSAccountIdentification" value="My Identification" />
      <add key="SMSAccountPassword" value="My Password" />
      <add key="SMSAccountFrom" value="+12065551234" />
   </appSettings>
  <system.web>

    Warning

    Security - Never store sensitive data in your source code. The account and credentials are added to the code above to keep the sample simple. See Best practices for deploying passwords and other sensitive data to ASP.NET and Azure.

  6. Implementation of data transfer to SMS provider

    Configure the SmsService class in the App_Start\IdentityConfig.cs file.

    Depending on the used SMS provider activate either the Twilio or the ASPSMS section:

    public class SmsService : IIdentityMessageService
{
    public Task SendAsync(IdentityMessage message)
    {
        // Twilio Begin
        //var accountSid = ConfigurationManager.AppSettings["SMSAccountIdentification"];
        //var authToken = ConfigurationManager.AppSettings["SMSAccountPassword"];
        //var fromNumber = ConfigurationManager.AppSettings["SMSAccountFrom"];

        //TwilioClient.Init(accountSid, authToken);

        //MessageResource result = MessageResource.Create(
            //new PhoneNumber(message.Destination),
            //from: new PhoneNumber(fromNumber),
           //body: message.Body
        //);

        ////Status is one of Queued, Sending, Sent, Failed or null if the number is not valid
         //Trace.TraceInformation(result.Status.ToString());
        ////Twilio doesn't currently have an async API, so return success.
         //return Task.FromResult(0);
        // Twilio End

        // ASPSMS Begin
        // var soapSms = new MvcPWx.ASPSMSX2.ASPSMSX2SoapClient("ASPSMSX2Soap");
        // soapSms.SendSimpleTextSMS(
        //   System.Configuration.ConfigurationManager.AppSettings["SMSAccountIdentification"],
        //   System.Configuration.ConfigurationManager.AppSettings["SMSAccountPassword"],
        //   message.Destination,
        //   System.Configuration.ConfigurationManager.AppSettings["SMSAccountFrom"],
        //   message.Body);
        // soapSms.Close();
        // return Task.FromResult(0);
        // ASPSMS End
    }
}

  7. Update the Views\Manage\Index.cshtml Razor view: (note: don't just remove the comments in the exiting code, use the code below.)

    @model MvcPWy.Models.IndexViewModel
@{
   ViewBag.Title = "Manage";
}
<h2>@ViewBag.Title.</h2>
<p class="text-success">@ViewBag.StatusMessage</p>
<div>
   <h4>Change your account settings</h4>
   <hr />
   <dl class="dl-horizontal">
      <dt>Password:</dt>
      <dd>
         [
         @if (Model.HasPassword)
         {
            @Html.ActionLink("Change your password", "ChangePassword")
         }
         else
         {
            @Html.ActionLink("Create", "SetPassword")
         }
         ]
      </dd>
      <dt>External Logins:</dt>
      <dd>
         @Model.Logins.Count [
         @Html.ActionLink("Manage", "ManageLogins") ]
      </dd>
        <dt>Phone Number:</dt>
      <dd>
         @(Model.PhoneNumber ?? "None") [
         @if (Model.PhoneNumber != null)
         {
            @Html.ActionLink("Change", "AddPhoneNumber")
            @: &nbsp;|&nbsp;
            @Html.ActionLink("Remove", "RemovePhoneNumber")
         }
         else
         {
            @Html.ActionLink("Add", "AddPhoneNumber")
         }
         ]
      </dd>
      <dt>Two-Factor Authentication:</dt>
      <dd>
         @if (Model.TwoFactor)
         {
            using (Html.BeginForm("DisableTwoFactorAuthentication", "Manage", FormMethod.Post, new { @class = "form-horizontal", role = "form" }))
            {
               @Html.AntiForgeryToken()
               <text>Enabled
                  <input type="submit" value="Disable" class="btn btn-link" />
               </text>
            }
         }
         else
         {
            using (Html.BeginForm("EnableTwoFactorAuthentication", "Manage", FormMethod.Post, new { @class = "form-horizontal", role = "form" }))
            {
               @Html.AntiForgeryToken()
               <text>Disabled
                  <input type="submit" value="Enable" class="btn btn-link" />
               </text>
            }
         }
      </dd>
   </dl>
</div>

  8. Verify the EnableTwoFactorAuthentication and DisableTwoFactorAuthentication action methods in the ManageController have the[ValidateAntiForgeryToken] attribute:

    //
// POST: /Manage/EnableTwoFactorAuthentication
[HttpPost,ValidateAntiForgeryToken]
public async Task<ActionResult> EnableTwoFactorAuthentication()
{
    await UserManager.SetTwoFactorEnabledAsync(User.Identity.GetUserId(), true);
    var user = await UserManager.FindByIdAsync(User.Identity.GetUserId());
    if (user != null)
    {
        await SignInAsync(user, isPersistent: false);
    }
    return RedirectToAction("Index", "Manage");
}
//
// POST: /Manage/DisableTwoFactorAuthentication
[HttpPost, ValidateAntiForgeryToken]
public async Task<ActionResult> DisableTwoFactorAuthentication()
{
    await UserManager.SetTwoFactorEnabledAsync(User.Identity.GetUserId(), false);
    var user = await UserManager.FindByIdAsync(User.Identity.GetUserId());
    if (user != null)
    {
        await SignInAsync(user, isPersistent: false);
    }
    return RedirectToAction("Index", "Manage");
}

  9. Run the app and log in with the account you previously registered.

  10. Click on your User ID, which activates the Index action method in Manage controller.

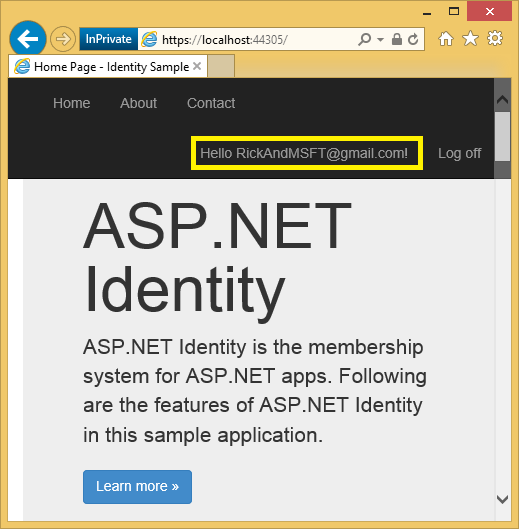

    Screenshot that shows the A S P dot NET app Home page. A Sample USER I D is highlighted.

  11. Click Add.

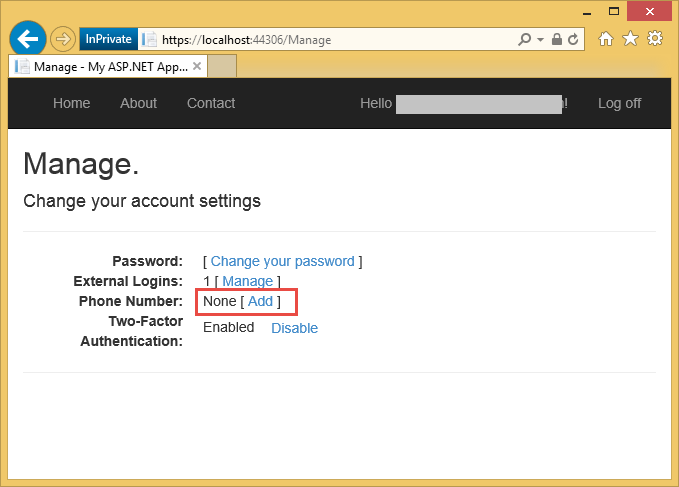

    Screenshot that shows the A S P dot NET app Account Settings page. None Add next to Phone Number section is highlighted.

  12. The AddPhoneNumber action method displays a dialog box to enter a phone number that can receive SMS messages.

    // GET: /Account/AddPhoneNumber
public ActionResult AddPhoneNumber()
{
   return View();
}

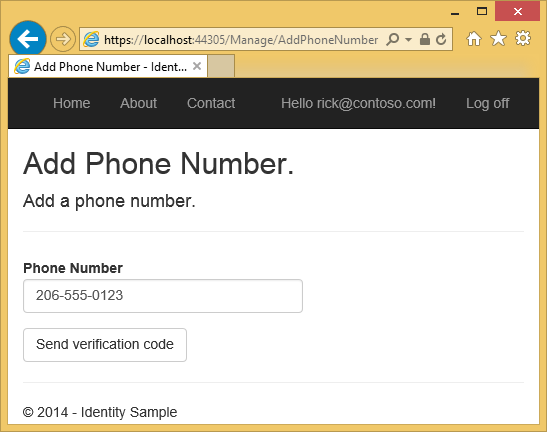

    Screenshot that shows the A S P dot NET app Add Phone Number page. A sample phone number is filled in with a Send Verification Code button below it.

  13. In a few seconds you will get a text message with the verification code. Enter it and press Submit.

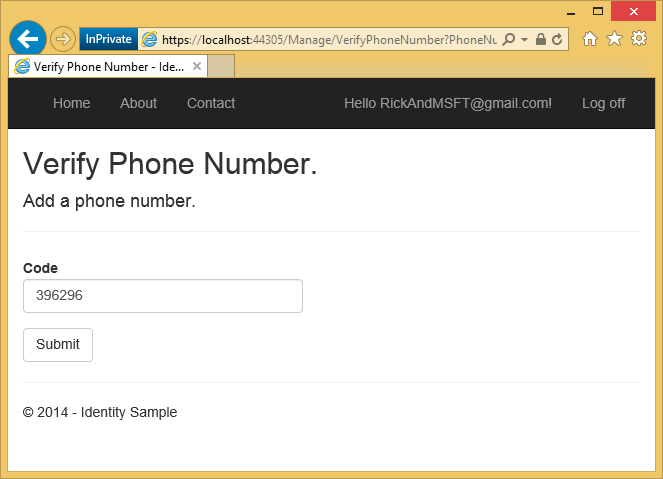

    Screenshot of the A S P dot NET app Add Phone Number page showing an input bar filled with a sample verification code and a Submit button below it.

  14. The Manage view shows your phone number was added.

Enable two-factor authentication

In the template generated app, you need to use the UI to enable two-factor authentication (2FA). To enable 2FA, click on your user ID (email alias) in the navigation bar.

Screenshot that displays the A S P dot NET app Home page. A sample USER I D is highlighted.

Click on enable 2FA.

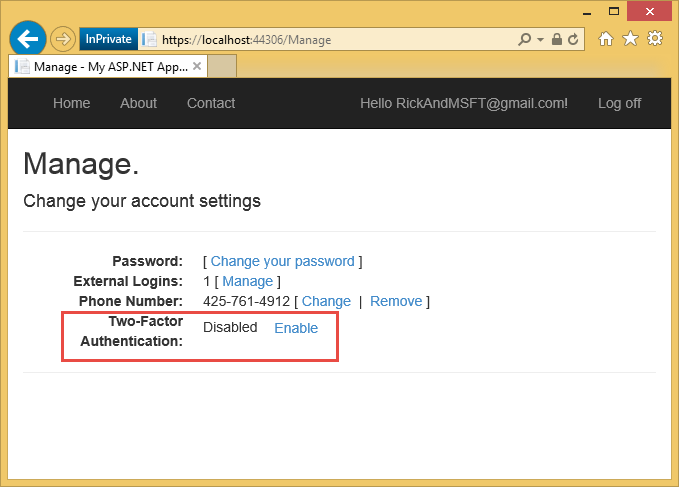

Screenshot that shows the A S P dot NET app Account Settings page. Two-Factor Authentication: Disabled with an Enable link section is highlighted.

Logout, then log back in. If you've enabled email (see my previous tutorial), you can select the SMS or email for 2FA.

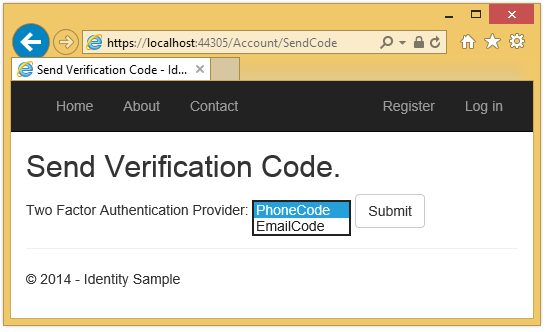

Screenshot that shows the A S P dot NET app Send Verification Code page. A dropdown menu showing Phone Code and Email Code is selected.

The Verify Code page is displayed where you can enter the code (from SMS or email).

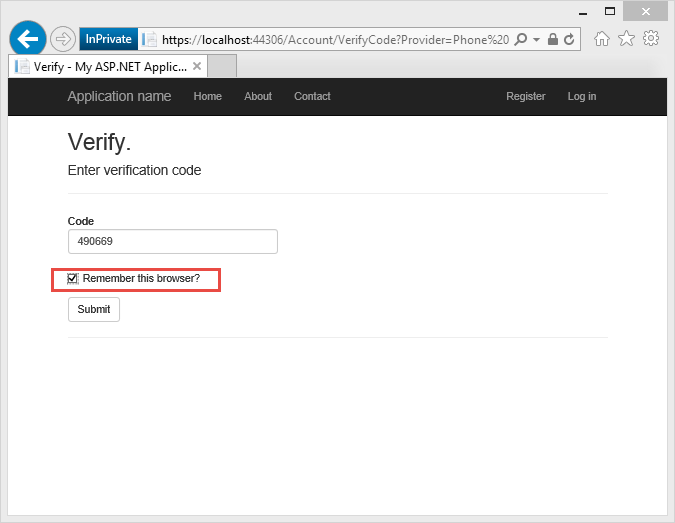

Screenshot that shows the A S P dot NET app Verify page for 2 FA. Beneath a sample code, a checkbox with Remember this browser is highlighted.

Clicking on the Remember this browser check box will exempt you from needing to use 2FA to log in when using the browser and device where you checked the box. As long as malicious users can't gain access to your device, enabling 2FA and clicking on the Remember this browser will provide you with convenient one step password access, while still retaining strong 2FA protection for all access from non-trusted devices. You can do this on any private device you regularly use.

This tutorial provides a quick introduction to enabling 2FA on a new ASP.NET MVC app. My tutorial Two-factor authentication using SMS and email with ASP.NET Identity goes into detail on the code behind the sample.
