Dynamics 365 Commerce authentication flows

Cikk
07/25/2024

This article provides an overview of the various authentication flows in Microsoft Dynamics 365 Commerce. Although the Dynamics 365 Commerce solution currently supports several authentication scenarios and flows, the core authentication infrastructure of the Commerce Scale Unit (also known as the headless commerce engine) is fully based on OpenID Connect.

Authentication methods

Access to each of the application programming interfaces (APIs) on the Commerce Scale Unit is natively restricted by one or more of the following roles:

Employee – Access to APIs associated with this role requires point of sale (POS) device activation (a device token) and an authenticated employee.
Customer – Access to APIs associated with this role requires an authenticated customer. E-Commerce sites generally use these APIs for operations such as retrieving order history and changing customer details.
Application – Access to APIs associated with this role requires application-level authentication, such as Microsoft Entra service-to-service authentication.
Anonymous – APIs associated with this role are primarily used by e-Commerce sites without user authentication.
Customized APIs – Access to APIs associated with this role can be restricted using any of the methods described above such as POS device activation, customer authentication, and anonymous authentication.

For the full list of Commerce Scale Unit APIs and their access restrictions, see Commerce Scale Unit customer and consumer APIs.

Supported authentication methods

The following table describes the set of supported authentication methods for APIs that require either POS device activation that generates a device token or user authentication that generates a user token.

API category	Scenario	Supported authentication method	Required setup	Additional details

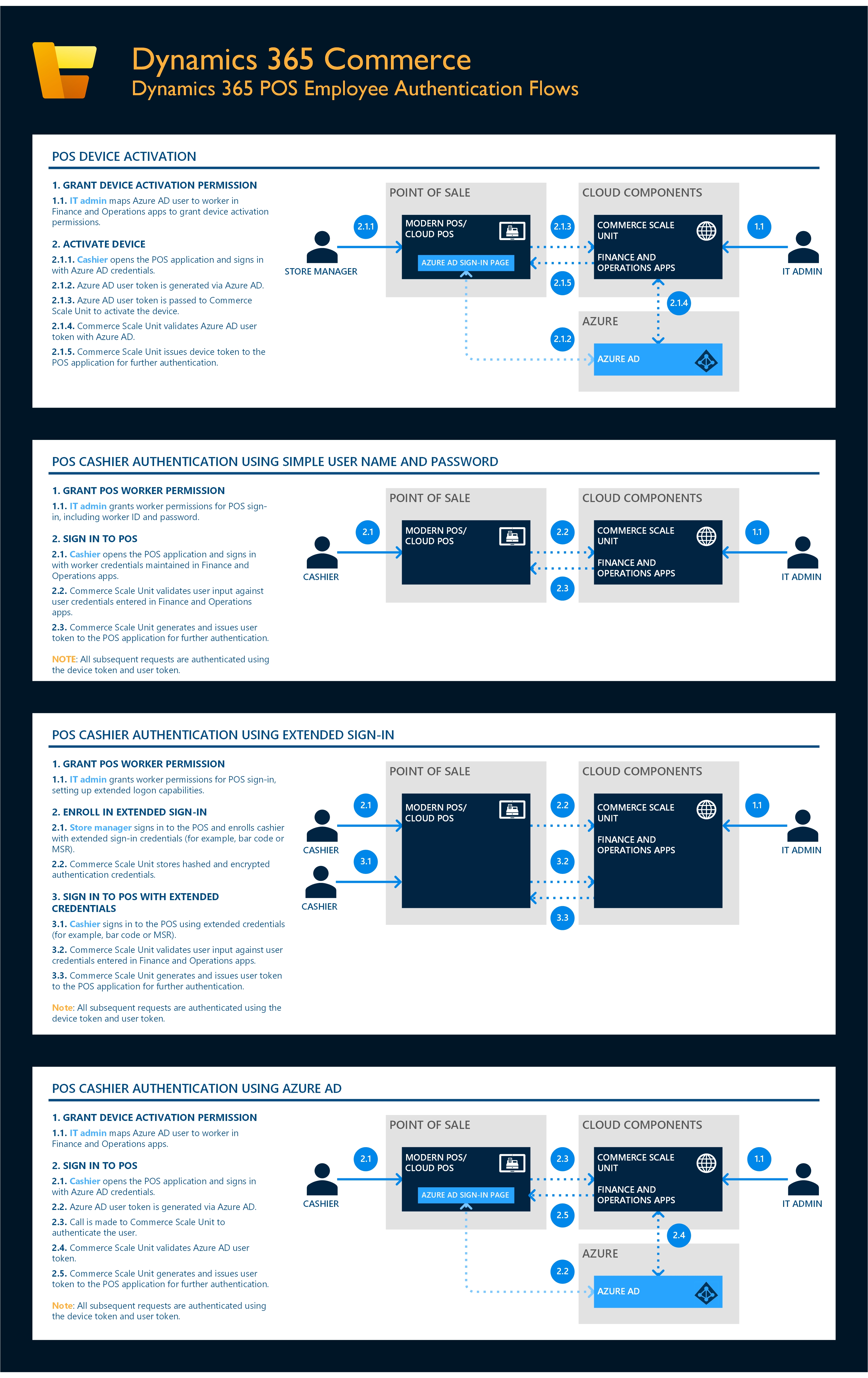

Employee	Dynamics 365 POS authentication flows*	Simple cashier user name and password	In Dynamics 365 Commerce headquarters, configure a user name and password for a worker.	Create a worker
Employee	Dynamics 365 POS authentication flows*	Microsoft Entra credentials	In Commerce headquarters, configure a worker that is mapped to Microsoft Entra credentials.	Enable Microsoft Entra authentication for POS sign-in
Employee	Dynamics 365 POS authentication flows*	Extended sign-in credentials (for example, by using a bar code or a magnetic stripe reader [MSR])	In Commerce headquarters, configure a worker for extended sign-in.	Set up extended sign-in functionality for Store Commerce app and Store Commerce for web

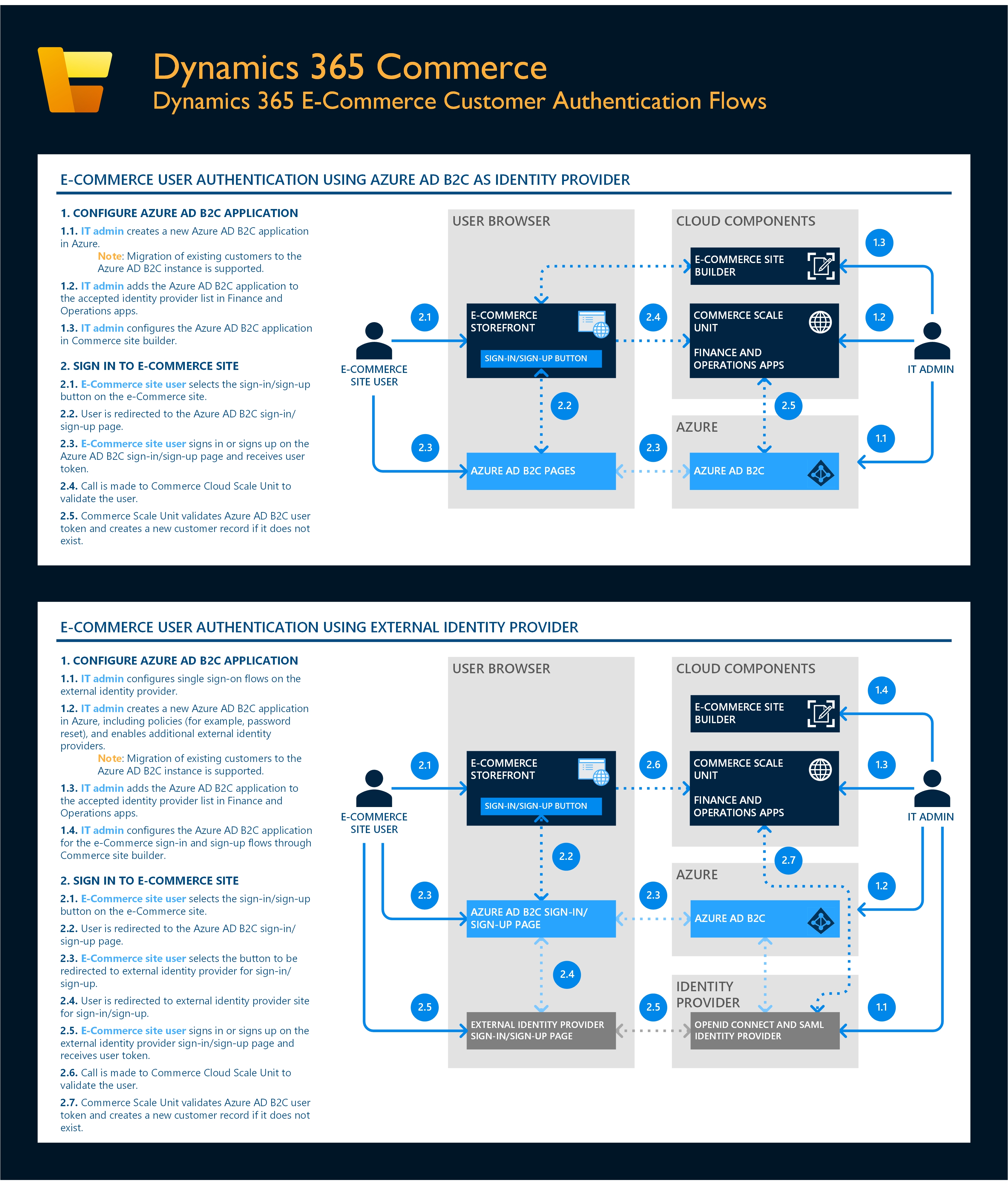

Customer	Dynamics 365 Commerce authentication flows	Site user authentication by using Microsoft Entra ID B2C with implicit scope flow	Create a Microsoft Entra business-to-consumer (B2C) application. In Commerce headquarters, add the Microsoft Entra B2C application to the accepted list of identity providers. In Commerce site builder, configure the Microsoft Entra B2C application.	Set up a B2C tenant in Commerce Set up custom pages for user sign-ins
Customer	Dynamics 365 Commerce authentication flows	Site user authentication by using an external identity provider that supports OpenID Connect with implicit scope flow	Create a Microsoft Entra B2C application, and configure it to support external identity providers. In Commerce headquarters, add the Microsoft Entra B2C application to the accepted list of identity providers. In Commerce site builder, configure the Microsoft Entra B2C application.	Set up a B2C tenant in Commerce Set up custom pages for user sign-ins

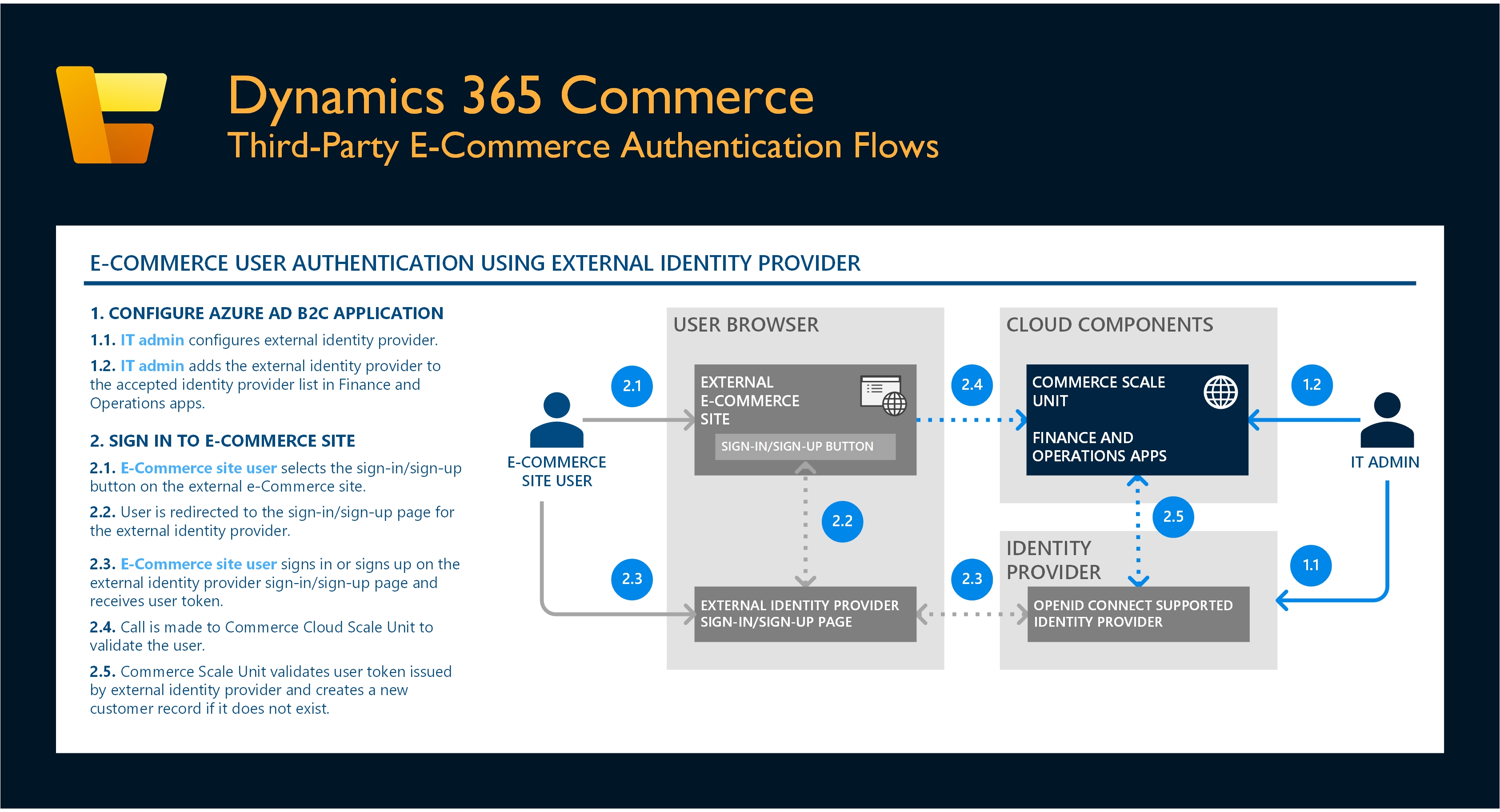

Customer	Third-party e-Commerce authentication flows	Site user authentication by using an external identity provider that supports OpenID Connect with implicit scope flow	In Commerce headquarters, add the external identity provider to the accepted list of identity providers.	Configure authentication providers

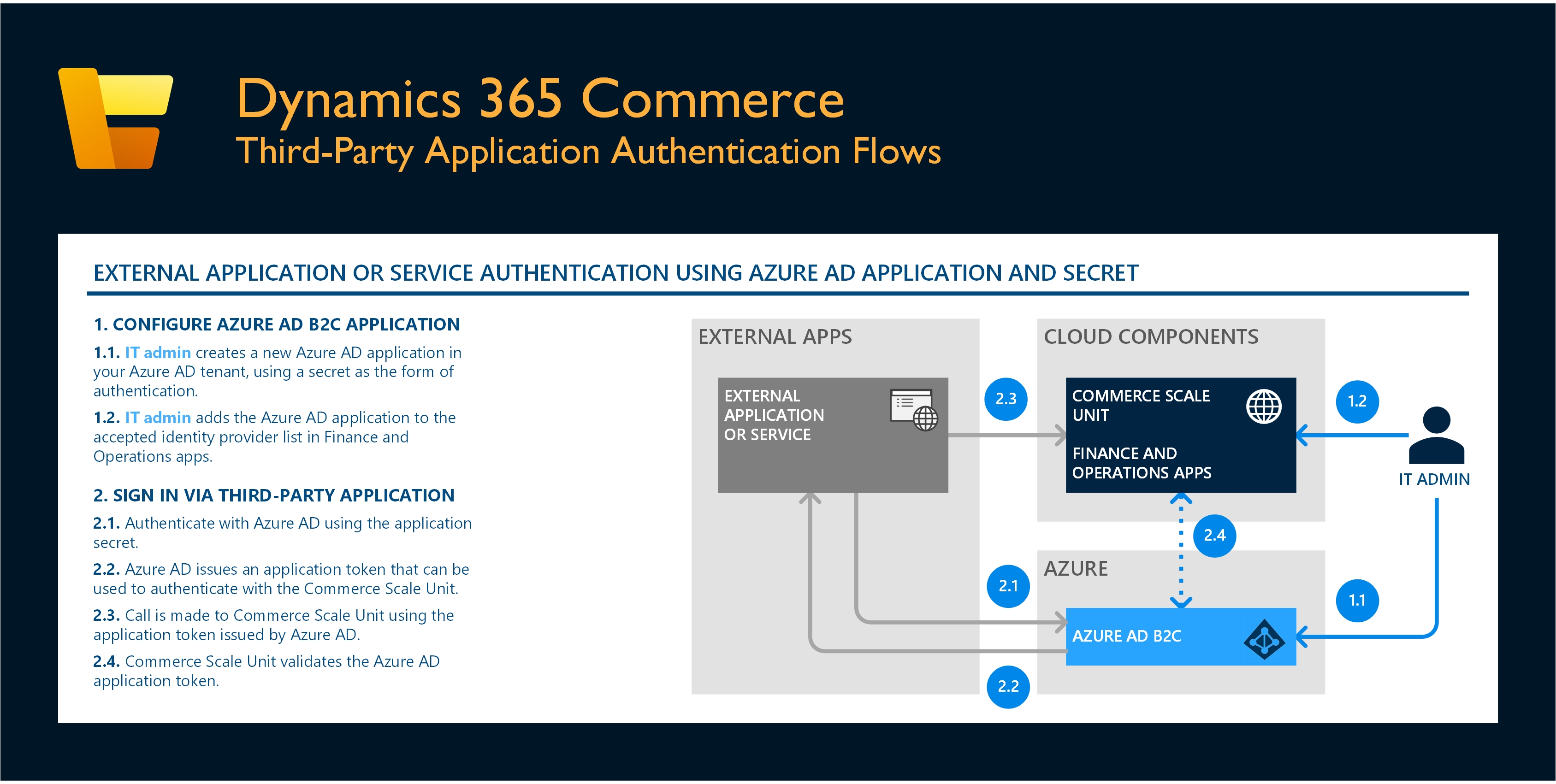

Application	Third-party app or service authentication flows	Microsoft Entra service-to-service authentication/application authentication	In Commerce headquarters, add the external identity provider to the accepted list of identity providers.

* Sign-in to POS requires device activation for each terminal. For more information, see Point of Sale (POS) device activation.

Unsupported authentication flows

Scenario	Unsupported authentication method	Details
Dynamics 365 POS authentication flows	Authentication without device activation (that is, without a device token)	All POS-related Commerce Scale Unit APIs require a device activation token for authentication.
Dynamics 365 Commerce authentication flows	Site user authentication by using Microsoft Entra business-to-consumer (B2C) with authorization code or On-Behalf-Of flows	Authorization code and On-Behalf-Of flows are not currently supported with e-commerce site user authentication.
Third-party e-commerce authentication flows	Site user authentication by using an external identity provider that supports OpenID Connect with authorization code or On-behalf-of flows	Authorization code and On-behalf-of flows are not currently supported with e-commerce site user authentication.
