Skrip PowerShell untuk menghapus Recovery Services vault

Skrip ini membantu Anda menghapus vault Layanan Pemulihan untuk Azure Backup.

Jalankan skrip untuk penghapusan vault

Untuk menjalankan skrip untuk penghapusan vault, ikuti langkah-langkah berikut:

  1. Simpan skrip di bagian berikut ini di komputer Anda dengan nama pilihan Anda dan ekstensi .ps1.

  2. Dalam skrip, ubah parameter (nama vault, nama grup sumber daya, nama langganan, dan ID langganan).

  3. Untuk menjalankannya di lingkungan PowerShell, lanjutkan dengan langkah berikutnya.

    Atau, Anda dapat menggunakan Cloud Shell di portal Azure untuk vault dengan lebih sedikit cadangan.

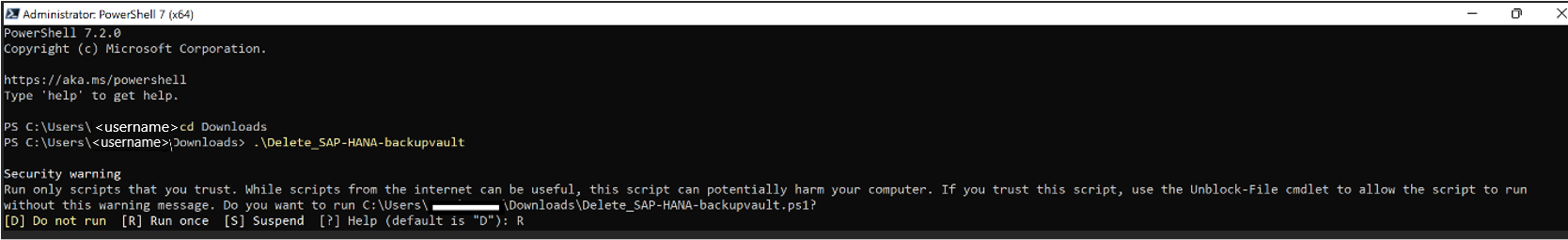

    Cuplikan layar yang menampilkan untuk menghapus vault menggunakan Cloud Shell.

  4. Untuk meningkatkan ke versi terbaru PowerShell 7, jika belum selesai, jalankan perintah berikut di jendela PowerShell:

     iex "& { $(irm https://aka.ms/install-powershell.ps1) } -UseMSI"

  5. Buka PowerShell 7 sebagai administrator.

  6. Di jendela PowerShell, ubah jalur ke lokasi file disajikan, lalu jalankan file menggunakan ./NameOfFile.ps1.

  7. Berikan autentikasi melalui browser dengan masuk ke akun Azure Anda.

Skrip akan terus menghapus semua item cadangan dan akhirnya seluruh vault secara berulang.

Skrip untuk penghapusan vault

Write-Host "WARNING: Please ensure that you have at least PowerShell 7 before running this script. Visit https://go.microsoft.com/fwlink/?linkid=2181071 for the procedure." -ForegroundColor Yellow
$RSmodule = Get-Module -Name Az.RecoveryServices -ListAvailable
$NWmodule = Get-Module -Name Az.Network -ListAvailable
$RSversion = $RSmodule.Version.ToString()
$NWversion = $NWmodule.Version.ToString()

if($RSversion -lt "5.3.0")
{
    Uninstall-Module -Name Az.RecoveryServices
    Set-ExecutionPolicy -ExecutionPolicy Unrestricted
    Install-Module -Name Az.RecoveryServices -Repository PSGallery -Force -AllowClobber
}

if($NWversion -lt "4.15.0")
{
    Uninstall-Module -Name Az.Network
    Set-ExecutionPolicy -ExecutionPolicy Unrestricted
    Install-Module -Name Az.Network -Repository PSGallery -Force -AllowClobber
}

Connect-AzAccount

$VaultName = "Vault name" #enter vault name
$Subscription = "Subscription name" #enter Subscription name
$ResourceGroup = "Resource group name" #enter Resource group name
$SubscriptionId = "Subscription ID" #enter Subscription ID

Select-AzSubscription $Subscription
$VaultToDelete = Get-AzRecoveryServicesVault -Name $VaultName -ResourceGroupName $ResourceGroup
Set-AzRecoveryServicesAsrVaultContext -Vault $VaultToDelete

Set-AzRecoveryServicesVaultProperty -Vault $VaultToDelete.ID -SoftDeleteFeatureState Disable #disable soft delete
Write-Host "Soft delete disabled for the vault" $VaultName
$containerSoftDelete = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureVM -WorkloadType AzureVM -VaultId $VaultToDelete.ID | Where-Object {$_.DeleteState -eq "ToBeDeleted"} #fetch backup items in soft delete state
foreach ($softitem in $containerSoftDelete)
{
    Undo-AzRecoveryServicesBackupItemDeletion -Item $softitem -VaultId $VaultToDelete.ID -Force #undelete items in soft delete state
}

#Invoking API to disable Security features (Enhanced Security) to remove MARS/MAB/DPM servers.
Set-AzRecoveryServicesVaultProperty -VaultId $VaultToDelete.ID -DisableHybridBackupSecurityFeature $true
Write-Host "Disabled Security features for the vault"

#Fetch all protected items and servers
$backupItemsVM = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureVM -WorkloadType AzureVM -VaultId $VaultToDelete.ID
$backupItemsSQL = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureWorkload -WorkloadType MSSQL -VaultId $VaultToDelete.ID
$backupItemsAFS = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureStorage -WorkloadType AzureFiles -VaultId $VaultToDelete.ID
$backupItemsSAP = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureWorkload -WorkloadType SAPHanaDatabase -VaultId $VaultToDelete.ID
$backupContainersSQL = Get-AzRecoveryServicesBackupContainer -ContainerType AzureVMAppContainer -VaultId $VaultToDelete.ID | Where-Object {$_.ExtendedInfo.WorkloadType -eq "SQL"}
$protectableItemsSQL = Get-AzRecoveryServicesBackupProtectableItem -WorkloadType MSSQL -VaultId $VaultToDelete.ID | Where-Object {$_.IsAutoProtected -eq $true}
$backupContainersSAP = Get-AzRecoveryServicesBackupContainer -ContainerType AzureVMAppContainer -VaultId $VaultToDelete.ID | Where-Object {$_.ExtendedInfo.WorkloadType -eq "SAPHana"}
$StorageAccounts = Get-AzRecoveryServicesBackupContainer -ContainerType AzureStorage -VaultId $VaultToDelete.ID
$backupServersMARS = Get-AzRecoveryServicesBackupContainer -ContainerType "Windows" -BackupManagementType MAB -VaultId $VaultToDelete.ID
$backupServersMABS = Get-AzRecoveryServicesBackupManagementServer -VaultId $VaultToDelete.ID| Where-Object { $_.BackupManagementType -eq "AzureBackupServer" }
$backupServersDPM = Get-AzRecoveryServicesBackupManagementServer -VaultId $VaultToDelete.ID | Where-Object { $_.BackupManagementType-eq "SCDPM" }
$pvtendpoints = Get-AzPrivateEndpointConnection -PrivateLinkResourceId $VaultToDelete.ID

foreach($item in $backupItemsVM)
    {
        Disable-AzRecoveryServicesBackupProtection -Item $item -VaultId $VaultToDelete.ID -RemoveRecoveryPoints -Force #stop backup and delete Azure VM backup items
    }
Write-Host "Disabled and deleted Azure VM backup items"

foreach($item in $backupItemsSQL)
    {
        Disable-AzRecoveryServicesBackupProtection -Item $item -VaultId $VaultToDelete.ID -RemoveRecoveryPoints -Force #stop backup and delete SQL Server in Azure VM backup items
    }
Write-Host "Disabled and deleted SQL Server backup items"

foreach($item in $protectableItemsSQL)
    {
        Disable-AzRecoveryServicesBackupAutoProtection -BackupManagementType AzureWorkload -WorkloadType MSSQL -InputItem $item -VaultId $VaultToDelete.ID #disable auto-protection for SQL
    }
Write-Host "Disabled auto-protection and deleted SQL protectable items"

foreach($item in $backupContainersSQL)
    {
        Unregister-AzRecoveryServicesBackupContainer -Container $item -Force -VaultId $VaultToDelete.ID #unregister SQL Server in Azure VM protected server
    }
Write-Host "Deleted SQL Servers in Azure VM containers"

foreach($item in $backupItemsSAP)
    {
        Disable-AzRecoveryServicesBackupProtection -Item $item -VaultId $VaultToDelete.ID -RemoveRecoveryPoints -Force #stop backup and delete SAP HANA in Azure VM backup items
    }
Write-Host "Disabled and deleted SAP HANA backup items"

foreach($item in $backupContainersSAP)
    {
        Unregister-AzRecoveryServicesBackupContainer -Container $item -Force -VaultId $VaultToDelete.ID #unregister SAP HANA in Azure VM protected server
    }
Write-Host "Deleted SAP HANA in Azure VM containers"

foreach($item in $backupItemsAFS)
    {
        Disable-AzRecoveryServicesBackupProtection -Item $item -VaultId $VaultToDelete.ID -RemoveRecoveryPoints -Force #stop backup and delete Azure File Shares backup items
    }
Write-Host "Disabled and deleted Azure File Share backups"

foreach($item in $StorageAccounts)
    {
        Unregister-AzRecoveryServicesBackupContainer -container $item -Force -VaultId $VaultToDelete.ID #unregister storage accounts
    }
Write-Host "Unregistered Storage Accounts"

foreach($item in $backupServersMARS)
    {
        Unregister-AzRecoveryServicesBackupContainer -Container $item -Force -VaultId $VaultToDelete.ID #unregister MARS servers and delete corresponding backup items
    }
Write-Host "Deleted MARS Servers"

foreach($item in $backupServersMABS)
    {
        Unregister-AzRecoveryServicesBackupManagementServer -AzureRmBackupManagementServer $item -VaultId $VaultToDelete.ID #unregister MABS servers and delete corresponding backup items
    }
Write-Host "Deleted MAB Servers"

foreach($item in $backupServersDPM)
    {
        Unregister-AzRecoveryServicesBackupManagementServer -AzureRmBackupManagementServer $item -VaultId $VaultToDelete.ID #unregister DPM servers and delete corresponding backup items
    }
Write-Host "Deleted DPM Servers"

#Deletion of ASR Items

$fabricObjects = Get-AzRecoveryServicesAsrFabric
if ($null -ne $fabricObjects) {
    # First DisableDR all VMs.
    foreach ($fabricObject in $fabricObjects) {
        $containerObjects = Get-AzRecoveryServicesAsrProtectionContainer -Fabric $fabricObject
        foreach ($containerObject in $containerObjects) {
            $protectedItems = Get-AzRecoveryServicesAsrReplicationProtectedItem -ProtectionContainer $containerObject
            # DisableDR all protected items
            foreach ($protectedItem in $protectedItems) {
                Write-Host "Triggering DisableDR(Purge) for item:" $protectedItem.Name
                Remove-AzRecoveryServicesAsrReplicationProtectedItem -InputObject $protectedItem -Force
                Write-Host "DisableDR(Purge) completed"
            }

            $containerMappings = Get-AzRecoveryServicesAsrProtectionContainerMapping `
                -ProtectionContainer $containerObject
            # Remove all Container Mappings
            foreach ($containerMapping in $containerMappings) {
                Write-Host "Triggering Remove Container Mapping: " $containerMapping.Name
                Remove-AzRecoveryServicesAsrProtectionContainerMapping -ProtectionContainerMapping $containerMapping -Force
                Write-Host "Removed Container Mapping."
            }
        }
        $NetworkObjects = Get-AzRecoveryServicesAsrNetwork -Fabric $fabricObject
        foreach ($networkObject in $NetworkObjects)
        {
            #Get the PrimaryNetwork
            $PrimaryNetwork = Get-AzRecoveryServicesAsrNetwork -Fabric $fabricObject -FriendlyName $networkObject
            $NetworkMappings = Get-AzRecoveryServicesAsrNetworkMapping -Network $PrimaryNetwork
            foreach ($networkMappingObject in $NetworkMappings)
            {
                #Get the Network Mappings
                $NetworkMapping = Get-AzRecoveryServicesAsrNetworkMapping -Name $networkMappingObject.Name -Network $PrimaryNetwork
                Remove-AzRecoveryServicesAsrNetworkMapping -InputObject $NetworkMapping
            }
        }
        # Remove Fabric
        Write-Host "Triggering Remove Fabric:" $fabricObject.FriendlyName
        Remove-AzRecoveryServicesAsrFabric -InputObject $fabricObject -Force
        Write-Host "Removed Fabric."
    }
}

foreach($item in $pvtendpoints)
    {
        $penamesplit = $item.Name.Split(".")
        $pename = $penamesplit[0]
        Remove-AzPrivateEndpointConnection -ResourceId $item.Id -Force #remove private endpoint connections
        Remove-AzPrivateEndpoint -Name $pename -ResourceGroupName $ResourceGroup -Force #remove private endpoints
    }
Write-Host "Removed Private Endpoints"

#Recheck ASR items in vault
$fabricCount = 0
$ASRProtectedItems = 0
$ASRPolicyMappings = 0
$fabricObjects = Get-AzRecoveryServicesAsrFabric
if ($null -ne $fabricObjects) {
    foreach ($fabricObject in $fabricObjects) {
        $containerObjects = Get-AzRecoveryServicesAsrProtectionContainer -Fabric $fabricObject
        foreach ($containerObject in $containerObjects) {
            $protectedItems = Get-AzRecoveryServicesAsrReplicationProtectedItem -ProtectionContainer $containerObject
            foreach ($protectedItem in $protectedItems) {
                $ASRProtectedItems++
            }
            $containerMappings = Get-AzRecoveryServicesAsrProtectionContainerMapping `
                -ProtectionContainer $containerObject
            foreach ($containerMapping in $containerMappings) {
                $ASRPolicyMappings++
            }
        }
        $fabricCount++
    }
}
#Recheck presence of backup items in vault
$backupItemsVMFin = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureVM -WorkloadType AzureVM -VaultId $VaultToDelete.ID
$backupItemsSQLFin = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureWorkload -WorkloadType MSSQL -VaultId $VaultToDelete.ID
$backupContainersSQLFin = Get-AzRecoveryServicesBackupContainer -ContainerType AzureVMAppContainer -VaultId $VaultToDelete.ID | Where-Object {$_.ExtendedInfo.WorkloadType -eq "SQL"}
$protectableItemsSQLFin = Get-AzRecoveryServicesBackupProtectableItem -WorkloadType MSSQL -VaultId $VaultToDelete.ID | Where-Object {$_.IsAutoProtected -eq $true}
$backupItemsSAPFin = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureWorkload -WorkloadType SAPHanaDatabase -VaultId $VaultToDelete.ID
$backupContainersSAPFin = Get-AzRecoveryServicesBackupContainer -ContainerType AzureVMAppContainer -VaultId $VaultToDelete.ID | Where-Object {$_.ExtendedInfo.WorkloadType -eq "SAPHana"}
$backupItemsAFSFin = Get-AzRecoveryServicesBackupItem -BackupManagementType AzureStorage -WorkloadType AzureFiles -VaultId $VaultToDelete.ID
$StorageAccountsFin = Get-AzRecoveryServicesBackupContainer -ContainerType AzureStorage -VaultId $VaultToDelete.ID
$backupServersMARSFin = Get-AzRecoveryServicesBackupContainer -ContainerType "Windows" -BackupManagementType MAB -VaultId $VaultToDelete.ID
$backupServersMABSFin = Get-AzRecoveryServicesBackupManagementServer -VaultId $VaultToDelete.ID| Where-Object { $_.BackupManagementType -eq "AzureBackupServer" }
$backupServersDPMFin = Get-AzRecoveryServicesBackupManagementServer -VaultId $VaultToDelete.ID | Where-Object { $_.BackupManagementType-eq "SCDPM" }
$pvtendpointsFin = Get-AzPrivateEndpointConnection -PrivateLinkResourceId $VaultToDelete.ID

#Display items which are still present in the vault and might be preventing vault deletion.

if($backupItemsVMFin.count -ne 0) {Write-Host $backupItemsVMFin.count "Azure VM backups are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupItemsSQLFin.count -ne 0) {Write-Host $backupItemsSQLFin.count "SQL Server Backup Items are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupContainersSQLFin.count -ne 0) {Write-Host $backupContainersSQLFin.count "SQL Server Backup Containers are still registered to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($protectableItemsSQLFin.count -ne 0) {Write-Host $protectableItemsSQLFin.count "SQL Server Instances are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupItemsSAPFin.count -ne 0) {Write-Host $backupItemsSAPFin.count "SAP HANA Backup Items are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupContainersSAPFin.count -ne 0) {Write-Host $backupContainersSAPFin.count "SAP HANA Backup Containers are still registered to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupItemsAFSFin.count -ne 0) {Write-Host $backupItemsAFSFin.count "Azure File Shares are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($StorageAccountsFin.count -ne 0) {Write-Host $StorageAccountsFin.count "Storage Accounts are still registered to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupServersMARSFin.count -ne 0) {Write-Host $backupServersMARSFin.count "MARS Servers are still registered to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupServersMABSFin.count -ne 0) {Write-Host $backupServersMABSFin.count "MAB Servers are still registered to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($backupServersDPMFin.count -ne 0) {Write-Host $backupServersDPMFin.count "DPM Servers are still registered to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($ASRProtectedItems -ne 0) {Write-Host $ASRProtectedItems "ASR protected items are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($ASRPolicyMappings -ne 0) {Write-Host $ASRPolicyMappings "ASR policy mappings are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($fabricCount -ne 0) {Write-Host $fabricCount "ASR Fabrics are still present in the vault. Remove the same for successful vault deletion." -ForegroundColor Red}
if($pvtendpointsFin.count -ne 0) {Write-Host $pvtendpointsFin.count "Private endpoints are still linked to the vault. Remove the same for successful vault deletion." -ForegroundColor Red}

$accesstoken = Get-AzAccessToken
$token = $accesstoken.Token
$authHeader = @{
    'Content-Type'='application/json'
    'Authorization'='Bearer ' + $token
}
$restUri = "https://management.azure.com/subscriptions/"+$SubscriptionId+'/resourcegroups/'+$ResourceGroup+'/providers/Microsoft.RecoveryServices/vaults/'+$VaultName+'?api-version=2021-06-01&operation=DeleteVaultUsingPS'
$response = Invoke-RestMethod -Uri $restUri -Headers $authHeader -Method DELETE

$VaultDeleted = Get-AzRecoveryServicesVault -Name $VaultName -ResourceGroupName $ResourceGroup -ErrorAction 'SilentlyContinue'
if ($VaultDeleted -eq $null){
Write-Host "Recovery Services Vault" $VaultName "successfully deleted"
}
#Finish

Langkah berikutnya

Pelajari selengkapnya tentang proses penghapusan vault.
