Orkestrasi Alur Kerja Kerangka Kerja Agen Microsoft - Bersamaan

Orkestrasi bersamaan memungkinkan beberapa agen untuk mengerjakan tugas yang sama secara paralel. Setiap agen memproses input secara independen, dan hasilnya dihimpun dan diagregasi. Pendekatan ini sangat cocok untuk skenario di mana beragam perspektif atau solusi berharga, seperti brainstorming, penalaran ansambel, atau sistem pemungutan suara.

Apa yang akan Anda Pelajari

• Cara menentukan beberapa agen dengan keahlian yang berbeda
• Cara mengatur agen ini untuk bekerja secara bersamaan pada satu tugas
• Cara mengumpulkan dan memproses hasilnya

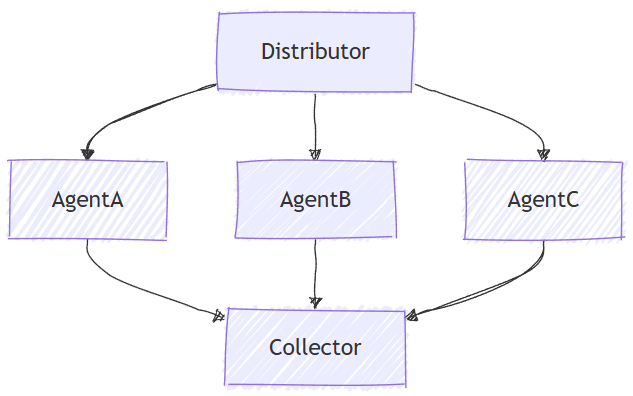

Dalam orkestrasi bersamaan, beberapa agen bekerja pada tugas yang sama secara bersamaan dan independen, memberikan beragam perspektif pada input yang sama.

Menyiapkan Klien Azure OpenAI

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Azure.AI.OpenAI;
using Azure.Identity;
using Microsoft.Agents.AI.Workflows;
using Microsoft.Extensions.AI;
using Microsoft.Agents.AI;

// 1) Set up the Azure OpenAI client
var endpoint = Environment.GetEnvironmentVariable("AZURE_OPENAI_ENDPOINT") ??
    throw new InvalidOperationException("AZURE_OPENAI_ENDPOINT is not set.");
var deploymentName = Environment.GetEnvironmentVariable("AZURE_OPENAI_DEPLOYMENT_NAME") ?? "gpt-4o-mini";
var client = new AzureOpenAIClient(new Uri(endpoint), new AzureCliCredential())
    .GetChatClient(deploymentName)
    .AsIChatClient();

Tentukan Agen Anda

Buat beberapa agen khusus yang akan bekerja pada tugas yang sama secara bersamaan:

// 2) Helper method to create translation agents
static ChatClientAgent GetTranslationAgent(string targetLanguage, IChatClient chatClient) =>
    new(chatClient,
        $"You are a translation assistant who only responds in {targetLanguage}. Respond to any " +
        $"input by outputting the name of the input language and then translating the input to {targetLanguage}.");

// Create translation agents for concurrent processing
var translationAgents = (from lang in (string[])["French", "Spanish", "English"]
                         select GetTranslationAgent(lang, client));

Menyiapkan Orkestrasi Bersamaan

Bangun alur kerja menggunakan AgentWorkflowBuilder untuk menjalankan agen secara paralel:

// 3) Build concurrent workflow
var workflow = AgentWorkflowBuilder.BuildConcurrent(translationAgents);

Jalankan Alur Kerja Bersamaan dan Kumpulkan Hasil

Jalankan alur kerja dan proses event dari semua agen yang berjalan bersamaan.

// 4) Run the workflow
var messages = new List<ChatMessage> { new(ChatRole.User, "Hello, world!") };

StreamingRun run = await InProcessExecution.StreamAsync(workflow, messages);
await run.TrySendMessageAsync(new TurnToken(emitEvents: true));

List<ChatMessage> result = new();
await foreach (WorkflowEvent evt in run.WatchStreamAsync().ConfigureAwait(false))
{
    if (evt is AgentResponseUpdateEvent e)
    {
        Console.WriteLine($"{e.ExecutorId}: {e.Data}");
    }
    else if (evt is WorkflowOutputEvent outputEvt)
    {
        result = (List<ChatMessage>)outputEvt.Data!;
        break;
    }
}

// Display aggregated results from all agents
Console.WriteLine("===== Final Aggregated Results =====");
foreach (var message in result)
{
    Console.WriteLine($"{message.Role}: {message.Content}");
}

Sampel Output

French_Agent: English detected. Bonjour, le monde !
Spanish_Agent: English detected. ¡Hola, mundo!
English_Agent: English detected. Hello, world!

===== Final Aggregated Results =====
User: Hello, world!
Assistant: English detected. Bonjour, le monde !
Assistant: English detected. ¡Hola, mundo!
Assistant: English detected. Hello, world!

Konsep Utama

• Eksekusi Paralel: Semua agen memproses input secara bersamaan dan independen
• AgentWorkflowBuilder.BuildConcurrent(): Membuat alur kerja bersamaan dari kumpulan agen
• Agregasi Otomatis: Hasil dari semua agen dikumpulkan secara otomatis ke dalam hasil akhir
• Streaming Peristiwa: Pemantauan waktu nyata terhadap kemajuan agen melalui AgentResponseUpdateEvent
• Beragam Perspektif: Setiap agen membawa keahlian uniknya ke masalah yang sama

Agen adalah entitas khusus yang dapat memproses tugas. Kode berikut mendefinisikan tiga agen: seorang ahli penelitian, seorang pakar pemasaran, dan pakar hukum.

from agent_framework.azure import AzureChatClient

# 1) Create three domain agents using AzureChatClient
chat_client = AzureChatClient(credential=AzureCliCredential())

researcher = chat_client.as_agent(
    instructions=(
        "You're an expert market and product researcher. Given a prompt, provide concise, factual insights,"
        " opportunities, and risks."
    ),
    name="researcher",
)

marketer = chat_client.as_agent(
    instructions=(
        "You're a creative marketing strategist. Craft compelling value propositions and target messaging"
        " aligned to the prompt."
    ),
    name="marketer",
)

legal = chat_client.as_agent(
    instructions=(
        "You're a cautious legal/compliance reviewer. Highlight constraints, disclaimers, and policy concerns"
        " based on the prompt."
    ),
    name="legal",
)

Menyiapkan Orkestrasi Bersamaan

Kelas ini ConcurrentBuilder memungkinkan Anda membuat alur kerja untuk menjalankan beberapa agen secara paralel. Anda meneruskan daftar agen sebagai peserta.

from agent_framework import ConcurrentBuilder

# 2) Build a concurrent workflow
# Participants are either Agents (type of AgentProtocol) or Executors
workflow = ConcurrentBuilder().participants([researcher, marketer, legal]).build()

Jalankan Alur Kerja Bersamaan dan Kumpulkan Hasilnya

from agent_framework import ChatMessage, WorkflowOutputEvent

# 3) Run with a single prompt, stream progress, and pretty-print the final combined messages
output_evt: WorkflowOutputEvent  | None = None
async for event in workflow.run_stream("We are launching a new budget-friendly electric bike for urban commuters."):
    if isinstance(event, WorkflowOutputEvent):
        output_evt = event

if output_evt:
    print("===== Final Aggregated Conversation (messages) =====")
    messages: list[ChatMessage] | Any = output_evt.data
    for i, msg in enumerate(messages, start=1):
        name = msg.author_name if msg.author_name else "user"
        print(f"{'-' * 60}\n\n{i:02d} [{name}]:\n{msg.text}")

Sampel Output

Sample Output:

    ===== Final Aggregated Conversation (messages) =====
    ------------------------------------------------------------

    01 [user]:
    We are launching a new budget-friendly electric bike for urban commuters.
    ------------------------------------------------------------

    02 [researcher]:
    **Insights:**

    - **Target Demographic:** Urban commuters seeking affordable, eco-friendly transport;
        likely to include students, young professionals, and price-sensitive urban residents.
    - **Market Trends:** E-bike sales are growing globally, with increasing urbanization,
        higher fuel costs, and sustainability concerns driving adoption.
    - **Competitive Landscape:** Key competitors include brands like Rad Power Bikes, Aventon,
        Lectric, and domestic budget-focused manufacturers in North America, Europe, and Asia.
    - **Feature Expectations:** Customers expect reliability, ease-of-use, theft protection,
        lightweight design, sufficient battery range for daily city commutes (typically 25-40 miles),
        and low-maintenance components.

    **Opportunities:**

    - **First-time Buyers:** Capture newcomers to e-biking by emphasizing affordability, ease of
        operation, and cost savings vs. public transit/car ownership.
    ...
    ------------------------------------------------------------

    03 [marketer]:
    **Value Proposition:**
    "Empowering your city commute: Our new electric bike combines affordability, reliability, and
        sustainable design—helping you conquer urban journeys without breaking the bank."

    **Target Messaging:**

    *For Young Professionals:*
    ...
    ------------------------------------------------------------

    04 [legal]:
    **Constraints, Disclaimers, & Policy Concerns for Launching a Budget-Friendly Electric Bike for Urban Commuters:**

    **1. Regulatory Compliance**
    - Verify that the electric bike meets all applicable federal, state, and local regulations
        regarding e-bike classification, speed limits, power output, and safety features.
    - Ensure necessary certifications (for example, UL certification for batteries, CE markings if sold internationally) are obtained.

    **2. Product Safety**
    - Include consumer safety warnings regarding use, battery handling, charging protocols, and age restrictions.

Tingkat Lanjut: Eksekutor Agen Kustom

Orkestrasi bersamaan memungkinkan penggunaan pelaksana kustom yang membungkus agen dengan logika tambahan. Ini berguna ketika Anda membutuhkan kontrol lebih besar atas bagaimana agen diinisialisasi dan bagaimana mereka memproses permintaan:

Tentukan Pelaksana Agen Kustom

from agent_framework import (
    AgentExecutorRequest,
    AgentExecutorResponse,
    ChatAgent,
    Executor,
    WorkflowContext,
    handler,
)

class ResearcherExec(Executor):
    agent: ChatAgent

    def __init__(self, chat_client: AzureChatClient, id: str = "researcher"):
        agent = chat_client.as_agent(
            instructions=(
                "You're an expert market and product researcher. Given a prompt, provide concise, factual insights,"
                " opportunities, and risks."
            ),
            name=id,
        )
        super().__init__(agent=agent, id=id)

    @handler
    async def run(self, request: AgentExecutorRequest, ctx: WorkflowContext[AgentExecutorResponse]) -> None:
        response = await self.agent.run(request.messages)
        full_conversation = list(request.messages) + list(response.messages)
        await ctx.send_message(AgentExecutorResponse(self.id, response, full_conversation=full_conversation))

class MarketerExec(Executor):
    agent: ChatAgent

    def __init__(self, chat_client: AzureChatClient, id: str = "marketer"):
        agent = chat_client.as_agent(
            instructions=(
                "You're a creative marketing strategist. Craft compelling value propositions and target messaging"
                " aligned to the prompt."
            ),
            name=id,
        )
        super().__init__(agent=agent, id=id)

    @handler
    async def run(self, request: AgentExecutorRequest, ctx: WorkflowContext[AgentExecutorResponse]) -> None:
        response = await self.agent.run(request.messages)
        full_conversation = list(request.messages) + list(response.messages)
        await ctx.send_message(AgentExecutorResponse(self.id, response, full_conversation=full_conversation))

Membangun Alur Kerja dengan Pelaksana Kustom

chat_client = AzureChatClient(credential=AzureCliCredential())

researcher = ResearcherExec(chat_client)
marketer = MarketerExec(chat_client)
legal = LegalExec(chat_client)

workflow = ConcurrentBuilder().participants([researcher, marketer, legal]).build()

Tingkat Lanjut: Agregator Kustom

Secara default, orkestrasi bersamaan menggabungkan semua respons agen ke dalam daftar pesan. Anda dapat mengambil alih perilaku ini dengan agregator kustom yang memproses hasilnya dengan cara tertentu:

Menentukan Agregator Kustom

# Define a custom aggregator callback that uses the chat client to summarize
async def summarize_results(results: list[Any]) -> str:
    # Extract one final assistant message per agent
    expert_sections: list[str] = []
    for r in results:
        try:
            messages = getattr(r.agent_run_response, "messages", [])
            final_text = messages[-1].text if messages and hasattr(messages[-1], "text") else "(no content)"
            expert_sections.append(f"{getattr(r, 'executor_id', 'expert')}:\n{final_text}")
        except Exception as e:
            expert_sections.append(f"{getattr(r, 'executor_id', 'expert')}: (error: {type(e).__name__}: {e})")

    # Ask the model to synthesize a concise summary of the experts' outputs
    system_msg = ChatMessage(
        Role.SYSTEM,
        text=(
            "You are a helpful assistant that consolidates multiple domain expert outputs "
            "into one cohesive, concise summary with clear takeaways. Keep it under 200 words."
        ),
    )
    user_msg = ChatMessage(Role.USER, text="\n\n".join(expert_sections))

    response = await chat_client.get_response([system_msg, user_msg])
    # Return the model's final assistant text as the completion result
    return response.messages[-1].text if response.messages else ""

Membangun Alur Kerja dengan Agregator Kustom

workflow = (
    ConcurrentBuilder()
    .participants([researcher, marketer, legal])
    .with_aggregator(summarize_results)
    .build()
)

output_evt: WorkflowOutputEvent | None = None
async for event in workflow.run_stream("We are launching a new budget-friendly electric bike for urban commuters."):
    if isinstance(event, WorkflowOutputEvent):
        output_evt = event

if output_evt:
    print("===== Final Consolidated Output =====")
    print(output_evt.data)

Contoh Output dengan Agregator Kustom

===== Final Consolidated Output =====
Urban e-bike demand is rising rapidly due to eco-awareness, urban congestion, and high fuel costs,
with market growth projected at a ~10% CAGR through 2030. Key customer concerns are affordability,
easy maintenance, convenient charging, compact design, and theft protection. Differentiation opportunities
include integrating smart features (GPS, app connectivity), offering subscription or leasing options, and
developing portable, space-saving designs. Partnering with local governments and bike shops can boost visibility.

Risks include price wars eroding margins, regulatory hurdles, battery quality concerns, and heightened expectations
for after-sales support. Accurate, substantiated product claims and transparent marketing (with range disclaimers)
are essential. All e-bikes must comply with local and federal regulations on speed, wattage, safety certification,
and labeling. Clear warranty, safety instructions (especially regarding batteries), and inclusive, accessible
marketing are required. For connected features, data privacy policies and user consents are mandatory.

Effective messaging should target young professionals, students, eco-conscious commuters, and first-time buyers,
emphasizing affordability, convenience, and sustainability. Slogan suggestion: "Charge Ahead—City Commutes Made
Affordable." Legal review in each target market, compliance vetting, and robust customer support policies are
critical before launch.

Konsep Utama

• Eksekusi Paralel: Semua agen bekerja pada tugas secara bersamaan dan independen
• Agregasi Hasil: Hasil dikumpulkan dan dapat diproses oleh agregator default atau kustom
• Beragam Perspektif: Setiap agen membawa keahlian uniknya ke masalah yang sama
• Peserta yang Fleksibel: Anda dapat menggunakan agen secara langsung atau membungkusnya dalam eksekutor kustom
• Pemrosesan Kustom: Mengambil alih agregator default untuk mensintesis hasil dengan cara khusus domain

Langkah selanjutnya

Orkestrasi Berurutan
