Tutorial: Mengekstrak data pengguna dengan Angular SPA

Berlaku untuk: Penyewa tenaga kerja Penyewa eksternal (pelajari selengkapnya)

Tutorial ini adalah bagian akhir dari seri yang menunjukkan pembuatan aplikasi satu halaman (SPA) Angular dan menambahkan autentikasi menggunakan platform identitas Microsoft. Di Bagian 2 dari seri ini, Anda membuat Angular SPA dan menyiapkannya untuk autentikasi dengan tenant kerja Anda.

Dalam tutorial ini, Anda

• Tambahkan pemrosesan data ke aplikasi Angular Anda.
• Uji aplikasi dan ekstrak data pengguna.

Prasyarat

• Tutorial: Menambahkan login dan logout di aplikasi Angular satu halaman Anda

Mengekstrak data untuk dilihat di antarmuka pengguna aplikasi

penyewa tenaga kerja

Untuk mengonfigurasi aplikasi Angular Anda untuk berinteraksi dengan Microsoft Graph API, selesaikan langkah-langkah berikut:

1. Buka file src/app/profile/profile.component.ts dan ganti konten dengan cuplikan kode berikut:

   // Required for Angular
   import { Component, OnInit } from '@angular/core';

   // Required for the HTTP GET request to Graph
   import { HttpClient } from '@angular/common/http';

   type ProfileType = {
     businessPhones?: string,
     displayName?: string,
     givenName?: string,
     jobTitle?: string,
     mail?: string,
     mobilePhone?: string,
     officeLocation?: string,
     preferredLanguage?: string,
     surname?: string,
     userPrincipalName?: string,
     id?: string
   }

   @Component({
     selector: 'app-profile',
     templateUrl: './profile.component.html'
   })
   export class ProfileComponent implements OnInit {
     profile!: ProfileType;
     tokenExpiration!: string;

     constructor(
       private http: HttpClient
     ) { }

     // When the page loads, perform an HTTP GET request from the Graph /me endpoint
     ngOnInit() {
       this.http.get('https://graph.microsoft.com/v1.0/me')
         .subscribe(profile => {
           this.profile = profile;
         });

       this.tokenExpiration = localStorage.getItem('tokenExpiration')!;
     }
   }


   ProfileComponent di Angular mengambil data profil pengguna dari endpoint /me Microsoft Graph. Ini mendefinisikan ProfileType untuk menyusun properti seperti displayName dan mail. Dalam ngOnInit, ia menggunakan HttpClient untuk mengirim permintaan GET, menetapkan respons ke profile. Ini juga mengambil dan menyimpan waktu kedaluwarsa token dari localStorage di tokenExpiration.

2. Buka file src/app/profile/profile.component.html dan ganti konten dengan cuplikan kode berikut:

   <div class="profile">
       <p><strong>Business Phones:</strong> {{profile?.businessPhones}}</p>
       <p><strong>Display Name:</strong> {{profile?.displayName}}</p>
       <p><strong>Given Name:</strong> {{profile?.givenName}}</p>
       <p><strong>Job Title:</strong> {{profile?.jobTitle}}</p>
       <p><strong>Mail:</strong> {{profile?.mail}}</p>
       <p><strong>Mobile Phone:</strong> {{profile?.mobilePhone}}</p>
       <p><strong>Office Location:</strong> {{profile?.officeLocation}}</p>
       <p><strong>Preferred Language:</strong> {{profile?.preferredLanguage}}</p>
       <p><strong>Surname:</strong> {{profile?.surname}}</p>
       <p><strong>User Principal Name:</strong> {{profile?.userPrincipalName}}</p>
       <p><strong>Profile Id:</strong> {{profile?.id}}</p>
       <br><br>
       <p><strong>Token Expiration:</strong> {{tokenExpiration}}</p>
       <br><br>
       <p>Refreshing this page will continue to use the cached access token until it nears expiration, at which point a new access token will be requested.</p>
   </div>


   Kode ini menentukan templat HTML yang menampilkan informasi profil pengguna, menggunakan sintaks interpolasi Angular untuk mengikat properti dari objek profile (Misalnya,, businessPhones, displayName, jobTitle). Ini juga menunjukkan nilai tokenExpiration dan menyertakan catatan yang menyatakan bahwa me-refresh halaman akan menggunakan token akses yang di-cache sampai mendekati kedaluwarsa, setelah itu token baru akan diminta.

penyewa eksternal

Anda akan mengonfigurasi aplikasi Angular untuk menampilkan klaim dalam token ID Anda saat masuk.

1. Buat file yang disebut claim-utils.ts di folder src/app/ dan tempelkan cuplikan kode berikut ke dalamnya.

   /**
    * Populate claims table with appropriate description
    * @param {Record} claims ID token claims
    * @returns claimsTable
    */
   export const createClaimsTable = (claims: Record<string, string>): any[] => {
     const claimsTable: any[] = [];

     Object.keys(claims).map((key) => {
       switch (key) {
         case 'aud':
           populateClaim(
             key,
             claims[key],
             "Identifies the intended recipient of the token. In ID tokens, the audience is your app's Application ID, assigned to your app in the Azure portal.",
             claimsTable
           );
           break;
         case 'iss':
           populateClaim(
             key,
             claims[key],
             'Identifies the issuer, or authorization server that constructs and returns the token. It also identifies the Azure AD tenant for which the user was authenticated. If the token was issued by the v2.0 endpoint, the URI will end in /v2.0.',
             claimsTable
           );
           break;
         case 'iat':
           populateClaim(
             key,
             changeDateFormat(+claims[key]),
             '"Issued At" indicates the timestamp (UNIX timestamp) when the authentication for this user occurred.',
             claimsTable
           );
           break;
         case 'nbf':
           populateClaim(
             key,
             changeDateFormat(+claims[key]),
             'The nbf (not before) claim dictates the time (as UNIX timestamp) before which the JWT must not be accepted for processing.',
             claimsTable
           );
           break;
         case 'exp':
           populateClaim(
             key,
             changeDateFormat(+claims[key]),
             "The exp (expiration time) claim dictates the expiration time (as UNIX timestamp) on or after which the JWT must not be accepted for processing. It's important to note that in certain circumstances, a resource may reject the token before this time. For example, if a change in authentication is required or a token revocation has been detected.",
             claimsTable
           );
           break;
         case 'name':
           populateClaim(
             key,
             claims[key],
             "The name claim provides a human-readable value that identifies the subject of the token. The value isn't guaranteed to be unique, it can be changed, and it's designed to be used only for display purposes. The 'profile' scope is required to receive this claim.",
             claimsTable
           );
           break;
         case 'preferred_username':
           populateClaim(
             key,
             claims[key],
             'The primary username that represents the user. It could be an email address, phone number, or a generic username without a specified format. Its value is mutable and might change over time. Since it is mutable, this value must not be used to make authorization decisions. It can be used for username hints, however, and in human-readable UI as a username. The profile scope is required in order to receive this claim.',
             claimsTable
           );
           break;
         case 'nonce':
           populateClaim(
             key,
             claims[key],
             'The nonce matches the parameter included in the original /authorize request to the IDP.',
             claimsTable
           );
           break;
         case 'oid':
           populateClaim(
             key,
             claims[key],
             'The oid (user object id) is the only claim that should be used to uniquely identify a user in an Azure AD tenant.',
             claimsTable
           );
           break;
         case 'tid':
           populateClaim(
             key,
             claims[key],
             'The id of the tenant where this application resides. You can use this claim to ensure that only users from the current Azure AD tenant can access this app.',
             claimsTable
           );
           break;
         case 'upn':
           populateClaim(
             key,
             claims[key],
             'upn (user principal name) might be unique amongst the active set of users in a tenant but tend to get reassigned to new employees as employees leave the organization and others take their place or might change to reflect a personal change like marriage.',
             claimsTable
           );
           break;
         case 'email':
           populateClaim(
             key,
             claims[key],
             'Email might be unique amongst the active set of users in a tenant but tend to get reassigned to new employees as employees leave the organization and others take their place.',
             claimsTable
           );
           break;
         case 'acct':
           populateClaim(
             key,
             claims[key],
             'Available as an optional claim, it lets you know what the type of user (homed, guest) is. For example, for an individuals access to their data you might not care for this claim, but you would use this along with tenant id (tid) to control access to say a company-wide dashboard to just employees (homed users) and not contractors (guest users).',
             claimsTable
           );
           break;
         case 'sid':
           populateClaim(
             key,
             claims[key],
             'Session ID, used for per-session user sign-out.',
             claimsTable
           );
           break;
         case 'sub':
           populateClaim(
             key,
             claims[key],
             'The sub claim is a pairwise identifier - it is unique to a particular application ID. If a single user signs into two different apps using two different client IDs, those apps will receive two different values for the subject claim.',
             claimsTable
           );
           break;
         case 'ver':
           populateClaim(
             key,
             claims[key],
             'Version of the token issued by the Microsoft identity platform',
             claimsTable
           );
           break;
         case 'login_hint':
           populateClaim(
             key,
             claims[key],
             'An opaque, reliable login hint claim. This claim is the best value to use for the login_hint OAuth parameter in all flows to get SSO.',
             claimsTable
           );
           break;
         case 'idtyp':
           populateClaim(
             key,
             claims[key],
             'Value is app when the token is an app-only token. This is the most accurate way for an API to determine if a token is an app token or an app+user token',
             claimsTable
           );
           break;
         case 'uti':
         case 'rh':
           break;
         default:
           populateClaim(key, claims[key], '', claimsTable);
       }
     });

     return claimsTable;
   };

   /**
    * Populates claim, description, and value into an claimsObject
    * @param {String} claim
    * @param {String} value
    * @param {String} description
    * @param {Array} claimsObject
    */
   const populateClaim = (
     claim: string,
     value: string,
     description: string,
     claimsTable: any[]
   ): void => {
     claimsTable.push({
       claim: claim,
       value: value,
       description: description,
     });
   };

   /**
    * Transforms Unix timestamp to date and returns a string value of that date
    * @param {number} date Unix timestamp
    * @returns
    */
   const changeDateFormat = (date: number) => {
     let dateObj = new Date(date * 1000);
     return `${date} - [${dateObj.toString()}]`;
   };


2. Buka src/index.html dan ganti kode dengan cuplikan berikut.

   <!doctype html>
   <html lang="en">
   <head>
     <meta charset="utf-8">
     <title>Microsoft identity platform</title>
     <base href="/">
     <meta name="viewport" content="width=device-width, initial-scale=1">
     <link rel="icon" type="image/x-icon" href="favicon.svg">
     <link rel="preconnect" href="https://fonts.gstatic.com">
     <link href="https://fonts.googleapis.com/css2?family=Roboto:wght@300;400;500&display=swap" rel="stylesheet">
     <link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet">
   </head>
   <body class="mat-typography">
     <app-root></app-root>
     <app-redirect></app-redirect>
   </body>
   </html>


3. Buka src/app/guarded/guarded.component.ts dan ganti kode yang ada dengan cuplikan kode berikut.

   import { Component, OnInit } from '@angular/core';

   @Component({
     selector: 'app-guarded',
     templateUrl: './guarded.component.html',
     styleUrls: ['./guarded.component.css']
   })
   export class GuardedComponent implements OnInit {

     constructor() { }

     ngOnInit(): void {
     }

   }


Menguji aplikasi

Agar aplikasi berfungsi, Anda perlu menjalankan aplikasi Angular dan masuk untuk mengautentikasi dengan penyewa Microsoft Entra Anda dan mengekstrak data pengguna.

penyewa tenaga kerja

Untuk menguji aplikasi, selesaikan langkah-langkah berikut:

1. Jalankan aplikasi Angular dengan menjalankan perintah berikut di terminal:

   ng serve --open


2. Pilih tombol Masuk untuk mengautentikasi dengan tenant Microsoft Entra Anda.

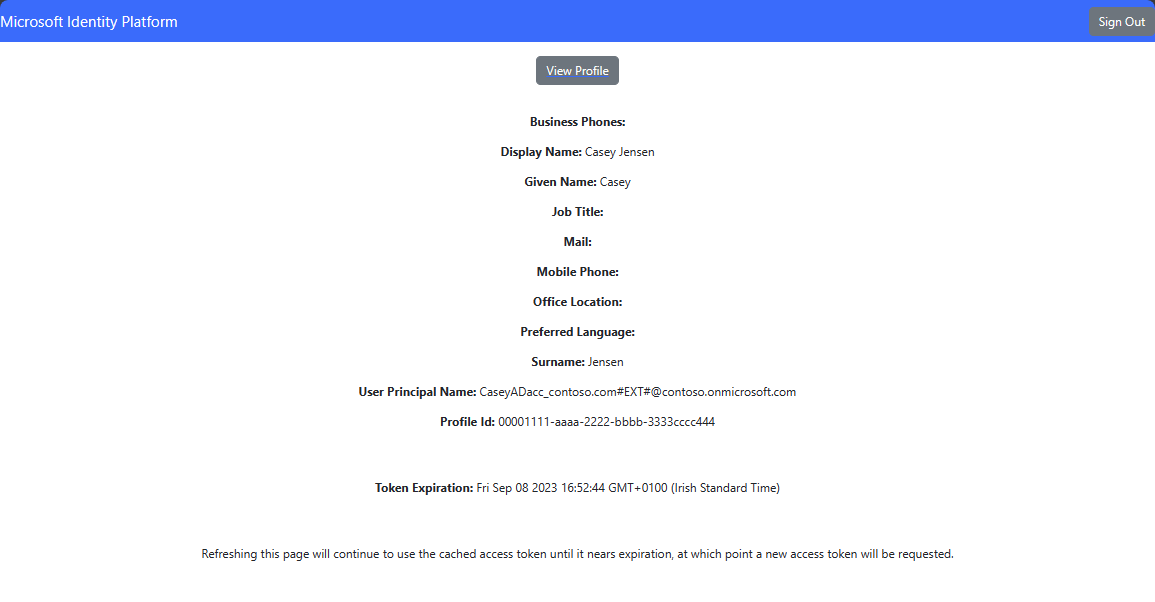

3. Setelah masuk, pilih tautan Tampilkan Profil untuk menavigasi ke halaman Profil. Verifikasi bahwa informasi profil pengguna ditampilkan, termasuk nama pengguna, email, jabatan, dan detail lainnya.



4. Pilih tombol Keluar untuk keluar dari aplikasi.

penyewa eksternal

1. Mulai server web dengan menjalankan perintah berikut pada prompt baris perintah dari folder aplikasi:

   npm install
   npm start

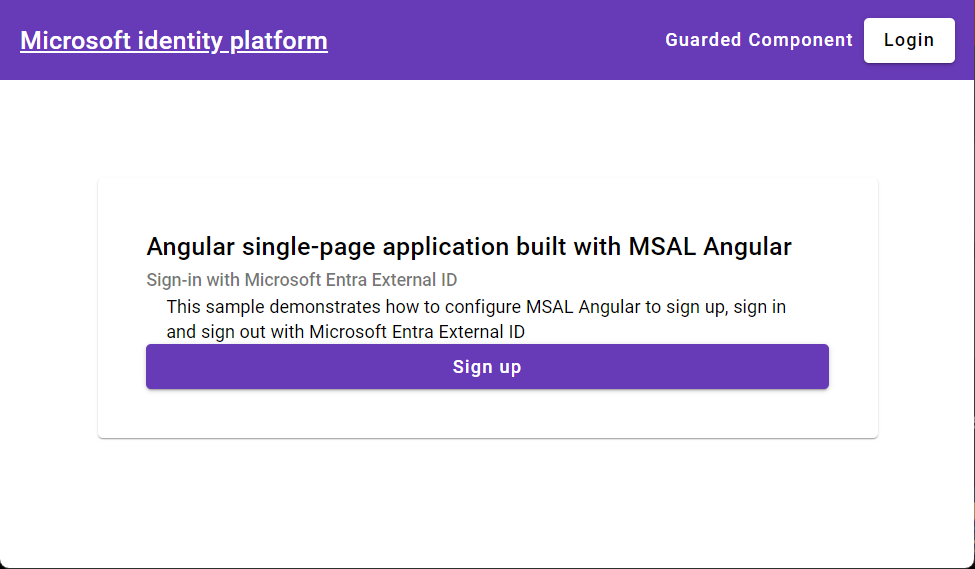

2. Di browser Anda, masukkan http://localhost:4200 untuk membuka aplikasi.



3. Pilih tombol Login di sudut kanan atas layar.

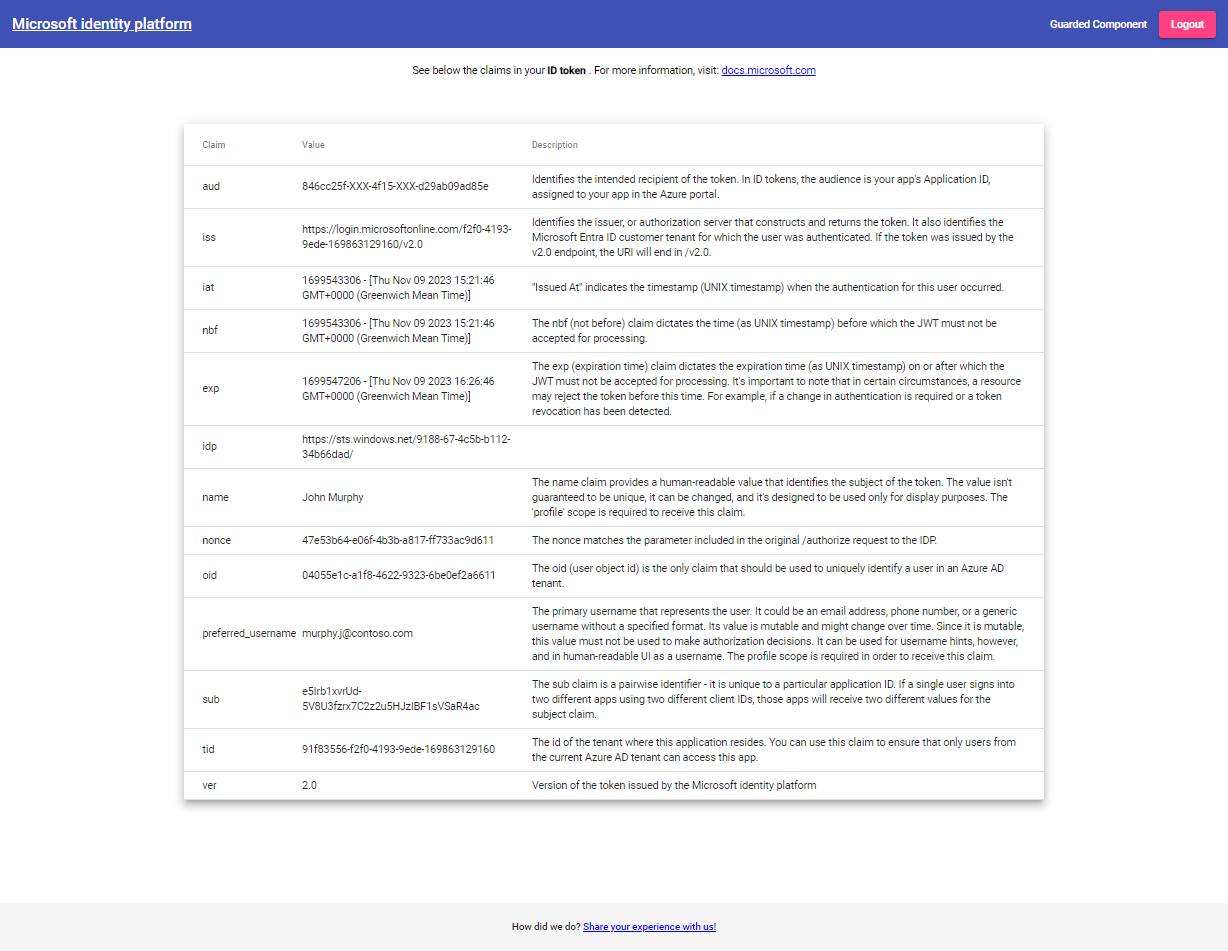

4. Setelah masuk, Anda akan melihat informasi profil ditampilkan di halaman.



5. Pilih tombol Logout di sudut kanan atas layar untuk keluar.

Langkah berikutnya

Pelajari cara menggunakan platform identitas Microsoft dengan mencoba seri tutorial berikut tentang cara membangun API web.

Tutorial : Mendaftarkan API web dengan platform identitas Microsoft
