Untuk melihat laporan yang disebarkan ke server laporan atau laporan yang ada di sistem file lokal, gunakan kontrol WinForms ReportViewer untuk merendernya dalam aplikasi Windows.
Menambahkan kontrol ReportViewer ke aplikasi Windows
Buat aplikasi Windows baru menggunakan Microsoft C# atau Microsoft Visual Basic.
-Atau-
Buka proyek aplikasi Windows yang keluar dan tambahkan formulir baru.

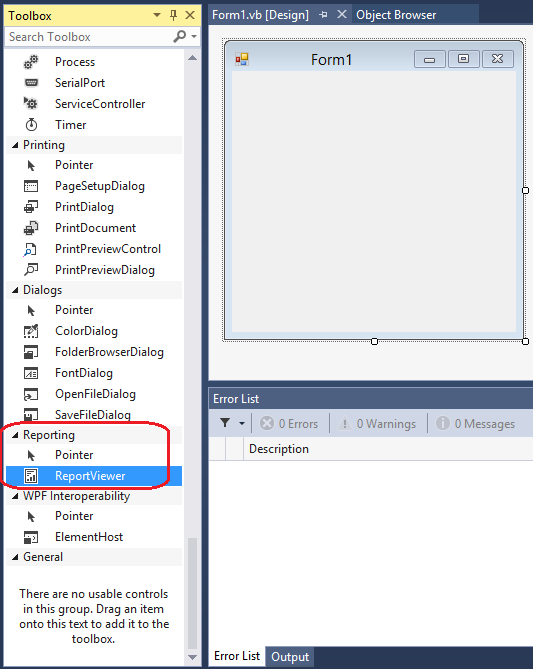

Temukan kontrol ReportViewer di Kotak Alat. Jika Kotak Alat tidak terlihat, Anda dapat mengaksesnya dari menu Tampilan dengan memilih Kotak Alat.
Seret kontrol ReportViewer ke permukaan desain Formulir Windows.
Kontrol ReportViewer bernama reportViewer1 ditambahkan ke formulir.
Setelah kontrol ditambahkan ke formulir, tag pintar Tugas ReportViewer muncul dan meminta Anda untuk memilih laporan.

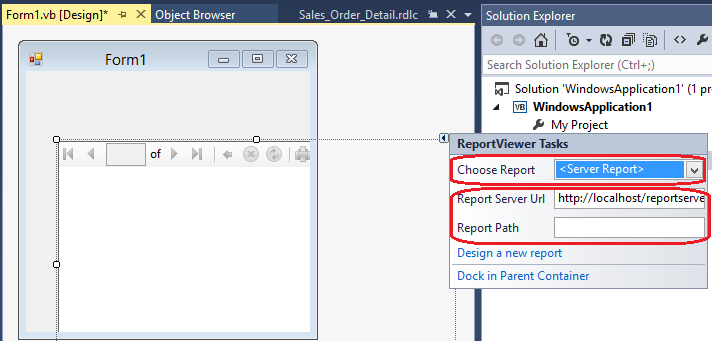

Jika laporan yang ingin Anda lihat disebarkan ke server laporan, pilih opsi Laporan> Server dari daftar drop-down Pilih Laporan.< <Setelah opsi Laporan> Server dipilih, dua properti lagi muncul: Url Server Laporan dan Jalur Laporan. Url Server Laporan adalah alamat ke server laporan dan Jalur Laporan adalah jalur lengkap ke laporan yang akan dirender.

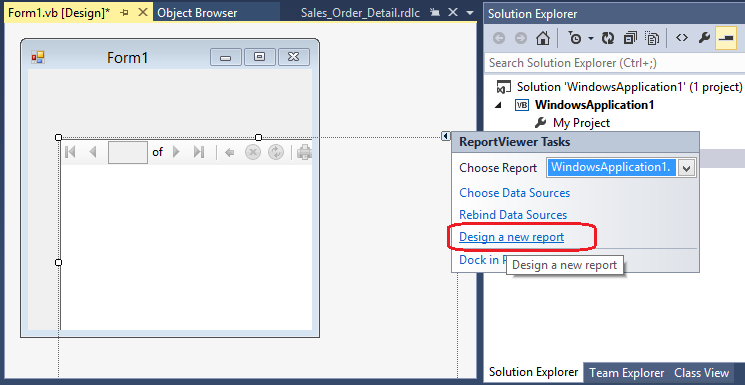

Jika laporan yang ingin Anda tampilkan laporan dalam mode lokal, pilih opsi Desain laporan baru untuk meluncurkan perancang laporan atau pilih laporan yang sudah menjadi bagian dari proyek yang ada.
Menampilkan laporan dalam mode pemrosesan jarak jauh
Contoh berikut menunjukkan cara merender laporan yang disebarkan ke server laporan menggunakan kontrol WinForms ReportViewer. Contoh ini menggunakan laporan Detail Pesanan Penjualan yang disertakan dengan AdventureWorks2022 proyek laporan sampel.
C#
public partial class Form1 : Form
{
private void Form1_Load(object sender, EventArgs e)
{
// Set the processing mode for the ReportViewer to Remote
reportViewer1.ProcessingMode = ProcessingMode.Remote;
ServerReport serverReport = reportViewer1.ServerReport;
// Get a reference to the default credentials
System.Net.ICredentials credentials =
System.Net.CredentialCache.DefaultCredentials;
// Get a reference to the report server credentials
ReportServerCredentials rsCredentials =
serverReport.ReportServerCredentials;
// Set the credentials for the server report
rsCredentials.NetworkCredentials = credentials;
// Set the report server URL and report path
serverReport.ReportServerUrl =
new Uri("https:// <Server Name>/reportserver");
serverReport.ReportPath =
"/AdventureWorks Sample Reports/Sales Order Detail";
// Create the sales order number report parameter
ReportParameter salesOrderNumber = new ReportParameter();
salesOrderNumber.Name = "SalesOrderNumber";
salesOrderNumber.Values.Add("SO43661");
// Set the report parameters for the report
reportViewer1.ServerReport.SetParameters(
new ReportParameter[] { salesOrderNumber });
// Refresh the report
reportViewer1.RefreshReport();
}
}
VB.NET
Imports Microsoft.Reporting.WinForms
Public Class Form1
Private Sub Form1_Load(ByVal sender As System.Object, _
ByVal e As System.EventArgs) _
Handles MyBase.Load
'Set the processing mode for the ReportViewer to Remote
reportViewer1.ProcessingMode = ProcessingMode.Remote
Dim serverReport As ServerReport
serverReport = reportViewer1.ServerReport
'Get a reference to the default credentials
Dim credentials As System.Net.ICredentials
credentials = System.Net.CredentialCache.DefaultCredentials
'Get a reference to the report server credentials
Dim rsCredentials As ReportServerCredentials
rsCredentials = serverReport.ReportServerCredentials
'Set the credentials for the server report
rsCredentials.NetworkCredentials = credentials
'Set the report server URL and report path
serverReport.ReportServerUrl = _
New Uri("https://<Server Name>/reportserver")
serverReport.ReportPath = _
"/AdventureWorks Sample Reports/Sales Order Detail"
'Create the sales order number report parameter
Dim salesOrderNumber As New ReportParameter()
salesOrderNumber.Name = "SalesOrderNumber"
salesOrderNumber.Values.Add("SO43661")
'Set the report parameters for the report
Dim parameters() As ReportParameter = {salesOrderNumber}
serverReport.SetParameters(parameters)
'Refresh the report
reportViewer1.RefreshReport()
End Sub
End Class
Menampilkan laporan dalam mode pemrosesan lokal
Contoh berikut menunjukkan cara merender laporan yang merupakan bagian dari aplikasi Windows dan tidak disebarkan ke server laporan.
Untuk menambahkan laporan Detail Pesanan Penjualan ke aplikasi Windows
Buka proyek Windows tempat laporan akan ditambahkan.
Dari menu Proyek, pilih Tambahkan Item yang Sudah Ada.
Telusuri ke lokasi tempat Anda menginstal
AdventureWorks2022proyek Sampel Laporan.Unduh sampel laporan, buka Sampel Laporan AdventureWorks
Pilih file Sales Order Detail.rdl dan pilih tombol Tambahkan .

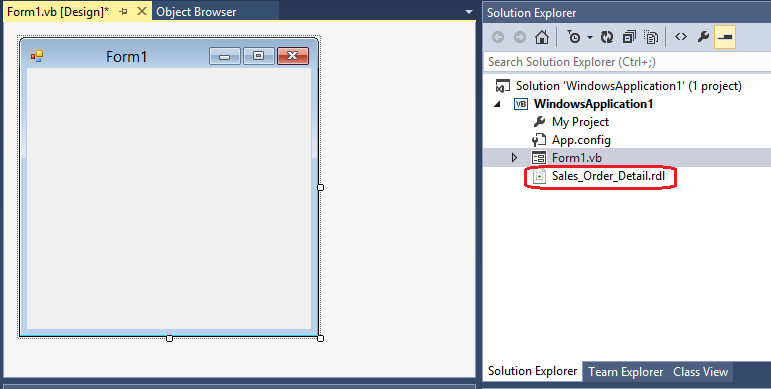

File Sales Order Detail.rdl sekarang harus menjadi bagian dari proyek.
Klik kanan file Detail Pesanan Penjualan.rdl di Penjelajah Solusi dan pilih Ganti Nama. Ganti nama laporan menjadi Sales Order Detail.rdlc dan tekan ENTER.
Jika Penjelajah Solusi tidak terlihat, Anda dapat membukanya dari menu Tampilan dengan memilih Penjelajah Solusi.
Catatan
Mengganti nama ekstensi file dari rdl ke rdlc akan memungkinkan Anda mengedit laporan menggunakan perancang laporan untuk Microsoft Visual Studio 2005.

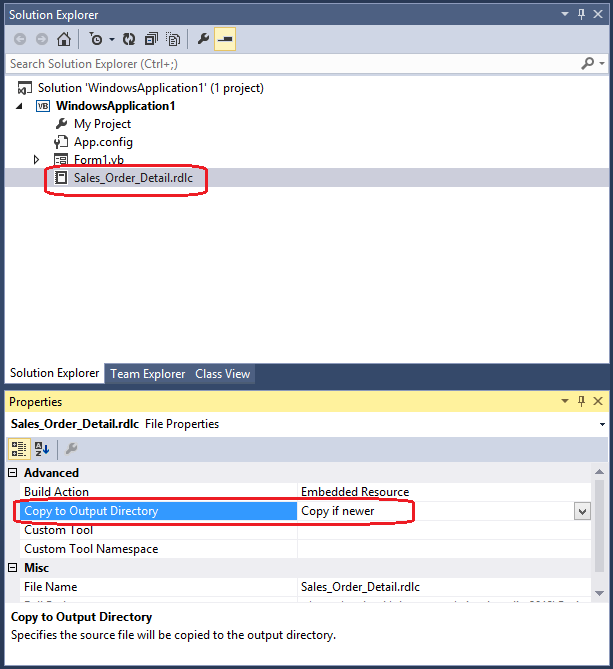

Setelah laporan diganti namanya, pilih file dan temukan jendela Properti. Ubah properti Salin ke Direktori Output menjadi Salin jika Lebih Baru.
Jika jendela Properti tidak terlihat, Anda dapat membukanya dari menu Tampilan dengan memilih Jendela Properti.
Contoh kode berikut membuat himpunan data untuk data pesanan penjualan lalu merender laporan Detail Pesanan Penjualan dalam mode lokal.
C#
public partial class Form1 : Form
{
private void Form1_Load(object sender, EventArgs e)
{
// Set the processing mode for the ReportViewer to Local
reportViewer1.ProcessingMode = ProcessingMode.Local;
LocalReport localReport = reportViewer1.LocalReport;
localReport.ReportPath = "Sales Order Detail.rdlc";
DataSet dataset = new DataSet("Sales Order Detail");
string salesOrderNumber = "SO43661";
// Get the sales order data
GetSalesOrderData(salesOrderNumber, ref dataset);
// Create a report data source for the sales order data
ReportDataSource dsSalesOrder = new ReportDataSource();
dsSalesOrder.Name = "SalesOrder";
dsSalesOrder.Value = dataset.Tables["SalesOrder"];
localReport.DataSources.Add(dsSalesOrder);
// Get the sales order detail data
GetSalesOrderDetailData(salesOrderNumber, ref dataset);
// Create a report data source for the sales order detail
// data
ReportDataSource dsSalesOrderDetail =
new ReportDataSource();
dsSalesOrderDetail.Name = "SalesOrderDetail";
dsSalesOrderDetail.Value =
dataset.Tables["SalesOrderDetail"];
localReport.DataSources.Add(dsSalesOrderDetail);
// Create a report parameter for the sales order number
ReportParameter rpSalesOrderNumber = new ReportParameter();
rpSalesOrderNumber.Name = "SalesOrderNumber";
rpSalesOrderNumber.Values.Add("SO43661");
// Set the report parameters for the report
localReport.SetParameters(
new ReportParameter[] { rpSalesOrderNumber });
// Refresh the report
reportViewer1.RefreshReport();
}
private void GetSalesOrderData(string salesOrderNumber,
ref DataSet dsSalesOrder)
{
string sqlSalesOrder =
"SELECT SOH.SalesOrderNumber, S.Name AS Store, " +
" SOH.OrderDate, C.FirstName AS SalesFirstName, " +
" C.LastName AS SalesLastName, E.Title AS " +
" SalesTitle, SOH.PurchaseOrderNumber, " +
" SM.Name AS ShipMethod, BA.AddressLine1 " +
" AS BillAddress1, BA.AddressLine2 AS " +
" BillAddress2, BA.City AS BillCity, " +
" BA.PostalCode AS BillPostalCode, BSP.Name " +
" AS BillStateProvince, BCR.Name AS " +
" BillCountryRegion, SA.AddressLine1 AS " +
" ShipAddress1, SA.AddressLine2 AS " +
" ShipAddress2, SA.City AS ShipCity, " +
" SA.PostalCode AS ShipPostalCode, SSP.Name " +
" AS ShipStateProvince, SCR.Name AS " +
" ShipCountryRegion, CC.Phone AS CustPhone, " +
" CC.FirstName AS CustFirstName, CC.LastName " +
" AS CustLastName " +
"FROM Person.Address SA INNER JOIN " +
" Person.StateProvince SSP ON " +
" SA.StateProvinceID = SSP.StateProvinceID " +
" INNER JOIN Person.CountryRegion SCR ON " +
" SSP.CountryRegionCode = SCR.CountryRegionCode " +
" RIGHT OUTER JOIN Sales.SalesOrderHeader SOH " +
" LEFT OUTER JOIN Person.Contact CC ON " +
" SOH.ContactID = CC.ContactID LEFT OUTER JOIN" +
" Person.Address BA INNER JOIN " +
" Person.StateProvince BSP ON " +
" BA.StateProvinceID = BSP.StateProvinceID " +
" INNER JOIN Person.CountryRegion BCR ON " +
" BSP.CountryRegionCode = " +
" BCR.CountryRegionCode ON SOH.BillToAddressID " +
" = BA.AddressID ON SA.AddressID = " +
" SOH.ShipToAddressID LEFT OUTER JOIN " +
" Person.Contact C RIGHT OUTER JOIN " +
" HumanResources.Employee E ON C.ContactID = " +
" E.ContactID ON SOH.SalesPersonID = " +
" E.EmployeeID LEFT OUTER JOIN " +
" Purchasing.ShipMethod SM ON SOH.ShipMethodID " +
" = SM.ShipMethodID LEFT OUTER JOIN Sales.Store" +
" S ON SOH.CustomerID = S.CustomerID " +
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber)";
SqlConnection connection = new
SqlConnection("Data Source=(local); " +
"Initial Catalog=AdventureWorks; " +
"Integrated Security=SSPI");
SqlCommand command =
new SqlCommand(sqlSalesOrder, connection);
command.Parameters.Add(
new SqlParameter("SalesOrderNumber",
salesOrderNumber));
SqlDataAdapter salesOrderAdapter = new
SqlDataAdapter(command);
salesOrderAdapter.Fill(dsSalesOrder, "SalesOrder");
}
private void GetSalesOrderDetailData(string salesOrderNumber,
ref DataSet dsSalesOrder)
{
string sqlSalesOrderDetail =
"SELECT SOD.SalesOrderDetailID, SOD.OrderQty, " +
" SOD.UnitPrice, CASE WHEN " +
" SOD.UnitPriceDiscount IS NULL THEN 0 " +
" ELSE SOD.UnitPriceDiscount END AS " +
" UnitPriceDiscount, SOD.LineTotal, " +
" SOD.CarrierTrackingNumber, " +
" SOD.SalesOrderID, P.Name, P.ProductNumber " +
"FROM Sales.SalesOrderDetail SOD INNER JOIN " +
" Production.Product P ON SOD.ProductID = " +
" P.ProductID INNER JOIN " +
" Sales.SalesOrderHeader SOH ON " +
" SOD.SalesOrderID = SOH.SalesOrderID " +
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber) " +
"ORDER BY SOD.SalesOrderDetailID";
using (SqlConnection connection = new
SqlConnection("Data Source=(local); " +
"Initial Catalog=AdventureWorks; " +
"Integrated Security=SSPI"))
{
SqlCommand command =
new SqlCommand(sqlSalesOrderDetail, connection);
command.Parameters.Add(
new SqlParameter("SalesOrderNumber",
salesOrderNumber));
SqlDataAdapter salesOrderDetailAdapter = new
SqlDataAdapter(command);
salesOrderDetailAdapter.Fill(dsSalesOrder,
"SalesOrderDetail");
}
}
}
VB.NET
Imports System.Data.SqlClient
Imports Microsoft.Reporting.WinForms
Public Class Form1
Private Sub Form1_Load(ByVal sender As System.Object, _
ByVal e As System.EventArgs) _
Handles MyBase.Load
'Set the processing mode for the ReportViewer to Local
reportViewer1.ProcessingMode = ProcessingMode.Local
Dim localReport As LocalReport
localReport = reportViewer1.LocalReport
localReport.ReportEmbeddedResource = _
"ReportViewerIntro.Sales Order Detail.rdlc"
Dim dataset As New DataSet("Sales Order Detail")
Dim salesOrderNumber As String = "SO43661"
'Get the sales order data
GetSalesOrderData(salesOrderNumber, dataset)
'Create a report data source for the sales order data
Dim dsSalesOrder As New ReportDataSource()
dsSalesOrder.Name = "SalesOrder"
dsSalesOrder.Value = dataset.Tables("SalesOrder")
localReport.DataSources.Add(dsSalesOrder)
'Get the sales order detail data
GetSalesOrderDetailData(salesOrderNumber, dataset)
'Create a report data source for the sales
'order detail data
Dim dsSalesOrderDetail As New ReportDataSource()
dsSalesOrderDetail.Name = "SalesOrderDetail"
dsSalesOrderDetail.Value = _
dataset.Tables("SalesOrderDetail")
localReport.DataSources.Add(dsSalesOrderDetail)
'Create a report parameter for the sales order number
Dim rpSalesOrderNumber As New ReportParameter()
rpSalesOrderNumber.Name = "SalesOrderNumber"
rpSalesOrderNumber.Values.Add("SO43661")
'Set the report parameters for the report
Dim parameters() As ReportParameter = {rpSalesOrderNumber}
localReport.SetParameters(parameters)
'Refresh the report
reportViewer1.RefreshReport()
End Sub
Private Sub GetSalesOrderData(ByVal salesOrderNumber As String, _
ByRef dsSalesOrder As DataSet)
Dim sqlSalesOrder As String = _
"SELECT SOH.SalesOrderNumber, S.Name AS Store, " & _
" SOH.OrderDate, C.FirstName AS SalesFirstName, " & _
" C.LastName AS SalesLastName, E.Title AS " & _
" SalesTitle, SOH.PurchaseOrderNumber, " & _
" SM.Name AS ShipMethod, BA.AddressLine1 " & _
" AS BillAddress1, BA.AddressLine2 AS " & _
" BillAddress2, BA.City AS BillCity, " & _
" BA.PostalCode AS BillPostalCode, BSP.Name " & _
" AS BillStateProvince, BCR.Name AS " & _
" BillCountryRegion, SA.AddressLine1 AS " & _
" ShipAddress1, SA.AddressLine2 AS " & _
" ShipAddress2, SA.City AS ShipCity, " & _
" SA.PostalCode AS ShipPostalCode, SSP.Name " & _
" AS ShipStateProvince, SCR.Name AS " & _
" ShipCountryRegion, CC.Phone AS CustPhone, " & _
" CC.FirstName AS CustFirstName, CC.LastName " & _
" AS CustLastName " & _
"FROM Person.Address SA INNER JOIN " & _
" Person.StateProvince SSP ON " & _
" SA.StateProvinceID = SSP.StateProvinceID " & _
" INNER JOIN Person.CountryRegion SCR ON " & _
" SSP.CountryRegionCode = SCR.CountryRegionCode " & _
" RIGHT OUTER JOIN Sales.SalesOrderHeader SOH " & _
" LEFT OUTER JOIN Person.Contact CC ON " & _
" SOH.ContactID = CC.ContactID LEFT OUTER JOIN" & _
" Person.Address BA INNER JOIN " & _
" Person.StateProvince BSP ON " & _
" BA.StateProvinceID = BSP.StateProvinceID " & _
" INNER JOIN Person.CountryRegion BCR ON " & _
" BSP.CountryRegionCode = " & _
" BCR.CountryRegionCode ON SOH.BillToAddressID " & _
" = BA.AddressID ON SA.AddressID = " & _
" SOH.ShipToAddressID LEFT OUTER JOIN " & _
" Person.Contact C RIGHT OUTER JOIN " & _
" HumanResources.Employee E ON C.ContactID = " & _
" E.ContactID ON SOH.SalesPersonID = " & _
" E.EmployeeID LEFT OUTER JOIN " & _
" Purchasing.ShipMethod SM ON SOH.ShipMethodID " & _
" = SM.ShipMethodID LEFT OUTER JOIN Sales.Store" & _
" S ON SOH.CustomerID = S.CustomerID " & _
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber)"
Using connection As New SqlConnection( _
"Data Source=(local); " & _
"Initial Catalog=AdventureWorks; " & _
"Integrated Security=SSPI")
Dim command As New SqlCommand(sqlSalesOrder, connection)
Dim parameter As New SqlParameter("SalesOrderNumber", _
salesOrderNumber)
command.Parameters.Add(parameter)
Dim salesOrderAdapter As New SqlDataAdapter(command)
salesOrderAdapter.Fill(dsSalesOrder, "SalesOrder")
End Using
End Sub
Private Sub GetSalesOrderDetailData( _
ByVal salesOrderNumber As String, _
ByRef dsSalesOrder As DataSet)
Dim sqlSalesOrderDetail As String = _
"SELECT SOD.SalesOrderDetailID, SOD.OrderQty, " & _
" SOD.UnitPrice, CASE WHEN " & _
" SOD.UnitPriceDiscount IS NULL THEN 0 " & _
" ELSE SOD.UnitPriceDiscount END AS " & _
" UnitPriceDiscount, SOD.LineTotal, " & _
" SOD.CarrierTrackingNumber, " & _
" SOD.SalesOrderID, P.Name, P.ProductNumber " & _
"FROM Sales.SalesOrderDetail SOD INNER JOIN " & _
" Production.Product P ON SOD.ProductID = " & _
" P.ProductID INNER JOIN " & _
" Sales.SalesOrderHeader SOH ON " & _
" SOD.SalesOrderID = SOH.SalesOrderID " & _
"WHERE (SOH.SalesOrderNumber = @SalesOrderNumber) " & _
"ORDER BY SOD.SalesOrderDetailID"
Using connection As New SqlConnection( _
"Data Source=(local); " & _
"Initial Catalog=AdventureWorks; " & _
"Integrated Security=SSPI")
Dim command As New SqlCommand(sqlSalesOrderDetail, _
connection)
Dim parameter As New SqlParameter("SalesOrderNumber", _
salesOrderNumber)
command.Parameters.Add(parameter)
Dim salesOrderDetailAdapter As New SqlDataAdapter(command)
salesOrderDetailAdapter.Fill(dsSalesOrder, _
"SalesOrderDetail")
End Using
End Sub
End Class
