Working with assessment: Comprehensive guide to application assessment with GitHub Copilot App Modernization for Java

This comprehensive guide covers advanced assessment capabilities in GitHub Copilot app modernization to help you maximize the value of your application modernization assessment process.

Application assessment is a critical first step in your modernization journey. This article covers the complete assessment workflow to help you effectively work with assessment reports, configure assessments for different scenarios, and manage assessment data throughout your modernization process.

Configure before running assessment

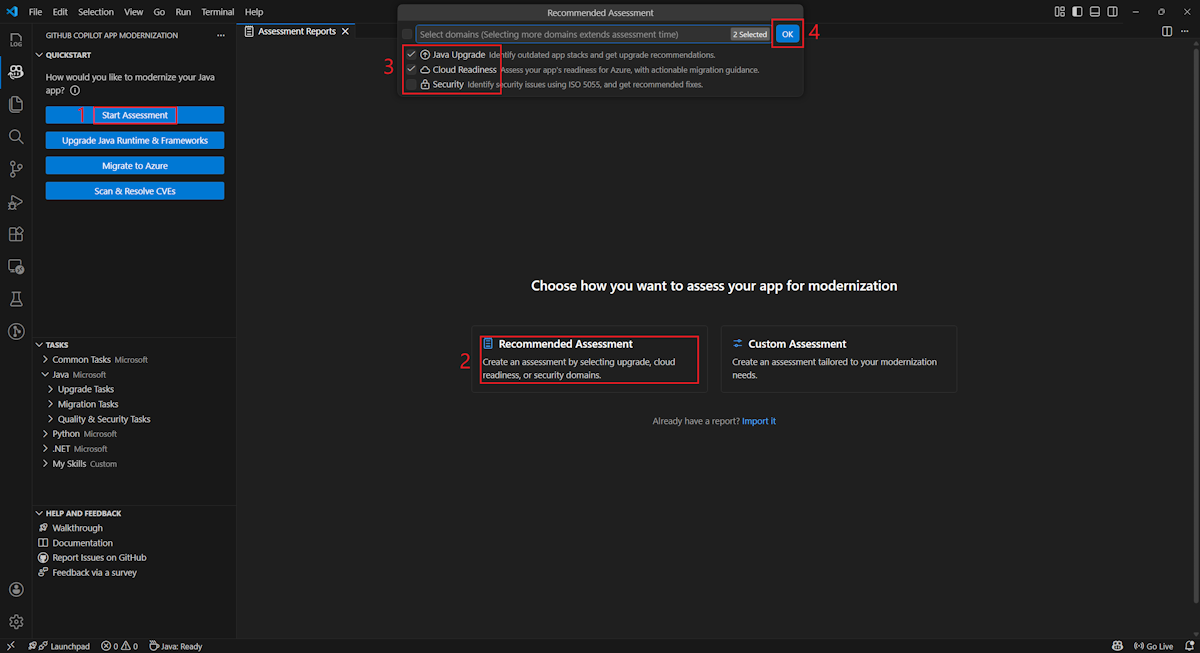

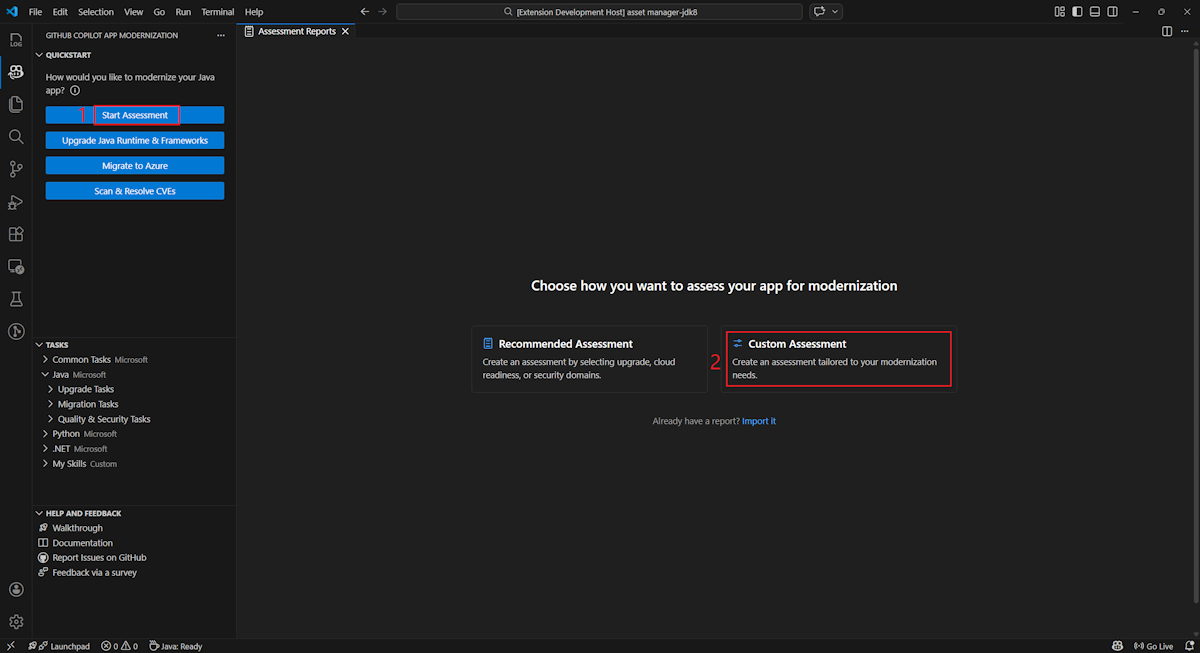

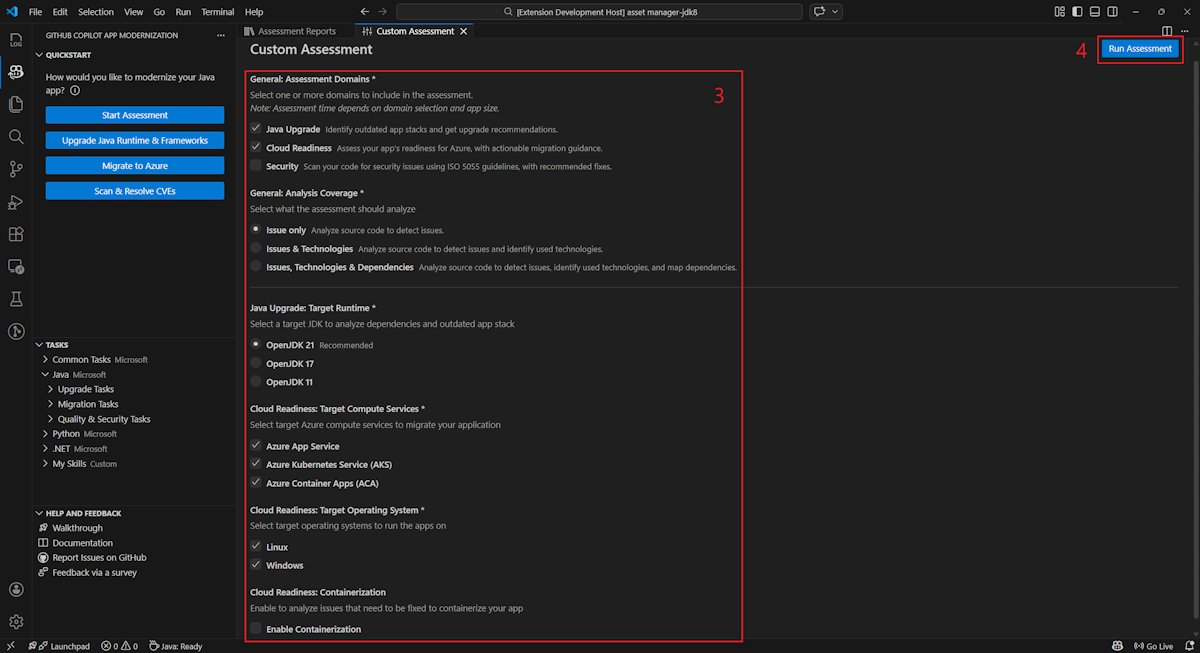

Before running assessment, configure the assessment by selecting Configure Assessment in the GitHub Copilot app modernization Assessment pane.

Configuration properties

Currently, you can configure the target, capability, os, and mode properties for the assessment.

By default, the assessment runs with Azure Kubernetes Service (AKS), Azure App Service, and Azure Container Apps (ACA) as the service targets.

• target: the Azure compute service to run the apps on. Choose multiple targets if you haven't decided which one to use. You can then compare the targets on the assessment report.

  Value	Description
  azure-aks	Best practices for deploying an app to Azure Kubernetes Service.
  azure-appservice	Best practices for deploying an app to Azure App Service.
  azure-container-apps	Best practices for deploying an app to Azure Container Apps.

• capability: the target technology to modernize the apps towards.

  Value	Description
  containerization	Best practices for containerizing applications.
  openjdk11	Best practices for migrating to OpenJDK 11.
  openjdk17	Best practices for migrating to OpenJDK 17.
  openjdk21	Best practices for migrating to OpenJDK 21.

• os: the target operating system to run the apps on.

  Value	Description
  linux	Best practices for migrating applications to the Linux platform.
  windows	Best practices for migrating applications to the Windows platform.

• mode: the analysis mode.

  Value	Description
  issue-only	Analyze source code to only detect issues.
  source-only	Analyze source code to detect both issues and used technologies.
  full	Analyze source code to detect both issues and used technologies, and list dependencies.

Examples

The following examples describe some configurations:

• Example one: you'd like to migrate your apps to AKS as linux containers and want to understand what are the issues to be fixed. Use the following configuration:

  appcat:
  - target:
      - azure-aks
    os:
      - linux
    mode: issue-only


• Example two: you'd like to migrate your apps to App Service Linux and want to understand what are the issues to be fixed. Use the following configuration:

  appcat:
  - target:
      - azure-appservice
    os:
      - linux
    mode: issue-only


• Example three: you'd like to modernize your apps to JDK21 and want to understand what are the issues to be fixed. Use the following configuration:

  appcat:
  - capability:
      - openjdk21
    mode: issue-only

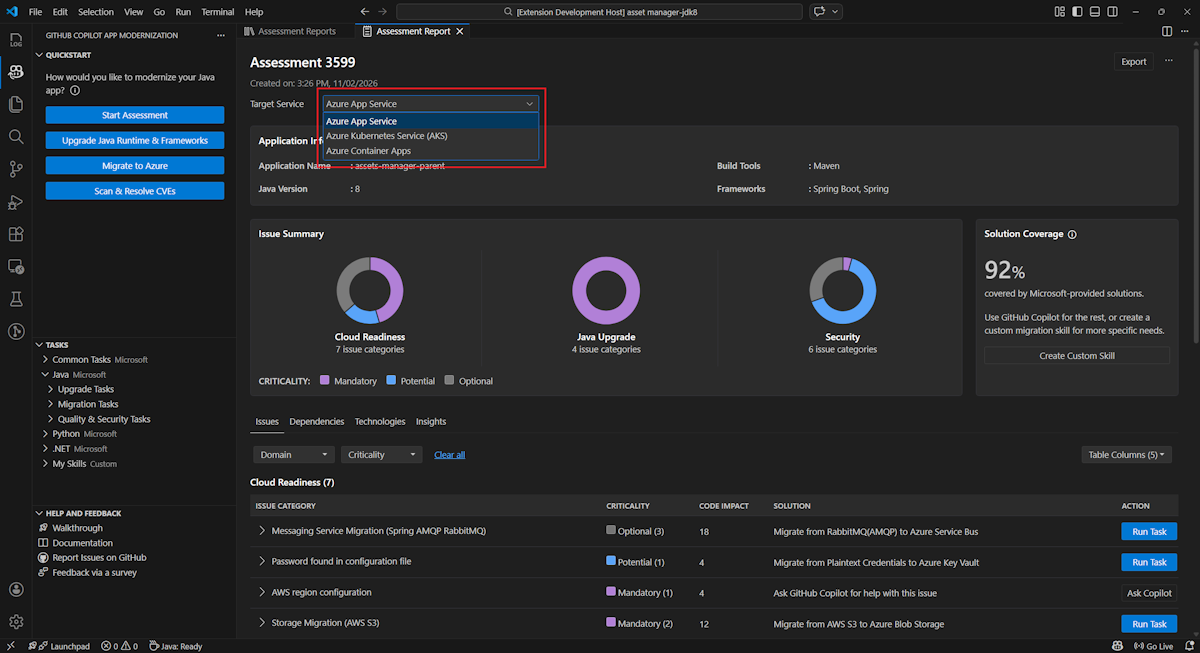

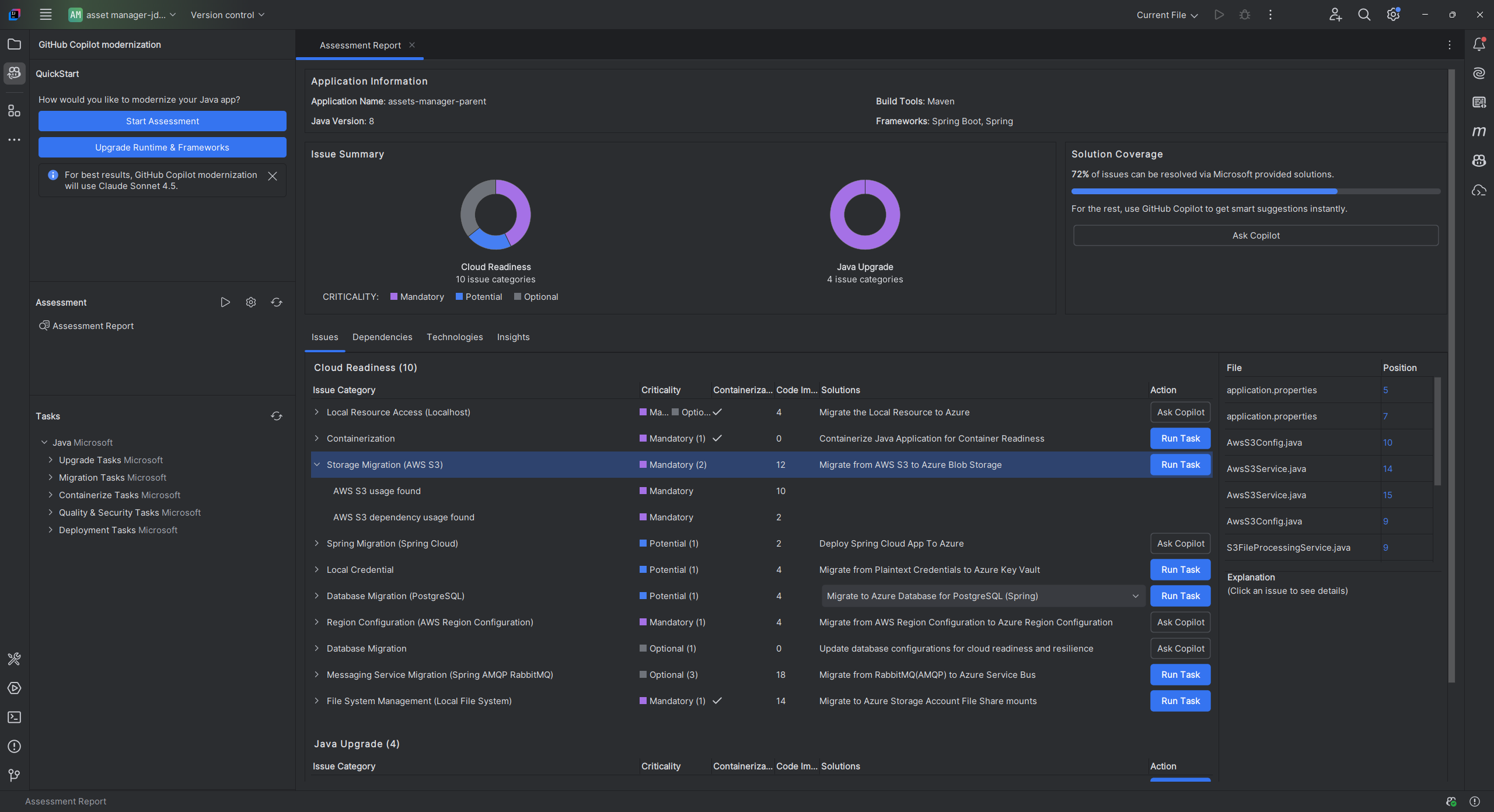

After the tool runs an assessment, the interactive dashboard opens automatically, providing comprehensive analysis results. After you configure multiple Azure service targets, you can easily switch between them to compare migration approaches and view service-specific recommendations.

Interpret the assessment report

The assessment report provide comprehensive analysis results to help you understand your application's readiness for Azure migration and modernization. This section guides you through the report structure and helps you interpret the findings to make informed migration decisions.

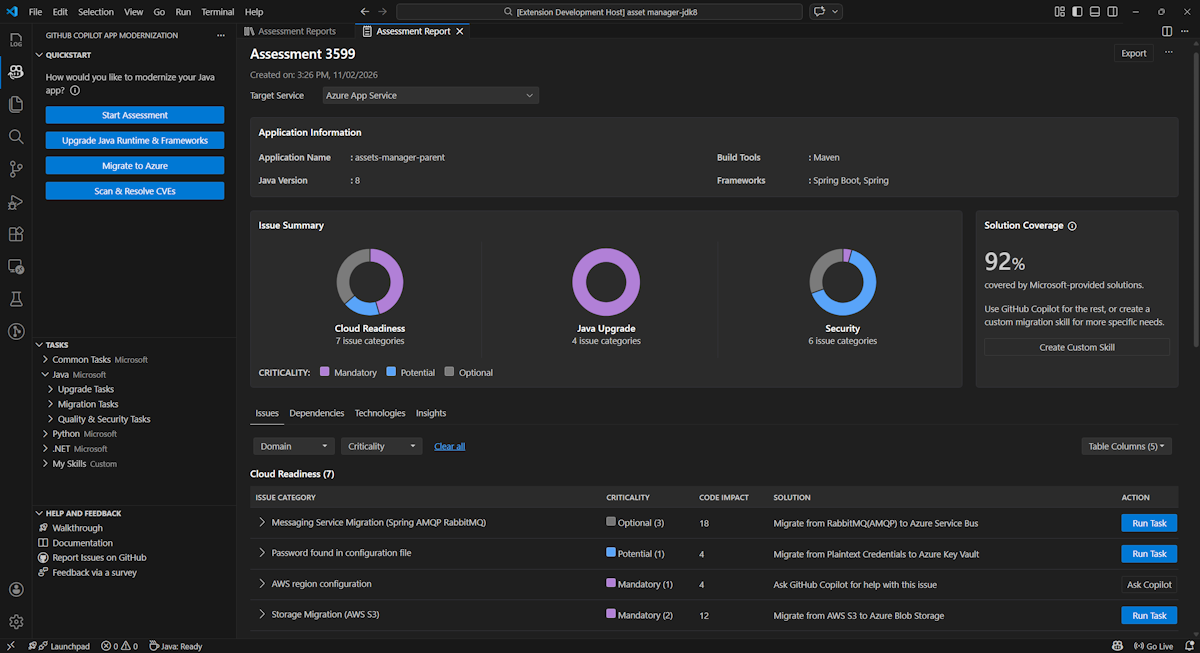

Report structure overview

The assessment report consists of several key sections:

• Application Information: Basic information about your application including Java version, frameworks, build tools, project structure, and target Azure service.
• Issue Summary: Overview of migration issues categorized by domain with criticality percentages.
• Detailed Analysis: The detail report is organized into the following four subsections.
  • Issues: Provides a concise summary of all issues that require attention.
  • Dependencies: Displays all Java-packaged dependencies found within the application.
  • Technologies: Displays all embedded libraries grouped by functionality, enabling you to quickly view the technologies used in the application.
  • Insights: Displays file details and information to help you understand the detected technologies.

Issues

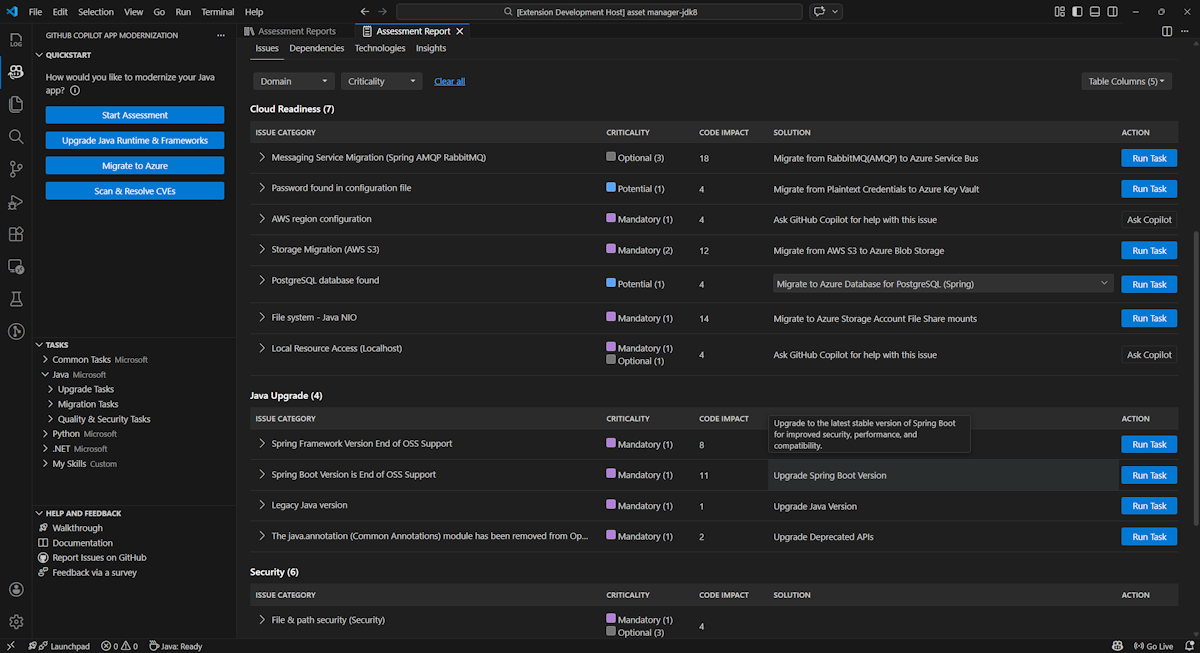

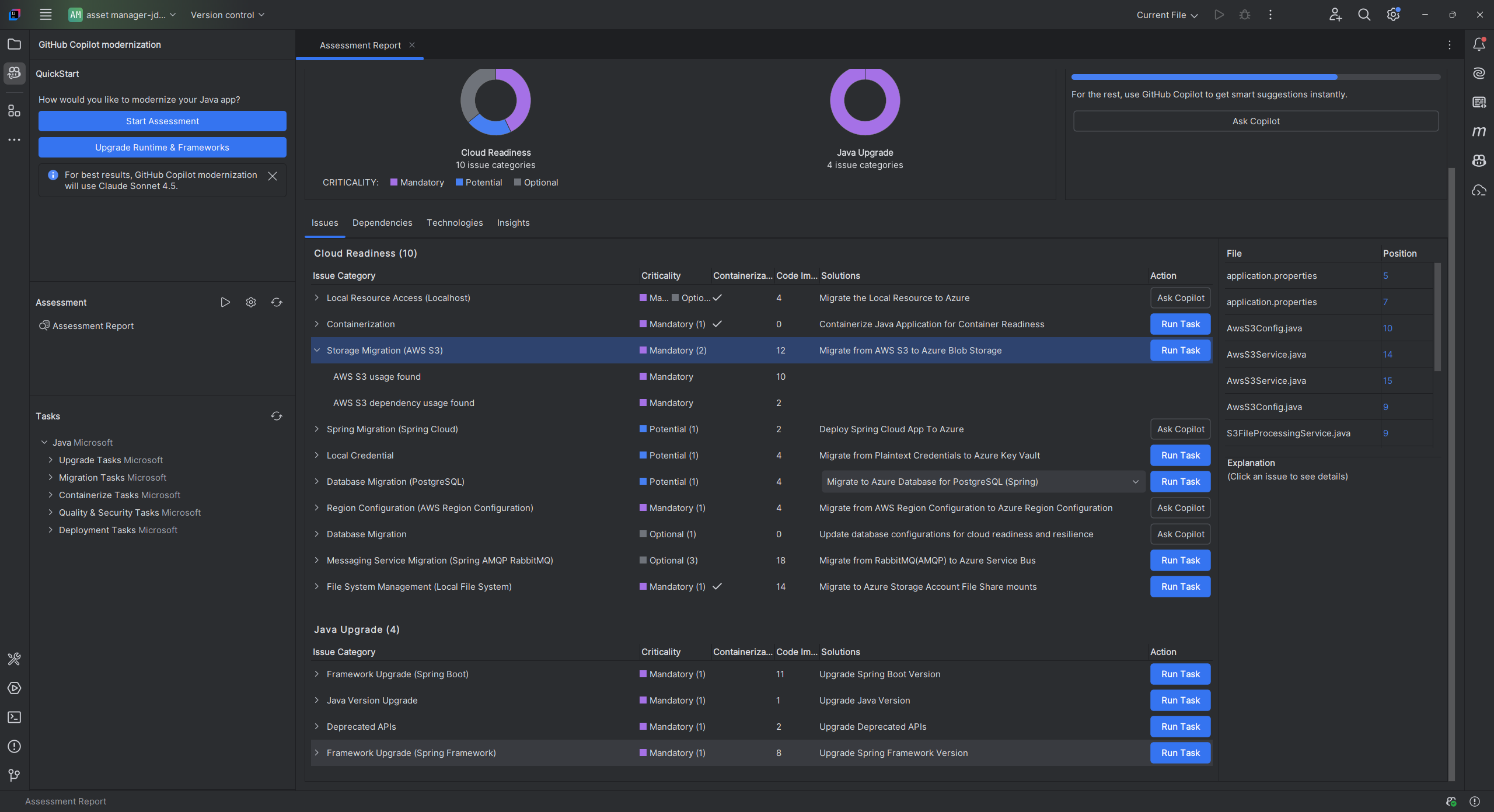

Access this part by selecting the Issues tab. This tab provides a categorized issues list of various aspects of Cloud Readiness and Java Upgrade that you need to address to successfully migrate the application to Azure. The following tables describe the Domain and Criticality values:

Domain	Description
Cloud Readiness	Evaluates app dependencies to suggest Azure services and ensure cloud-native readiness.
Java Upgrade	Identifies JDK and framework issues for version upgrade.

Criticality	Description
Mandatory	Issues that must be fixed for migration to Azure.
Potential	Issues that might impact migration and need review.
Optional	Low-impact issues. Fixing them is recommended but optional.

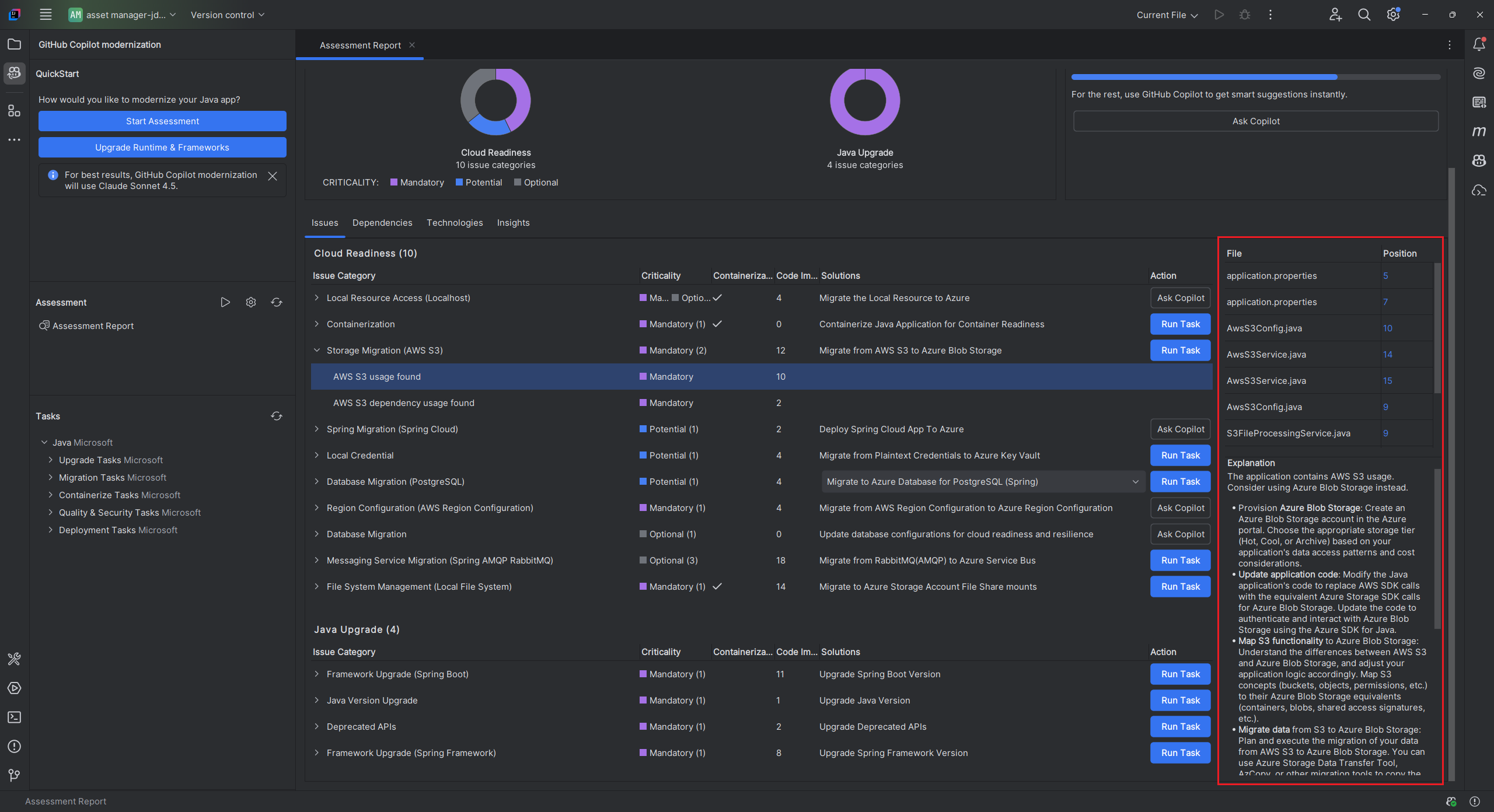

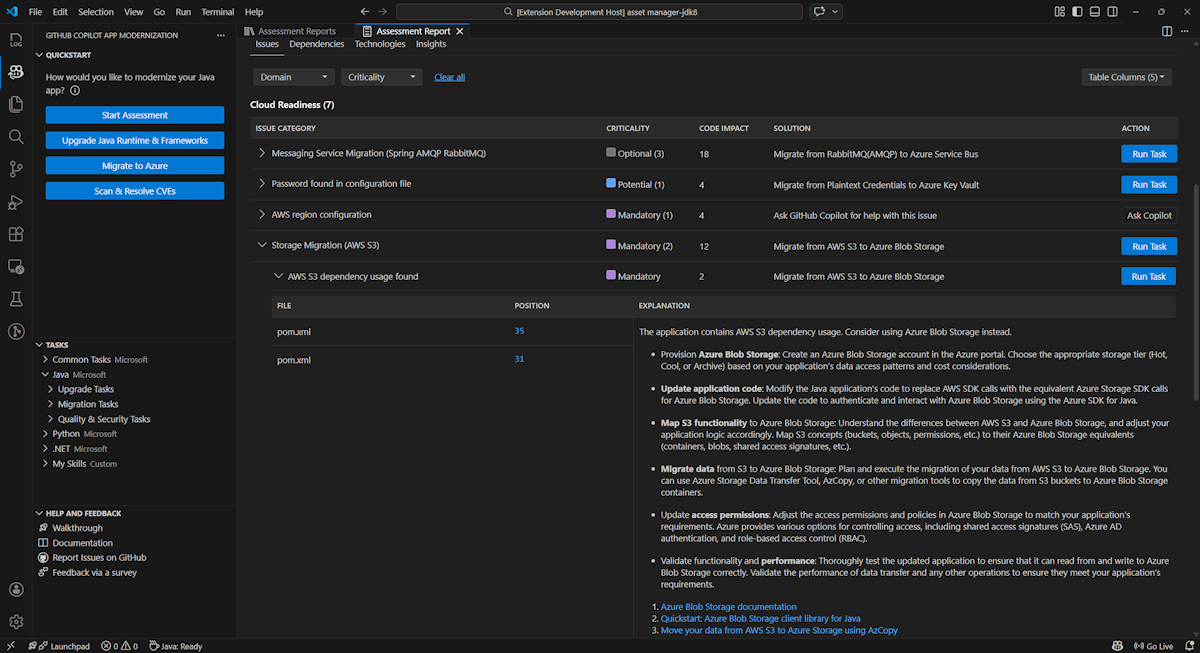

For more information, you can expand each reported issue by selecting the title. The report provides the following information:

• A list of files where the incidents occurred, along with the number of code lines impacted. If the file is a Java source file, then selecting the file line number directs you to the corresponding source report.
• A detailed description of the issue. This description outlines the problem, provides any known solutions, and references supporting documentation regarding either the issue or resolution.

Dependencies

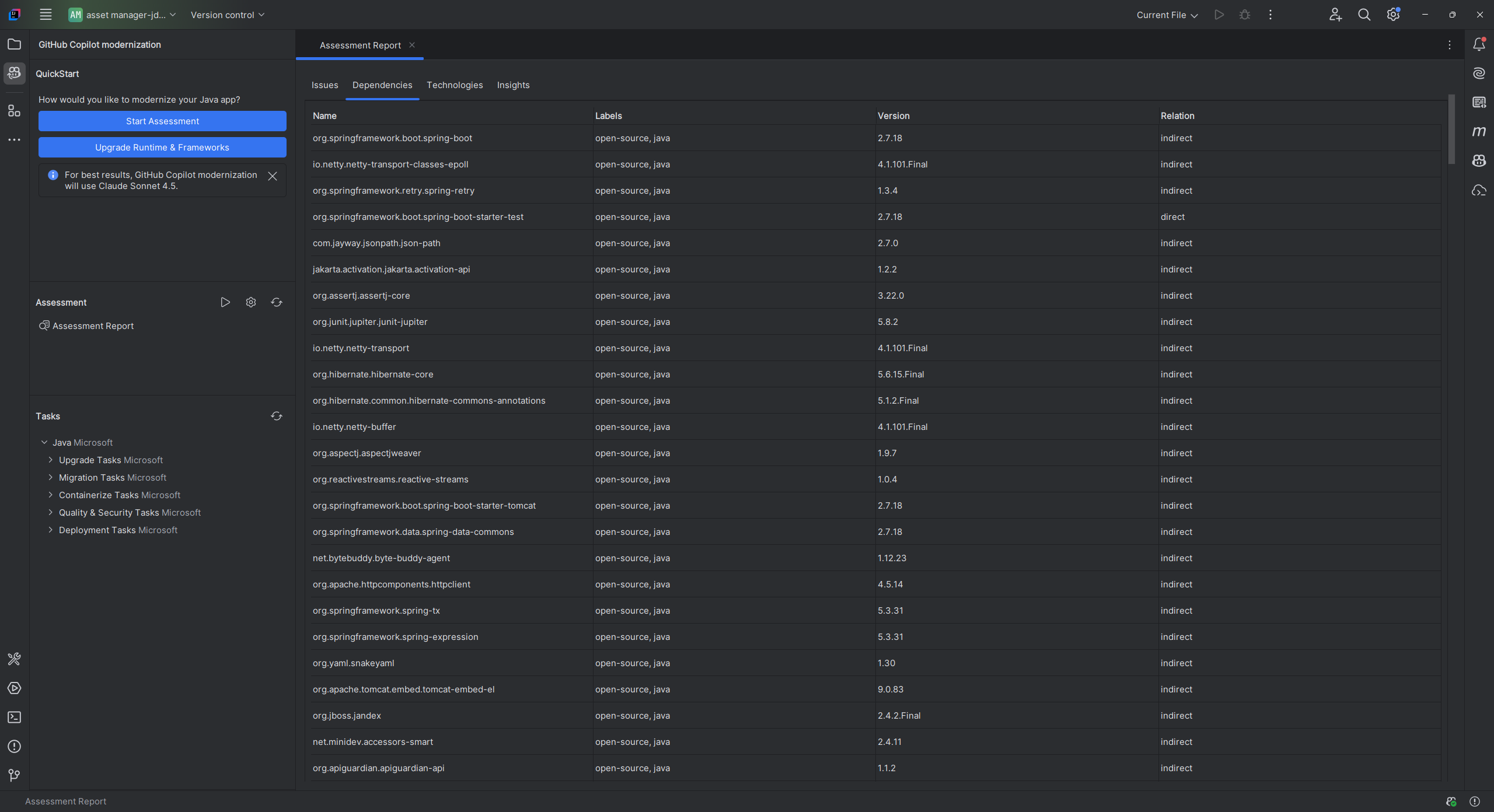

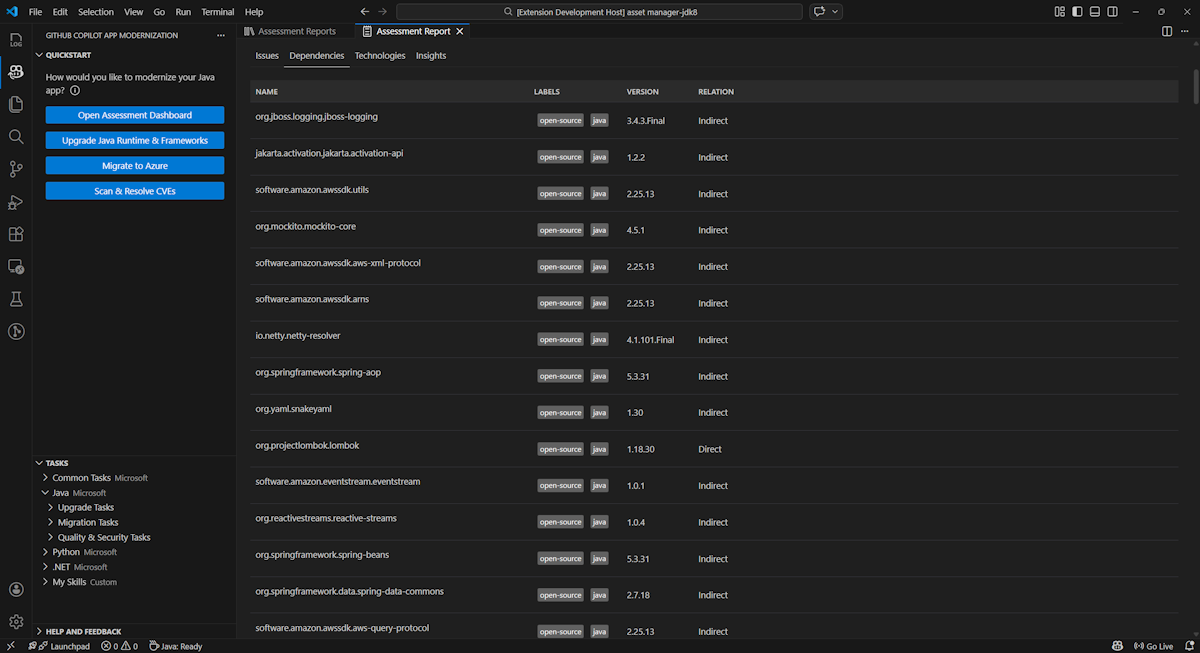

Access this part by selecting the Dependencies tab. This tab displays all Java-packaged dependencies found within the application.

Technologies

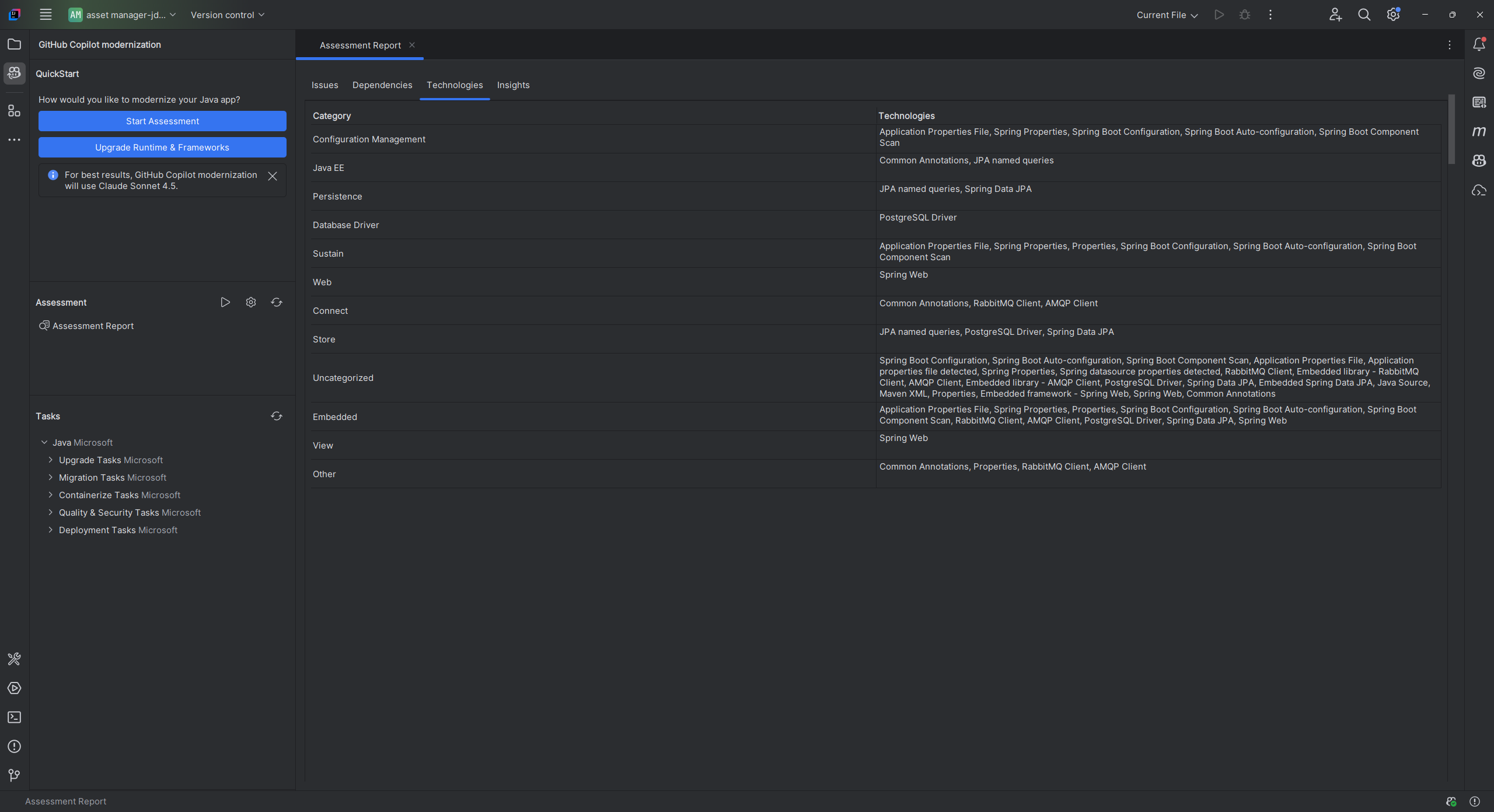

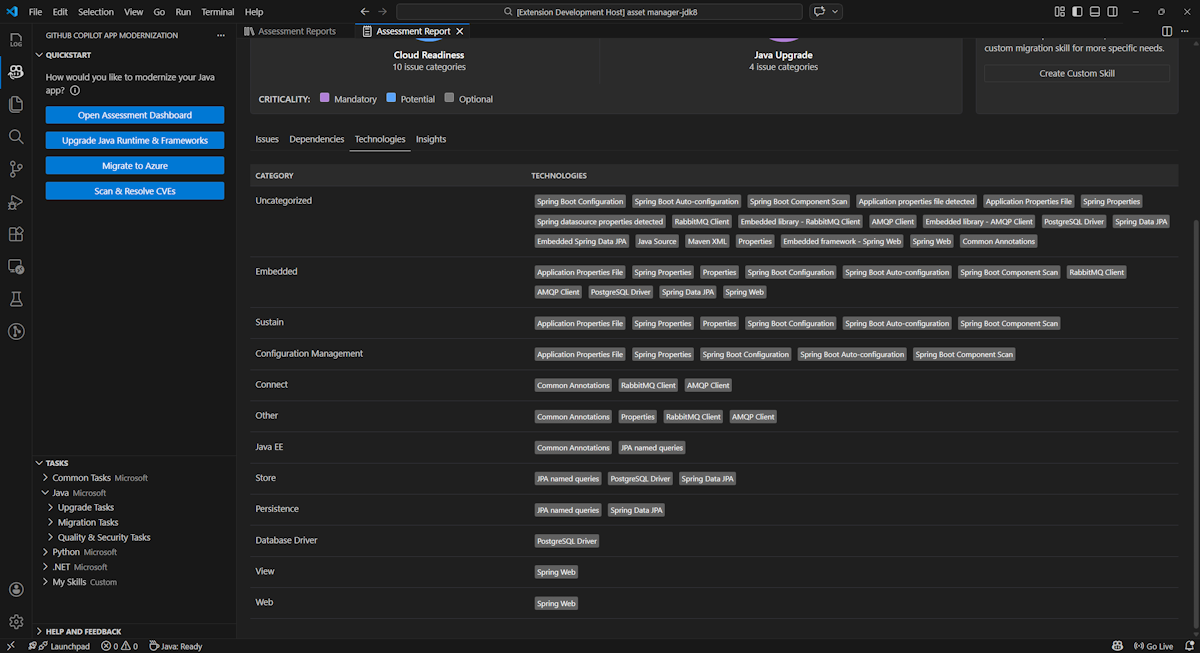

Access this part by selecting the Technologies tab. This tab lists the occurrences of technologies, grouped by function, in the analyzed application. This report is an overview of the technologies found in the application, and is designed to assist you in quickly understanding each application's purpose.

Insights

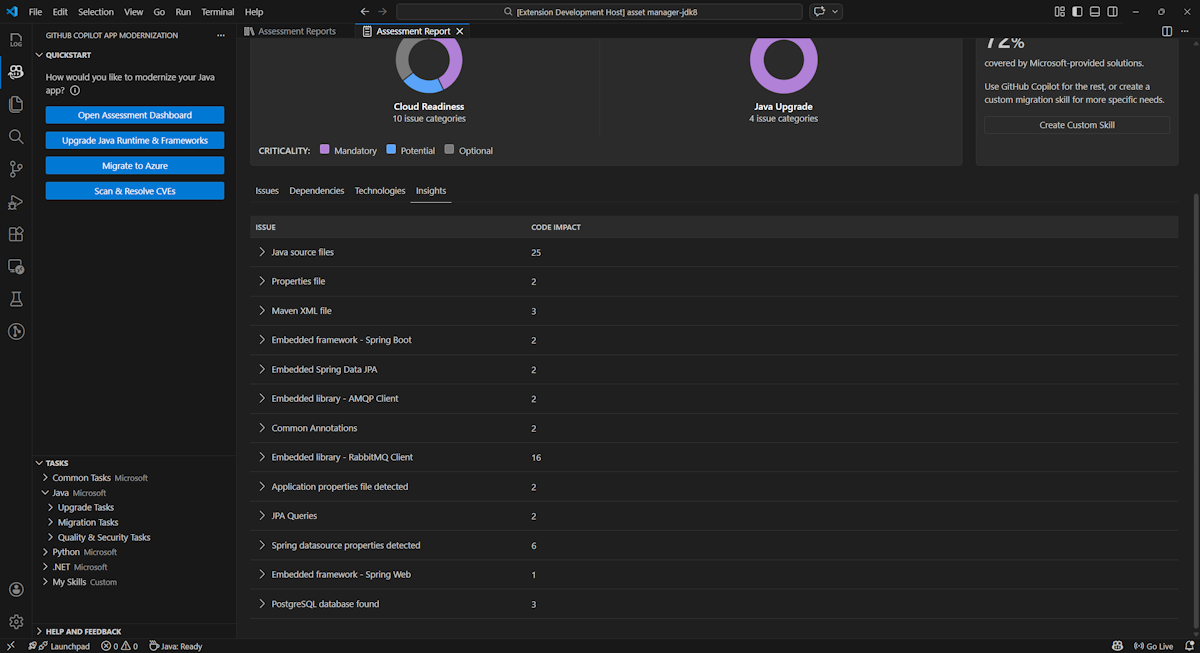

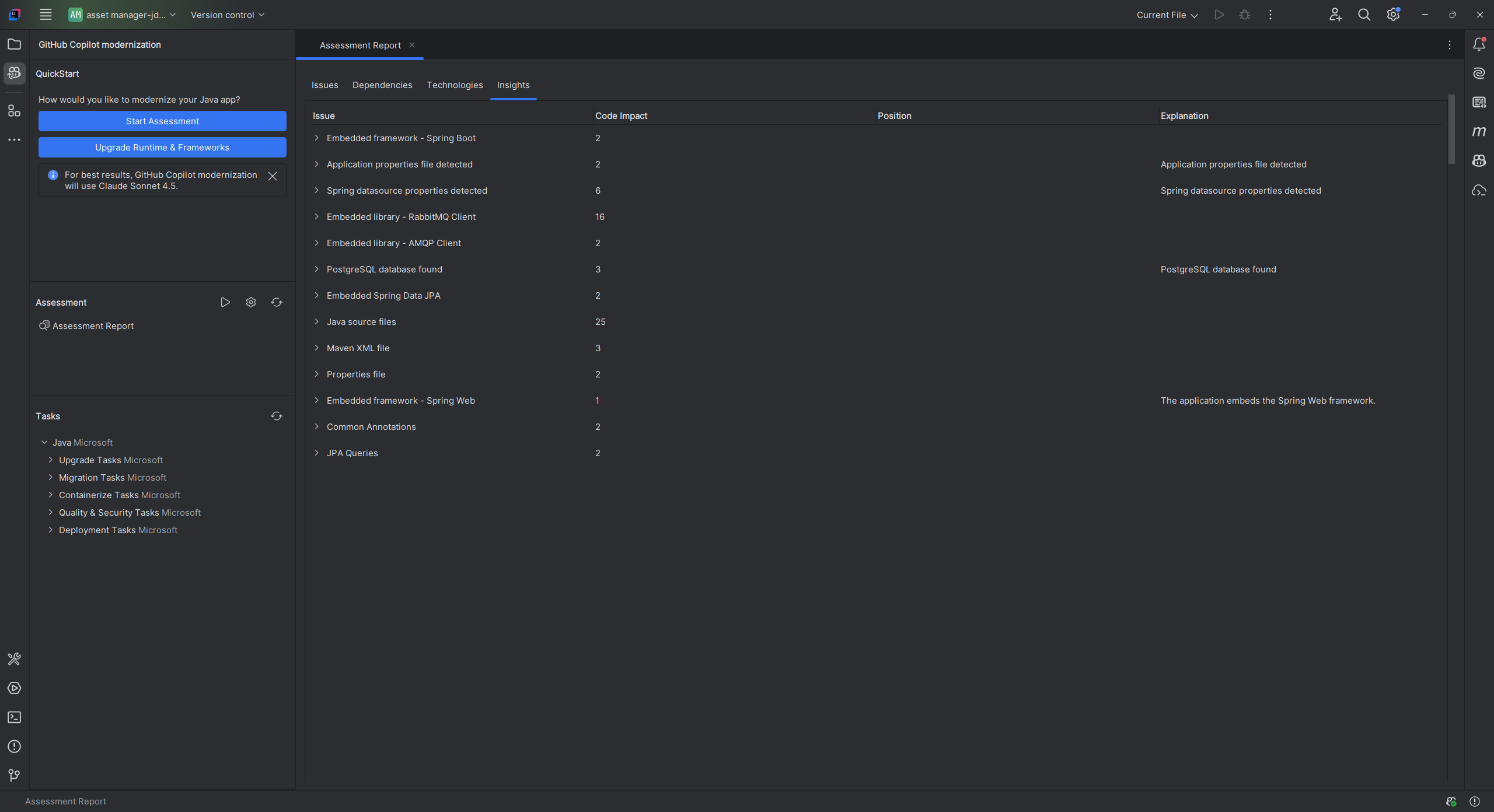

Access this part by selecting the Insights tab. Displays file details and information to help you understand the detected technologies.

Operate assessment report

Effective report management enables collaboration, maintains assessment history, and integrates with existing workflows.

Import assessment report

Besides running the assessment directly in GitHub Copilot app modernization, you can also import assessment reports. The reports can come from AppCAT CLI results - such as report.json, a GitHub Copilot app modernization exported report, or an app context file from Dr. Migrate.

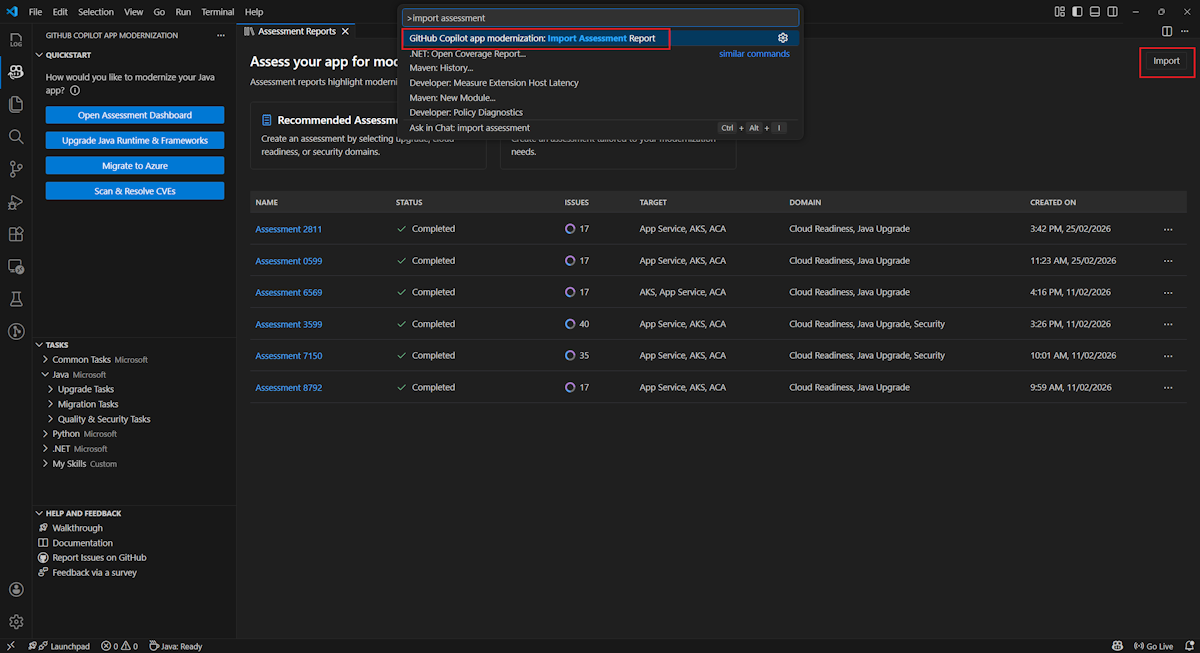

To import an assessment report to GitHub Copilot app modernization, select Import in the assessment section or press Ctrl+Shift+P and then search for import assessment report.

Export assessment report

In the assessment dashboard, you can view the issues detected by AppCAT and choose the migration solution to determine the decision. You can export the report and share it with others. If so, other people don't need to run assessment by themselves and can import the report and view the assessment and migration decision directly.

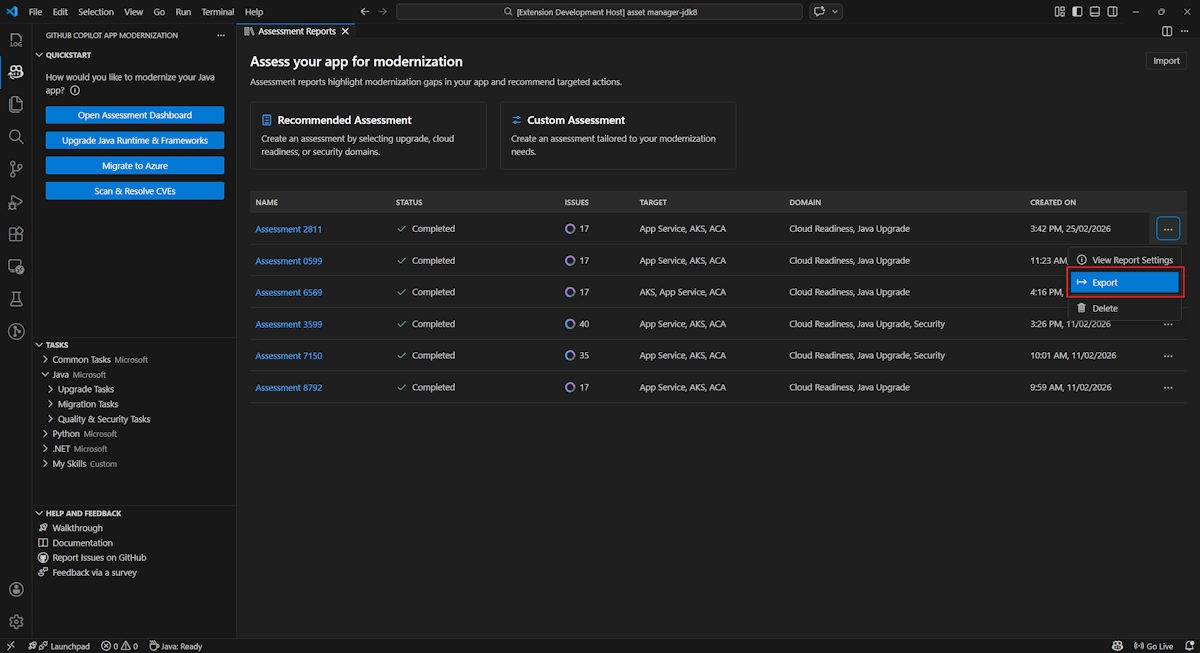

To export an assessment report from GitHub Copilot app modernization, right-click Assessment Report and then select Export in the assessment section or press Ctrl+Shift+P and then search for export assessment report.

Delete assessment report

If you don't want the report anymore, you can choose to delete it.

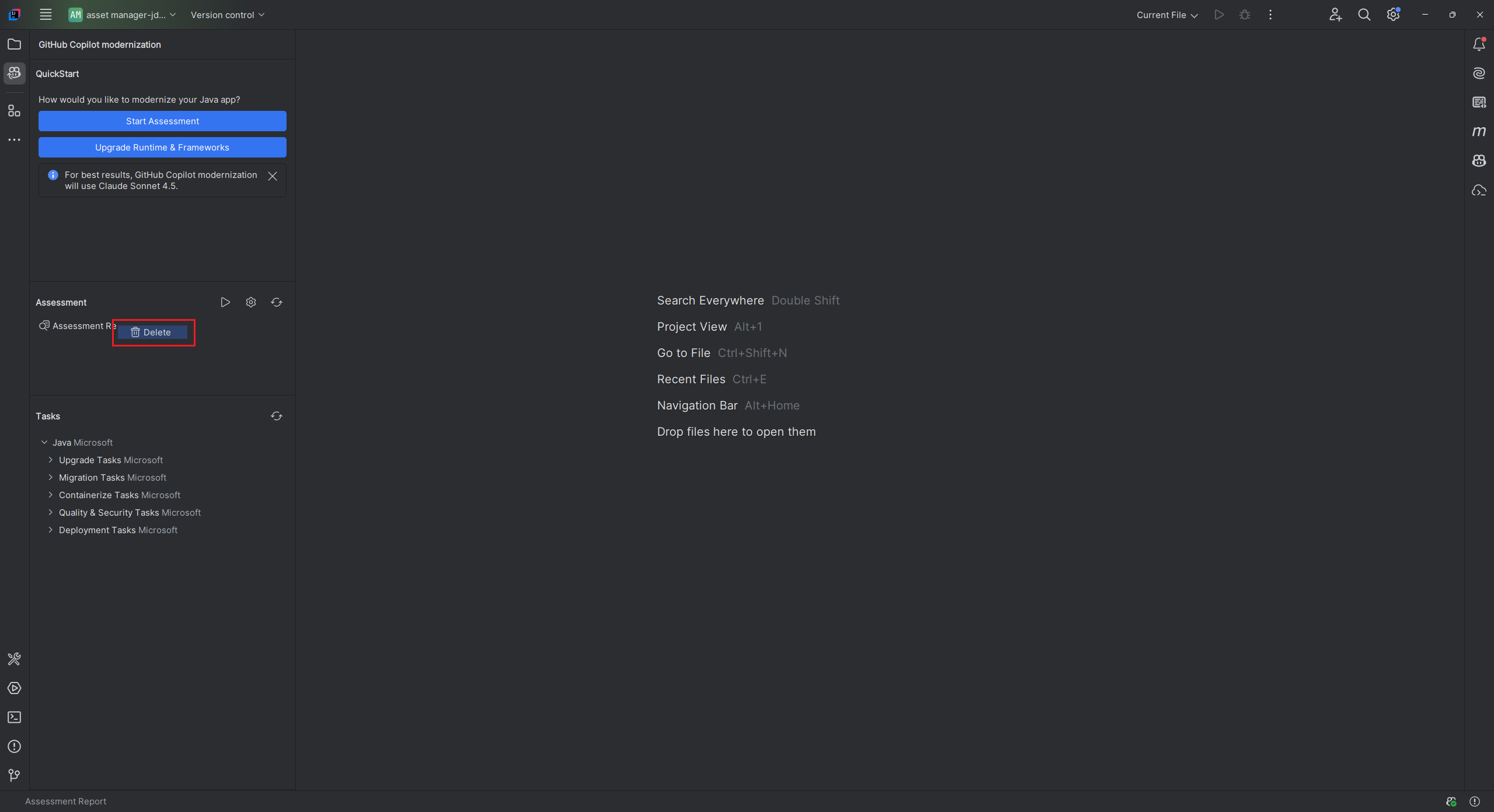

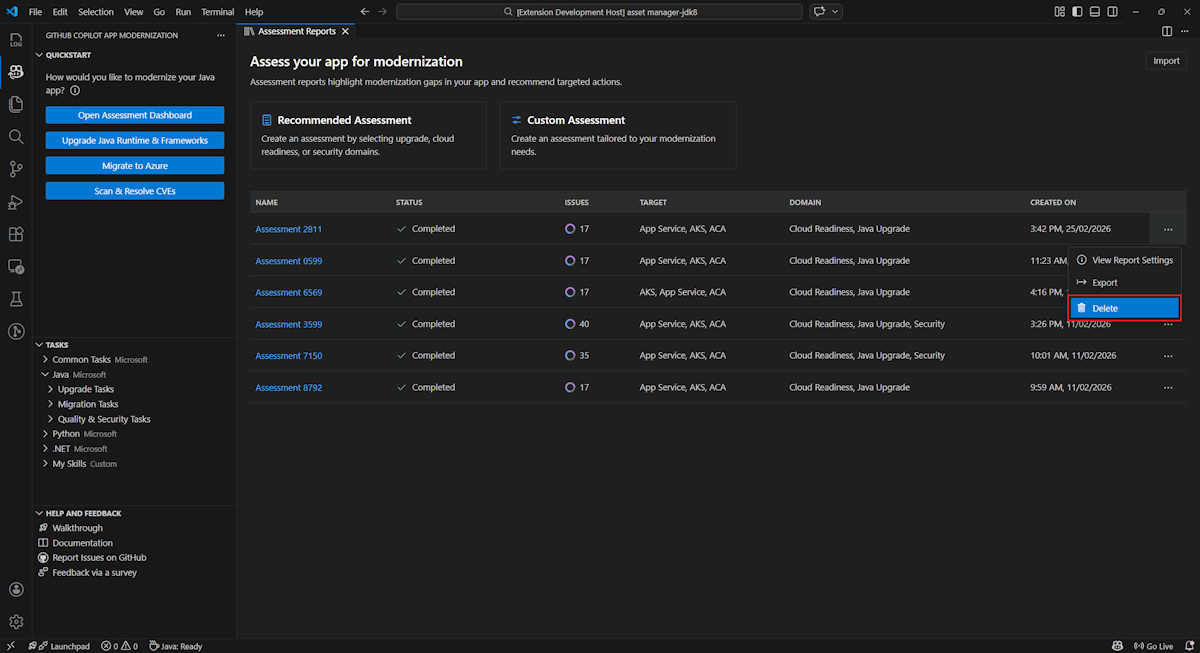

To remove an assessment report, right-click Assessment Report and then select Delete.

Next step

Quickstart: create and apply your own tasks
