Telemetry, property, and command payloads

Grein
02/06/2024

Telemetry a device sends to a service.
Properties a device synchronizes with a service.
Commands that the service calls on a device.

Tip

Azure IoT Central is a service that follows the Plug and Play conventions. In IoT Central, the device model is part of a device template. IoT Central currently supports DTDL v2 with an IoT Central extension. An IoT Central application expects to receive UTF-8 encoded JSON data.

This article describes the JSON payloads that devices send and receive for telemetry, properties, and commands defined in a DTDL device model.

The article doesn't describe every possible type of telemetry, property, and command payload, but the examples illustrate key types.

Each example shows a snippet from the device model that defines the type and example JSON payloads to illustrate how the device should interact with a Plug and Play aware service such as IoT Central.

The example JSON snippets in this article use Digital Twin Definition Language (DTDL) v2. There are also some DTDL extensions that IoT Central uses.

For sample device code that shows some of these payloads in use, see the Connect a sample IoT Plug and Play device application running on Linux or Windows to IoT Hub tutorial or the Create and connect a client application to your Azure IoT Central application tutorial.

View raw data

If you're using IoT Central, you can view the raw data that a device sends to an application. This view is useful for troubleshooting issues with the payload sent from a device. To view the raw data a device is sending:

Navigate to the device from the Devices page.

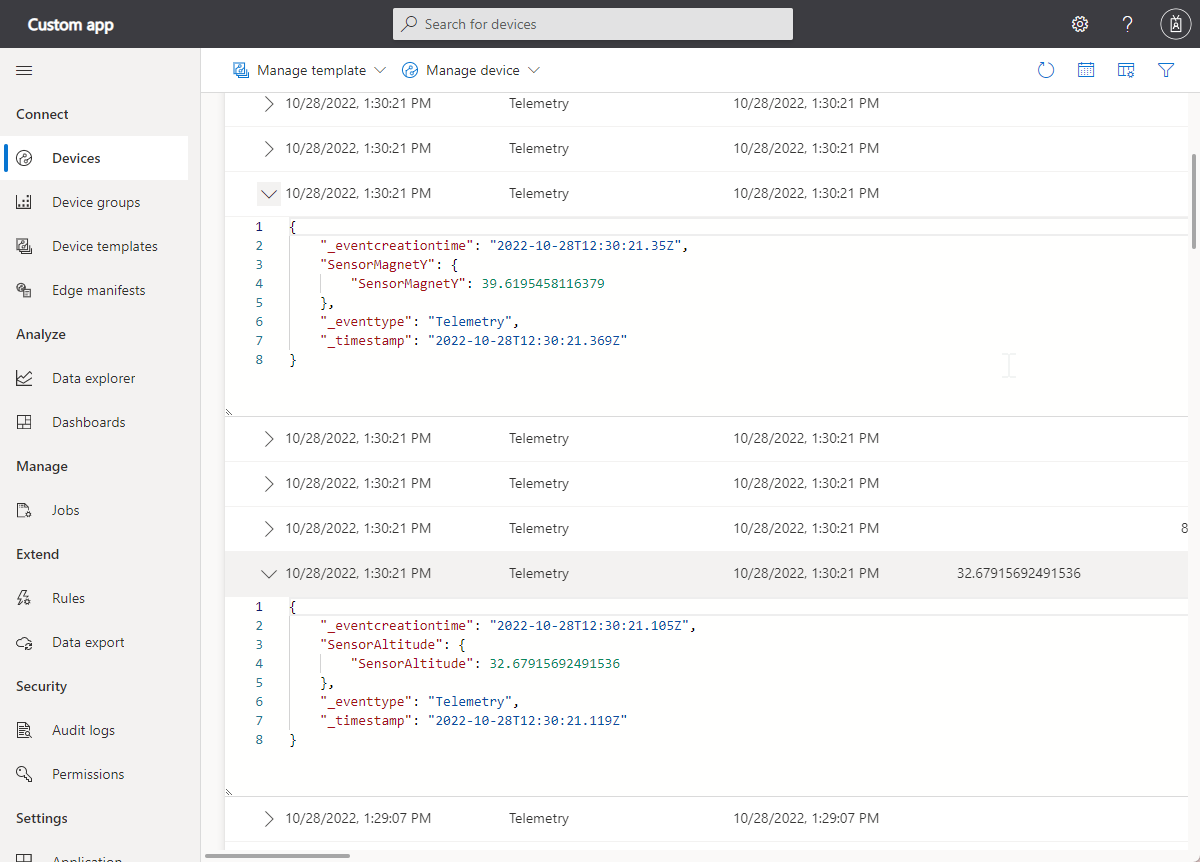

Select the Raw data tab:

On this view, you can select the columns to display and set a time range to view. The Unmodeled data column shows data from the device that doesn't match any property or telemetry definitions in the device template.

For more troubleshooting tips, see Troubleshoot why data from your devices isn't showing up in Azure IoT Central.

Telemetry

To learn more about the DTDL telemetry naming rules, see DTDL > Telemetry. You can't start a telemetry name using the _ character.

Don't create telemetry types with the following names. IoT Central uses these reserved names internally. If you try to use these names, IoT Central will ignore your data:

EventEnqueuedUtcTime
EventProcessedUtcTime
PartitionId
EventHub
User
$metadata
$version

Telemetry in components

If the telemetry is defined in a component, add a custom message property called $.sub with the name of the component as defined in the device model. To learn more, see Tutorial: Connect an IoT Plug and Play multiple component device applications. This tutorial shows how to use different programming languages to send telemetry from a component.

Important

To display telemetry from components hosted in IoT Edge modules correctly, use IoT Edge version 1.2.4 or later. If you use an earlier version, telemetry from your components in IoT Edge modules displays as _unmodeleddata.

Telemetry in inherited interfaces

If the telemetry is defined in an inherited interface, your device sends the telemetry as if it is defined in the root interface. Given the following device model:

[
    {
        "@id": "dtmi:contoso:device;1",
        "@type": "Interface",
        "contents": [
            {
                "@type": [
                    "Property",
                    "Cloud",
                    "StringValue"
                ],
                "displayName": {
                    "en": "Device Name"
                },
                "name": "DeviceName",
                "schema": "string"
            }
        ],
        "displayName": {
            "en": "Contoso Device"
        },
        "extends": [
            "dtmi:contoso:sensor;1"
        ],
        "@context": [
            "dtmi:iotcentral:context;2",
            "dtmi:dtdl:context;2"
        ]
    },
    {
        "@context": [
            "dtmi:iotcentral:context;2",
            "dtmi:dtdl:context;2"
        ],
        "@id": "dtmi:contoso:sensor;1",
        "@type": [
            "Interface",
            "NamedInterface"
        ],
        "contents": [
            {
                "@type": [
                    "Telemetry",
                    "NumberValue"
                ],
                "displayName": {
                    "en": "Meter Voltage"
                },
                "name": "MeterVoltage",
                "schema": "double"
            }
        ],
        "displayName": {
            "en": "Contoso Sensor"
        },
        "name": "ContosoSensor"
    }
]

The device sends meter voltage telemetry using the following payload. The device doesn't include the interface name in the payload:

{
    "MeterVoltage": 5.07
}

Primitive types

This section shows examples of primitive telemetry types that a device can stream.

The following snippet from a device model shows the definition of a boolean telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "BooleanTelemetry"
  },
  "name": "BooleanTelemetry",
  "schema": "boolean"
}

A device client should send the telemetry as JSON that looks like the following example:

{ "BooleanTelemetry": true }

The following snippet from a device model shows the definition of a string telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "StringTelemetry"
  },
  "name": "StringTelemetry",
  "schema": "string"
}

A device client should send the telemetry as JSON that looks like the following example:

{ "StringTelemetry": "A string value - could be a URL" }

The following snippet from a device model shows the definition of an integer telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "IntegerTelemetry"
  },
  "name": "IntegerTelemetry",
  "schema": "integer"
}

A device client should send the telemetry as JSON that looks like the following example:

{ "IntegerTelemetry": 23 }

The following snippet from a device model shows the definition of a double telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "DoubleTelemetry"
  },
  "name": "DoubleTelemetry",
  "schema": "double"
}

A device client should send the telemetry as JSON that looks like the following example:

{ "DoubleTelemetry": 56.78 }

The following snippet from a device model shows the definition of a dateTime telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "DateTimeTelemetry"
  },
  "name": "DateTimeTelemetry",
  "schema": "dateTime"
}

A device client should send the telemetry as JSON that looks like the following example - DateTime types must be in ISO 8061 format:

{ "DateTimeTelemetry": "2020-08-30T19:16:13.853Z" }

The following snippet from a device model shows the definition of a duration telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "DurationTelemetry"
  },
  "name": "DurationTelemetry",
  "schema": "duration"
}

A device client should send the telemetry as JSON that looks like the following example - durations must be in ISO 8601 format:

{ "DurationTelemetry": "PT10H24M6.169083011336625S" }

Complex types

This section shows examples of complex telemetry types that a device can stream.

The following snippet from a device model shows the definition of an Enum telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "EnumTelemetry"
  },
  "name": "EnumTelemetry",
  "schema": {
    "@type": "Enum",
    "displayName": {
      "en": "Enum"
    },
    "valueSchema": "integer",
    "enumValues": [
      {
        "displayName": {
          "en": "Item1"
        },
        "enumValue": 0,
        "name": "Item1"
      },
      {
        "displayName": {
          "en": "Item2"
        },
        "enumValue": 1,
        "name": "Item2"
      },
      {
        "displayName": {
          "en": "Item3"
        },
        "enumValue": 2,
        "name": "Item3"
      }
    ]
  }
}

A device client should send the telemetry as JSON that looks like the following example. Possible values are 0, 1, and 2 that display in IoT Central as Item1, Item2, and Item3:

{ "EnumTelemetry": 1 }

The following snippet from a device model shows the definition of an Object telemetry type. This object has three fields with types dateTime, integer, and Enum:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "ObjectTelemetry"
  },
  "name": "ObjectTelemetry",
  "schema": {
    "@type": "Object",
    "displayName": {
      "en": "Object"
    },
    "fields": [
      {
        "displayName": {
          "en": "Property1"
        },
        "name": "Property1",
        "schema": "dateTime"
      },
      {
        "displayName": {
          "en": "Property2"
        },
        "name": "Property2",
        "schema": "integer"
      },
      {
        "displayName": {
          "en": "Property3"
        },
        "name": "Property3",
        "schema": {
          "@type": "Enum",
          "displayName": {
            "en": "Enum"
          },
          "valueSchema": "integer",
          "enumValues": [
            {
              "displayName": {
                "en": "Item1"
              },
              "enumValue": 0,
              "name": "Item1"
            },
            {
              "displayName": {
                "en": "Item2"
              },
              "enumValue": 1,
              "name": "Item2"
            },
            {
              "displayName": {
                "en": "Item3"
              },
              "enumValue": 2,
              "name": "Item3"
            }
          ]
        }
      }
    ]
  }
}

A device client should send the telemetry as JSON that looks like the following example. DateTime types must be ISO 8061 compliant. Possible values for Property3 are 0, 1, and that display in IoT Central as Item1, Item2, and Item3:

{
  "ObjectTelemetry": {
      "Property1": "2020-09-09T03:36:46.195Z",
      "Property2": 37,
      "Property3": 2
  }
}

The following snippet from a device model shows the definition of a vector telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "VectorTelemetry"
  },
  "name": "VectorTelemetry",
  "schema": "vector"
}

A device client should send the telemetry as JSON that looks like the following example:

{
  "VectorTelemetry": {
    "x": 74.72395045538597,
    "y": 74.72395045538597,
    "z": 74.72395045538597
  }
}

The following snippet from a device model shows the definition of a geopoint telemetry type:

{
  "@type": "Telemetry",
  "displayName": {
    "en": "GeopointTelemetry"
  },
  "name": "GeopointTelemetry",
  "schema": "geopoint"
}

Note

The geopoint schema type is part of the IoT Central extension to DTDL. IoT Central currently supports the geopoint schema type and the location semantic type for backwards compatibility.

A device client should send the telemetry as JSON that looks like the following example. IoT Central displays the value as a pin on a map:

{
  "GeopointTelemetry": {
    "lat": 47.64263,
    "lon": -122.13035,
    "alt": 0
  }
}

Event and state types

This section shows examples of telemetry events and states that a device sends to an IoT Central application.

Note

The event and state schema types are part of the IoT Central extension to DTDL.

The following snippet from a device model shows the definition of a integer event type:

{
  "@type": [
    "Telemetry",
    "Event"
  ],
  "displayName": {
    "en": "IntegerEvent"
  },
  "name": "IntegerEvent",
  "schema": "integer"
}

A device client should send the event data as JSON that looks like the following example:

{ "IntegerEvent": 74 }

The following snippet from a device model shows the definition of a integer state type:

{
  "@type": [
    "Telemetry",
    "State"
  ],
  "displayName": {
    "en": "IntegerState"
  },
  "name": "IntegerState",
  "schema": {
    "@type": "Enum",
    "valueSchema": "integer",
    "enumValues": [
      {
        "displayName": {
          "en": "Level1"
        },
        "enumValue": 1,
        "name": "Level1"
      },
      {
        "displayName": {
          "en": "Level2"
        },
        "enumValue": 2,
        "name": "Level2"
      },
      {
        "displayName": {
          "en": "Level3"
        },
        "enumValue": 3,
        "name": "Level3"
      }
    ]
  }
}

A device client should send the state as JSON that looks like the following example. Possible integer state values are 1, 2, or 3:

{ "IntegerState": 2 }

Properties

To learn more about the DTDL property naming rules, see DTDL > Property. You can't start a property name using the _ character.

Properties in components

If the property is defined in a component, wrap the property in the component name. The following example sets the maxTempSinceLastReboot in the thermostat2 component. The marker __t indicates that this section defines a component:

{
  "thermostat2" : {
    "__t" : "c",
    "maxTempSinceLastReboot" : 38.7
    }
}

To learn more, see Tutorial: Create and connect a client application to your Azure IoT Central application.

Primitive types

This section shows examples of primitive property types that a device sends to a service.

The following snippet from a device model shows the definition of a boolean property type:

{
  "@type": "Property",
  "displayName": {
    "en": "BooleanProperty"
  },
  "name": "BooleanProperty",
  "schema": "boolean",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{ "BooleanProperty": false }

The following snippet from a device model shows the definition of a long property type:

{
  "@type": "Property",
  "displayName": {
    "en": "LongProperty"
  },
  "name": "LongProperty",
  "schema": "long",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{ "LongProperty": 439 }

The following snippet from a device model shows the definition of a date property type:

{
  "@type": "Property",
  "displayName": {
    "en": "DateProperty"
  },
  "name": "DateProperty",
  "schema": "date",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin. Date types must be ISO 8061 compliant:

{ "DateProperty": "2020-05-17" }

The following snippet from a device model shows the definition of a duration property type:

{
  "@type": "Property",
  "displayName": {
    "en": "DurationProperty"
  },
  "name": "DurationProperty",
  "schema": "duration",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin - durations must be ISO 8601 Duration compliant:

{ "DurationProperty": "PT10H24M6.169083011336625S" }

The following snippet from a device model shows the definition of a float property type:

{
  "@type": "Property",
  "displayName": {
    "en": "FloatProperty"
  },
  "name": "FloatProperty",
  "schema": "float",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{ "FloatProperty": 1.9 }

The following snippet from a device model shows the definition of a string property type:

{
  "@type": "Property",
  "displayName": {
    "en": "StringProperty"
  },
  "name": "StringProperty",
  "schema": "string",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{ "StringProperty": "A string value - could be a URL" }

Complex types

This section shows examples of complex property types that a device sends to a service.

The following snippet from a device model shows the definition of an Enum property type:

{
  "@type": "Property",
  "displayName": {
    "en": "EnumProperty"
  },
  "name": "EnumProperty",
  "writable": false,
  "schema": {
    "@type": "Enum",
    "displayName": {
      "en": "Enum"
    },
    "valueSchema": "integer",
    "enumValues": [
      {
        "displayName": {
          "en": "Item1"
        },
        "enumValue": 0,
        "name": "Item1"
      },
      {
        "displayName": {
          "en": "Item2"
        },
        "enumValue": 1,
        "name": "Item2"
      },
      {
        "displayName": {
          "en": "Item3"
        },
        "enumValue": 2,
        "name": "Item3"
      }
    ]
  }
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin. Possible values are 0, 1, and that display in IoT Central as Item1, Item2, and Item3:

{ "EnumProperty": 1 }

The following snippet from a device model shows the definition of an Object property type. This object has two fields with types string and integer:

{
  "@type": "Property",
  "displayName": {
    "en": "ObjectProperty"
  },
  "name": "ObjectProperty",
  "writable": false,
  "schema": {
    "@type": "Object",
    "displayName": {
      "en": "Object"
    },
    "fields": [
      {
        "displayName": {
          "en": "Field1"
        },
        "name": "Field1",
        "schema": "integer"
      },
      {
        "displayName": {
          "en": "Field2"
        },
        "name": "Field2",
        "schema": "string"
      }
    ]
  }
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{
  "ObjectProperty": {
    "Field1": 37,
    "Field2": "A string value"
  }
}

The following snippet from a device model shows the definition of an vector property type:

{
  "@type": "Property",
  "displayName": {
    "en": "VectorProperty"
  },
  "name": "VectorProperty",
  "schema": "vector",
  "writable": false
}

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{
  "VectorProperty": {
    "x": 74.72395045538597,
    "y": 74.72395045538597,
    "z": 74.72395045538597
  }
}

The following snippet from a device model shows the definition of a geopoint property type:

{
  "@type": "Property",
  "displayName": {
    "en": "GeopointProperty"
  },
  "name": "GeopointProperty",
  "schema": "geopoint",
  "writable": false
}

Note

The geopoint schema type is part of the IoT Central extension to DTDL. IoT Central currently supports the geopoint schema type and the location semantic type for backwards compatibility.

A device client should send a JSON payload that looks like the following example as a reported property in the device twin:

{
  "GeopointProperty": {
    "lat": 47.64263,
    "lon": -122.13035,
    "alt": 0
  }
}

Writable property types

This section shows examples of writable property types that a device receives from a service.

If the writable property is defined in a component, the desired property message includes the component name. The following example shows the message requesting the device to update the targetTemperature in the thermostat2 component. The marker __t indicates that this section defines a component:

{
  "thermostat2": {
    "targetTemperature": {
      "value": 57
    },
    "__t": "c"
  },
  "$version": 3
}

To learn more, see Connect an IoT Plug and Play multiple component device applications.

The device or module should confirm that it received the property by sending a reported property. The reported property should include:

value - the actual value of the property (typically the received value, but the device may decide to report a different value).
ac - an acknowledgment code that uses an HTTP status code.
av - an acknowledgment version that refers to the $version of the desired property. You can find this value in the desired property JSON payload.
ad - an optional acknowledgment description.

To learn more about these fields, see IoT Plug and Play conventions > Acknowledgment responses

The following snippet from a device model shows the definition of a writable string property type:

{
  "@type": "Property",
  "displayName": {
    "en": "StringPropertyWritable"
  },
  "name": "StringPropertyWritable",
  "writable": true,
  "schema": "string"
}

The device receives the following payload from the service:

{
  "StringPropertyWritable": "A string from IoT Central", "$version": 7
}

The device should send the following JSON payload to the service after it processes the update. This message includes the version number of the original update received from the service.

Tip

If the service is IoT Central, it marks the property as synced in the UI when it receives this message:

{
  "StringPropertyWritable": {
    "value": "A string from IoT Central",
    "ac": 200,
    "ad": "completed",
    "av": 7
  }
}

The following snippet from a device model shows the definition of a writable Enum property type:

{
  "@type": "Property",
  "displayName": {
    "en": "EnumPropertyWritable"
  },
  "name": "EnumPropertyWritable",
  "writable": true,
  "schema": {
    "@type": "Enum",
    "displayName": {
      "en": "Enum"
    },
    "valueSchema": "integer",
    "enumValues": [
      {
        "displayName": {
          "en": "Item1"
        },
        "enumValue": 0,
        "name": "Item1"
      },
      {
        "displayName": {
          "en": "Item2"
        },
        "enumValue": 1,
        "name": "Item2"
      },
      {
        "displayName": {
          "en": "Item3"
        },
        "enumValue": 2,
        "name": "Item3"
      }
    ]
  }
}

The device receives the following payload from the service:

{
  "EnumPropertyWritable":  1 , "$version": 10
}

The device should send the following JSON payload to the service after it processes the update. This message includes the version number of the original update received from the service.

Tip

If the service is IoT Central, it marks the property as synced in the UI when it receives this message:

{
  "EnumPropertyWritable": {
    "value": 1,
    "ac": 200,
    "ad": "completed",
    "av": 10
  }
}

Commands

To learn more about the DTDL command naming rules, see DTDL > Command. You can't start a command name using the _ character.

If the command is defined in a component, the name of the command the device receives includes the component name. For example, if the command is called getMaxMinReport and the component is called thermostat2, the device receives a request to execute a command called thermostat2*getMaxMinReport.

The following snippet from a device model shows the definition of a command that has no parameters and that doesn't expect the device to return anything:

{
  "@type": "Command",
  "displayName": {
    "en": "CommandBasic"
  },
  "name": "CommandBasic"
}

The device receives an empty payload in the request and should return an empty payload in the response with a 200 HTTP response code to indicate success.

The following snippet from a device model shows the definition of a command that has an integer parameter and that expects the device to return an integer value:

{
  "@type": "Command",
  "request": {
    "@type": "CommandPayload",
    "displayName": {
      "en": "RequestParam"
    },
    "name": "RequestParam",
    "schema": "integer"
  },
  "response": {
    "@type": "CommandPayload",
    "displayName": {
      "en": "ResponseParam"
    },
    "name": "ResponseParam",
    "schema": "integer"
  },
  "displayName": {
    "en": "CommandSimple"
  },
  "name": "CommandSimple"
}

The device receives an integer value as the request payload. The device should return an integer value as the response payload with a 200 HTTP response code to indicate success.

The following snippet from a device model shows the definition of a command that has an object parameter and that expects the device to return an object. In this example, both objects have integer and string fields:

{
  "@type": "Command",
  "request": {
    "@type": "CommandPayload",
    "displayName": {
      "en": "RequestParam"
    },
    "name": "RequestParam",
    "schema": {
      "@type": "Object",
      "displayName": {
        "en": "Object"
      },
      "fields": [
        {
          "displayName": {
            "en": "Field1"
          },
          "name": "Field1",
          "schema": "integer"
        },
        {
          "displayName": {
            "en": "Field2"
          },
          "name": "Field2",
          "schema": "string"
        }
      ]
    }
  },
  "response": {
    "@type": "CommandPayload",
    "displayName": {
      "en": "ResponseParam"
    },
    "name": "ResponseParam",
    "schema": {
      "@type": "Object",
      "displayName": {
        "en": "Object"
      },
      "fields": [
        {
          "displayName": {
            "en": "Field1"
          },
          "name": "Field1",
          "schema": "integer"
        },
        {
          "displayName": {
            "en": "Field2"
          },
          "name": "Field2",
          "schema": "string"
        }
      ]
    }
  },
  "displayName": {
    "en": "CommandComplex"
  },
  "name": "CommandComplex"
}

The following snippet shows an example request payload sent to the device:

{ "Field1": 56, "Field2": "A string value" }

The following snippet shows an example response payload sent from the device. Use a 200 HTTP response code to indicate success:

{ "Field1": 87, "Field2": "Another string value" }

Tip

IoT Central has its own conventions for implementing Long-running commands and Offline commands.

Next steps

Now that you've learned about device payloads, a suggested next steps is to read the Device developer guide.

Deila með

Telemetry, property, and command payloads

View raw data

Telemetry

Telemetry in components

Telemetry in inherited interfaces

Primitive types

Complex types

Event and state types

Properties

Properties in components

Primitive types

Complex types

Writable property types

Commands

Next steps

Athugasemdir

Fleiri tilföng
