High availability setup in SUSE using the fencing device

Grein
02/10/2023

In this article, we'll go through the steps to set up high availability (HA) in HANA Large Instances on the SUSE operating system by using the fencing device.

Note

This guide is derived from successfully testing the setup in the Microsoft HANA Large Instances environment. The Microsoft Service Management team for HANA Large Instances doesn't support the operating system. For troubleshooting or clarification on the operating system layer, contact SUSE.

The Microsoft Service Management team does set up and fully support the fencing device. It can help troubleshoot fencing device problems.

Prerequisites

To set up high availability by using SUSE clustering, you need to:

Provision HANA Large Instances.
Install and register the operating system with the latest patches.
Connect HANA Large Instance servers to the SMT server to get patches and packages.
Set up Network Time Protocol (NTP time server).
Read and understand the latest SUSE documentation on HA setup.

Setup details

This guide uses the following setup:

Operating system: SLES 12 SP1 for SAP
HANA Large Instances: 2xS192 (four sockets, 2 TB)
HANA version: HANA 2.0 SP1
Server names: sapprdhdb95 (node1) and sapprdhdb96 (node2)
Fencing device: iSCSI based
NTP on one of the HANA Large Instance nodes

When you set up HANA Large Instances with HANA system replication, you can request that the Microsoft Service Management team set up the fencing device. Do this at the time of provisioning.

If you're an existing customer with HANA Large Instances already provisioned, you can still get the fencing device set up. Provide the following information to the Microsoft Service Management team in the service request form (SRF). You can get the SRF through the Technical Account Manager or your Microsoft contact for HANA Large Instance onboarding.

Server name and server IP address (for example, myhanaserver1 and 10.35.0.1)
Location (for example, US East)
Customer name (for example, Microsoft)
HANA system identifier (SID) (for example, H11)

After the fencing device is configured, the Microsoft Service Management team will provide you with the SBD name and IP address of the iSCSI storage. You can use this information to configure fencing setup.

Follow the steps in the following sections to set up HA by using the fencing device.

Identify the SBD device

Note

This section applies only to existing customers. If you're a new customer, the Microsoft Service Management team will give you the SBD device name, so skip this section.

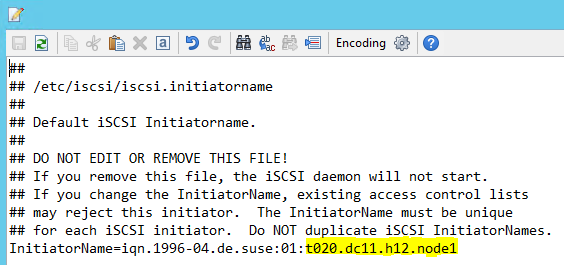

Modify /etc/iscsi/initiatorname.isci to:
```
iqn.1996-04.de.suse:01:<Tenant><Location><SID><NodeNumber>
```
Microsoft Service Management provides this string. Modify the file on both nodes. However, the node number is different on each node.
Modify /etc/iscsi/iscsid.conf by setting node.session.timeo.replacement_timeout=5 and node.startup = automatic. Modify the file on both nodes.

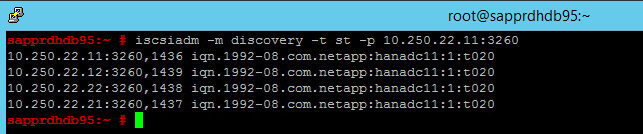

Run the following discovery command on both nodes.

iscsiadm -m discovery -t st -p <IP address provided by Service Management>:3260

The results show four sessions.

Screenshot that shows a console window with results of the discovery command.

Run the following command on both nodes to sign in to the iSCSI device.
```
iscsiadm -m node -l
```
The results show four sessions.

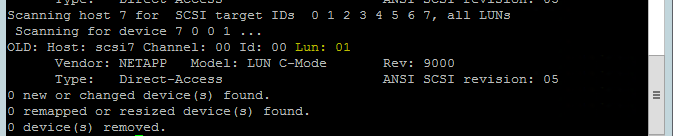

Use the following command to run the rescan-scsi-bus.sh rescan script. This script shows the new disks created for you. Run it on both nodes.
```
rescan-scsi-bus.sh
```
The results should show a LUN number greater than zero (for example: 1, 2, and so on).
To get the device name, run the following command on both nodes.
```
  fdisk –l
```
In the results, choose the device with the size of 178 MiB.

Initialize the SBD device

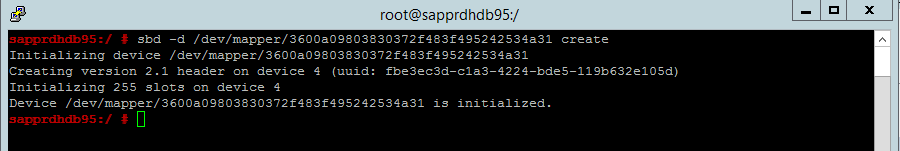

Use the following command to initialize the SBD device on both nodes.
```
sbd -d <SBD Device Name> create
```
Use the following command on both nodes to check what has been written to the device.
```
sbd -d <SBD Device Name> dump
```

Configure the SUSE HA cluster

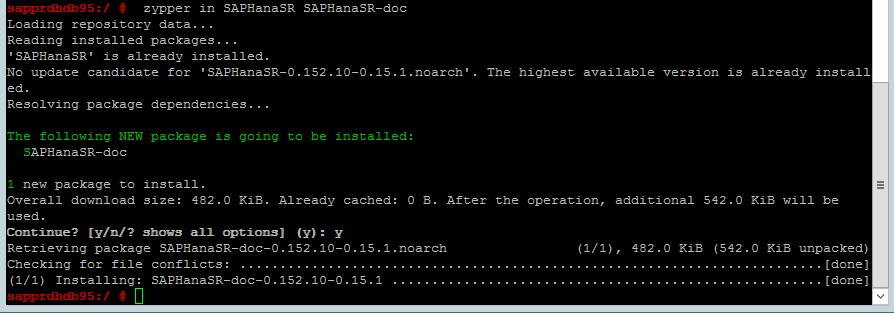

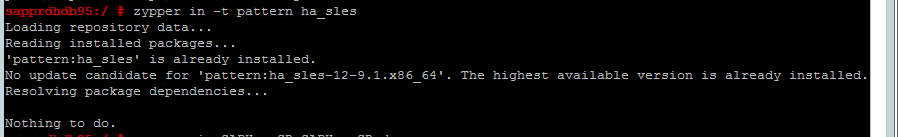

Use the following command to check whether ha_sles and SAPHanaSR-doc patterns are installed on both nodes. If they're not installed, install them.
```
zypper in -t pattern ha_sles
zypper in SAPHanaSR SAPHanaSR-doc
```
Set up the cluster by using either the ha-cluster-init command or the yast2 wizard. In this example, we're using the yast2 wizard. Do this step only on the primary node.
1. Go to yast2 > High Availability > Cluster.
2. In the dialog that appears about the hawk package installation, select Cancel because the halk2 package is already installed.
3. In the dialog that appears about continuing, select Continue.
4. The expected value is the number of nodes deployed (in this case, 2). Select Next.

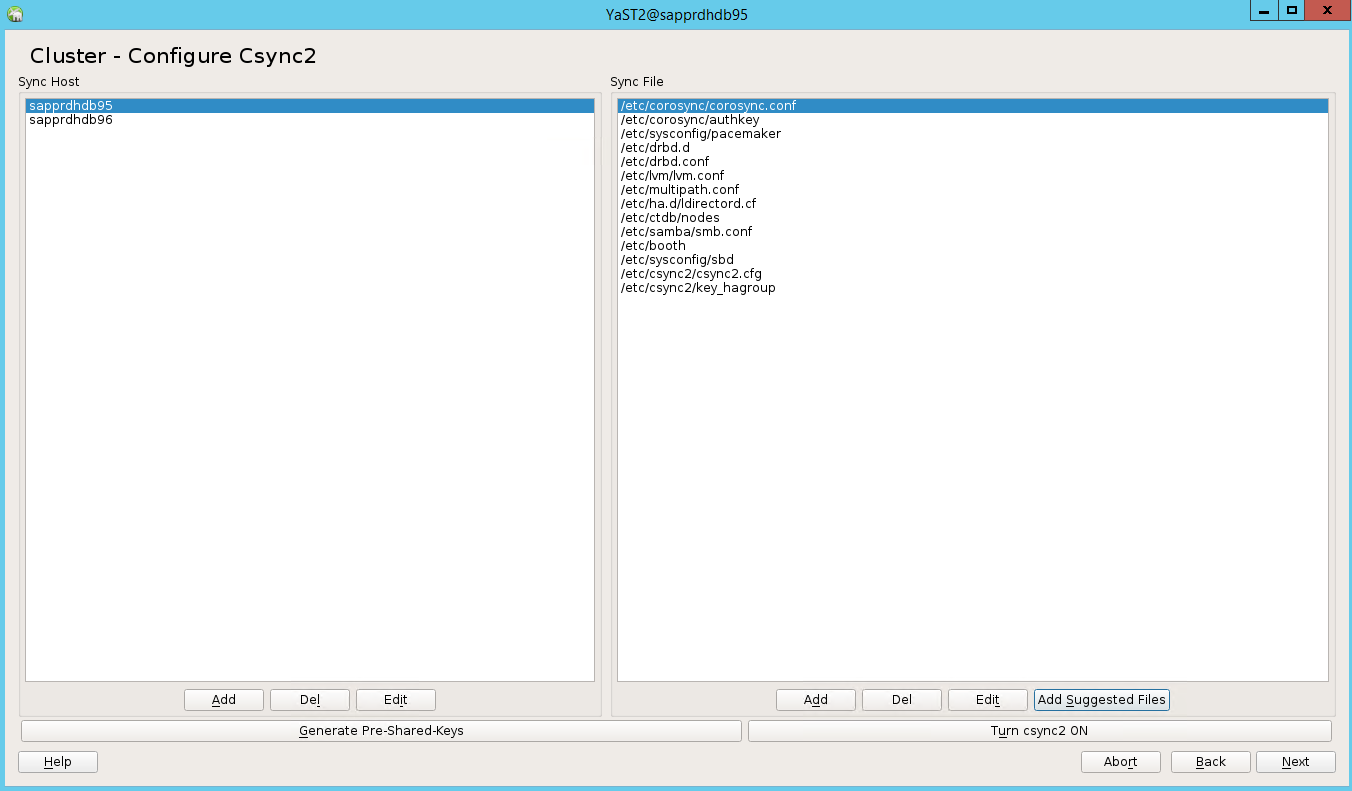

5. Add node names, and then select Add suggested files.
6. Select Turn csync2 ON.

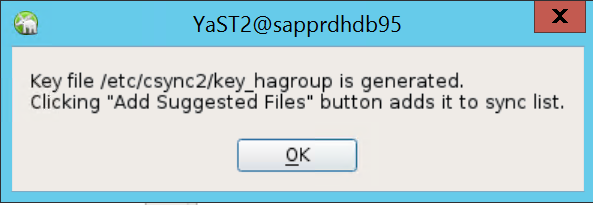

7. Select Generate Pre-Shared-Keys.
8. In the pop-up message that appears, select OK.
9. The authentication is performed using the IP addresses and preshared keys in Csync2. The key file is generated with csync2 -k /etc/csync2/key_hagroup.

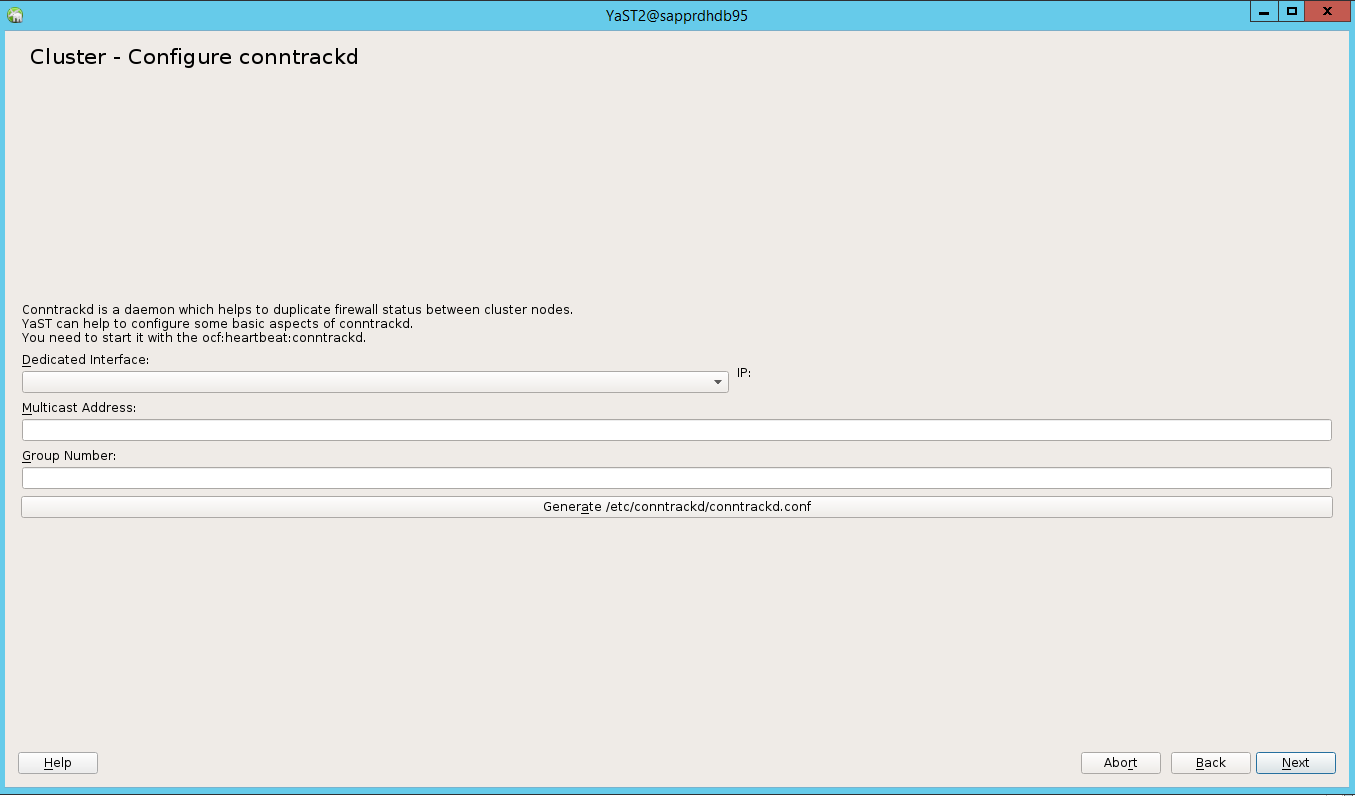

  Manually copy the file key_hagroup to all members of the cluster after it's created. Be sure to copy the file from node1 to node2. Then select Next.

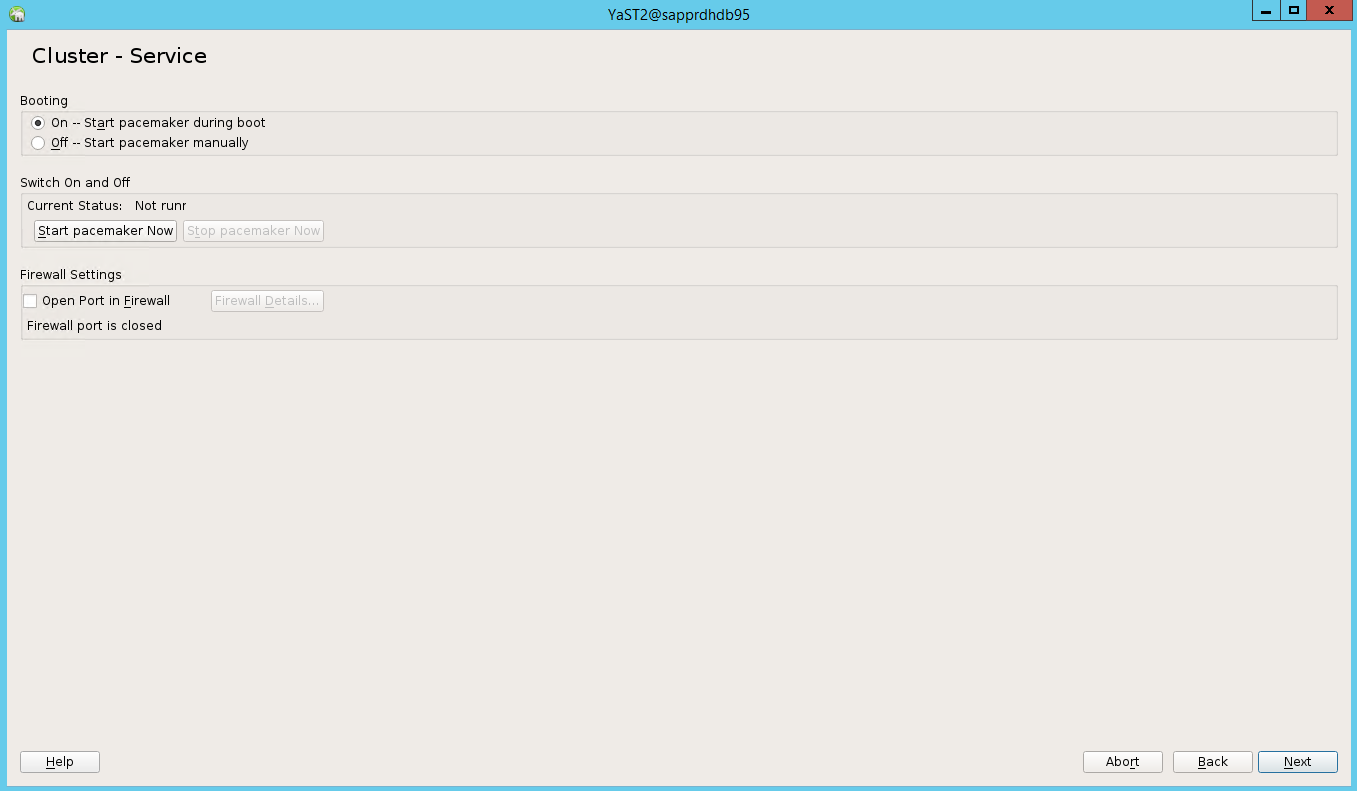

10. In the default option, Booting was Off. Change it to On, so the pacemaker service is started on boot. You can make the choice based on your setup requirements.
11. Select Next, and the cluster configuration is complete.

Set up the softdog watchdog

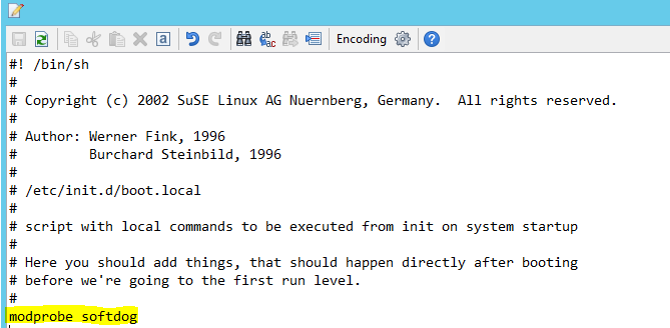

Add the following line to /etc/init.d/boot.local on both nodes.
```
modprobe softdog
```

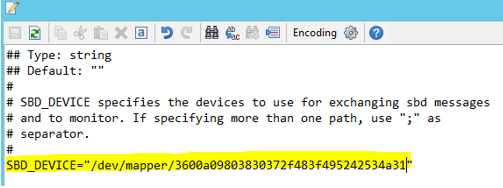

Use the following command to update the file /etc/sysconfig/sbd on both nodes.
```
SBD_DEVICE="<SBD Device Name>"
```
Load the kernel module on both nodes by running the following command.
```
modprobe softdog
```
Use the following command to ensure that softdog is running on both nodes.
```
lsmod | grep dog
```
Use the following command to start the SBD device on both nodes.
```
/usr/share/sbd/sbd.sh start
```
Use the following command to test the SBD daemon on both nodes.
```
sbd -d <SBD Device Name> list
```
The results show two entries after configuration on both nodes.

Send the following test message to one of your nodes.

sbd  -d <SBD Device Name> message <node2> <message>

On the second node (node2), use the following command to check the message status.
```
sbd  -d <SBD Device Name> list
```

To adopt the SBD configuration, update the file /etc/sysconfig/sbd as follows on both nodes.

SBD_DEVICE=" <SBD Device Name>"
SBD_WATCHDOG="yes"
SBD_PACEMAKER="yes"
SBD_STARTMODE="clean"
SBD_OPTS=""

Use the following command to start the pacemaker service on the primary node (node1).
```
systemctl start pacemaker
```
If the pacemaker service fails, see the section Scenario 5: Pacemaker service fails later in this article.

Join the node to the cluster

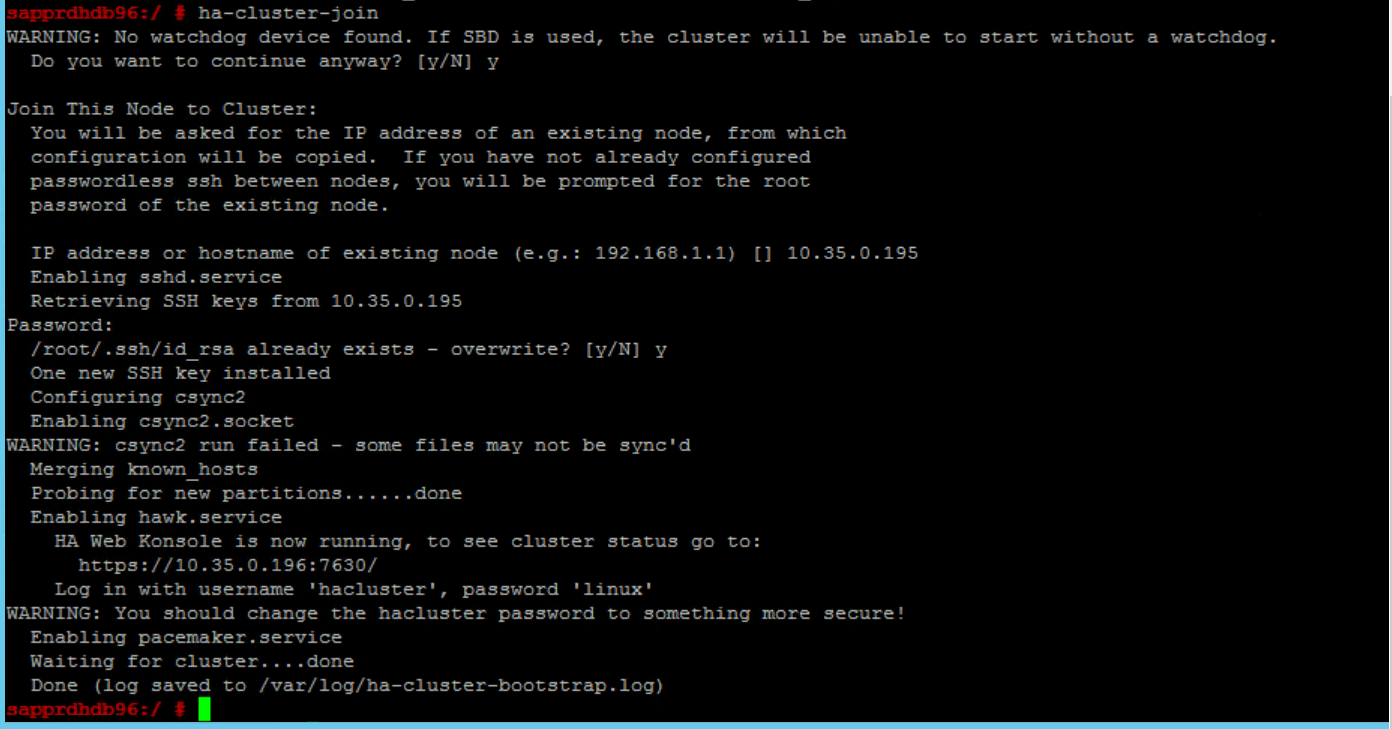

Run the following command on node2 to let that node join the cluster.

ha-cluster-join

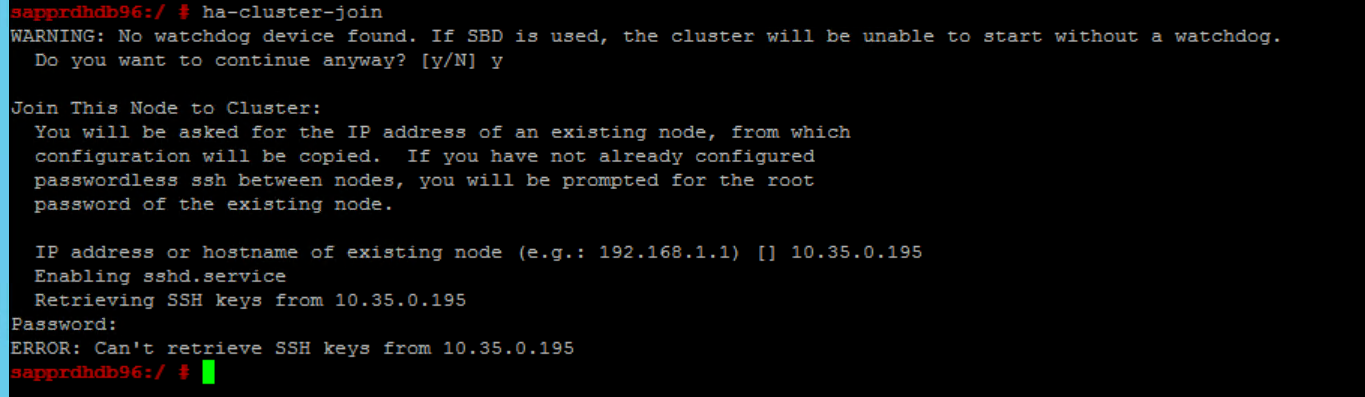

If you receive an error during joining of the cluster, see the section Scenario 6: Node2 can't join the cluster later in this article.

Validate the cluster

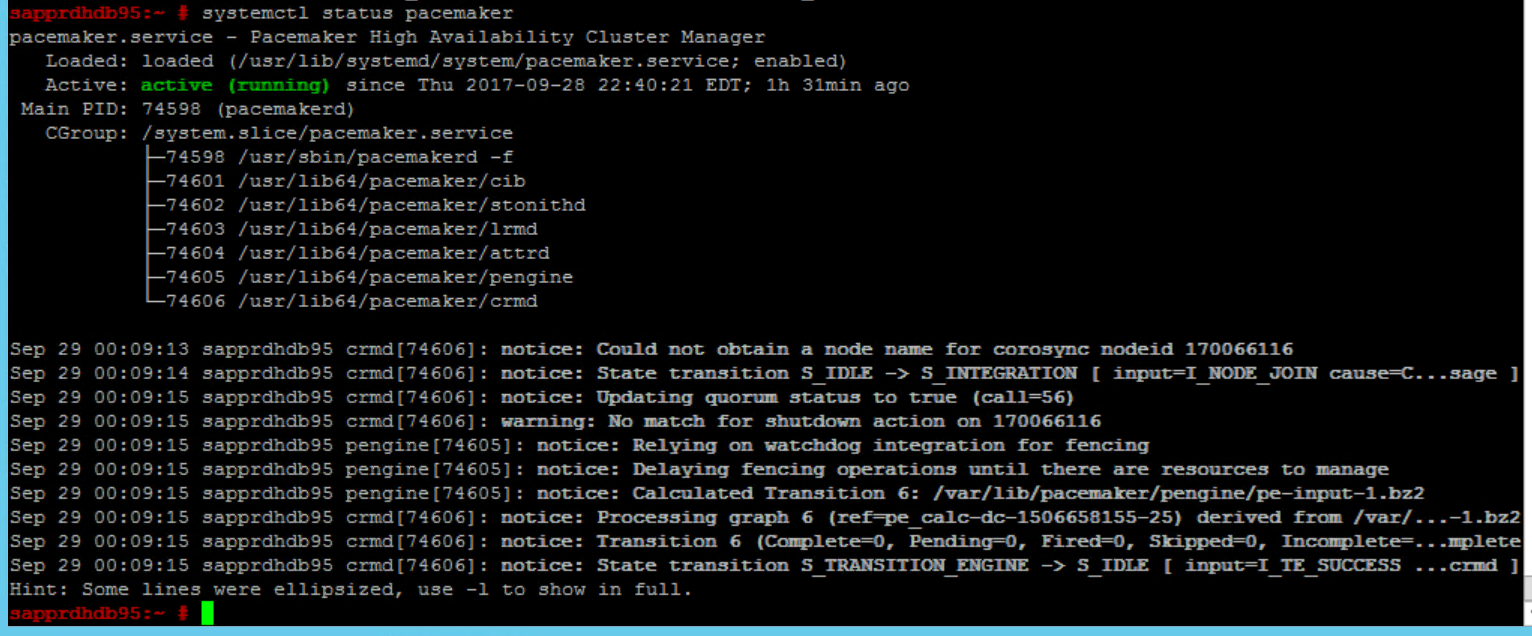

Use the following commands to check and optionally start the cluster for the first time on both nodes.
```
systemctl status pacemaker
systemctl start pacemaker
```

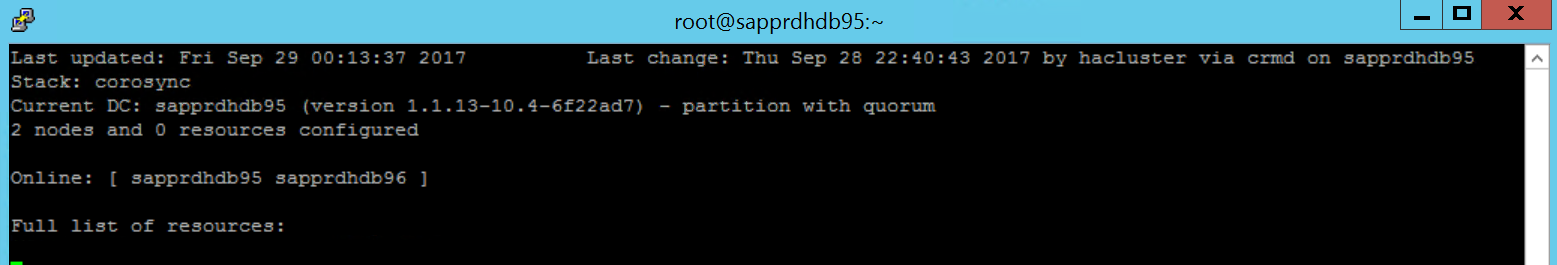

Run the following command to ensure that both nodes are online. You can run it on any of the nodes of the cluster.
```
crm_mon
```
You can also sign in to hawk to check the cluster status: https://\<node IP>:7630. The default user is hacluster, and the password is linux. If needed, you can change the password by using the passwd command.

Configure cluster properties and resources

This section describes the steps to configure the cluster resources. In this example, you set up the following resources. You can configure the rest (if needed) by referencing the SUSE HA guide.

Cluster bootstrap
Fencing device
Virtual IP address

Do the configuration on the primary node only.

Create the cluster bootstrap file and configure it by adding the following text.

sapprdhdb95:~ # vi crm-bs.txt
# enter the following to crm-bs.txt
property $id="cib-bootstrap-options" \
no-quorum-policy="ignore" \
stonith-enabled="true" \
stonith-action="reboot" \
stonith-timeout="150s"
rsc_defaults $id="rsc-options" \
resource-stickiness="1000" \
migration-threshold="5000"
op_defaults $id="op-options" \
timeout="600"

Use the following command to add the configuration to the cluster.
```
crm configure load update crm-bs.txt
```

Configure the fencing device by adding the resource, creating the file, and adding text as follows.

# vi crm-sbd.txt
# enter the following to crm-sbd.txt
primitive stonith-sbd stonith:external/sbd \
params pcmk_delay_max="15"

Use the following command to add the configuration to the cluster.

crm configure load update crm-sbd.txt

Add the virtual IP address for the resource by creating the file and adding the following text.

# vi crm-vip.txt
primitive rsc_ip_HA1_HDB10 ocf:heartbeat:IPaddr2 \
operations $id="rsc_ip_HA1_HDB10-operations" \
op monitor interval="10s" timeout="20s" \
params ip="10.35.0.197"

Use the following command to add the configuration to the cluster.

crm configure load update crm-vip.txt

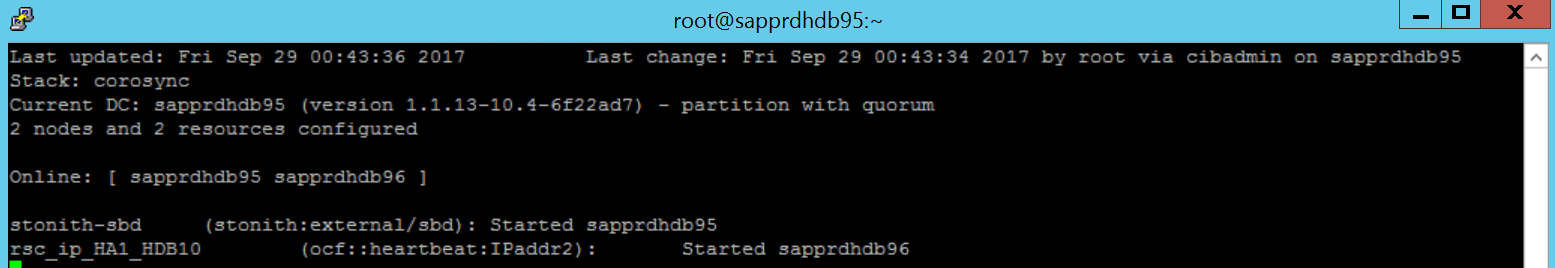

Use the crm_mon command to validate the resources.

The results show the two resources.

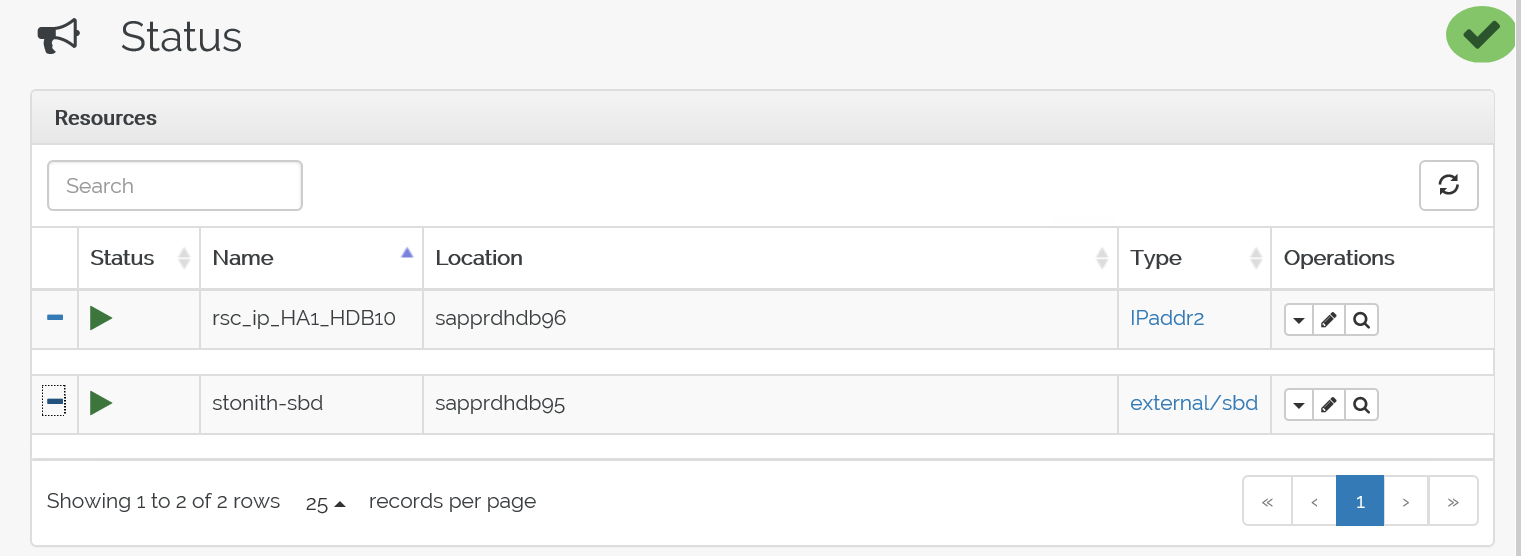

You can also check the status at https://<node IP address>:7630/cib/live/state.

Test the failover process

To test the failover process, use the following command to stop the pacemaker service on node1.
```
Service pacemaker stop
```
The resources fail over to node2.
Stop the pacemaker service on node2, and resources fail over to node1.

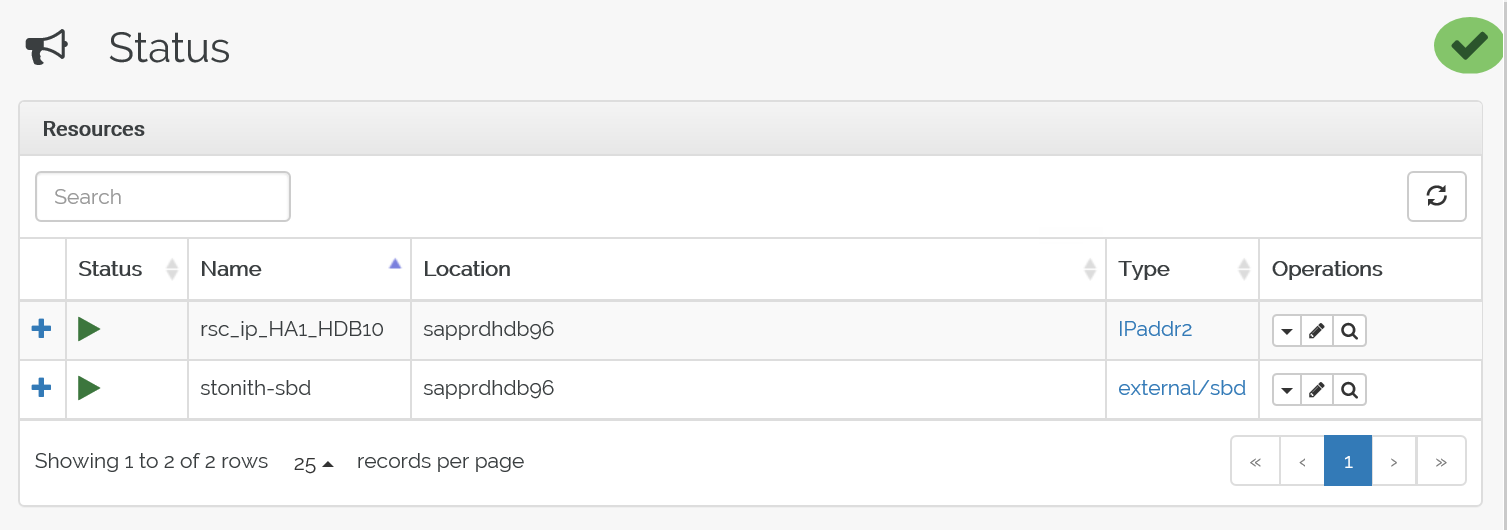

Here's the status before failover:

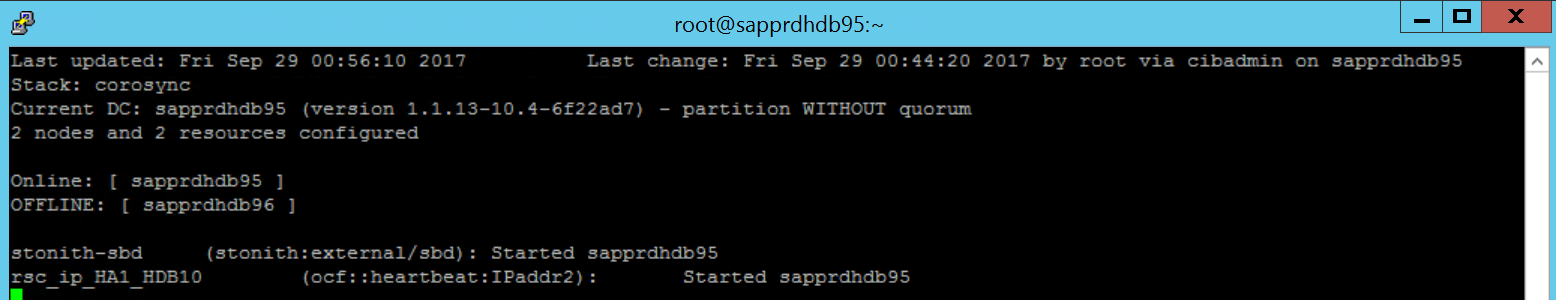

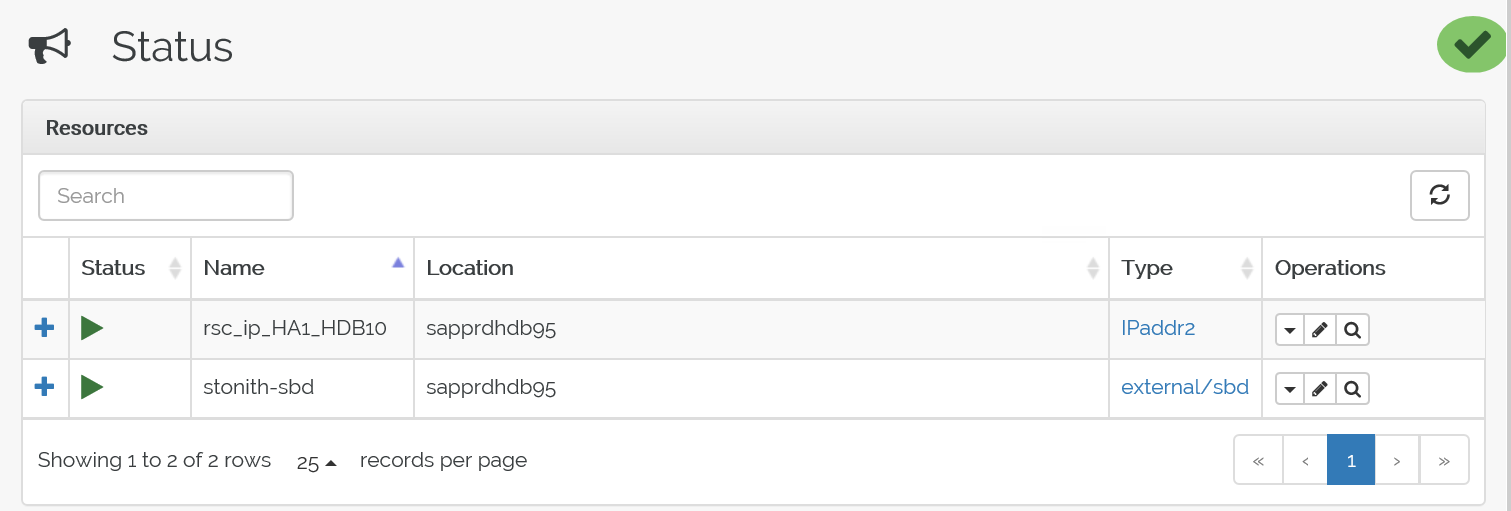

Here's the status after failover:

Troubleshooting

This section describes failure scenarios that you might encounter during setup.

Scenario 1: Cluster node not online

If any of the nodes don't show online in Cluster Manager, you can try this procedure to bring it online.

Use the following command to start the iSCSI service.
```
service iscsid start
```

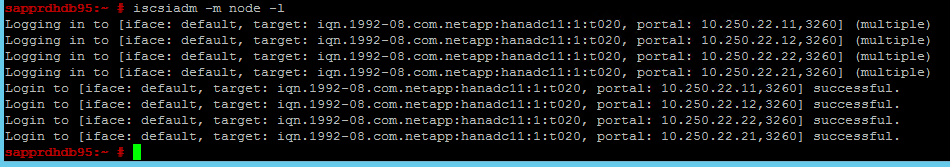

Use the following command to sign in to that iSCSI node.

iscsiadm -m node -l

The expected output looks like:

sapprdhdb45:~ # iscsiadm -m node -l
Logging in to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.11,3260] (multiple)
Logging in to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.12,3260] (multiple)
Logging in to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.22,3260] (multiple)
Logging in to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.21,3260] (multiple)
Login to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.11,3260] successful.
Login to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.12,3260] successful.
Login to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.22,3260] successful.
Login to [iface: default, target: iqn.1992-08.com.netapp:hanadc11:1:t020, portal: 10.250.22.21,3260] successful.

Scenario 2: Yast2 doesn't show graphical view

The yast2 graphical screen is used to set up the high-availability cluster in this article. If yast2 doesn't open with the graphical window as shown, and it throws a Qt error, take the following steps to install the required packages. If it opens with the graphical window, you can skip the steps.

Here's an example of the Qt error:

Screenshot that shows part of a console window with an error message.

Here's an example of the expected output:

Screenshot that shows the YaST Control Center with High Availability and Cluster highlighted.

Make sure that you're logged in as user "root" and have SMT set up to download and install the packages.
Go to yast > Software > Software Management > Dependencies, and then select Install recommended packages.

Note

Perform the steps on both nodes, so that you can access the yast2 graphical view from both nodes.

The following screenshot shows the expected screen.

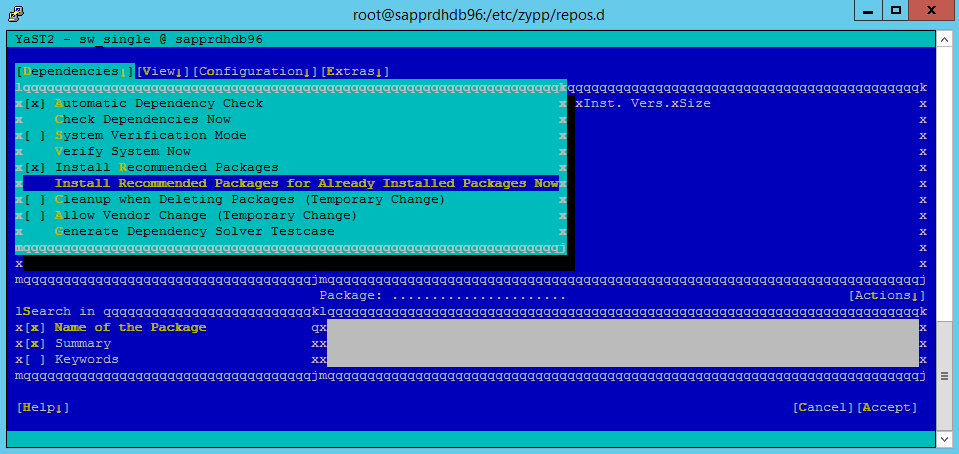

Under Dependencies, select Install Recommended Packages.
Review the changes and select OK.

The package installation proceeds.
Select Next.
When the Installation Successfully Finished screen appears, select Finish.

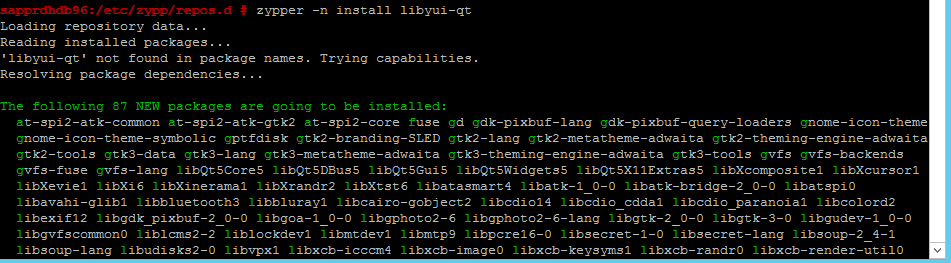

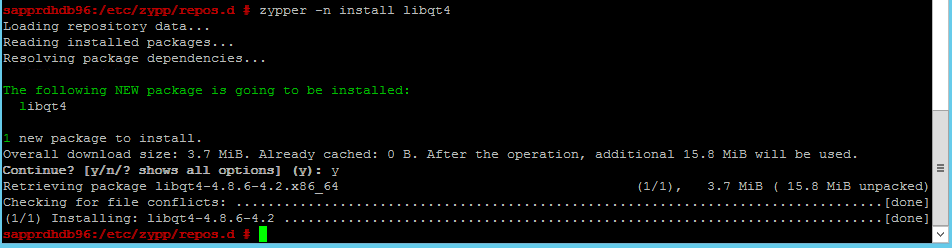

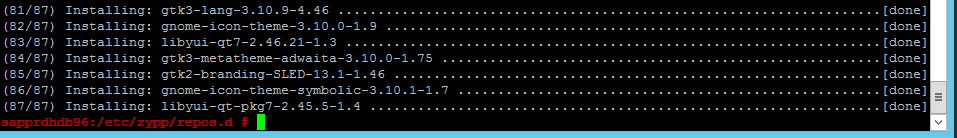

Use the following commands to install the libqt4 and libyui-qt packages.
```
zypper -n install libqt4
```
```
zypper -n install libyui-qt
```
Yast2 can now open the graphical view.

Scenario 3: Yast2 doesn't show the high-availability option

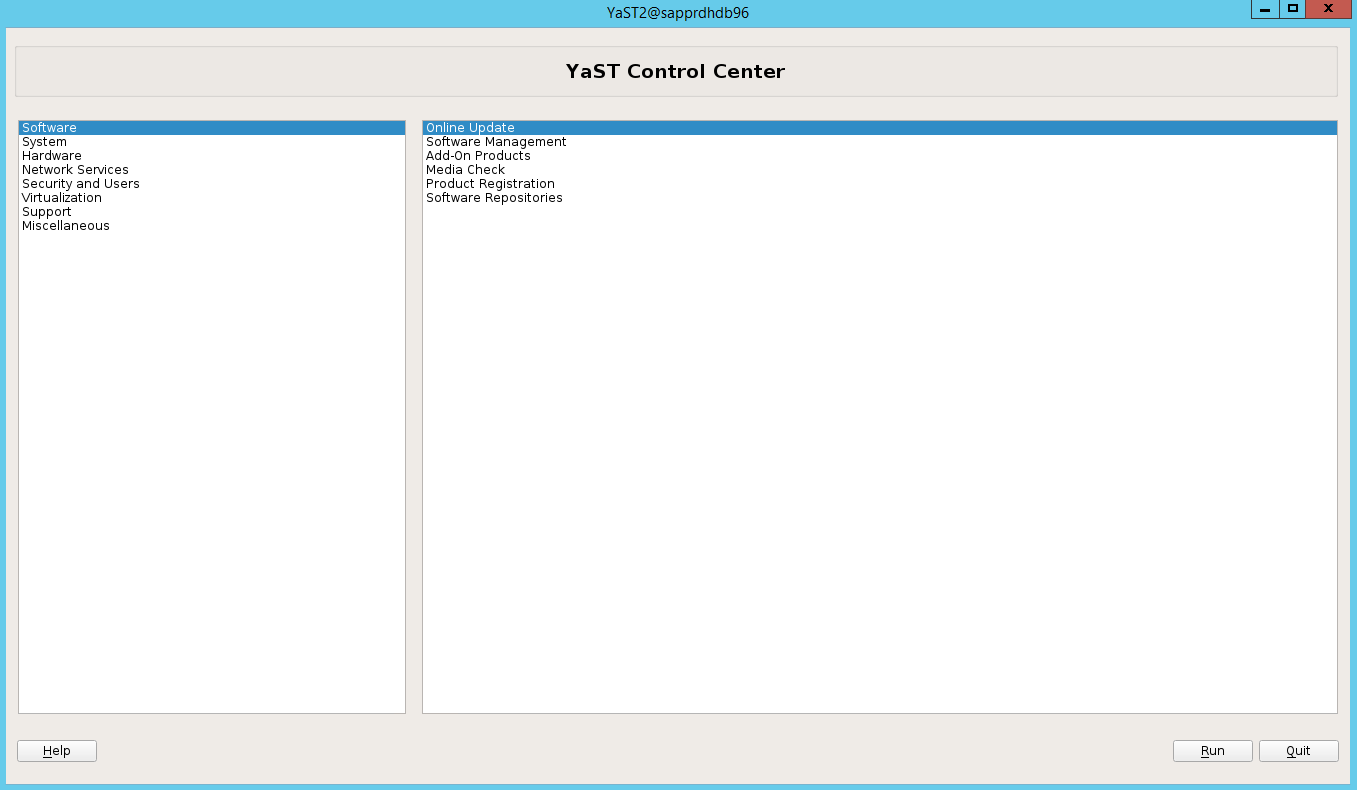

For the high-availability option to be visible on the yast2 control center, you need to install the other packages.

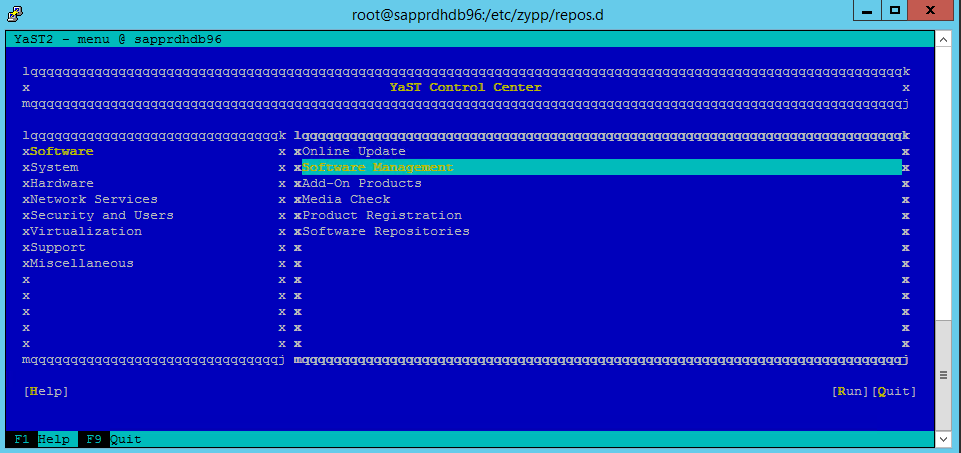

Go to Yast2 > Software > Software Management. Then select Software > Online Update.

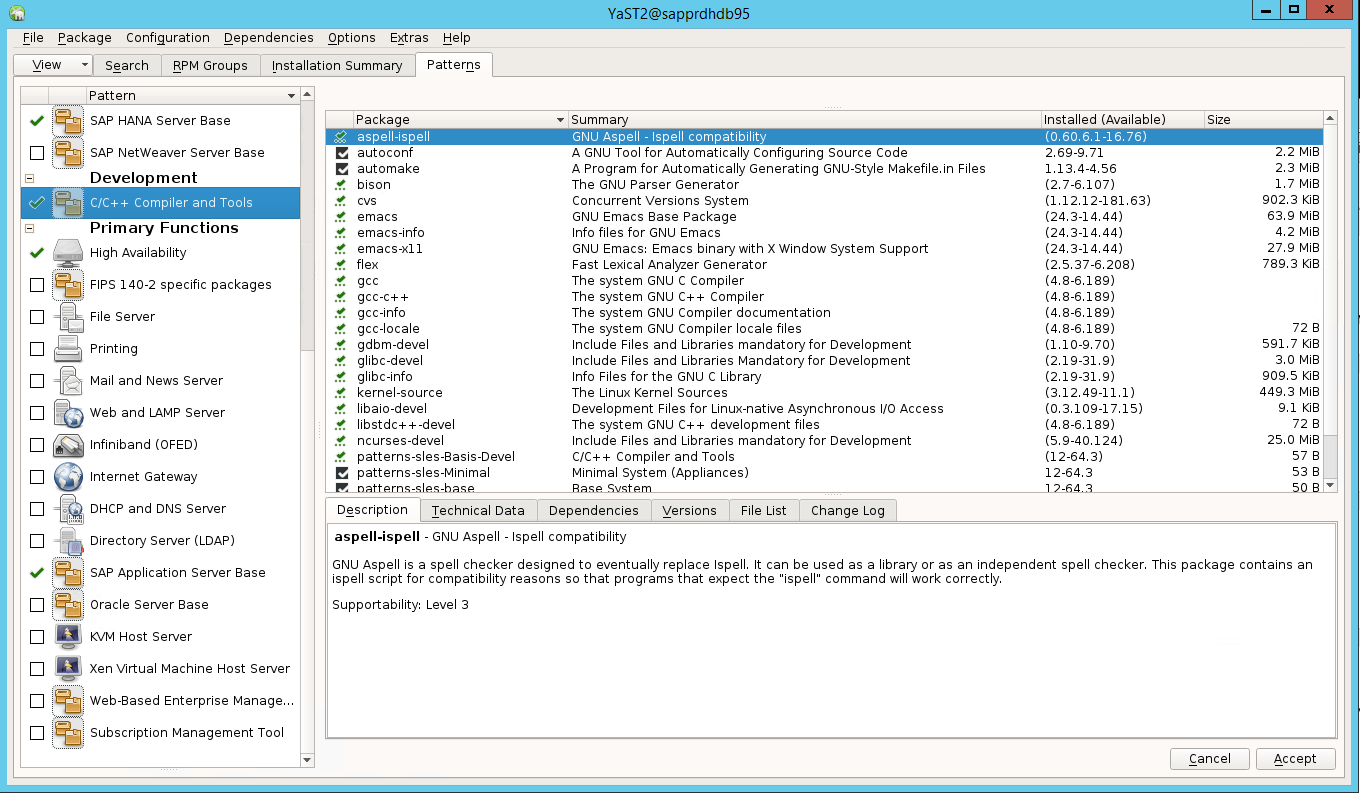

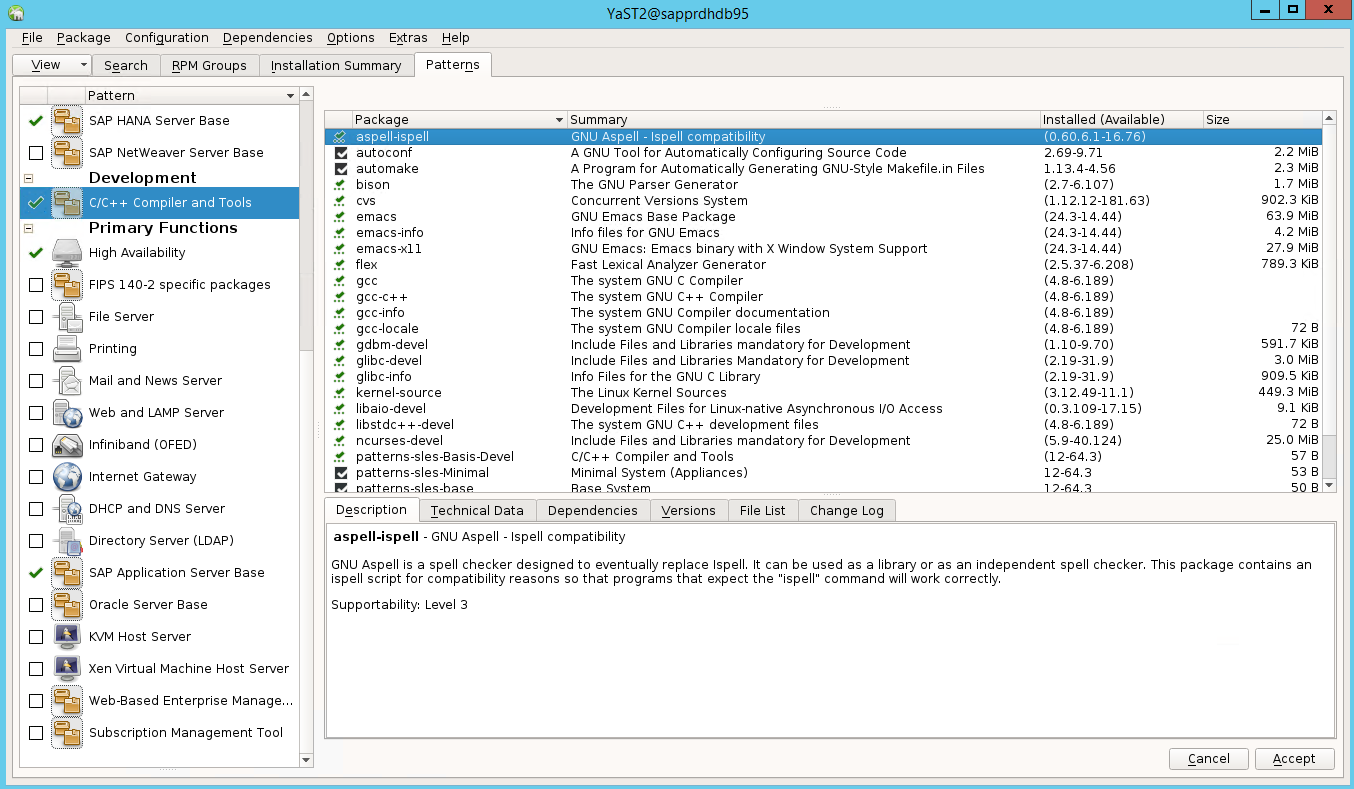

Select patterns for the following items. Then select Accept.
- SAP HANA server base
- C/C++ compiler and tools
- High availability
- SAP application server base

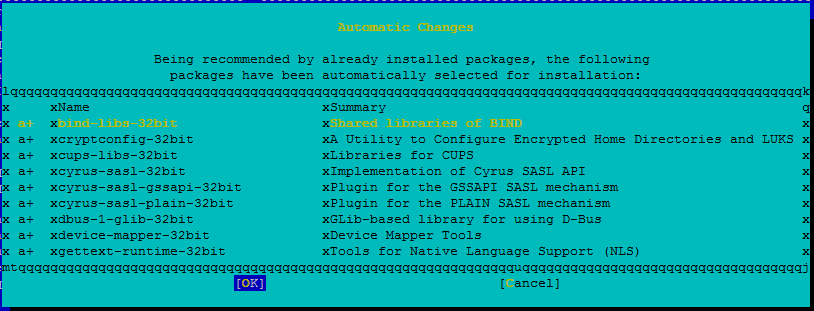

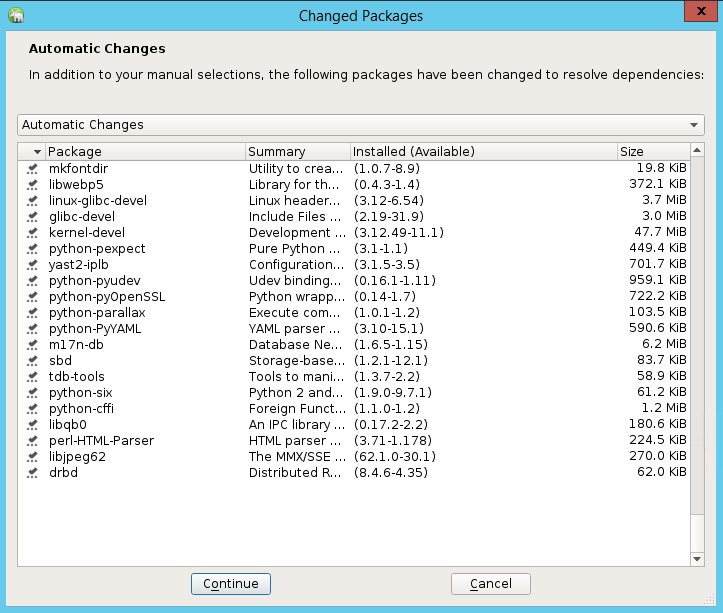

In the list of packages that have been changed to resolve dependencies, select Continue.

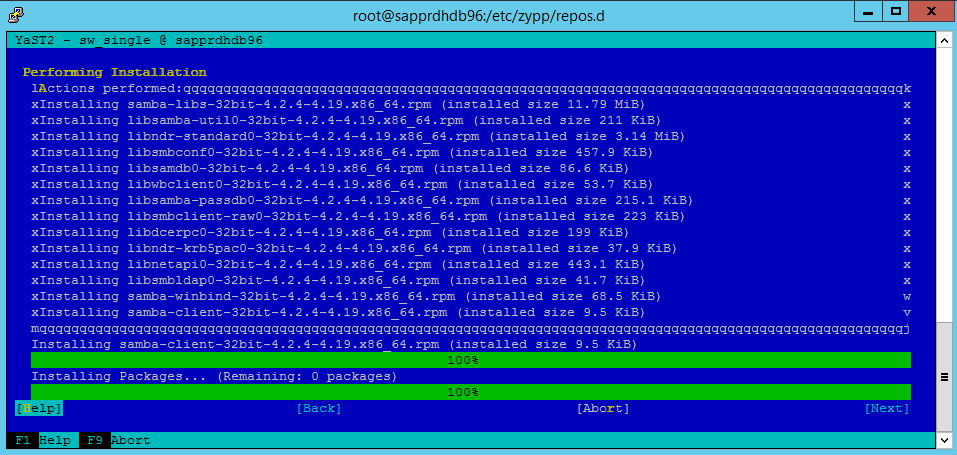

On the Performing Installation status page, select Next.

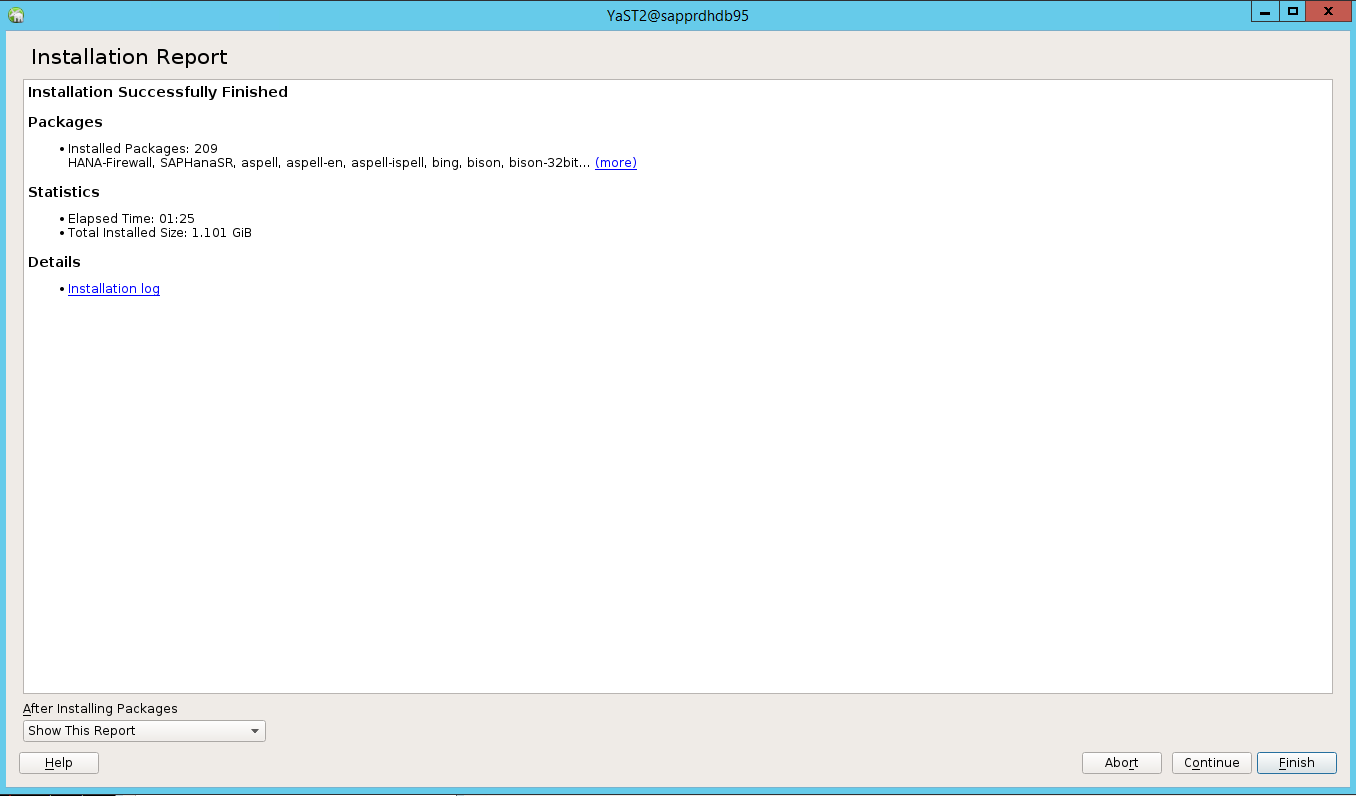

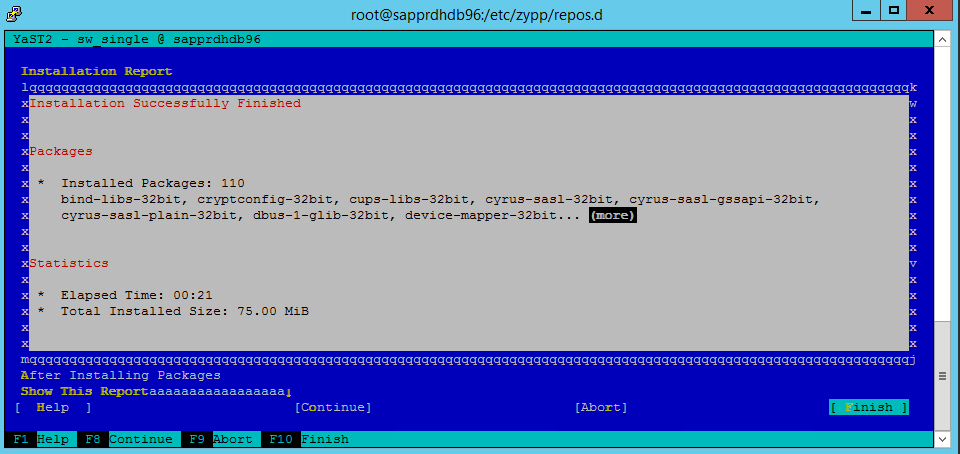

When the installation is complete, an installation report appears. Select Finish.

Scenario 4: HANA installation fails with gcc assemblies error

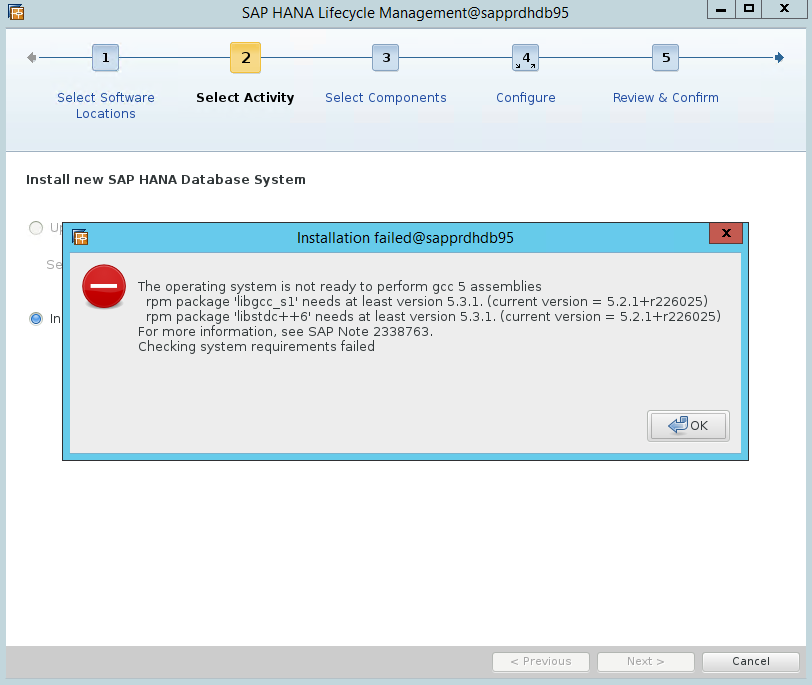

If the HANA installation fails, you might get the following error.

Screenshot that shows an error message that the operating system isn't ready to perform g c c 5 assemblies.

To fix the problem, install the libgcc_sl and libstdc++6 libraries as shown in the following screenshot.

Screenshot that shows a console window installing required libraries.

Scenario 5: Pacemaker service fails

The following information appears if the pacemaker service can't start.

sapprdhdb95:/ # systemctl start pacemaker
A dependency job for pacemaker.service failed. See 'journalctl -xn' for details.

sapprdhdb95:/ # journalctl -xn
-- Logs begin at Thu 2017-09-28 09:28:14 EDT, end at Thu 2017-09-28 21:48:27 EDT. --
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [SERV  ] Service engine unloaded: corosync configuration map
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [QB    ] withdrawing server sockets
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [SERV  ] Service engine unloaded: corosync configuration ser
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [QB    ] withdrawing server sockets
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [SERV  ] Service engine unloaded: corosync cluster closed pr
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [QB    ] withdrawing server sockets
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [SERV  ] Service engine unloaded: corosync cluster quorum se
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [SERV  ] Service engine unloaded: corosync profile loading s
Sep 28 21:48:27 sapprdhdb95 corosync[68812]: [MAIN  ] Corosync Cluster Engine exiting normally
Sep 28 21:48:27 sapprdhdb95 systemd[1]: Dependency failed for Pacemaker High Availability Cluster Manager
-- Subject: Unit pacemaker.service has failed
-- Defined-By: systemd
-- Support: https://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit pacemaker.service has failed.
--
-- The result is dependency.

sapprdhdb95:/ # tail -f /var/log/messages
2017-09-28T18:44:29.675814-04:00 sapprdhdb95 corosync[57600]:   [QB    ] withdrawing server sockets
2017-09-28T18:44:29.676023-04:00 sapprdhdb95 corosync[57600]:   [SERV  ] Service engine unloaded: corosync cluster closed process group service v1.01
2017-09-28T18:44:29.725885-04:00 sapprdhdb95 corosync[57600]:   [QB    ] withdrawing server sockets
2017-09-28T18:44:29.726069-04:00 sapprdhdb95 corosync[57600]:   [SERV  ] Service engine unloaded: corosync cluster quorum service v0.1
2017-09-28T18:44:29.726164-04:00 sapprdhdb95 corosync[57600]:   [SERV  ] Service engine unloaded: corosync profile loading service
2017-09-28T18:44:29.776349-04:00 sapprdhdb95 corosync[57600]:   [MAIN  ] Corosync Cluster Engine exiting normally
2017-09-28T18:44:29.778177-04:00 sapprdhdb95 systemd[1]: Dependency failed for Pacemaker High Availability Cluster Manager.
2017-09-28T18:44:40.141030-04:00 sapprdhdb95 systemd[1]: [/usr/lib/systemd/system/fstrim.timer:8] Unknown lvalue 'Persistent' in section 'Timer'
2017-09-28T18:45:01.275038-04:00 sapprdhdb95 cron[57995]: pam_unix(crond:session): session opened for user root by (uid=0)
2017-09-28T18:45:01.308066-04:00 sapprdhdb95 CRON[57995]: pam_unix(crond:session): session closed for user root

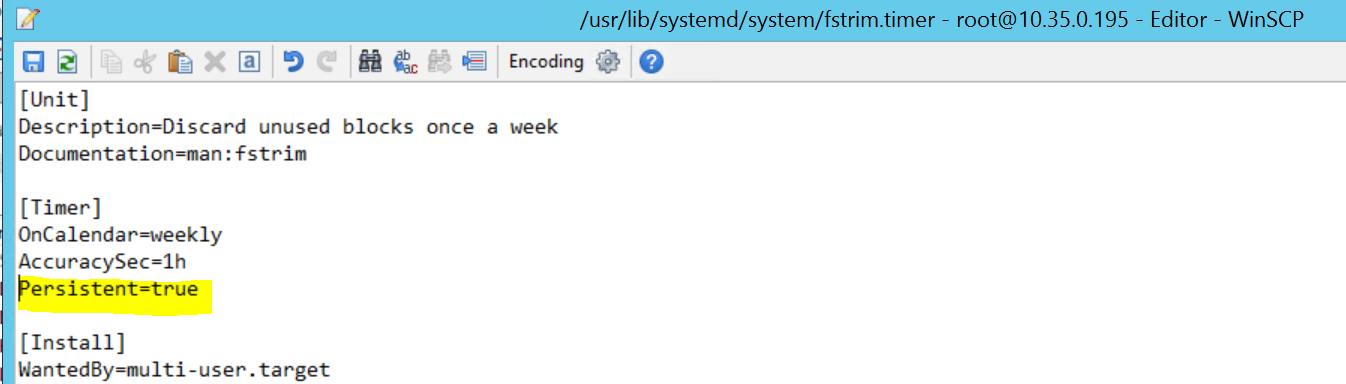

To fix it, delete the following line from the file /usr/lib/systemd/system/fstrim.timer:

Persistent=true

Screenshot that shows the f s trim file with the value of Persistent=true to be deleted.

Scenario 6: Node2 can't join the cluster

The following error appears if there's a problem with joining node2 to the existing cluster through the ha-cluster-join command.

ERROR: Can’t retrieve SSH keys from <Primary Node>

Screenshot that shows a console window with an error message that says S S H keys can't be retrieved from a particular I P address.

To fix it:

Run the following commands on both nodes.

ssh-keygen -q -f /root/.ssh/id_rsa -C 'Cluster Internal' -N ''
cat /root/.ssh/id_rsa.pub >> /root/.ssh/authorized_keys

Screenshot that shows part of a console window running the command on the first node.

Screenshot that shows part of a console window running the command on the second node.

Confirm that node2 is added to the cluster.

Next steps

You can find more information on SUSE HA setup in the following articles:

SAP HANA SR Performance Optimized Scenario (SUSE website)
Fencing and fencing devices (SUSE website)
Be Prepared for Using Pacemaker Cluster for SAP HANA – Part 1: Basics (SAP blog)
Be Prepared for Using Pacemaker Cluster for SAP HANA – Part 2: Failure of Both Nodes (SAP blog)
OS backup and restore

Deila með
