Connectivity configuration in Azure Virtual Network Manager

In this article, you learn about the different types of configurations you can create and deploy using Azure Virtual Network Manager. There are two types of configurations currently available: Connectivity and Security Admins.

Connectivity configuration

Connectivity configurations allow you to create different network topologies based on your network needs. You have two topologies to choose from, a mesh network and a hub and spoke. Connectivity between virtual networks is defined within the configuration settings.

Mesh network topology

A mesh network is a topology in which all the virtual networks in the network group are connected to each other. All virtual networks are connected and can pass traffic bi-directionally to one another.

A common use case of a mesh network topology is to allow some spoke virtual networks in a hub and spoke topology to directly communicate to each other without the traffic going through the hub virtual network. This approach reduces latency that might otherwise result from routing traffic through a router in the hub. Additionally, you can maintain security and oversight over the direct connections between spoke networks by implementing Network Security Groups rules or security administrative rules in Azure Virtual Network Manager. Traffic can also be monitored and recorded using virtual network flow logs.

By default, the mesh is a regional mesh, therefore only virtual networks in the same region can communicate with each other. Global mesh can be enabled to establish connectivity of virtual networks across all Azure regions. A virtual network can be part of up to two connected groups. Virtual network address spaces can overlap in a mesh configuration, unlike in virtual network peerings. However, traffic to the specific overlapping subnets is dropped, since routing is non-deterministic.

Connected group

When you create a mesh topology or direct connectivity in the hub and spoke topology, a new connectivity construct is created called Connected group. Virtual networks in a connected group can communicate to each other just like if you were to connect virtual networks together manually. When you look at the effective routes for a network interface, you'll see a next hop type of ConnectedGroup. Virtual networks connected together in a connected group don't have a peering configuration listed under Peerings for the virtual network.

Note

• If you have conflicting subnets in two or more virtual networks, resources in those subnets won't be able to communicate to each other even if they're part of the same mesh network.
• A virtual network can be part of up to two mesh configurations.

Hub and spoke topology

A hub-and-spoke is a network topology in which you have a virtual network selected as the hub virtual network. This virtual network gets bi-directionally peered with every spoke virtual network in the configuration. This topology is useful for when you want to isolate a virtual network but still want it to have connectivity to common resources in the hub virtual network.

In this configuration, you have settings you can enable such as direct connectivity between spoke virtual networks. By default, this connectivity is only for virtual networks in the same region. To allow connectivity across different Azure regions, you need to enable Global mesh. You can also enable Gateway transit to allow spoke virtual networks to use the VPN or ExpressRoute gateway deployed in the hub.

If checked, any peerings that do not match the contents of this configuration can by removed, even if these peerings were manually created after this configuration is deployed. If you remove a VNet from a network group used in the configuration, your virtual manager removes only peerings it created.

Direct connectivity

Enabling Direct connectivity creates an overlay of a connected group on top of your hub and spoke topology, which contains spoke virtual networks of a given group. Direct connectivity allows a spoke VNet to talk directly to other VNets in its spoke group, but not to VNets in other spokes.

For example, you create two network groups. You enable direct connectivity for the Production network group but not for the Test network group. This set up only allows virtual networks in the Production network group to communicate with one another but not the ones in the Test network group.

When you look at effective routes on a VM, the route between the hub and the spoke virtual networks will have the next hop type of VNetPeering or GlobalVNetPeering. Routes between spokes virtual networks will show up with the next hop type of ConnectedGroup. With the example above, only the Production network group would have a ConnectedGroup because it has Direct connectivity enabled.

Discovering network group topology with Topology View

To assist you in understanding the topology of your network group, Azure Virtual Network Manager provides a Topology View that shows the connectivity between network groups and their member virtual networks. You can view the topology of your network group during the creation of your connectivity configuration with the following steps:

1. Navigate to the Configurations page and create a connectivity configuration.
2. On the Topology tab, select your desired topology type, add one or more network groups to the topology, and configure other desired connectivity settings.
3. Select the Preview Topology tab to test out the Topology View and review your configuration's current connectivity.
4. Complete the creation of your connectivity configuration.

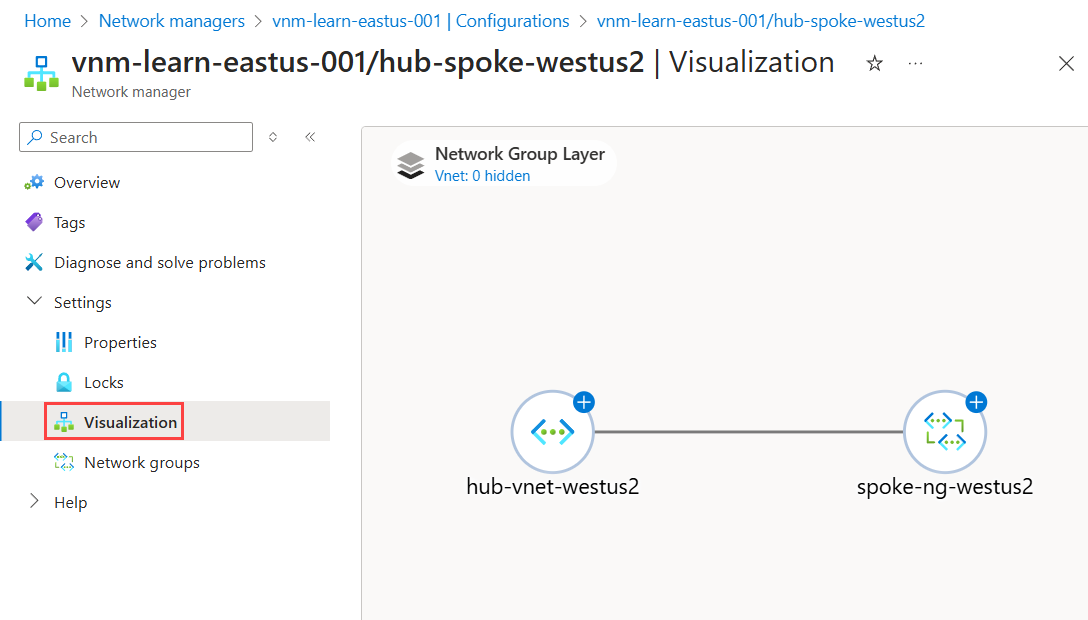

You can review the current topology of a network group by selecting Visualization under Settings in the network group's details page. The view shows the connectivity between the member virtual networks in the network group.

Use cases

Enabling direct connectivity between spokes virtual networks can be helpful when you want to have an NVA or a common service in the hub virtual network but the hub doesn't need to be always accessed. But rather you need your spoke virtual networks in the network group to communicate with each other. Compared to traditional hub and spoke networks, this topology improves performance by removing the extra hop through the hub virtual network.

Global mesh

Like mesh, these spoke connected groups can be configured as regional or global. Global mesh is required when you want your spoke virtual networks to communicate with each other across regions. This connectivity is limited to virtual network in the same network group. To enable connectivity for virtual networks across regions, you need to Enable mesh connectivity across regions for the network group. Connections created between spokes virtual networks are in a Connected group.

Use hub as a gateway

Another option you can enable in a hub-and-spoke configuration is to use the hub as a gateway. This setting allows all virtual networks in the network group to use the VPN or ExpressRoute gateway in the hub virtual network to pass traffic. See Gateways and on-premises connectivity.

When you deploy a hub and spoke topology from the Azure portal, the Use hub as a gateway is enabled by default for the spoke virtual networks in the network group. Azure Virtual Network Manager attempts to create a virtual network peering connection between the hub and the spokes virtual network in the resource group. If the gateway doesn't exist in the hub virtual network, then the creation of the peering from the spoke virtual network to the hub fails. The peering connection from the hub to the spoke will still be created without an established connection.
