Use Fabric notebooks with data from a KQL database

Notebooks are both readable documents containing data analysis descriptions and results and executable documents that can be run to perform data analysis. In this article, you learn how to use a Fabric notebook to connect to data in a KQL Database and run queries using native KQL (Kusto Query Language). For more information on notebooks, see How to use Microsoft Fabric notebooks.

There are two ways to use Fabric notebooks with data from your KQL database:

• Use Kusto snippets in a notebook
• Create a notebook from a KQL database

Prerequisites

• A workspace with a Microsoft Fabric-enabled capacity
• A KQL database with at least viewing permissions

Use Kusto snippets in a notebook

Fabric notebooks provide code snippets that help you easily write commonly used code patterns. You can use snippets to write or read data in a KQL database using KQL.

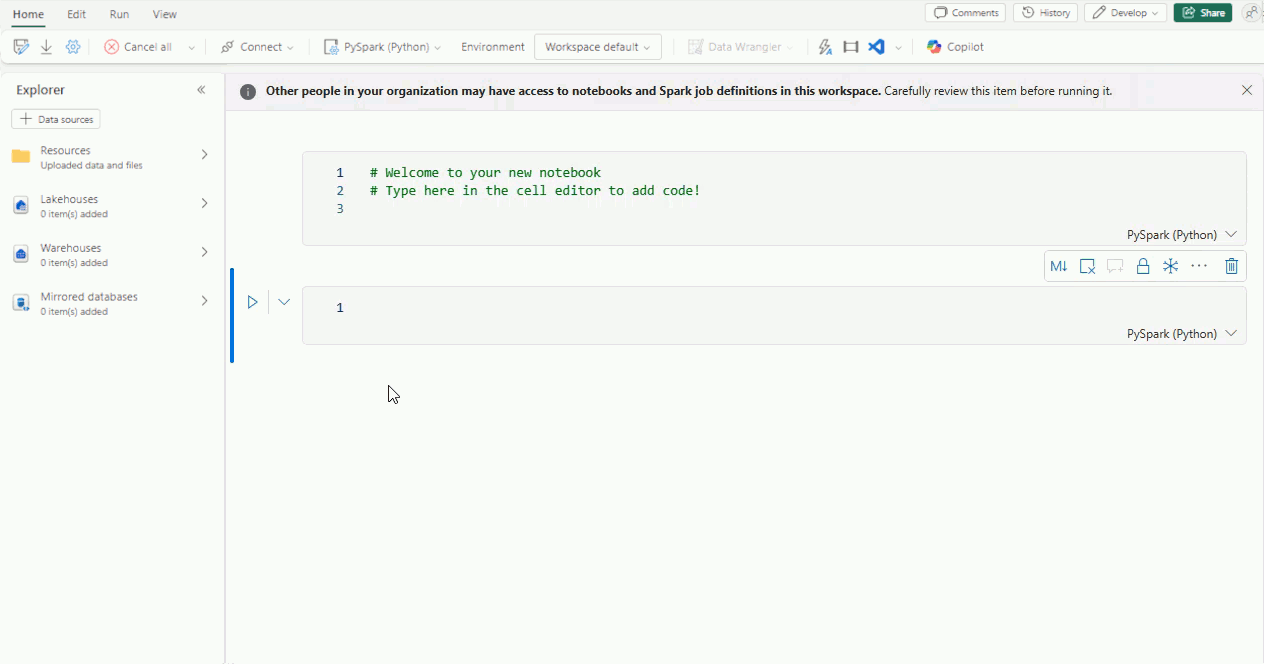

1. Navigate to an existing notebook or create a new one.

2. In a code cell, begin typing kusto.



3. Select the snippet that corresponds to the operation you want to perform: Write data to a KQL database or Read data from a KQL database.

   The following code snippet shows the example data read operation:

   Python

   # Example of query for reading data from Kusto. Replace T with your <tablename>.
   kustoQuery = "['T'] | take 10"
   # The query URI for reading the data e.g. https://<>.kusto.data.microsoft.com.
   kustoUri = "https://<yourKQLdatabaseURI>.z0.kusto.data.microsoft.com"
   # The database with data to be read.
   database = "DocsDatabase"
   # The access credentials.
   accessToken = mssparkutils.credentials.getToken('kusto')
   kustoDf  = spark.read\
       .format("com.microsoft.kusto.spark.synapse.datasource")\
       .option("accessToken", accessToken)\
       .option("kustoCluster", kustoUri)\
       .option("kustoDatabase", database)\
       .option("kustoQuery", kustoQuery).load()

   # Example that uses the result data frame.
   kustoDf.show()


   The following code snippet shows the example write data operation:

   Python

   # The Kusto cluster uri to write the data. The query Uri is of the form https://<>.kusto.data.microsoft.com
   kustoUri = ""
   # The database to write the data
   database = ""
   # The table to write the data
   table    = ""
   # The access credentials for the write
   accessToken = mssparkutils.credentials.getToken('kusto')

   # Generate a range of 5 rows with Id's 5 to 9
   data = spark.range(5,10)

   # Write data to a Kusto table
   data.write.\
   format("com.microsoft.kusto.spark.synapse.datasource").\
   option("kustoCluster",kustoUri).\
   option("kustoDatabase",database).\
   option("kustoTable", table).\
   option("accessToken", accessToken ).\
   option("tableCreateOptions", "CreateIfNotExist").mode("Append").save()


4. Enter the required information within the quotation marks of each field in the data cell:

   Field	Description	Related links
   kustoQuery	The KQL query to be evaluated.	KQL overview
   KustoUri	The query URI of your KQL database.	Copy a KQL database URI
   database	The name of your KQL database.	Access an existing KQL database
   data	The data to be written to the table.

5. Run the code cell.

Create a notebook from a KQL database

When you create a notebook as a related item in a KQL database, the notebook is given the same name as the KQL database and is prepopulated with connection information.

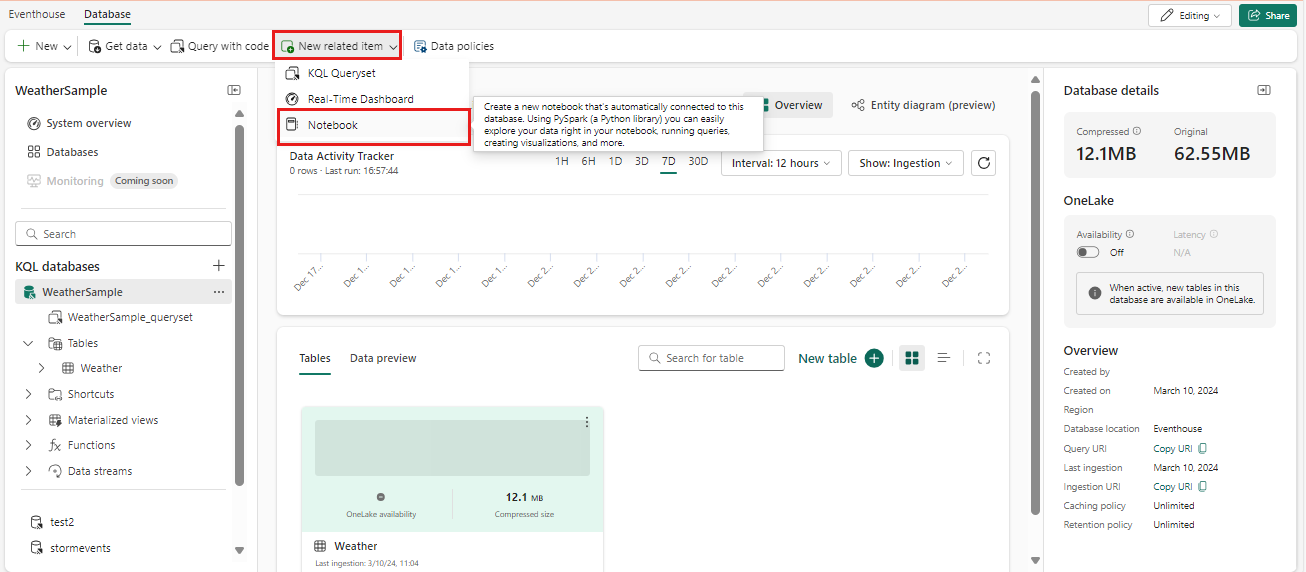

1. Browse to your KQL database.

2. Select New related item > Notebook.

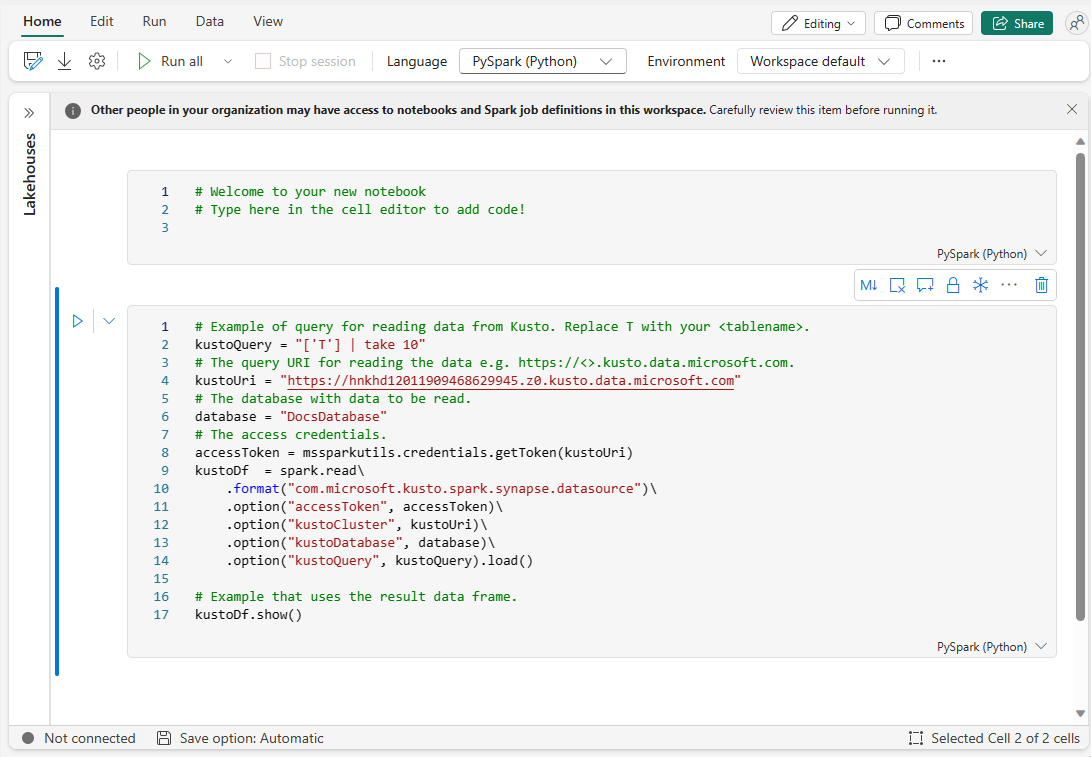

   A notebook is created with the KustoUri and database details prepopulated.

3. Enter the KQL query to be evaluated in the kustoQuery field.



4. Run the code cell.

Related content

• KQL overview
• How to use Microsoft Fabric notebooks
