Use visual elements to enhance Power BI reports
APPLIES TO:
Power BI Desktop
Power BI service

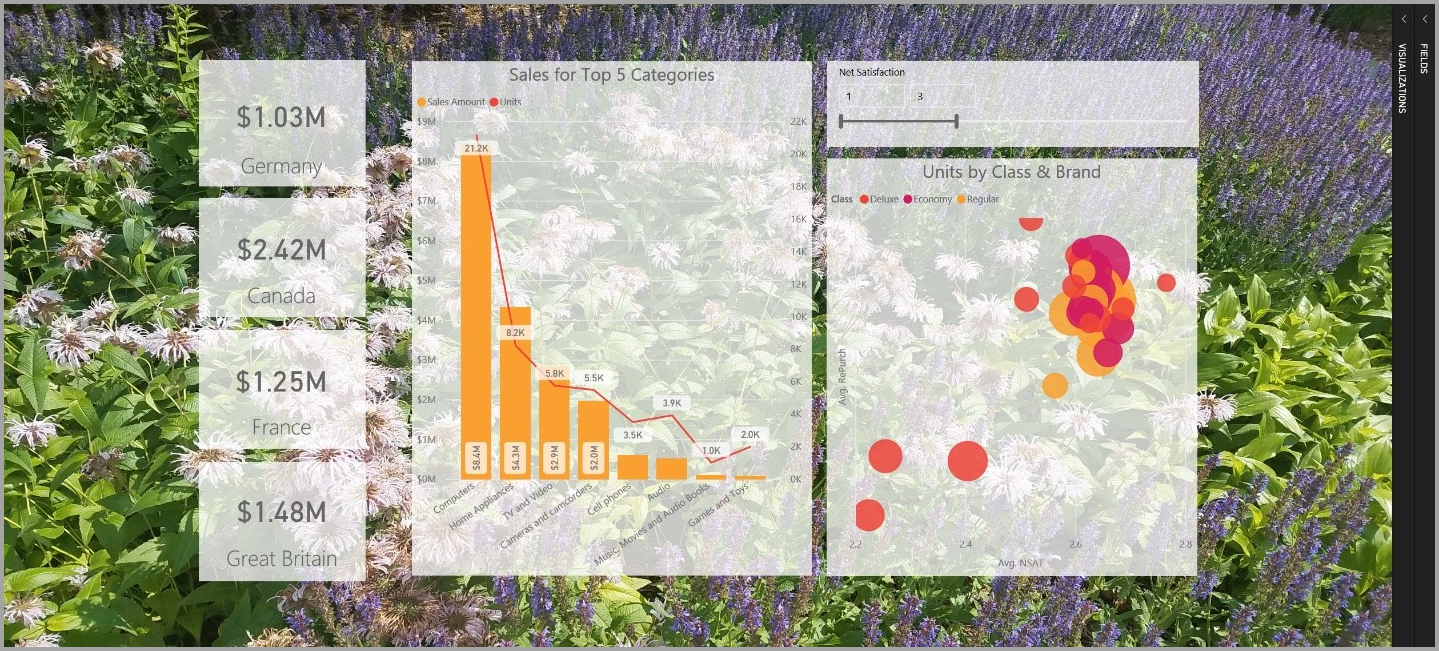

With Power BI Desktop you can use visual elements, such as wallpaper and improved visual headers for visualizations, to enhance the appearance of your reports.
You can put enhancements to use in your reports and make your analytics and reports even more appealing than before. The following enhancements are discussed in this article:
- Apply wallpaper to your reports so your background can enhance or highlight elements of the story you want to tell with your data.
- Use improved visual headers for individual visualizations to create perfectly aligned visuals on your report canvas.
The following sections describe how to use these enhancements and how to apply them to your reports.
Using wallpaper in Power BI reports

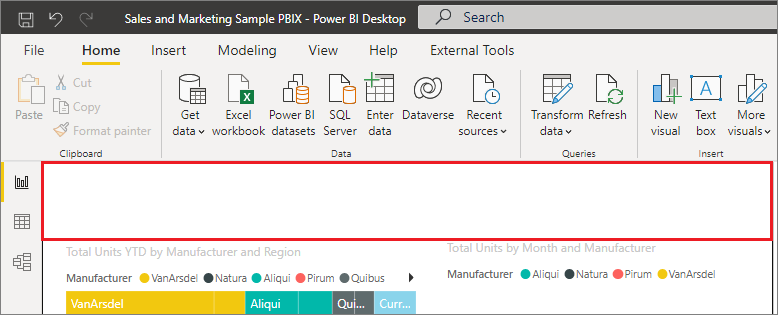

You can format the gray area outside your report page using wallpaper. The following image has a red box that clarifies where the wallpaper area applies.

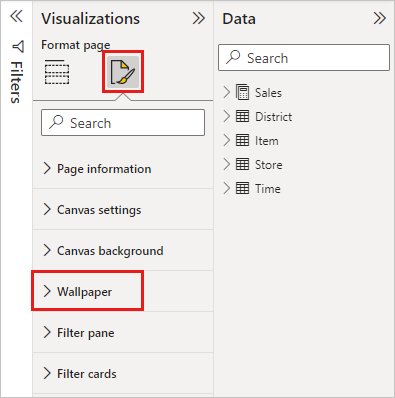

You can either set wallpaper on a per-report-page basis or have the same wallpaper for every page in your report. To set your wallpaper, select the Formatting icon when no visual is selected in your report and the Wallpaper card appears in the pane.
You can choose a color to apply as wallpaper by selecting the Color dropdown, or you can select the Add file button to select an image to apply as wallpaper. You can also apply transparency to your wallpaper, whether it's a color or an image, by using the Transparency slider.
It's useful to keep in mind the following definitions that pertain to wallpaper:
- The gray area outside of your report area is the wallpaper area.
- The area in the canvas where you can place visuals is referred to as the report page and, in the Format pane, can be modified using the Canvas background dropdown.
The report page is always in the foreground (when compared to the wallpaper), while the wallpaper is behind it and the furthest-back element on the report page. When you apply transparency to the page, the visuals in your report also have the transparency applied, allowing your wallpaper to be visible in the background through your visuals.
All new reports have the following default settings:
- The report page is set to white and its transparency is set to 100%.
- The wallpaper is set to white and its transparency is set to 0%.

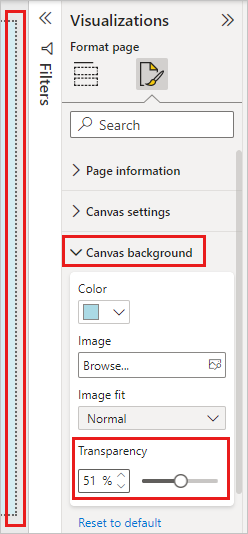

When you set your page background to greater than 50% transparency, a dotted border appears while you're creating or editing your report to show you the boundary of the report canvas border.
It's important to note that the dotted boundary only shows up when editing your report and does not appear for people who are viewing your published report, such as when it's viewed in the Power BI service.
Note
If you use dark-colored backgrounds for wallpaper and set text color to white or very light, be mindful that the Export to PDF feature doesn't include wallpaper, so any exports with white fonts will be nearly invisible in the exported PDF file. For more information, see export to PDF.
Using improved visual headers in Power BI reports
The headers for visuals in reports have been significantly improved. The primary improvements are that the header has been detached from the visual, so its position can be adjusted based on your preference of layout and positioning. The header now appears within the visual itself instead of floating above it.

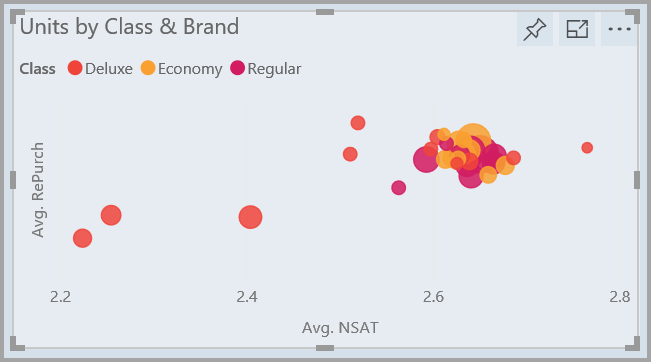

By default, the header appears inside the visual aligned with the title. In the following image, you can see the header (the pin icon, the expand icon, and the ellipses icon) within the visual and aligned to the right, along the same horizontal position as the visual's title.
If your visual doesn't have a title, the header floats above the top of the visual aligned to the right, as shown in the following image.

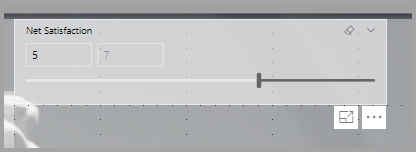

If your visual is positioned all the way to the top of your report, the visual header instead snaps to the bottom of the visual.

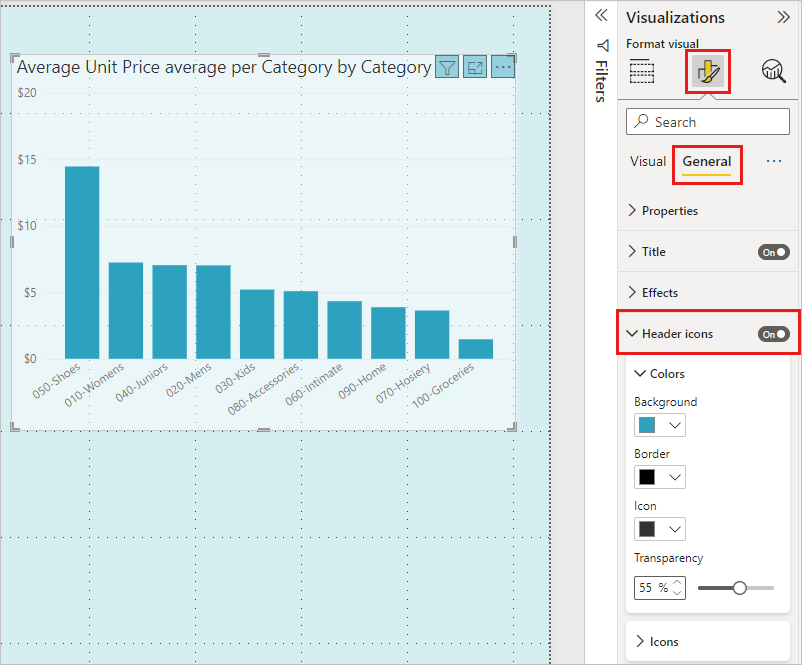

Each visual also has a card in the Formatting section of the Visualizations pane called Header icons. You can adjust all sorts of characteristics of the visual header.
Note
The visibility of toggles don't affect your report when you're authoring or editing the report. You must publish the report and view it in reading mode to see the effect. This behavior ensures that the many options provided in visual headers are visible during editing, especially warning icons that alert you to issues while editing.

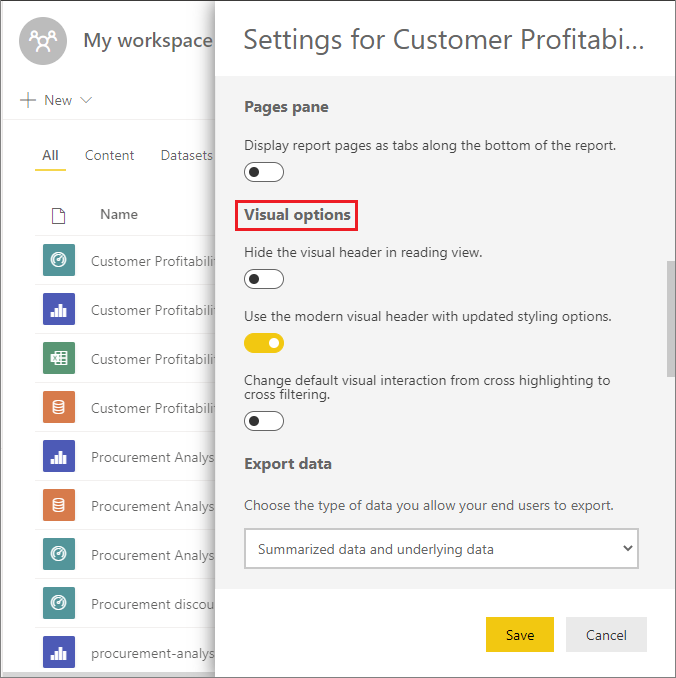

For reports that only appear in the Power BI service, you can adjust the use of visual headers by going to My Workspace, selecting More options next to the report, and then choosing Settings. There you see settings for the report for which you selected Settings. You can adjust the settings from there, under Visual options, as shown in the following image.
Enabling improved visual headers for existing reports

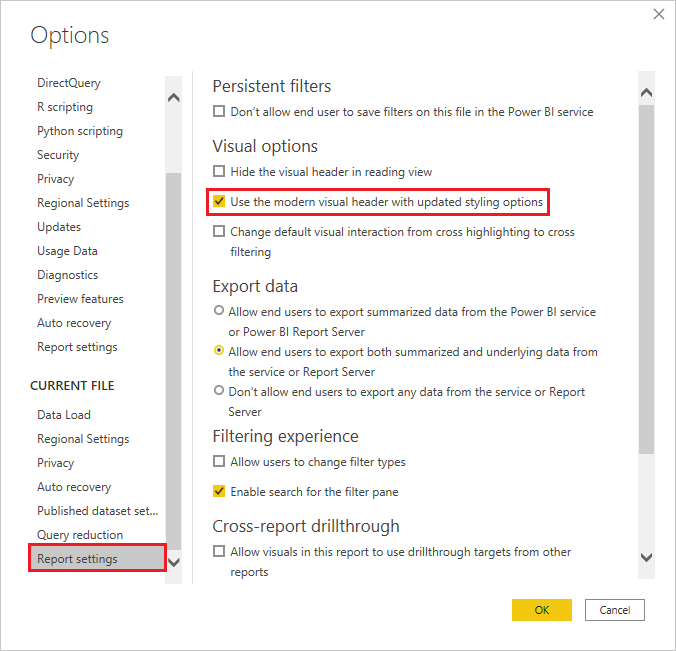

The new visual header is the default behavior for all new reports. For existing reports, you need to enable this behavior in Power BI Desktop by going to File > Options and settings > Options and then in the Report settings section, enable the Use the modern visual header with updated styling options checkbox.
