SharePoint Modernization scanner reports: Microsoft 365 group Connect reports

The Microsoft 365 group connect (mode GroupifyOnly) is always run as this mode is responsible for creating the main Site and Web reports.

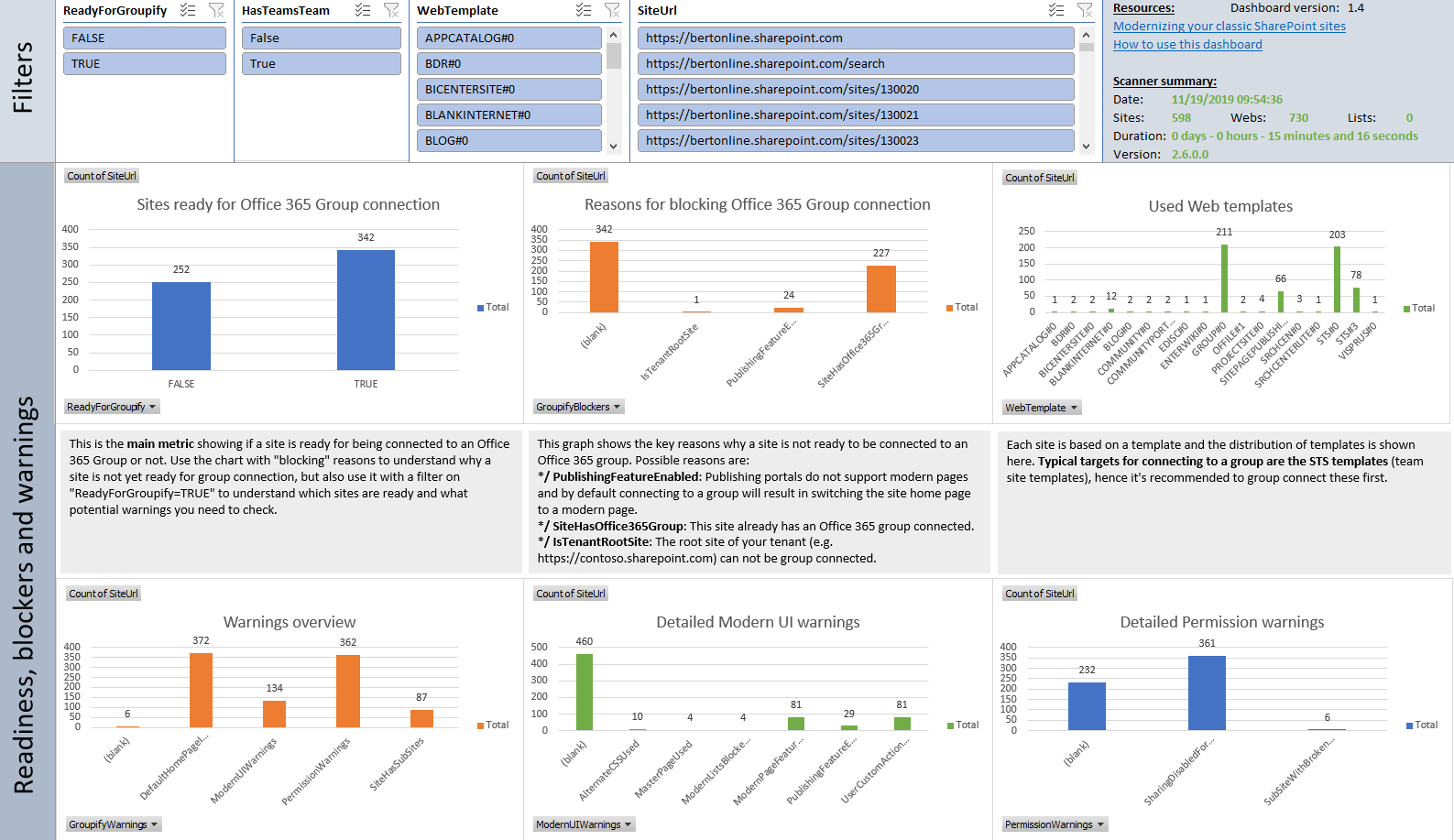

Excel dashboard

Understanding the ModernizationSiteScanResults.csv file

This report contains the following columns:

Column	Description
Site Collection Url	Url of the scanned site collection.
Site Url	Url of the scanned web.
ReadyForGroupify	Can this site be "Microsoft 365 group connected"? If value is FALSE then it's strongly discouraged to "Microsoft 365 group connect" this site collection.
GroupifyBlockers	Lists the found blocking issues which is either SiteHasOffice365Group (site is already "Microsoft 365 group connected"), PublishingFeatureEnabled (publishing features are enabled) or IsTenantRootSite (Site is tenant root site collection).
GroupifyWarnings	List of the found warnings: these indicate non optimal conditions for "Microsoft 365 group connection" the site but these are not considered a blocker for "Microsoft 365 group connection". Following can be potential warnings: PermissionWarnings (There's one or more permission related warning), SiteHasSubSites (sub sites are discouraged in modern sites), ModernUIIssues (parts of the modern UI capability has been disabled or we've incompatible customizations) or DefaultHomePageImpacted ("Microsoft 365 group connection" will add a new modern home page which is too different from the default home page of the used web template).
GroupMode	Proposed group mode (private/public) based on the found security setup (presence of EveryOne claims).
PermissionWarnings	Consolidates permission related warnings. Following values can be shown: ADGroupWillNotBeExpanded (site uses AD groups which do not expand inside a Microsoft 365 group), SharingDisabledForSiteButGroupWillAllowExternalSharing (External sharing was disabled for the SharePoint site, but a Microsoft 365 group will by default allow external sharing) or SubSiteWithBrokenPermissionInheritance (site has sub sites with unique permissions).
ModernHomePage	Does the site have a modern home page or not: if not "Microsoft 365 group connection" will create a default modern home page. Use this indicator to assess which sites you still want to give your customized modern home page before running "Microsoft 365 group connection"
ModernUIWarnings	This is a collection of warnings indicating either some modern UI component was turned off or incompatible features/customizations have been detected. Possible values are ModernPageFeatureDisabled (modern pages are disabled for this site), ModernListsBlockedAtSiteLevel (modern UI for lists has been purposely been blocked at site collection level), ModernListsBlockedAtWebLevel (modern UI for lists has been purposely been blocked at web collection level), MasterPageUsed (a custom master page has been used), AlternateCSSUsed (alternate CSS was defined), UserCustomActionUsed (incompatible user custom actions have been found) and PublishingFeatureEnabled (publishing features are enabled).
WebTemplate	The web template used by the site.
Office365GroupId	If this site is already connected to a Microsoft 365 group is shows the id if that group.
HasTeamsTeam	Is there a Teams team created for the Microsoft 365 group connected to this site collection (as of version 2.7)
MasterPage	Was a custom master page used?
AlternateCSS	Was alternate CSS defined?
UserCustomActions	Are there incompatible user custom actions used?
SearchCenterUrl	Contains the site custom search center URL or custom search results page if they're set. If both are set then the custom search center URL will be listed
SubSites	Does the site have sub sites?
SubSitesWithBrokenPermissionInheritance	Does the site have sub sites with unique permissions?
ModernPageWebFeatureDisabled	Was the modern page feature disabled for this site?
ModernPageFeatureWasEnabledBySPO	Was the modern page feature ever enabled by SPO (it was not enabled on all sites ,this allows you to check where it really was turned off versus never enabled in the first place)?
ModernListSiteBlockingFeatureEnabled	Was the modern UI for lists purposely blocked at site collection level?
ModernListWebBlockingFeatureEnabled	Was the modern UI for lists purposely blocked at web level?
SitePublishingFeatureEnabled	Is site scoped publishing feature enabled?
WebPublishingFeatureEnabled	Is web scoped publishing feature enabled?
ViewsRecent	Number of views this site received in the last 14 days. If the -c or skipusageinformation parameter was used this column is always 0.
ViewsRecentUniqueUsers	Number of unique visitors for this site in the last 14 days. If the -c or skipusageinformation parameter was used this column is always 0.
ViewsLifeTime	Number of views this site received during it's lifetime. If the -c or skipusageinformation parameter was used this column is always 0.
ViewsLifeTimeUniqueUsers	Number of unique visitors for this site during it's lifetime. If the -c or skipusageinformation parameter was used this column is always 0.
Everyone(ExceptExternalUsers)Claim	Is the everyone or everyone except external users claim used at site level?
UsesADGroups	Are there AD groups used to grant permissions?
ExternalSharing	Lists the external sharing status of the site
Admins	A comma delimited list of site administrators.
AdminContainsEveryone(ExceptExternalUsers)Claim	Is the everyone or everyone except external users claim used in the site administrators?
AdminContainsADGroups	Are there AD groups used in the site administrators?
Owners	A comma delimited list of site owners.
OwnersContainsEveryone(ExceptExternalUsers)Claim	Is the everyone or everyone except external users claim used in the site owners?
OwnersContainsADGroups	Are there AD groups used in the site owners?
Members	A comma delimited list of site members.
MembersContainsEveryone(ExceptExternalUsers)Claim	Is the everyone or everyone except external users claim used in the site members?
MembersContainsADGroups	Are there AD groups used in the site members?
Visitors	A comma delimited list of site visitors.
VisitorsContainsEveryone(ExceptExternalUsers)Claim	Is the everyone or everyone except external users claim used in the site viewers?
VisitorsContainsADGroups	Are there AD groups used in the site visitors?

Key takeaways from this report

Load the ModernizationSiteScanResults.csv into Microsoft Excel and use below filters to analyze the received data

Filter	Takeaway
No filter	Will give you one row per site collection in your tenant
ReadyForGroupify = TRUE	Will give you all the site collections that can be "Microsoft 365 group connected". There might still be warnings to check, but we did not find any blocking issues
ReadyForGroupify = FALSE AND Office365GroupId = ""	Will give you all the sites which do not yet have a Microsoft 365 group connected and which can't be "Microsoft 365 group connected"
ReadyForGroupify = TRUE AND GroupMode = PUBLIC	Will give you all the site collections that can be "Microsoft 365 group connected" and for which we'll default to a public group (based on the presence of the everyone or everyone except external users in the site members or site owners
HasTeamsTeam = FALSE AND WebTemplate = GROUP#0	Modern group connected team sites that do not yet have a Teams team created for their Microsoft 365 group (as of version 2.7)

Understanding the ModernizationWebScanResults.csv file

This report contains the following columns:

Column	Description
Site Collection Url	Url of the scanned site collection.
Site Url	Url of the scanned web.
WebTemplate	The web template used by this web.
BrokenPermissionInheritance	Does this site have unique permissions defined?
ModernPageWebFeatureDisabled	Was the modern page feature disabled for this web?
ModernPageFeatureWasEnabledBySPO	Was the modern page feature ever enabled by SPO (it was not enabled on all sites ,this allows you to check where it really was turned off versus never enabled in the first place)?
WebPublishingFeatureEnabled	Is web scoped publishing feature enabled?
MasterPage	Value of the master page if customized
CustomMasterPage	Value of the custom master page if customized
AlternateCSS	Value of the alternate CSS if set
UserCustomActions	Are there incompatible user custom actions used in this web?
SearchCenterUrl	Contains the web custom search center URL or custom search results page if they're set. If both are set then the custom search center URL will be listed
Everyone(ExceptExternalUsers)Claim	Is the everyone or everyone except external users claim used at web level?
UniqueOwners	Comma delimited list of owners if this web has unique permissions defined.
UniqueMembers	Comma delimited list of members if this web has unique permissions defined.
UniqueVisitors	Comma delimited list of visitors if this web has unique permissions defined.

Key takeaways from this report

Load the ModernizationWebScanResults.csv into Microsoft Excel and use below filters to analyze the received data

Filter	Takeaway
No filter	Will give you one row per scanned web
MasterPage <> "" OR CustomMasterPage <> ""	Will give you the webs having a custom master page set and name of that custom master page
AlternateCSS <> ""	Will give you the webs having alternate CSS defined and the name of the configured alternate CSS file

Understanding the ModernizationUserCustomActionScanResults.csv file

This report contains the following columns:

Column	Description
Site Collection Url	Url of the scanned site collection.
Site Url	Url of the scanned web.
Title	User custom action title.
Name	Name of the user custom action.
Location	Location of the user custom action.
RegistrationType	Registration type of the user custom action.
RegistrationId	ID of the registration.
Reason	Reasons why this user custom action is ignored in "modern".
ScriptBlock	Value of the ScriptBlock user custom action value.
ScriptSrc	Value of the ScriptSrc user custom action value.

Key takeaways from this report

Load the ModernizationUserCustomActionScanResults.csv into Microsoft Excel and use below filters to analyze the received data

Filter	Takeaway
No filter	Will give you one row per found incompatible user custom action. You need to assess how important these user custom actions are: if they are business critical it's better to either build an alternative SharePoint Framework extension or move the site back to "classic"
