DashStyles Class

Reference

Definition

Namespace:: System.Windows.Media

Assembly:: PresentationCore.dll

Important

Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.

Implements a set of predefined DashStyle objects.

public ref class DashStyles abstract sealed

public static class DashStyles

type DashStyles = class

Public Class DashStyles

Inheritance: Object
DashStyles

Remarks

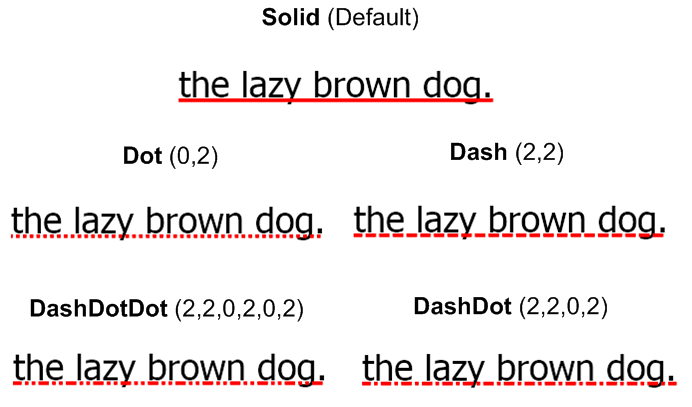

The following illustration shows examples of different dash styles applied to an underline.

Shows several different dash styles.

XAML Text Usage

You cannot declare this managed class in XAML, but you can use its static properties to assign values in XAML.

Properties

Dash	Gets a DashStyle with a Dashes property equal to `2`, `2`.
DashDot	Gets a DashStyle with a Dashes property equal to `2`, `2`, `0`, `2`.
DashDotDot	Gets a DashStyle with a Dashes property equal to `2`, `2`, `0`, `2`, `0`, `2`.
Dot	Gets a DashStyle with a Dashes property equal to `0`, `2`.
Solid	Gets a DashStyle with an empty Dashes property.
