DNS aging and scavenging

DNS servers running Windows Server support aging and scavenging features. These features are provided as a mechanism for performing cleanup and removal of stale resource records, which can accumulate in zone data over time.

Why use aging and scavenging

With dynamic update, resource records are automatically added to zones when computers start on the network. However, in some cases, they aren't automatically removed when computers leave the network. For example, if a computer registers its own host (A) resource record at startup and is later improperly disconnected from the network, its host (A) resource record might not be deleted. If your network has mobile users and computers, this situation can occur frequently.

If left unmanaged, the presence of stale resource records in zone data might cause some problems. The following are examples:

• If a large number of stale resource records remain in server zones, they can eventually take up server disk space and cause long zone transfers.
• DNS servers with stale resource records might use outdated information to answer client queries, potentially causing the clients to experience name resolution problems on the network.
• The accumulation of stale resource records at the DNS server can degrade its performance and responsiveness.
• In some cases, the presence of a stale resource record in a zone could prevent a DNS domain name from being used by another computer or host device.

To solve these problems, the DNS Server service has the following features:

• Time stamping, based on the current date and time set at the server computer, for any resource records added dynamically to primary-type zones. In addition, time stamps are recorded in standard primary zones where aging/scavenging is enabled.
• For resource records that you add manually, the server assigns a time stamp value of zero. Meaning the aging process doesn't apply. These records can remain in the zone data indefinitely unless you change their time stamp or delete them.
• The DNS Server service ages resource records in local data based on a specified refresh time period for any eligible zones. Only primary type zones that the DNS Server service loads can participate in this process.
• Scavenging for any resource records that persist beyond the specified refresh period. When a DNS server performs a scavenging operation, it can determine aged resource records to the point of becoming stale and remove them from zone data. Servers can be configured to perform recurring scavenging operations automatically, or you can initiate an immediate scavenging operation at the server.

Warning

By default, the aging and scavenging mechanism for the DNS Server service is disabled. It should only be enabled when all parameters are fully understood. Otherwise, the server could be accidentally configured to delete records that shouldn't be deleted. If a record is accidentally deleted, users fail to resolve queries for that record. Also, any user can create the record and take ownership of it, even on zones configured for secure dynamic update.

The server uses the time stamp of each resource record to determine when to scavenge records. You can configure aging and scavenging properties to control this process.

Prerequisites

Before the aging and scavenging features of DNS can be used, several conditions must be met:

• Scavenging and aging must be enabled both at the DNS server and on the zone.

By default, aging and scavenging of resource records is disabled.

• Resource records must either be dynamically added to zones or manually modified to be used in aging and scavenging operations.

Typically, only those resource records added dynamically using the DNS dynamic update protocol are subject to aging and scavenging.

You can, however, enable scavenging for other resource records added through nondynamic means. For records added using a text-based zone file from another DNS server or added manually, the server sets a time stamp of zero. A time stamp of zero makes these records ineligible for use in aging and scavenging operations.

In order to change this default, you can configure these records individually, reset, and permit them to use a current (nonzero) time stamp value. A current (nonzero) time stamp value enables these records to become aged and scavenged.

Tip

When changing a zone from a standard primary zone to Active Directory–integrated, you might want to enable scavenging of all existing resource records in the zone. To enable aging for all existing resource records in a zone, you can use the AgeAllRecords command, which is available through the dnscmd command-line tool.

Terminology

The following list indicates terms used when discussing aging and scavenging.

• Current server time The current date and time on the DNS server. This number can be expressed as an exact numeric value at any point in time.

• No-refresh interval An interval of time, determined for each zone, as bounded by the following two events:

  • The date and time when the record was last refreshed and its time stamp set.
  • The date and time when the record next becomes available for refresh and have its time stamp reset.

This value is needed to decrease the number of write operations to the Active Directory database. By default, this interval is set to 7 days.

It shouldn't be increased to an unreasonably high level, because the benefits of the aging and scavenging feature might either be lost or diminished.

• Record refresh When a DNS dynamic update is processed for a resource record when only the resource record time stamp, and no other characteristics of the record, are revised. Refreshes generally occur for the following reasons:

  • When a computer restarts on the network, it checks if its name and IP address are the same as before it was shut down. If the name and IP address are consistent, the computer sends a refresh to renew its associated resource records.
  • The computer sends a periodic refresh while it's running.
  • The Windows and Windows Server DNS Client service renews DNS registration of client resource records every 24 hours. If the dynamic update request doesn't cause modification to the DNS database, a refresh is performed.
  • Another network service makes a refresh attempt. For example:
    • DHCP servers renew a client address lease.
    • Cluster servers register and update records for a cluster.
    • The Netlogon service registers and updates resource records used by Active Directory domain controllers.

• Record update When a DNS dynamic update is processed for a resource record where other characteristics of the record in addition to its time stamp are revised. Updates generally occur for the following reasons:

  • When a new computer is added to the network. At startup, the computer sends an update to register its resource records for the first time with its configured zone.
  • When a computer with existing records in the zone has a change in IP address, causing updates to be sent for its revised name-to-address mappings in DNS zone data.
  • When the Netlogon service registers a new Active Directory domain controller.

• Refresh interval An interval of time, determined for each zone, as bound by the following two distinct events:

  • The earliest date and time when the record can be refreshed and have its time stamp reset.
  • The earliest date and time when the record can be scavenged and removed from the zone database.

This value should be large enough to allow all clients to refresh their records. By default, this interval is set to seven days. The refresh interval shouldn't be configured too high, because the benefits of the aging and scavenging feature might either be lost or diminished. Consider the requirements and behavior of your network when setting this value.

• Resource record time stamp A date and time value used by the DNS server to determine removal of the resource record when it performs aging and scavenging operations.

• Scavenging period When automatic scavenging is enabled at the server, this period represents the time between repetitions of the automated scavenging process. The default value is seven days. To prevent deterioration of DNS server performance, the minimum allowed value is one hour.

• Scavenging servers An optional advanced zone parameter that enables you to specify a restricted list of IP addresses for DNS servers that are enabled to perform scavenging of the zone. By default, if this parameter isn't specified, all DNS servers that load a directory-integrated zone (also enabled for scavenging) attempt to perform scavenging of the zone. In some cases, this parameter can be useful if it's preferable that scavenging only be performed at some servers loading the directory-integrated zone. To set this parameter, you must specify the list of IP addresses for the servers enabled to scavenge the zone in the ScavengingServers parameter for the zone. Use the dnscmd command to set the parameter, dnscmd is a command-line based tool for administering Windows DNS servers. Alternatively, you can use the Set-DnsServerScavenging PowerShell cmdlet.

• Start scavenging time A specific time, expressed as a number. This time is used by the server to determine when a zone becomes available for scavenging.

When can scavenging start

After all prerequisites for enabling the use of scavenging are met, scavenging can start for a server zone when the current server time is greater than the value of the start scavenging time for the zone.

The server sets the time value to start scavenging on a per-zone basis whenever any one of the following events occurs:

• Dynamic updates are enabled for the zone.
• A change in the state of the Scavenge stale resource records check box is applied. You can use the DNS console to modify this setting at either an applicable DNS server or one of its primary zones.
• The DNS server or service is started, causing the server to load a primary zone which is enabled to use scavenging.
• When a zone resumes service after being paused.

When any of the previous events occur, the DNS server sets the value of start scavenging time by calculating the following sum:

Current server time + Refresh interval = Start scavenging time

This value is used as a basis of comparison during scavenging operations.

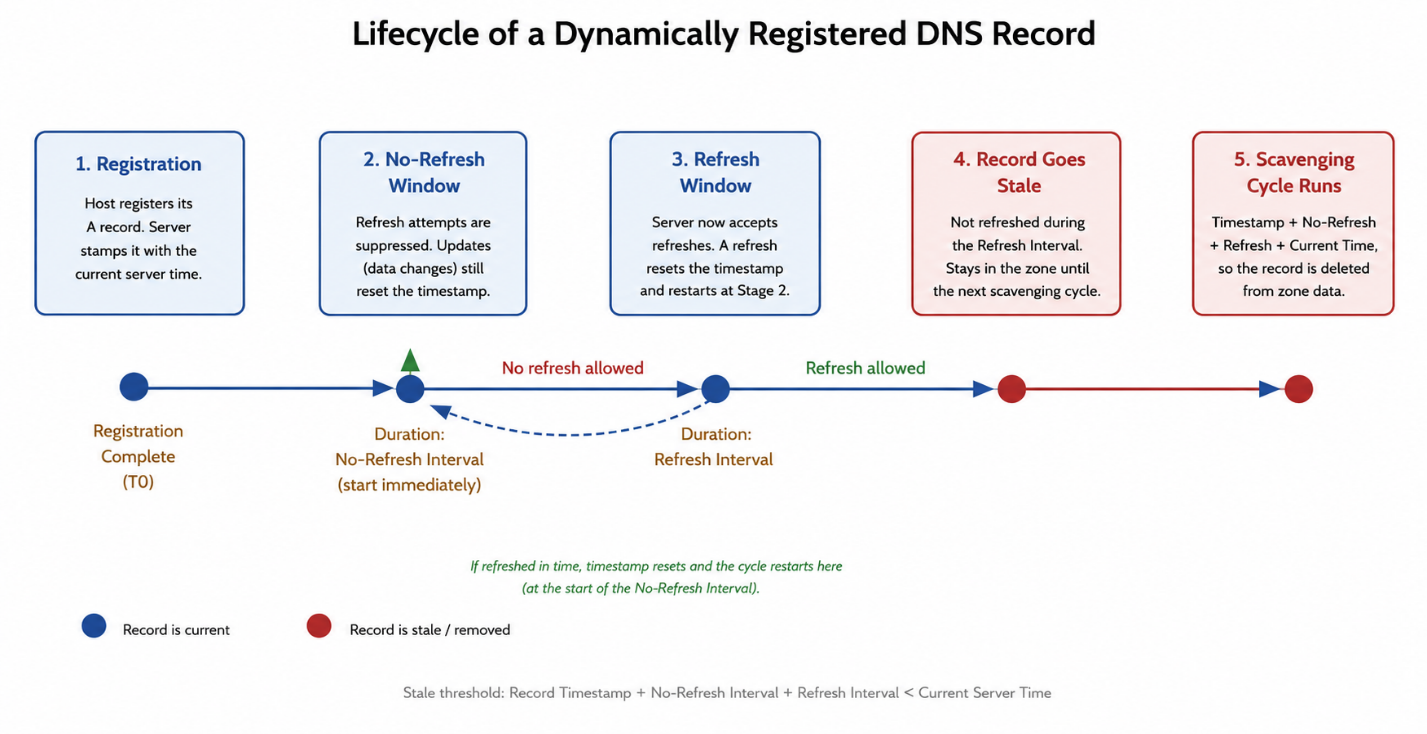

Aging and scavenging example process for a record

To understand the process of aging and scavenging at the server, consider the life span and stages of a single resource record.

In the following example, a record is added to a server and zone where aging and scavenging are enabled. It then ages and is eventually removed from the database.

1. A sample DNS host, host-a.example.contoso.com, registers its host (A) resource record at the DNS server for a zone where aging/scavenging is enabled for use.

2. When the DNS server registers the record, it places a time stamp on this record based on current server time.

   After the record time stamp is written, the DNS server doesn't accept refreshes for this record during the zone no-refresh interval. It can, however, accept updates before that time. For example, if the IP address for host-a.example.contoso.com changes, the DNS server can accept the update. In this case, the server also updates (resets) the record time stamp.

3. Upon expiration of the no-refresh period, the server begins to accept attempts to refresh this record.

   After the initial no-refresh period ends, the refresh period immediately begins for the record. During this time, the server doesn't suppress attempts to refresh the record for its remaining life span.

4. During and after the refresh period, if the server receives a refresh for the record, it processes it.

   This resets the time stamp for the record based on the method described in step 2.

5. When the server for the example.contoso.com zone performs subsequent scavenging, the records (and all other zone records) are examined.

   Each record is compared to current server time based on the following sum to determine whether the record should be removed:

   Record time stamp + No-refresh interval for zone + Refresh interval for zone

   1. If the value of this sum is greater than current server time, no action is taken and the record continues to age in the zone.

      Or

   2. If the value of this sum is less than the current server time, the record is deleted from both the zone data in server memory and the DnsZone object store in Active Directory for the directory-integrated example.contoso.com zone.
