using UnityEngine;
public class ShelfKeeper : MonoBehaviour
{
/// <summary>
/// Provides this class Singleton-like behavior
/// </summary>
public static ShelfKeeper instance;
/// <summary>
/// Unity Inspector accessible Reference to the Text Mesh object needed for data
/// </summary>
public TextMesh dateText;
/// <summary>
/// Unity Inspector accessible Reference to the Text Mesh object needed for time
/// </summary>
public TextMesh timeText;
/// <summary>
/// Provides references to the spawn locations for the products prefabs
/// </summary>
public Transform[] spawnPoint;
private void Awake()
{
instance = this;
}
/// <summary>
/// Set the text of the date in the scene
/// </summary>
public void SetDate(string day, string month)
{
dateText.text = day + " " + month;
}
/// <summary>
/// Set the text of the time in the scene
/// </summary>
public void SetTime(string hour)
{
timeText.text = hour + ":00";
}
/// <summary>
/// Spawn a product on the shelf by providing the name and selling grade
/// </summary>
/// <param name="name"></param>
/// <param name="sellingGrade">0 being the best seller</param>
public void SpawnProduct(string name, int sellingGrade)
{
Instantiate(Resources.Load(name),
spawnPoint[sellingGrade].transform.position, spawnPoint[sellingGrade].transform.rotation);
}
}
using System;
using System.Collections.Generic;
using UnityEngine;
using System.Linq;
using Newtonsoft.Json;
using UnityEngine.Networking;
using System.Runtime.Serialization;
using System.Collections;
ProductPrediction クラス内には、入れ子になった多数のクラスで構成される次の 2 つのオブジェクトを挿入します。 これらのクラスは、Machine Learning Service の JSON をシリアル化および逆シリアル化するために使用されます。
/// <summary>
/// This object represents the Prediction request
/// It host the day of the year and hour of the day
/// The product must be left blank when serialising
/// </summary>
public class RootObject
{
public Inputs Inputs { get; set; }
}
public class Inputs
{
public Input1 input1 { get; set; }
}
public class Input1
{
public List<string> ColumnNames { get; set; }
public List<List<string>> Values { get; set; }
}
/// <summary>
/// This object containing the deserialised Prediction result
/// It host the list of the products
/// and the likelihood of them being sold at current date and time
/// </summary>
public class Prediction
{
public Results Results { get; set; }
}
public class Results
{
public Output1 output1;
}
public class Output1
{
public string type;
public Value value;
}
public class Value
{
public List<string> ColumnNames { get; set; }
public List<List<string>> Values { get; set; }
}
/// <summary>
/// The 'Primary Key' from your Machine Learning Portal
/// </summary>
private string authKey = "-- Insert your service authentication key here --";
/// <summary>

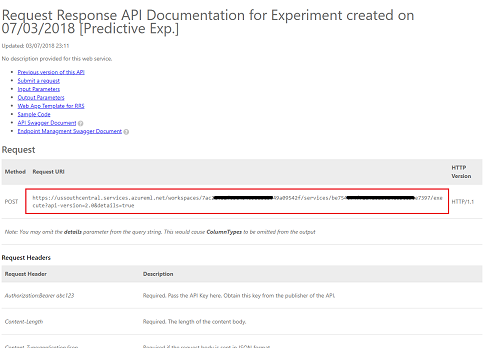

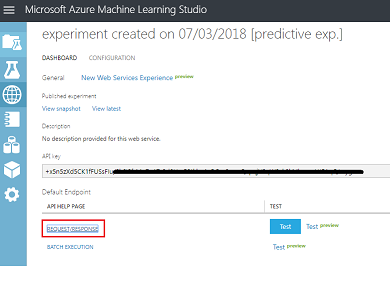

/// The 'Request-Response' Service Endpoint from your Machine Learning Portal
/// </summary>
private string serviceEndpoint = "-- Insert your service endpoint here --";
/// <summary>
/// The Hour as set in Windows
/// </summary>
private string thisHour;
/// <summary>
/// The Day, as set in Windows
/// </summary>
private string thisDay;
/// <summary>
/// The Month, as set in Windows
/// </summary>
private string thisMonth;
/// <summary>
/// The Numeric Day from current Date Conversion
/// </summary>
private string dayOfTheYear;
/// <summary>
/// Dictionary for holding the first (or default) provided prediction
/// from the Machine Learning Experiment
/// </summary>
private Dictionary<string, string> predictionDictionary;
/// <summary>
/// List for holding product prediction with name and scores
/// </summary>
private List<KeyValuePair<string, double>> keyValueList;
void Start()
{
// Call to get the current date and time as set in Windows
GetTodayDateAndTime();
// Call to set the HOUR in the UI
ShelfKeeper.instance.SetTime(thisHour);
// Call to set the DATE in the UI
ShelfKeeper.instance.SetDate(thisDay, thisMonth);
// Run the method to Get Predication from Azure Machine Learning
StartCoroutine(GetPrediction(thisHour, dayOfTheYear));
}
/// <summary>
/// Get current date and hour
/// </summary>
private void GetTodayDateAndTime()
{
// Get today date and time
DateTime todayDate = DateTime.Now;
// Extrapolate the HOUR
thisHour = todayDate.Hour.ToString();
// Extrapolate the DATE
thisDay = todayDate.Day.ToString();
thisMonth = todayDate.ToString("MMM");
// Extrapolate the day of the year
dayOfTheYear = todayDate.DayOfYear.ToString();
}
/// <summary>
/// Deserialize the response received from the Machine Learning portal
/// </summary>
public void DeserialiseJsonResponse(string jsonResponse)
{
// Deserialize JSON
Prediction prediction = JsonConvert.DeserializeObject<Prediction>(jsonResponse);
predictionDictionary = new Dictionary<string, string>();
for (int i = 0; i < prediction.Results.output1.value.ColumnNames.Count; i++)
{
if (prediction.Results.output1.value.Values[0][i] != null)
{
predictionDictionary.Add(prediction.Results.output1.value.ColumnNames[i], prediction.Results.output1.value.Values[0][i]);
}
}
keyValueList = new List<KeyValuePair<string, double>>();
// Strip all non-results, by adding only items of interest to the scoreList
for (int i = 0; i < predictionDictionary.Count; i++)
{
KeyValuePair<string, string> pair = predictionDictionary.ElementAt(i);
if (pair.Key.StartsWith("Scored Probabilities"))
{
// Parse string as double then simplify the string key so to only have the item name
double scorefloat = 0f;
double.TryParse(pair.Value, out scorefloat);
string simplifiedName =
pair.Key.Replace("\"", "").Replace("Scored Probabilities for Class", "").Trim();
keyValueList.Add(new KeyValuePair<string, double>(simplifiedName, scorefloat));
}
}
// Sort Predictions (results will be lowest to highest)
keyValueList.Sort((x, y) => y.Value.CompareTo(x.Value));
// Spawn the top three items, from the keyValueList, which we have sorted
for (int i = 0; i < 3; i++)
{
ShelfKeeper.instance.SpawnProduct(keyValueList[i].Key, i);
}
// Clear lists in case of reuse
keyValueList.Clear();
predictionDictionary.Clear();
}
Visual Studio を保存し、Unityに戻ります。
ProductPrediction クラス スクリプトを Script フォルダーから Main Camera オブジェクトにドラッグします。
