Conditional Access insights and reporting
The Conditional Access insights and reporting workbook enables you to understand the impact of Conditional Access policies in your organization over time. During sign-in, one or more Conditional Access policies may apply, granting access if certain grant controls are satisfied or denying access otherwise. Because multiple Conditional Access policies may be evaluated during each sign-in, the insights and reporting workbook lets you examine the impact of an individual policy or a subset of all policies.
To enable the insights and reporting workbook, your tenant must have a Log Analytics workspace to retain sign-in logs data. Users must have Azure AD Premium P1 or P2 licenses to use Conditional Access.
The following roles can access insights and reporting:
- Conditional Access Administrator
- Security reader
- Security administrator
- Global Reader
- Global Administrator
Users also need one of the following Log Analytics workspace roles:
Stream sign-in logs from Azure AD to Azure Monitor logs
If you haven't integrated Azure AD logs with Azure Monitor logs, you'll need to take the following steps before the workbook will load:
How it works
To access the insights and reporting workbook:
- Sign in to the Azure portal.
- Browse to Azure Active Directory > Security > Conditional Access > Insights and reporting.
Get started: Select parameters
The insights and reporting dashboard lets you see the impact of one or more Conditional Access policies over a specified period. Start by setting each of the parameters at the top of the workbook.
Conditional Access policy: Select one or more Conditional Access policies to view their combined impact. Policies are separated into two groups: Enabled and Report-only policies. By default, all Enabled policies are selected. These enabled policies are the policies currently enforced in your tenant.
Time range: Select a time range from 4 hours to as far back as 90 days. If you select a time range further back than when you integrated the Azure AD logs with Azure Monitor, only sign-ins after the time of integration will appear.
User: By default, the dashboard shows the impact of the selected policies for all users. To filter by an individual user, type the name of the user into the text field. To filter by all users, type “All users” into the text field or leave the parameter empty.
App: By default, the dashboard shows the impact of the selected policies for all apps. To filter by an individual app, type the name of the app into the text field. To filter by all apps, type “All apps” into the text field or leave the parameter empty.
Data view: Select whether you want the dashboard to show results in terms of the number of users or number of sign-ins. An individual user may have hundreds of sign-ins to many apps with many different outcomes during a given time range. If you select the data view to be users, a user could be included in both the Success and Failure counts (for example, if there are 10 users, 8 of them could have had a result of success in the past 30 days and 9 of them could have had a result of failure in the past 30 days).
Once the parameters have been set, the impact summary loads. The summary shows how many users or sign-ins during the time range resulted in “Success”, “Failure”, ”User action required” or “Not applied” when the selected policies were evaluated.
Total: The number of users or sign-ins during the time period where at least one of the selected policies was evaluated.
Success: The number of users or sign-ins during the time period where the combined result of the selected policies was “Success” or “Report-only: Success”.
Failure: The number of users or sign-ins during the time period where the result of at least one of the selected policies was “Failure” or “Report-only: Failure”.
User action required: The number of users or sign-ins during the time period where the combined result of the selected policies was “Report-only: User action required”. User action is required when an interactive grant control, such as multifactor authentication is required by a report-only Conditional Access policy. Since interactive grant controls aren't enforced by report-only policies, success or failure can't be determined.
Not applied: The number of users or sign-ins during the time period where none of the selected policies applied.

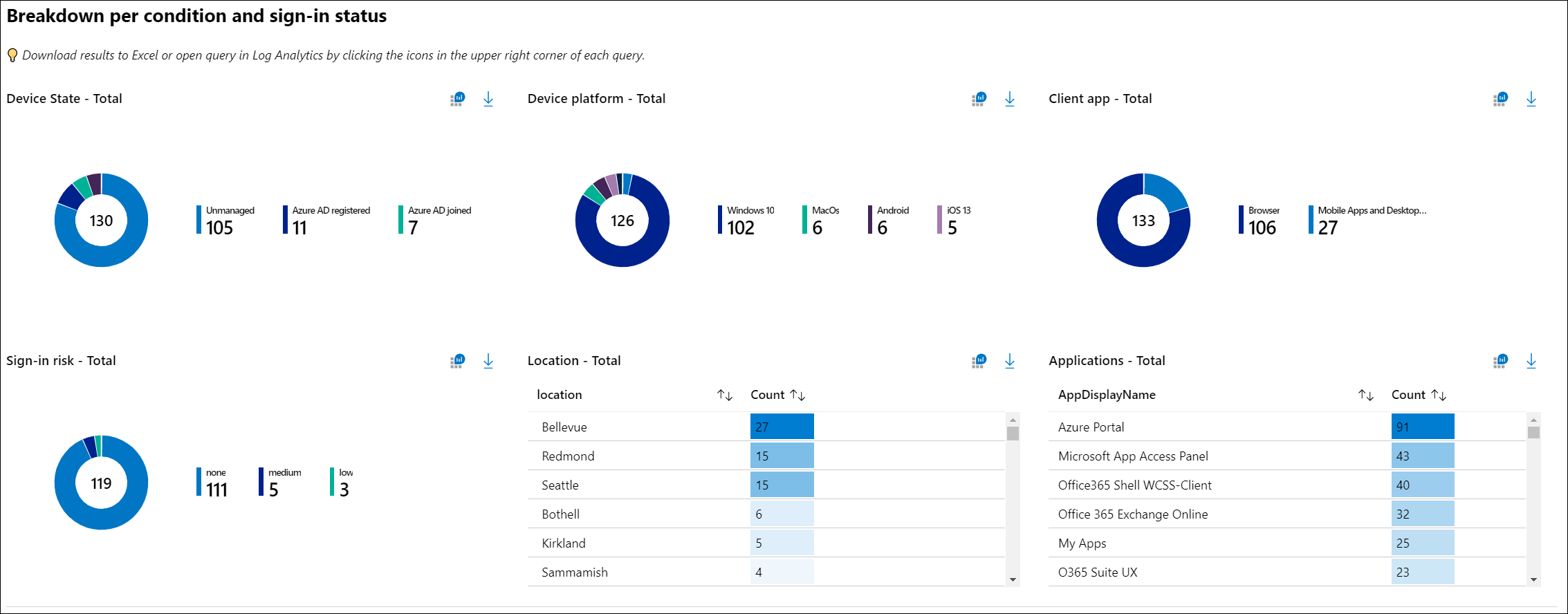

Understanding the impact
View the breakdown of users or sign-ins for each of the conditions. You can filter the sign-ins of a particular result (for example, Success or Failure) by selecting on of the summary tiles at the top of the workbook. You can see the breakdown of sign-ins for each of the Conditional Access conditions: device state, device platform, client app, location, application, and sign-in risk.
You can also investigate the sign-ins of a specific user by searching for sign-ins at the bottom of the dashboard. The query on the left displays the most frequent users. Selecting a user will filter the query to the right.
When downloading the Sign-ins logs, choose JSON format to include Conditional Access report-only result data.
Configure a Conditional Access policy in report-only mode
To configure a Conditional Access policy in report-only mode:
- Sign into the Azure portal as a Conditional Access Administrator, security administrator, or Global Administrator.
- Browse to Azure Active Directory > Security > Conditional Access.
- Select an existing policy or create a new policy.
- Under Enable policy set the toggle to Report-only mode.
- Select Save
Editing the Enable policy state of an existing policy from On to Report-only disables existing policy enforcement.
Why are queries failing due to a permissions error?
In order to access the workbook, you need the proper Azure AD permissions and Log Analytics workspace permissions. To test whether you have the proper workspace permissions by running a sample log analytics query:
- Sign in to the Azure portal.
- Browse to Azure Active Directory > Log Analytics.
SigninLogsinto the query box and select Run.
- If the query doesn't return any results, your workspace may not have been configured correctly.
For more information about how to stream Azure AD sign-in logs to a Log Analytics workspace, see the article Integrate Azure AD logs with Azure Monitor logs.
Why are the queries in the workbook failing?
Customers have noticed that queries sometimes fail if the wrong or multiple workspaces are associated with the workbook. To fix this problem, click Edit at the top of the workbook and then the Settings gear. Select and then remove workspaces that aren't associated with the workbook. There should be only one workspace associated with each workbook.
Why is the Conditional Access policies parameter is empty?
The list of policies is generated by looking at the policies evaluated for the most recent sign-in event. If there are no recent sign-ins in your tenant, you may need to wait a few minutes for the workbook to load the list of Conditional Access policies. This can happen immediately after configuring Log Analytics or may take longer if a tenant doesn’t have recent sign-in activity.
Why is the workbook taking a long time to load?
Depending on the time range selected and the size of your tenant, the workbook may be evaluating an extraordinarily large number of sign-in events. For large tenants, the volume of sign-ins may exceed the query capacity of Log Analytics. Try shortening the time range to 4 hours to see if the workbook loads.
After loading for a few minutes, why is the workbook returning zero results?
When the volume of sign-ins exceeds the query capacity of Log Analytics, the workbook will return zero results. Try shortening the time range to 4 hours to see if the workbook loads.
Can I save my parameter selections?
You can save your parameter selections at the top of the workbook by going to Azure Active Directory > Workbooks > Conditional Access Insights and reporting. Here you'll find the workbook template, where you can edit the workbook and save a copy to your workspace, including the parameter selections, in My reports or Shared reports.
Can I edit and customize the workbook with additional queries?
You can edit and customize the workbook by going to Azure Active Directory > Workbooks > Conditional Access Insights and reporting. Here you'll find the workbook template, where you can edit the workbook and save a copy to your workspace, including the parameter selections, in My reports or Shared reports. To start editing the queries, click Edit at the top of the workbook.
For more information about Azure AD workbooks, see the article, How to use Azure Monitor workbooks for Azure Active Directory reports.
