Integrate an Azure API Management instance with a private VNet for outbound connections

  • Straipsnis

APPLIES TO: Standard v2

This article guides you through the process of configuring VNet integration for your Azure API Management instance so that your API Management instance can make outbound requests to API backends that are isolated in the network.

When an API Management instance is integrated with a virtual network for outbound requests, the API Management itself is not deployed in a VNet; the gateway and other endpoints remain publicly accessible. In this configuration, the API Management instance can reach both public and network-isolated backend services.

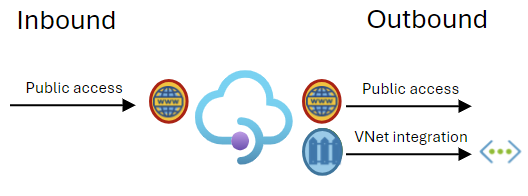

Diagram of integrating API Management instance with a delegated subnet.

Prerequisites

  • An Azure API Management instance in the Standard v2 pricing tier
  • A virtual network with a subnet where your API Management backend APIs are hosted
    • The network must be deployed in the same region and subscription as your API Management instance.
    • The subnet should be dedicated to VNet integration.
    • A minimum subnet size of /26 or /27 is recommended when creating a new subnet; /28 can be used with an existing subnet.
  • (Optional) For testing, a sample backend API hosted within a different subnet in the virtual network. For example, see Tutorial: Establish Azure Functions private site access.

Permissions

You must have at least the following role-based access control permissions on the subnet or at a higher level to configure virtual network integration:

Action Description
Microsoft.Network/virtualNetworks/read Read the virtual network definition
Microsoft.Network/virtualNetworks/subnets/read Read a virtual network subnet definition
Microsoft.Network/virtualNetworks/subnets/join/action Joins a virtual network

Register Microsoft.Web resource provider

Ensure that the subscription with the virtual network is registered for the Microsoft.Web resource provider. You can explicitly register the provider by following this documentation.

Delegate the subnet

The subnet used for integration must be delegated to the Microsoft.Web/serverFarms service. The subnet can't be delegated to another service. In the subnet settings, in Delegate subnet to a service, select Microsoft.Web/serverFarms.

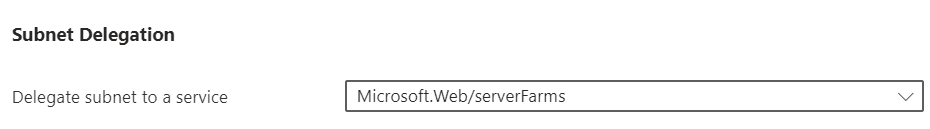

Screenshot of delegating the subnet to a service in the portal.

Enable VNet integration

This section will guide you through the process of enabling VNet integration for your Azure API Management instance.

  1. In the Azure portal, navigate to your API Management instance.

  2. In the left menu, under Deployment + Infrastructure, select Network.

  3. On the Outbound traffic card, select VNET integration.

    Screenshot of VNet integration in the portal.

  4. In the Virtual network blade, enable the Virtual network checkbox.

  5. Select the location of your API Management instance.

  6. In Virtual network, select the virtual network and the delegated subnet that you want to integrate.

  7. Select Apply, and then select Save. The VNet is integrated.

    Screenshot of VNet settings in the portal.

(Optional) Test VNet integration

If you have an API hosted in the virtual network, you can import it to your Management instance and test the VNet integration. For basic steps, see Import and publish an API.
