Enable Diagnostic Logging in Azure API for FHIR

Straipsnis
09/27/2024

Important

Azure API for FHIR will be retired on September 30, 2026. Follow the migration strategies to transition to Azure Health Data Services FHIR® service by that date. Due to the retirement of Azure API for FHIR, new deployments won't be allowed beginning April 1, 2025. Azure Health Data Services FHIR service is the evolved version of Azure API for FHIR that enables customers to manage FHIR, DICOM, and MedTech services with integrations into other Azure services.

In this article, you learn how to enable diagnostic logging in Azure API for FHIR® and be able to review sample queries for these logs. Access to diagnostic logs is essential for any healthcare service where compliance with regulatory requirements (such as HIPAA) is a must. The feature in Azure API for FHIR that enables diagnostic logs is the Diagnostic settings in the Azure portal.

View and Download FHIR Metrics Data

You can view the metrics under Monitoring | Metrics from the portal. The metrics include Number of Requests, Average Latency, Number of Errors, Data Size, request units (RUs) Used, Number of requests that exceeded capacity, and Availability (in %). The Total Request Metrics provides the number of requests reaching the FHIR service. This means requests such as FHIR bundles are considered as single request for logging.

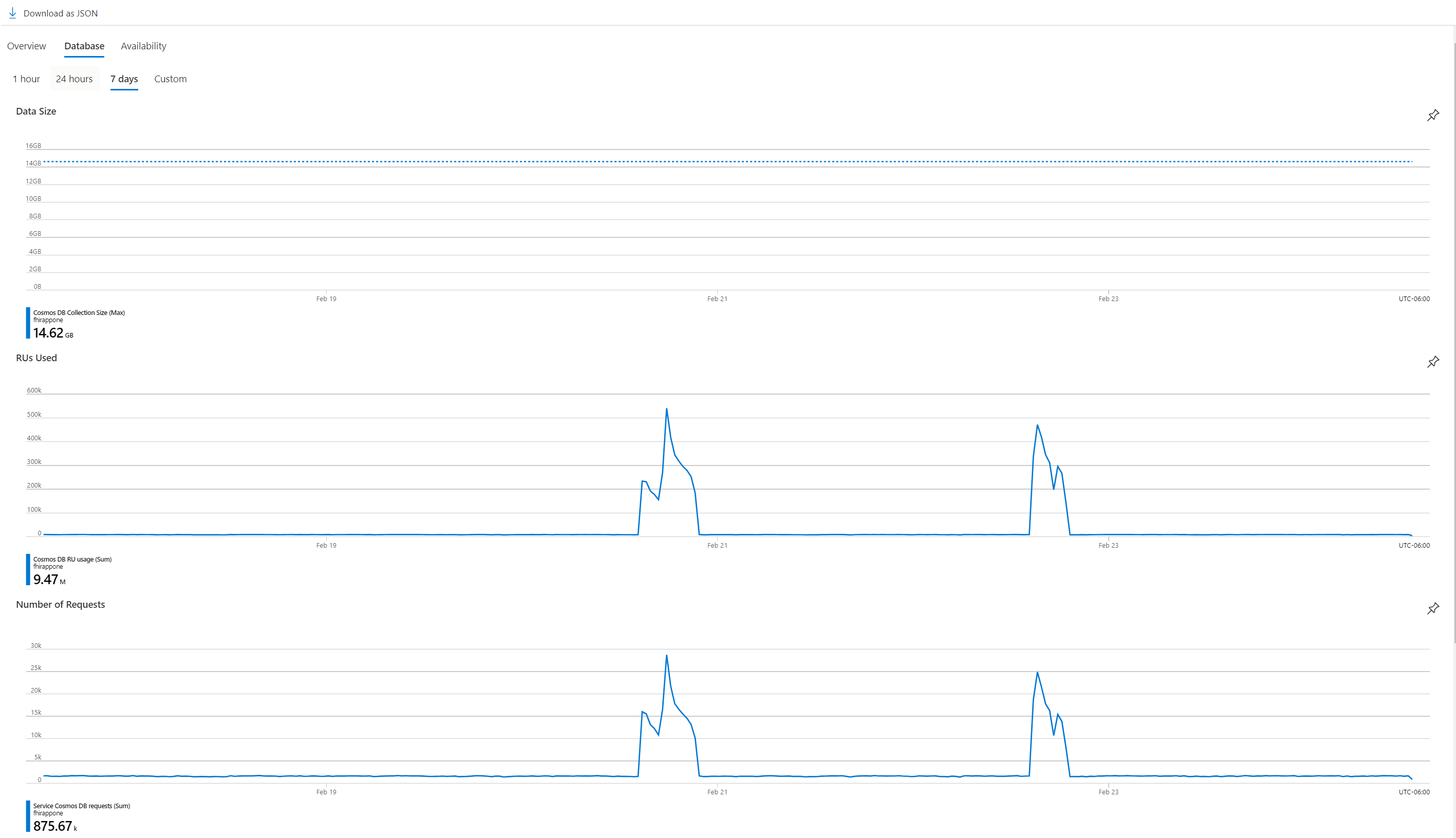

The following screenshot shows RUs used for a sample environment with few activities in the last seven days. You can download the data in Json format.

Enable audit logs

To enable diagnostic logging in Azure API for FHIR, select your Azure API for FHIR service in the Azure portal

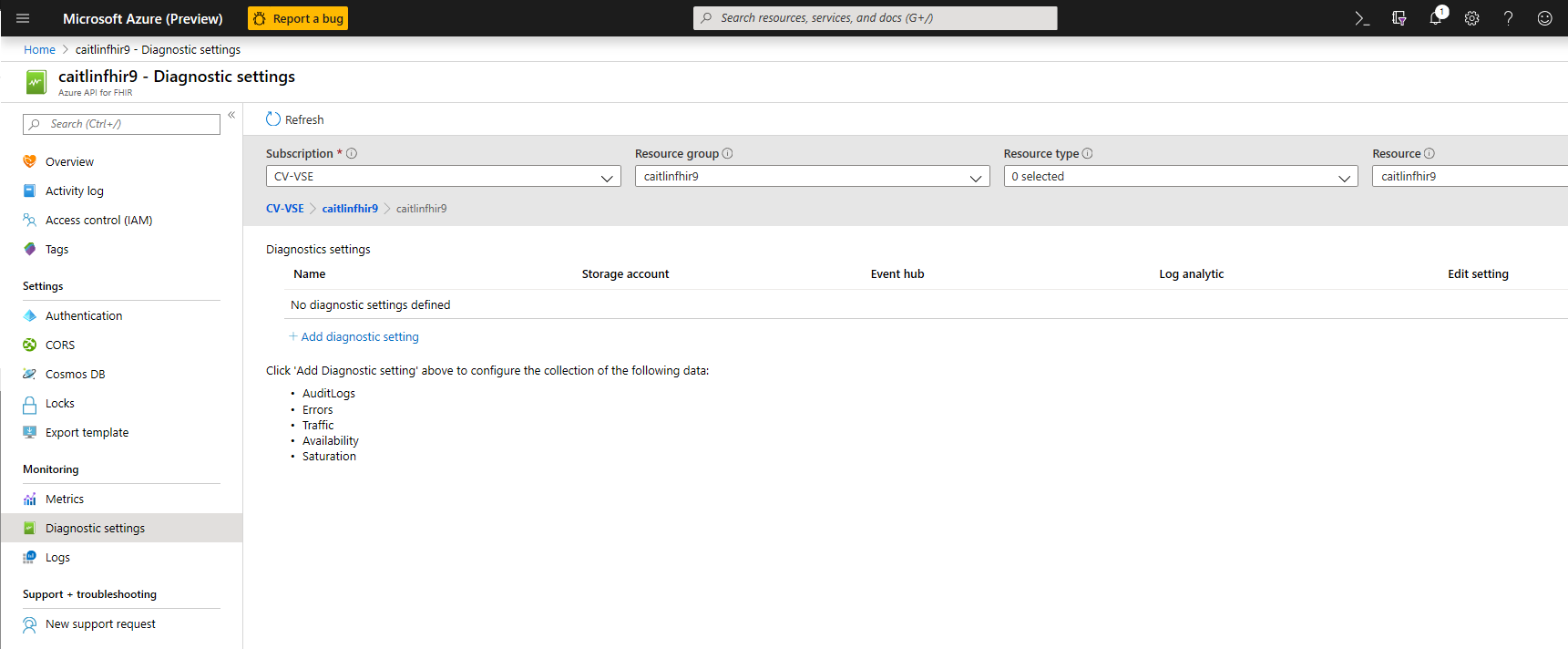

Navigate to Diagnostic settings
Select + Add diagnostic setting
Enter a name for the setting
Select the method you want to use to access your diagnostic logs:
1. Archive to a storage account for auditing or manual inspection. The storage account you want to use needs to already be created.
2. Stream to event hub for ingestion by a third-party service or custom analytic solution. You'll need to create an event hub namespace and event hub policy before you can configure this step.
3. Stream to the Log Analytics workspace in Azure Monitor. You need to create your Logs Analytics Workspace before you can select this option.
Select AuditLogs and/or AllMetrics. The metrics include service name, availability, data size, total latency, total requests, total errors, and timestamp. Find more detail on supported metrics.
Select Save

Note

It might take up to 15 minutes for the first Logs to show in Log Analytics. Also, if Azure API for FHIR is moved from one resource group or subscription to another, update the setting once the move is complete.

For more information on how to work with diagnostic logs, refer to the Azure Resource Log documentation.

Audit log details

At this time, the Azure API for FHIR service returns the following fields in the audit log.

Field Name	Type	Notes
CallerIdentity	Dynamic	A generic property bag containing identity information
CallerIdentityIssuer	String	Issuer
CallerIdentityObjectId	String	Object_Id
CallerIPAddress	String	The caller’s IP address
CorrelationId	String	Correlation ID
FhirResourceType	String	The resource type for which the operation was executed
LogCategory	String	The log category (currently returning ‘AuditLogs’ LogCategory)
Location	String	The location of the server that processed the request (for example, South Central US)
OperationDuration	Int	The time it took to complete this request in seconds. Note : This value is always set to 0, due to a known issue
OperationName	String	Describes the type of operation (for example, update, search-type)
RequestUri	String	The request URI
ResultType	String	The available values currently are Started, Succeeded, or Failed
StatusCode	Int	The HTTP status code. (for example, 200)
TimeGenerated	DateTime	Date and time of the event
Properties	String	Describes the properties of the fhirResourceType
SourceSystem	String	Source System (always Azure in this case)
TenantId	String	Tenant ID
Type	String	Type of log (always MicrosoftHealthcareApisAuditLog in this case)
_ResourceId	String	Details about the resource

Sample queries

Here are a few basic Application Insights queries you can use to explore your log data.

Run the following query to see the 100 most recent logs.

MicrosoftHealthcareApisAuditLogs
| limit 100

Run the following query to group operations by FHIR Resource Type.

MicrosoftHealthcareApisAuditLogs
| summarize count() by FhirResourceType

Run the following query to get all the failed results.

MicrosoftHealthcareApisAuditLogs
| where ResultType == "Failed"

Conclusion

Having access to diagnostic logs is essential for monitoring a service and providing compliance reports. Azure API for FHIR allows you to take these actions through diagnostic logs.
