Tutorial: Diagnose a communication problem between virtual networks using the Azure portal

This tutorial shows you how to use Azure Network Watcher VPN troubleshoot capability to diagnose and troubleshoot a connectivity issue between two virtual networks. The virtual networks are connected via VPN gateways using VNet-to-VNet connections.

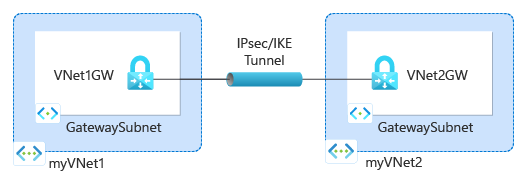

Diagram shows the resources created in the tutorial.

In this tutorial, you learn how to:

  • Create virtual network gateways (VPN gateways)
  • Create connections between VPN gateways
  • Diagnose and troubleshoot a connectivity issue
  • Resolve the problem
  • Verify the problem is resolved

Prerequisites

  • An Azure account with an active subscription. If you don't have one, create a free account before you begin.

Create VPN gateways

In this section, you create two virtual network gateways to connect two virtual networks.

Create first VPN gateway

  1. Sign in to the Azure portal.

  2. In the search box at the top of the portal, enter virtual network gateways. Select Virtual network gateways from the search results.

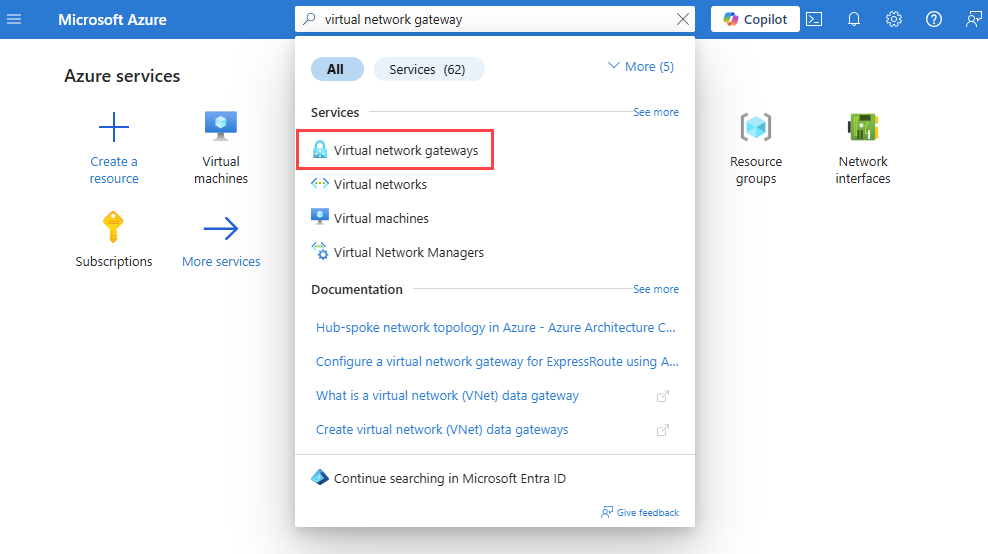

    Screenshot shows searching for virtual network gateways in the Azure portal.

  3. Select + Create. In Create virtual network gateway, enter or select the following values in the Basics tab:

    Setting Value
    Project details
    Subscription Select your Azure subscription.
    Instance details
    Name Enter VNet1GW.
    Region Select East US.
    Gateway type Select VPN.
    VPN type Select Route-based.
    SKU Select VpnGw1.
    Generation Select Generation1.
    Virtual network Select Create virtual network. Enter myVNet1 in Name.
    Select Create new for the resource group. Enter myResourceGroup and select OK.
    In Address Range, enter 10.1.0.0/16.
    Under Subnets, enter GatewaySubnet for Subnet name and 10.1.1.0/24 for Address range.
    Select OK to close Create virtual network.
    Public IP address
    Public IP address Select Create new.
    Public IP address name Enter VNet1GW-ip.
    Enable active-active mode Select Disabled.
    Configure BGP Select Disabled.
  4. Select Review + create.

  5. Review the settings, and then select Create. A gateway can take 45 minutes or more to fully create and deploy.

Create second VPN gateway

To create the second VPN gateway, repeat the previous steps you used to create the first VPN gateway with the following values:

Setting Value
Name VNet2GW.
Resource group myResourceGroup
Virtual network myVNet2
Virtual network address range 10.2.0.0/16
Gateway subnet address range 10.2.1.0/24
Public IP address name VNet2GW-ip

Create a storage account and a container

In this section, you create a storage account, then you create a container in it.

If you have a storage account that you want to use, you can skip the following steps and go to Create VPN gateways.

  1. In the search box at the top of the portal, enter storage accounts. Select Storage accounts from the search results.

  2. Select + Create. In Create a storage account, enter or select the following values in the Basics tab:

    Setting Value
    Project details
    Subscription Select your Azure subscription.
    Resource Group Select myResourceGroup.
    Instance details
    Storage account name Enter a unique name. This tutorial uses mynwstorageaccount.
    Region Select (US) East US.
    Performance Select Standard.
    Redundancy Select Locally-redundant storage (LRS).
  3. Select the Review tab or select the Review button.

  4. Review the settings, and then select Create.

  5. Once the deployment is complete, select Go to resource to go to the Overview page of mynwstorageaccount.

  6. Under Data storage, select Containers.

  7. Select + Container.

  8. In New container, enter or select the following values then select Create.

    Setting Value
    Name Enter vpn.
    Public access level Select Private (no anonymous access).

Create gateway connections

After creating VNet1GW and VNet2GW virtual network gateways, you can create connections between them to allow communication over secure IPsec/IKE tunnel between VNet1 and VNet2 virtual networks. To create the IPsec/IKE tunnel, you create two connections:

  • From VNet1 to VNet2
  • From VNet2 to VNet1

Create first connection

  1. Go to VNet1GW gateway.

  2. Under Settings, select Connections.

  3. Select + Add to create a connection from VNet1 to VNet2.

  4. In Create connection, enter or select the following values in the Basics tab:

    Setting Value
    Project details
    Subscription Select your Azure subscription.
    Resource Group Select myResourceGroup.
    Instance details
    Connection type Select VNet-to-VNet.
    Name Enter to-VNet2.
    Region Select East US.
  5. Select the Settings tab or select Next: Settings button.

  6. In Settings tab, enter or select the following values:

    Setting Value
    Virtual network gateway
    First virtual network gateway Select VNet1GW.
    Second virtual network gateway Select VNet2GW.
    Shared key (PSK) Enter 123.
  7. Select Review + create.

  8. Review the settings, and then select Create.

Create second connection

  1. Go to VNet2GW gateway.

  2. Create the second connection by following the previous steps you used to create the first connection with the following values:

    Setting Value
    Name to-VNet1
    First virtual network gateway VNet2GW
    Second virtual network gateway VNet1GW
    Shared key (PSK) 000

    Note

    To successfully create an IPsec/IKE tunnel between two Azure VPN gateways, the connections between the gateways must use identical shared keys. In the previous steps, two different keys were used to create a problem with the gateway connections.

Diagnose the VPN problem

In this section, you use Network Watcher VPN troubleshoot to check the two VPN gateways and their connections.

  1. Under Settings of VNet2GW gateway, select Connection.

  2. Select Refresh to see the connections and their current status, which is Not connected (because of mismatch between the shared keys).

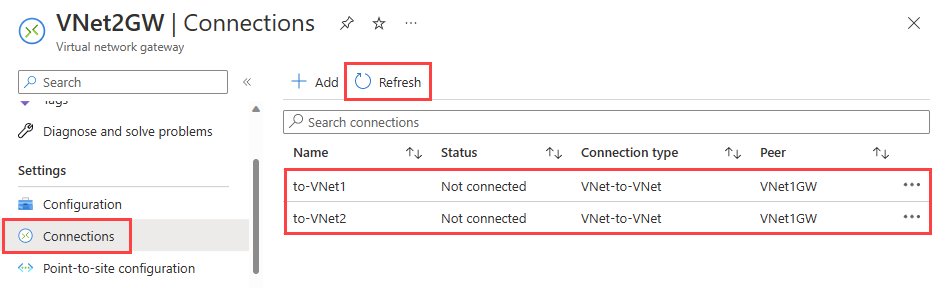

    Screenshot shows the gateway connections in the Azure portal and their not connected status.

  3. Under Help of VNet2GW gateway, select VPN troubleshoot.

  4. Select Select storage account to choose the storage account and the container that you want to save the logs to.

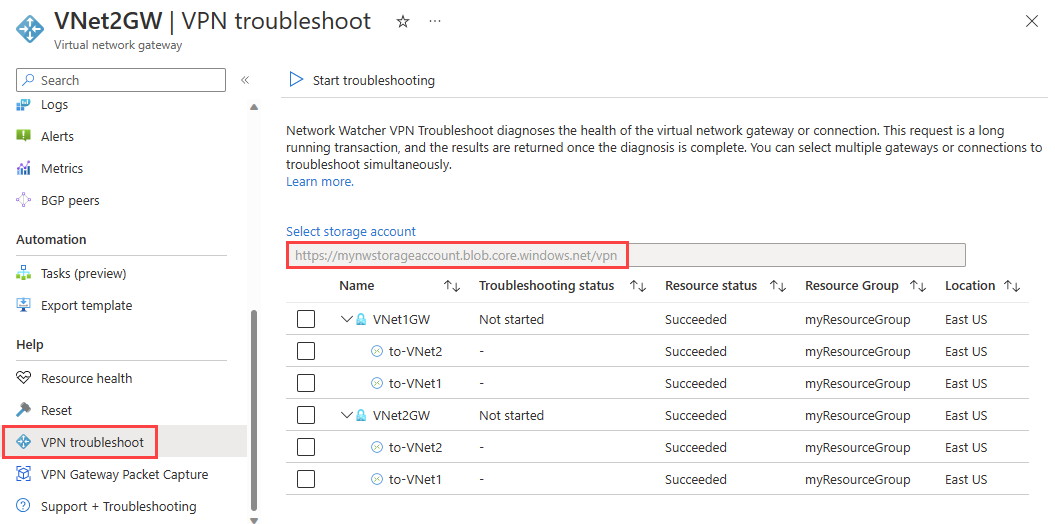

    Screenshot shows vpn troubleshoot in the Azure portal before troubleshooting started.

  5. From the list, select VNet1GW and VNet2GW, and then select Start troubleshooting to start checking the gateways.

  6. Once the check is completed, the troubleshooting status of both gateways changes to Unhealthy. Select a gateway to see more details under Status tab.

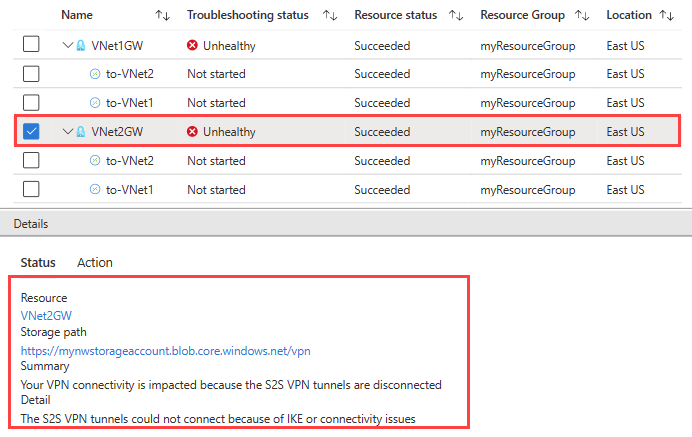

    Screenshot shows the status of a gateway and results of VPN troubleshoot test in the Azure portal after troubleshooting completed.

  7. Because the VPN tunnels are disconnected, select the connections, and then select Start troubleshooting to start checking them.

    Note

    You can troubleshoot gateways and their connections in one step. However, checking only the gateways takes less time and based on the result, you decide if you need to check the connections.

  8. Once the check is completed, the troubleshooting status of the connections changes to Unhealthy. Select a connection to see more details under Status tab.

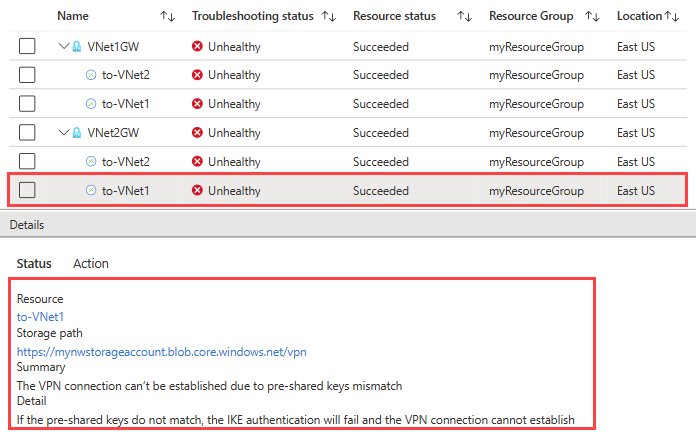

    Screenshot shows the status of a connection and results of VPN troubleshoot test in the Azure portal after troubleshooting completed.

    VPN troubleshoot checked the connections and found a mismatch in the shared keys.

Fix the problem and verify using VPN troubleshoot

Fix the problem

Fix the problem by correcting the key on to-VNet1 connection to match the key on to-VNet2 connection.

  1. Go to to-VNet1 connection.

  2. Under Settings, select Authentication Type.

  3. In Shared key (PSK), enter 123 and then select Save.

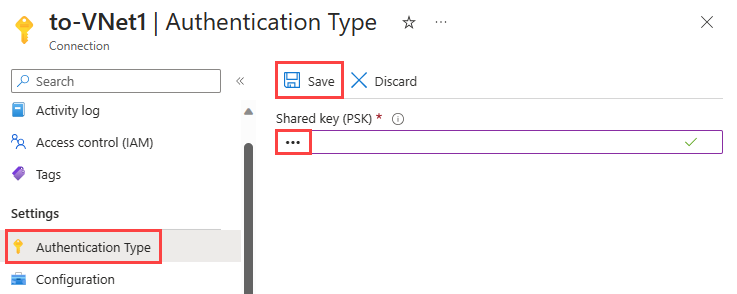

    Screenshot shows correcting and saving the shared key for of VPN connection in the Azure portal.

Check connection status

  1. Go to VNet2GW gateway (you can check the connections status from VNet1GW gateway too).

  2. Under Settings, select Connections.

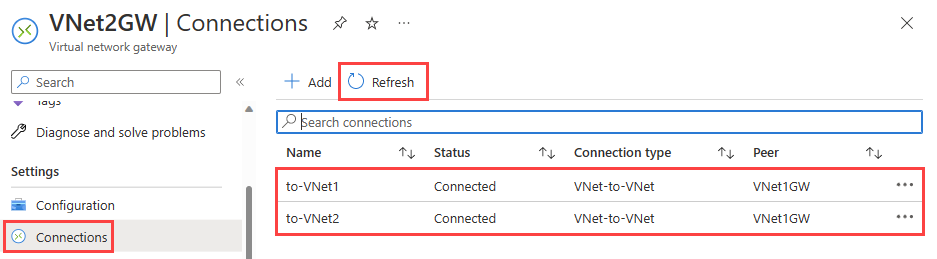

    Screenshot shows the gateway connections in the Azure portal and their connected status.

    Note

    You may need to wait for a few minutes and then select Refresh to see the connections status as Connected.

Check connection health with VPN troubleshoot

  1. Under Help of VNet2GW, select VPN troubleshoot.

  2. Select Select storage account to choose the storage account and the container that you want to save the logs to.

  3. Select VNet1GW and VNet2GW, and then select Start troubleshooting to start checking the gateways

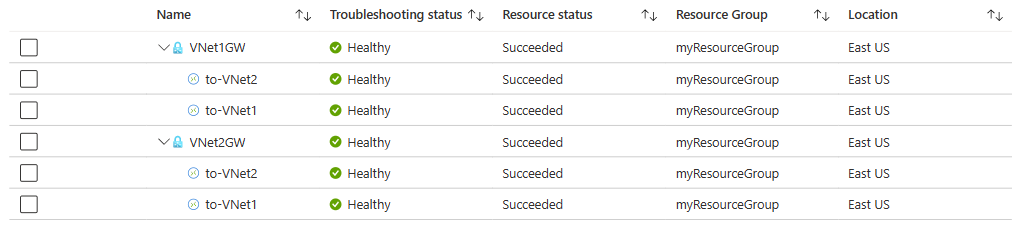

    Screenshot shows the status of gateways and their connections in the Azure portal after correcting the shared key.
