Add an image or video to a step in the Dynamics 365 Guides PC app

  • Straipsnis

As an author, add an image or video in the Dynamics 365 Guides PC app to help an operator with a complex step. For example, add a diagram or a short video to explain a difficult process.

Note

The PC app converts and resizes videos when they're uploaded to ensure optimal performance on HoloLens. This transcoding process depends on the codecs installed on the PC and errors can occur if codecs are removed from the PC.

  1. In the PC app, on the right side of the page, select the My files tab.

  2. Find and select your image or video.

    Tip

    To find items quickly, you can filter by asset type (3D parts, images, videos, and object anchors) or sort by name, date, or type in ascending or descending order. If you are in a folder that does not contain the asset, a message displays. Navigate the hierarchy of folders or go to the parent folder and try your filter or sort again.

  3. Drag the image or video to the Media panel box.

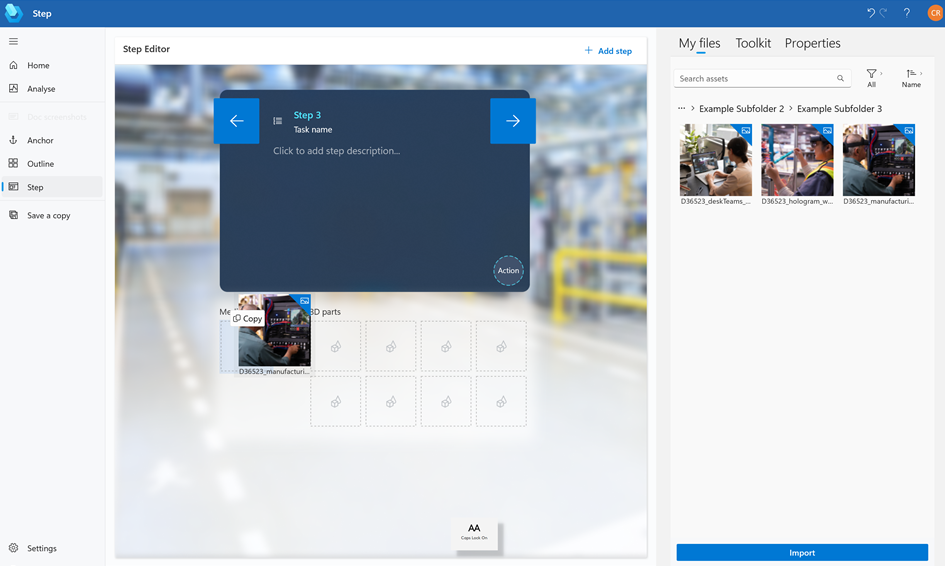

    Screenshot of dragging a file from My files tab to the Media box.

Tip

You can preview the image or video on the right side of the screen by selecting it (click or double-click) in the My files tab.

Import an image or video

You can import your own images and videos and add them to My files or a folder in My files. To import files, you can drag them from a local file folder or use the Import command.

Import a file by using a drag-and-drop operation

  1. Open Windows File Explorer, and go to the folder that contains the 3D objects, images, or videos that you want to import.

  2. In the PC app on the right side of the page, select the My files tab.

  3. Open the folder where you want to import the item. You can import to the root folder or subfolder.

  4. Drag the files to the folder.

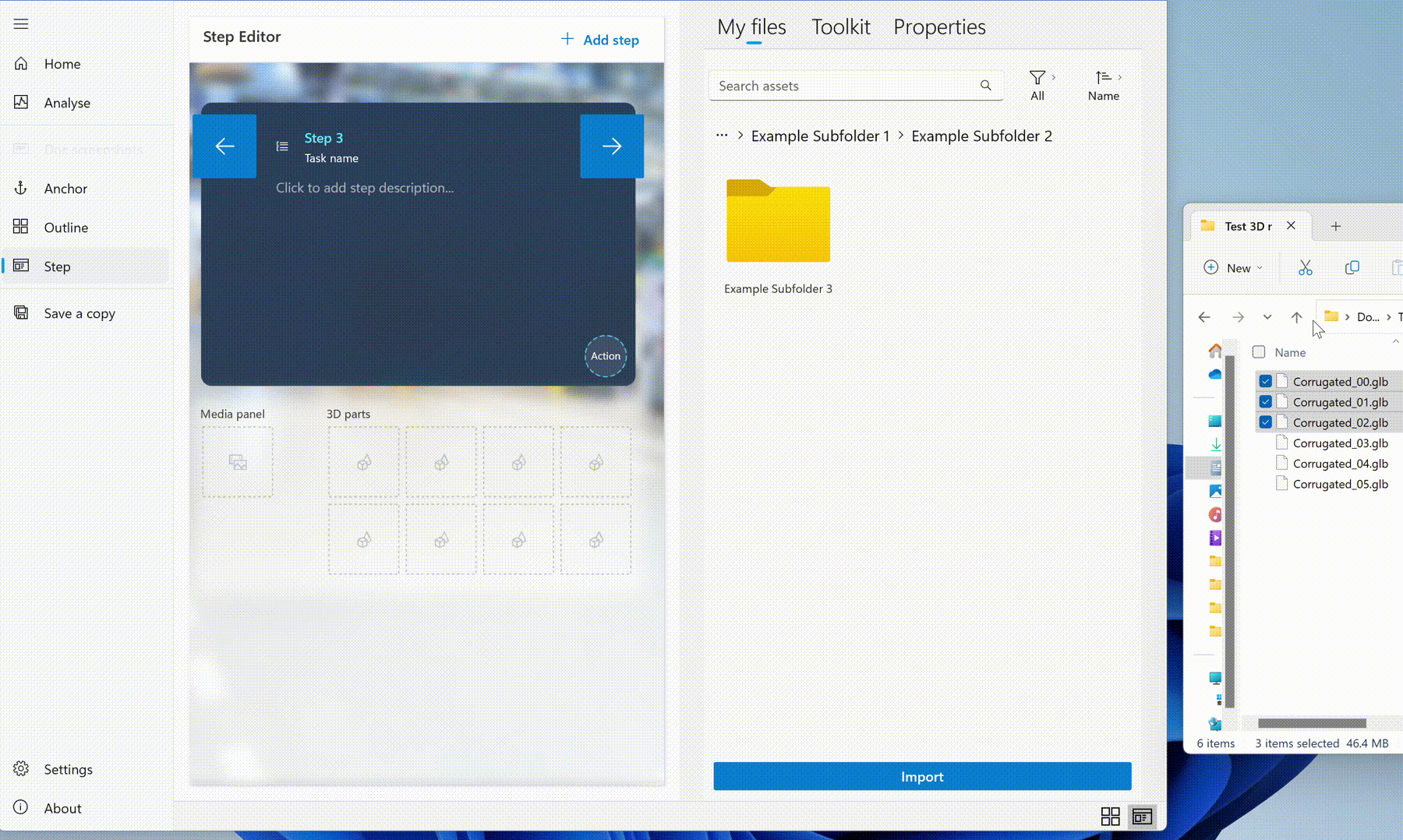

    Drag and drop import.

Import a file by using the Import command

  1. In the PC app on the right side of the page, select the My files tab.

  2. Open the folder where you want to import the item. You can import to the root folder or subfolder.

  3. Select Import.

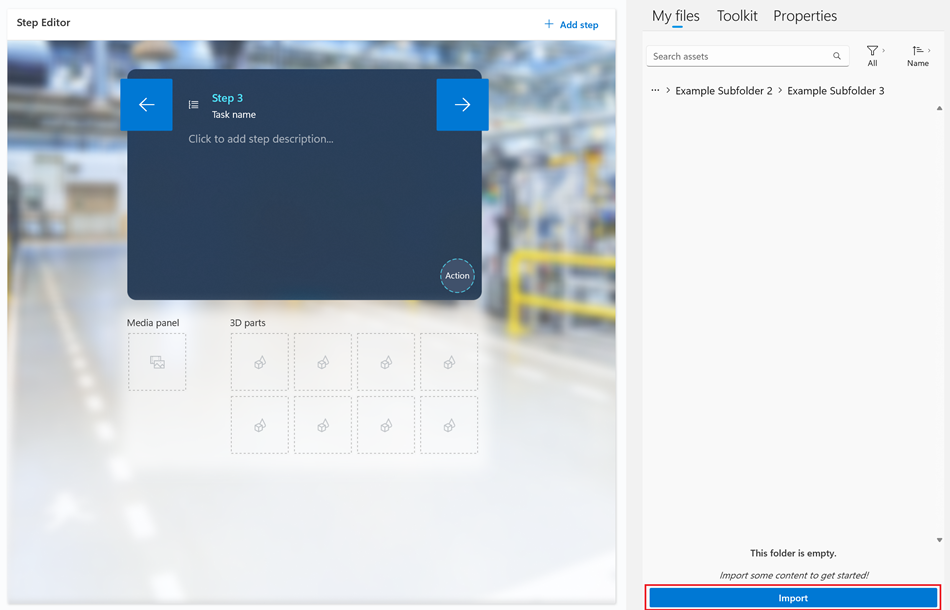

    Import button.

  4. Find the files that you want to import, and then select Open. The files are added to the folder.

Note

If you have trouble importing a custom 3D part, image, or video, enable Guides to work in the background.

Change a video thumbnail

When you add a video to a step, the thumbnail for the video is automatically created. If you want to change the thumbnail to an image of your choice, you can use the Guides model-driven app.

  1. Open the Guides model-driven app.

  2. Open the video that has the thumbnail you want to replace.

  3. At the top left of the screen, select the video circle.

    Screenshot of video in model-driven-app with circle icon highlighted.

  4. In the Choose Image dialog box, select Upload Image, and then find the image you want to upload.

    Note

    The image will automatically update in the model-driven app. To refresh the image in the PC app Step Editor page, open the Outline page, and then go back to the Step Editor page.
