Tutorial: Analyze webpage data by using Power BI Desktop

  • Straipsnis

As a long-time soccer fan, you want to report on the UEFA European Championship (Euro Cup) winners over the years. With Power BI Desktop, you can import this data from a webpage into a report and create visualizations that show the data. In this tutorial, you learn how to use Power BI Desktop to:

  • Connect to a web data source and navigate across its available tables.
  • Shape and transform data in the Power Query Editor.
  • Name a query and import it into a Power BI Desktop report.
  • Create and customize a map and a pie chart visualization.

Connect to a web data source

You can get the UEFA winners data from the Results table on the UEFA European Football Championship Wikipedia page at https://en.wikipedia.org/wiki/UEFA_European_Football_Championship.

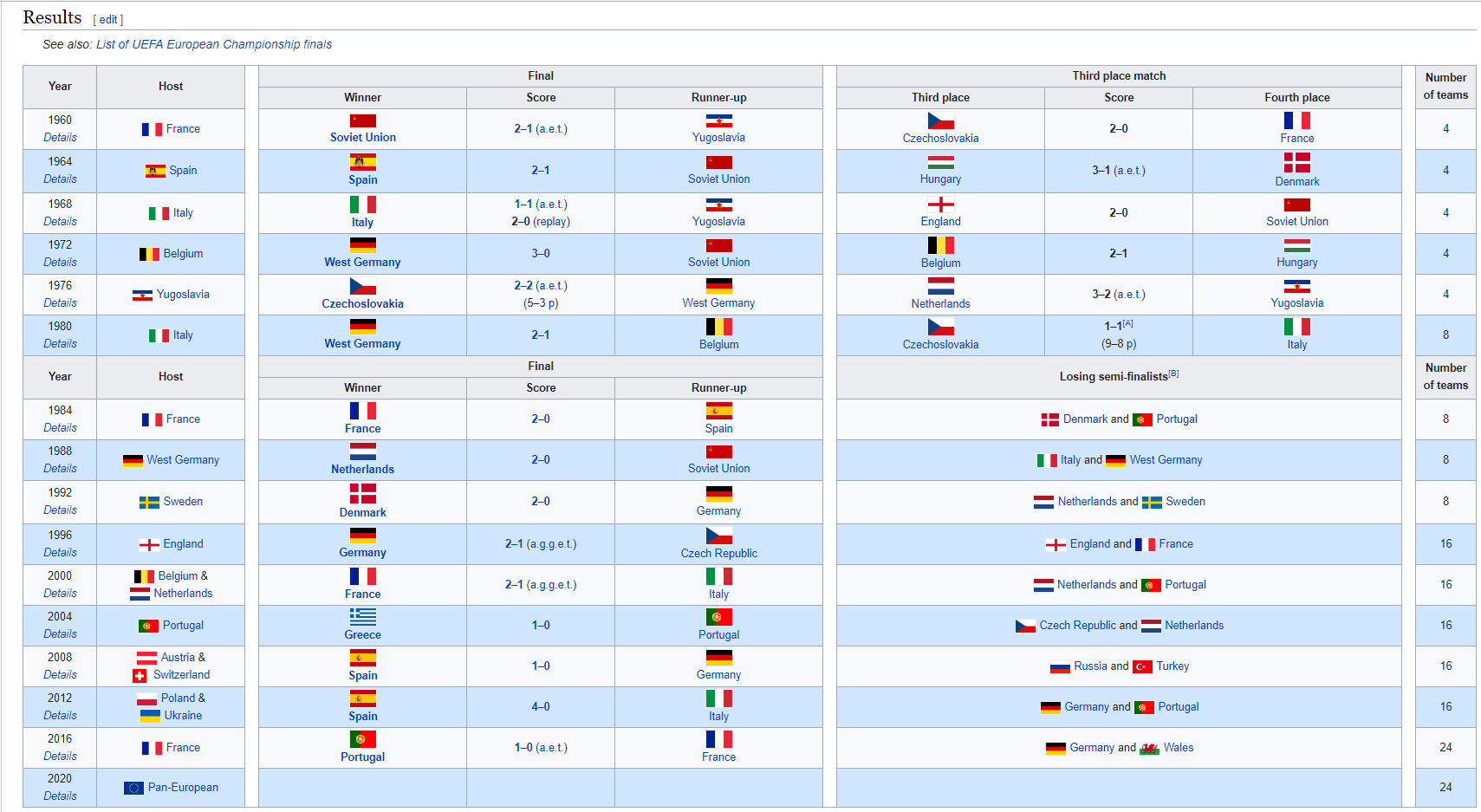

Screenshot shows Wikipedia Results table for the Euro Cup, which includes winners and other information.

Web connections are only established using basic authentication. Web sites requiring authentication might not work properly with the Web connector.

To import the data:

  1. In the Power BI Desktop Home ribbon tab, dropdown the arrow next to Get data, and then select Web.

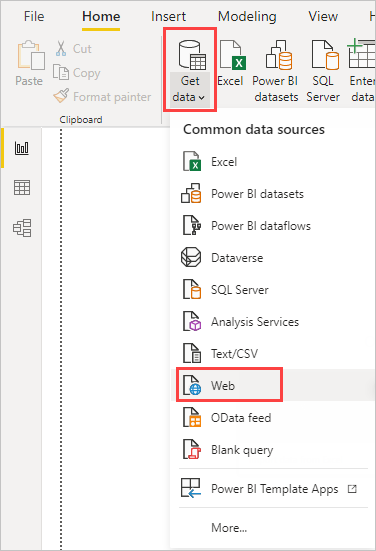

    Screenshot shows the Get data option on the ribbon with Web selected.

    Note

    You can also select the Get data item itself, or select Get data from other sources from Power BI Desktop Home, then select Web from the All or the Other section of the Get Data dialog, and then select Connect.

  2. In the From Web dialog, paste the URL https://en.wikipedia.org/wiki/UEFA_European_Football_Championship into the URL text box, and then select OK.

    Screenshot shows the From Web dialog where you can enter the URL for the webpage.

    After you connect to the Wikipedia webpage, the Navigator dialog shows a list of available tables on the page. You can select any of the table names to preview its data. Table 3 has the data you want, although it's not exactly in the shape you want. You'll reshape and clean up the data before loading it into your report.

    Screenshot shows the Navigator dialog with a table selected and Transform Data highlighted.

    Note

    The Preview pane shows the most recent table selected, but all selected tables load into the Power Query Editor when you select Transform Data or Load.

  3. Select Table 3 in the Navigator list, and then select Transform Data.

    A preview of the table opens in Power Query Editor, where you can apply transformations to clean up the data.

    Screenshot shows Power Query Editor with imported data ready for transformations.

Shape data in Power Query Editor

You want to make the data easier to scan by displaying only the years and the countries/regions that won. You can use the Power Query Editor to perform these data shaping and cleansing steps.

First, remove all the columns except for two from the table. Rename one of these columns as CountryRegion later in the process.

  1. In the Power Query Editor grid, select the columns. Press Ctrl to select multiple items.

  2. Right-click and select Remove Other Columns, or select Remove Columns > Remove Other Columns from the Manage Columns group in the Home ribbon tab, to remove all other columns from the table.

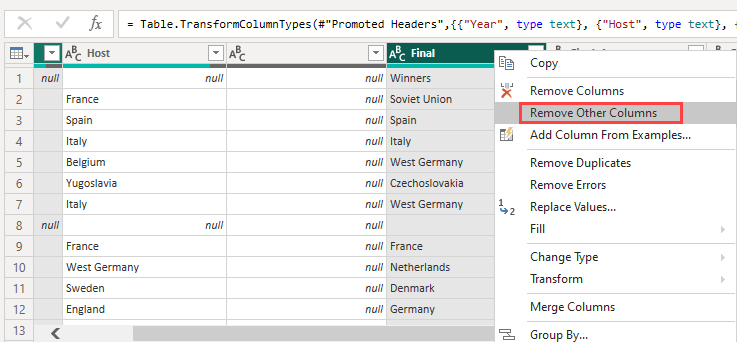

    Screenshot shows columns highlighted with Remove Other Columns selected in the context menu.

    or

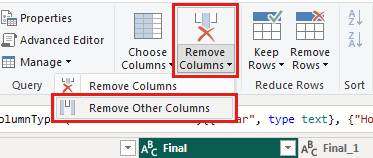

    Screenshot shows columns highlighted with Remove Other Columns selected in the ribbon.

The second row of the imported data contains values that aren't needed. You can filter the Final column to exclude the word "Winners".

  1. Select the filter dropdown arrow on the column.

  2. In the dropdown menu, scroll down and clear the checkbox next to the Winners option, and then select OK.

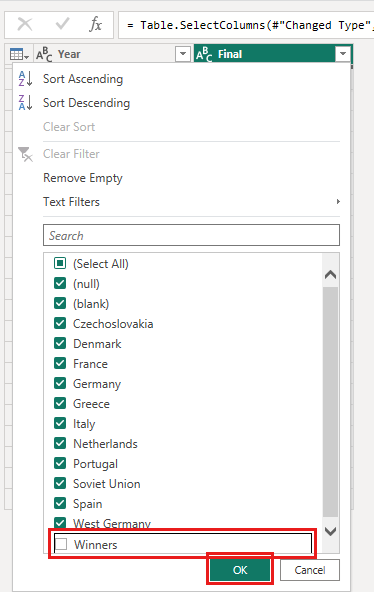

    Screenshot shows Text Filters in the context menu where you can remove entries.

    The cell with the word "Winners" is filtered out along with the one next to it, the null value in the same row for the other column.

  3. Do the same thing for 2028 and 2032, as these games are yet to be played and the outcomes are unknown.

Since you're only looking at the final winners data now, you can rename the second column to CountryRegion. To rename the column:

  1. Double-click or tap and hold in the second column header, or

    • Right-click the column header and select Rename, or
    • Select the column and select Rename from the Any Column group in the Transform tab of the ribbon.

    Screenshot shows the Rename option selected from the context menu for a column.

    or

    Screenshot shows the Rename option selected from the ribbon.

  2. Type CountryRegion in the header and press Enter to rename the column.

You also want to filter out rows that have null values in the CountryRegion column. You could use the filter menu as you did with the Winner value, or you can:

  1. Right-click on the row that has the value null in it. Since both columns have null in the same row, you can right-click on the cell in either column.

  2. Select Text Filters > Does not Equal in the context menu to remove any rows that contain that cell's value.

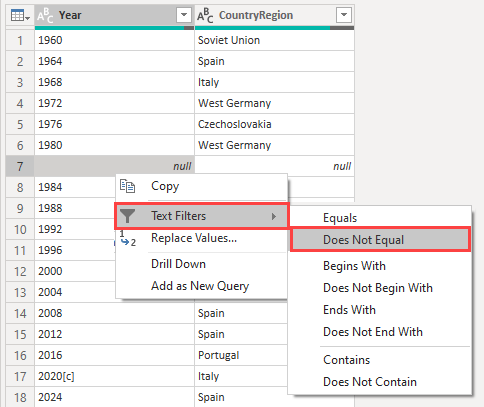

    Screenshot shows a context menu with Text Filters and Does Not Equal selected.

The imported data has the superscript note marker [c] appended to the year 2020. You can remove the note marker [c], or you can change the value to 2021, which is when the match took place, according to the note.

  1. Select the first column.

  2. Right-click and select Replace Values, or select Replace Values from the Transform group in the Home tab of the ribbon. This option is also found in the Any Column group in the Transform tab.

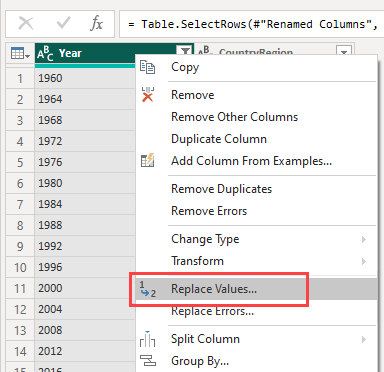

    Screenshot shows a column highlighted with Replace Values selected in the context menu.

    or

    Screenshot shows a column highlighted with Replace Values selected in the ribbon.

  3. In the Replace Values dialog, type 2020[c] in the Value To Find text box, enter 2021 in the Replace With text box, and then select OK to replace the value in the column.

    Screenshot shows the Replace Values dialog where you can change a value in a column.

Import the query into Report view

Now that you've shaped the data the way you want, you're ready to name your query "Euro Cup Winners" and import it into your report.

  1. In the Queries pane, in the Name text box, enter Euro Cup Winners.

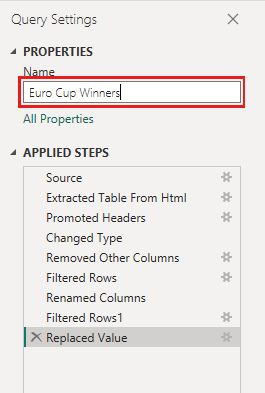

    Screenshot shows Query Settings with the name Euro Cup Winners entered.

  2. Select Close & Apply > Close & Apply from the Home tab of the ribbon.

    Screenshot shows the Close & Apply option on the Home ribbon.

The query loads into the Power BI Desktop Report view, where you can see it in the Data pane.

Screenshot shows the Data pane with Euro Cup Winners fields, Country and Year.

Tip

You can always get back to the Power Query Editor to edit and refine your query by:

  • Selecting the More options ellipsis (...) next to Euro Cup Winners in the Fields pane, and selecting Edit query, or
  • Selecting Transform data in the Queries group of the Home ribbon tab in Report view.

Create a visualization

To create a visualization based on your data:

  1. Select the CountryRegion field in the Data pane, or drag it to the report canvas. Power BI Desktop recognizes the data as country/region names, and automatically creates a Map visualization.

    Screenshot shows a map visualization of the Country/Region field.

  2. Enlarge the map by dragging the handles in the corners so all the winning country/region names are visible.

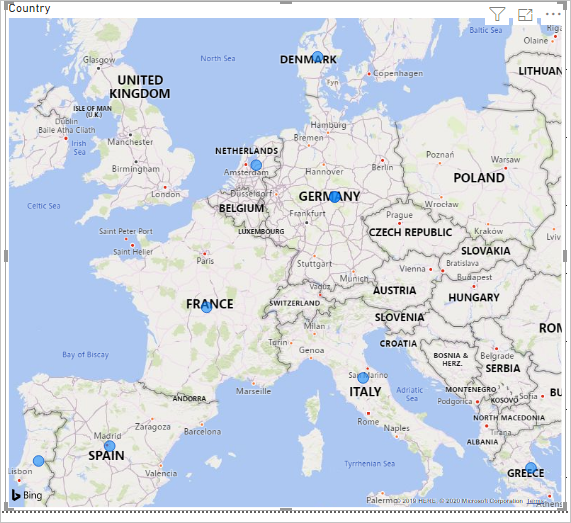

    Screenshot shows the map enlarged, as described.

  3. The map shows identical data points for every country/region that won a Euro Cup tournament. To make the size of each data point reflect how often the country/region has won, drag the Year field to Add data fields here under Bubble size in the lower part of the Visualizations pane. The field automatically changes to a Count of Year measure, and the map visualization now shows larger data points for countries/regions that have won more tournaments.

    Screenshot shows the result of dragging Count of Year into Bubble size.

Customize the visualization

As you can see, it's very easy to create visualizations based on your data. It's also easy to customize your visualizations to better present the data in ways that you want.

Format the map

You can change the appearance of a visualization by selecting it and then selecting the Format (paint brush) icon in the Visualizations pane. For example, the "Germany" data points in your visualization could be misleading, because West Germany won two tournaments and Germany won one. The map superimposes the two points rather than separating or adding them together. You can color these two points differently to highlight this fact. You can also give the map a more descriptive and attractive title.

  1. With the visualization selected, select the Format icon, and then select Visual > Bubbles > Colors to expand the data color options.

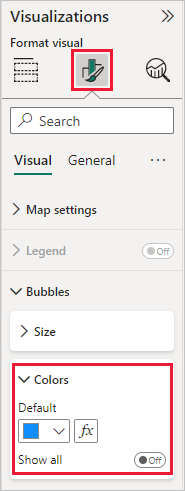

    Screenshot shows the Format icon selected with the Bubbles option open and Colors highlighted.

  2. Turn Show all to On, and then select the dropdown menu next to West Germany and choose a yellow color.

    Screenshot shows colors you can select to change the color, including Theme colors and Recent colors.

  3. Select General > Title to expand the title options, and in the Text field, type Euro Cup Winners in place of the current title.

  4. Change Text color to red, size to 12, and Font to Segoe UI (Bold).

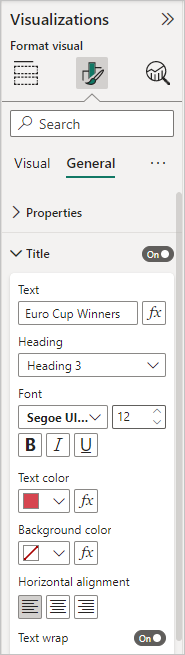

    Screenshot shows the Title option, where you can change font color, size, and family.

Your map visualization now looks like this example:

Screenshot shows the map visualization with the formatting changes applied.

Change the visualization type

You can change the type of a visualization by selecting it and then selecting a different icon at the top of the Visualizations pane. For example, your map visualization is missing the data for the Soviet Union, because that country/region no longer exists on the world map. Another type of visualization like a treemap or pie chart might be more accurate, because it shows all the values.

To change the map to a pie chart, select the map and then choose the Pie chart icon in the Visualizations pane.

Screenshot shows the same fields changed to a pie chart.

Tip

  • You can use the Data colors formatting options to make "Germany" and "West Germany" the same color.
  • To group the countries/regions with the most wins together on the pie chart, select the ellipsis (...) at the upper right of the visualization, and then select Sort axis and Count of Year.

Power BI Desktop provides a seamless end-to-end experience, from getting data from a wide range of data sources and shaping it to meet your analysis needs, to visualizing this data in rich and interactive ways. Once your report is ready, you can upload it to Power BI and create dashboards based on it, which you can share with other Power BI users.
