Populating a Table with Data in Xamarin.iOS

To add rows to a UITableView you need to implement a UITableViewSource subclass and override the methods that the table view calls to populate itself.

This guide covers:

• Subclassing a UITableViewSource
• Cell Reuse
• Adding an Index
• Adding Headers and Footers

Subclassing UITableViewSource

A UITableViewSource subclass is assigned to every UITableView. The table view queries the source class to determine how to render itself (for example, how many rows are required and the height of each row if different from the default). Most importantly, the source supplies each cell view populated with data.

There are only two mandatory methods required to make a table display data:

• RowsInSection – return an nint count of the total number of rows of data the table should display.
• GetCell – return a UITableViewCell populated with data for the corresponding row index passed to the method.

The BasicTable sample file TableSource.cs has the simplest possible implementation of UITableViewSource. You can see in code snippet below that it accepts an array of strings to display in the table and returns a default cell style containing each string:

public class TableSource : UITableViewSource {

        string[] TableItems;
        string CellIdentifier = "TableCell";

        public TableSource (string[] items)
        {
            TableItems = items;
        }

        public override nint RowsInSection (UITableView tableview, nint section)
        {
            return TableItems.Length;
        }

        public override UITableViewCell GetCell (UITableView tableView, NSIndexPath indexPath)
        {
            UITableViewCell cell = tableView.DequeueReusableCell (CellIdentifier);
            string item = TableItems[indexPath.Row];

            //if there are no cells to reuse, create a new one
            if (cell == null)
            {
                cell = new UITableViewCell (UITableViewCellStyle.Default, CellIdentifier);
            }

            cell.TextLabel.Text = item;

            return cell;
        }
}

A UITableViewSource can use any data structure, from a simple string array (as shown in this example) to a List <> or other collection. The implementation of UITableViewSource methods isolates the table from the underlying data structure.

To use this subclass, create a string array to construct the source then assign it to an instance of UITableView:

public override void ViewDidLoad ()
{
    base.ViewDidLoad ();
    table = new UITableView(View.Bounds); // defaults to Plain style
    string[] tableItems = new string[] {"Vegetables","Fruits","Flower Buds","Legumes","Bulbs","Tubers"};
    table.Source = new TableSource(tableItems);
    Add (table);
}

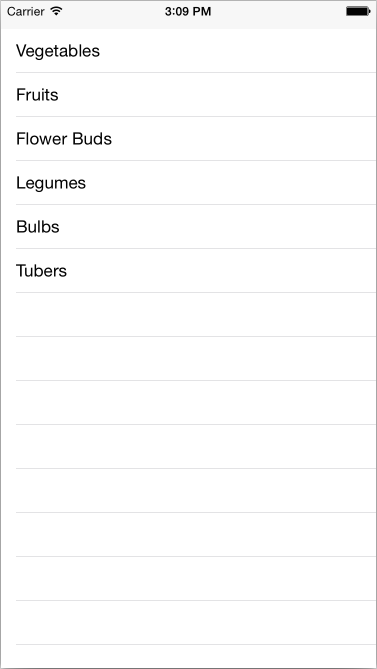

The resulting table looks like this:

Most tables allow the user to touch a row to select it and perform some other action (such as playing a song, or calling a contact, or showing another screen). To achieve this, there are a few things we need to do. First, let's create an AlertController to display a message when the user click on a row by adding the following to the RowSelected method:

public override void RowSelected (UITableView tableView, NSIndexPath indexPath)
{
    UIAlertController okAlertController = UIAlertController.Create ("Row Selected", tableItems[indexPath.Row], UIAlertControllerStyle.Alert);
    okAlertController.AddAction(UIAlertAction.Create("OK", UIAlertActionStyle.Default, null));
    ...

    tableView.DeselectRow (indexPath, true);
}

Next, create an instance of our View Controller:

HomeScreen owner;

Add a constructor to your UITableViewSource class which takes a view controller as a parameter and saves it in a field:

public TableSource (string[] items, HomeScreen owner)
{
    ...
    this.owner = owner;

}

Modify the ViewDidLoad method where the UITableViewSource class is created to pass the this reference:

table.Source = new TableSource(tableItems, this);

Finally, back in your RowSelected method, call PresentViewController on the cached field:

public override void RowSelected (UITableView tableView, NSIndexPath indexPath)
{
    ...
    owner.PresentViewController (okAlertController, true, null);

    ...
}

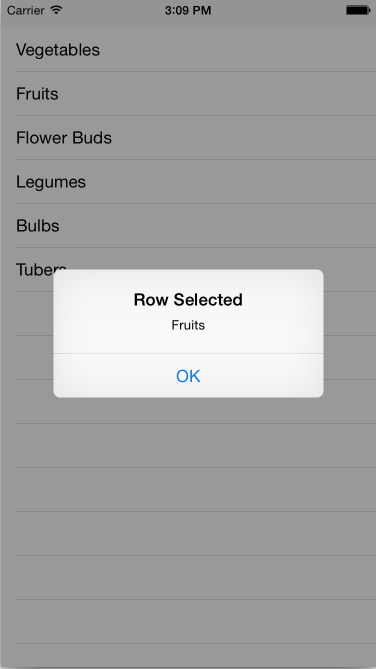

Now the user can touch a row and an alert will appear:

Cell Reuse

In this example there are only six items, so there is no cell reuse required. When displaying hundreds or thousands of rows, however, it would be a waste of memory to create hundreds or thousands of UITableViewCell objects when only a few fit on the screen at a time.

To avoid this situation, when a cell disappears from the screen its view is placed in a queue for reuse. As the user scrolls, the table calls GetCell to request new views to display – to reuse an existing cell (that is not currently being displayed) simply call the DequeueReusableCell method. If a cell is available for reuse it will be returned, otherwise a null is returned and your code must create a new cell instance.

This snippet of code from the example demonstrates the pattern:

// request a recycled cell to save memory
UITableViewCell cell = tableView.DequeueReusableCell (cellIdentifier);
// if there are no cells to reuse, create a new one
if (cell == null)
    cell = new UITableViewCell (UITableViewCellStyle.Default, cellIdentifier);

The cellIdentifier effectively creates separate queues for different types of cell. In this example all the cells look the same so only one hardcoded identifier is used. If there were different types of cell they should each have a different identifier string, both when they are instantiated and when they are requested from the reuse queue.

Cell Reuse in iOS 6+

iOS 6 added a cell reuse pattern similar to the one introduction with Collection Views. Although the existing reuse pattern shown above is still supported for backwards compatibility, this new pattern is preferable as it removes the need for the null check on the cell.

With the new pattern an application registers the cell class or xib to be used by calling either RegisterClassForCellReuse or RegisterNibForCellReuse in the controller's constructor. Then, when dequeueing the cell in the GetCell method, simply call DequeueReusableCell passing the identifier you registered for the cell class or xib and the index path.

For example, the following code registers a custom cell class in a UITableViewController:

public class MyTableViewController : UITableViewController
{
  static NSString MyCellId = new NSString ("MyCellId");

  public MyTableViewController ()
  {
    TableView.RegisterClassForCellReuse (typeof(MyCell), MyCellId);
  }
  ...
}

With the MyCell class registered, the cell can be dequeued in the GetCell method of the UITableViewSource without the need for the extra null check, as shown below:

class MyTableSource : UITableViewSource
{
  public override UITableViewCell GetCell (UITableView tableView, NSIndexPath indexPath)
  {
    // if cell is not available in reuse pool, iOS will create one automatically
    // no need to do null check and create cell manually
    var cell = (MyCell) tableView.DequeueReusableCell (MyCellId, indexPath);

    // do whatever you need to with cell, such as assigning properties, etc.

    return cell;
  }
}

Be aware, when using the new reuse pattern with a custom cell class, you need to implement the constructor that takes an IntPtr, as shown in the snippet below, otherwise Objective-C won't be able to construct an instance of the cell class:

public class MyCell : UITableViewCell
{
  public MyCell (IntPtr p):base(p)
  {
  }
  ...
}

You can see examples of the topics explained above in the BasicTable sample linked to this article.

Adding an Index

An index helps the user scroll through long lists, typically ordered alphabetically although you can index by whatever criteria you wish. The BasicTableIndex sample loads a much longer list of items from a file to demonstrate the index. Each item in the index corresponds to a ‘section’ of the table.

To support ‘sections’ the data behind the table needs to be grouped, so the BasicTableIndex sample creates a Dictionary<> from the array of strings using the first letter of each item as the dictionary key:

indexedTableItems = new Dictionary<string, List<string>>();
foreach (var t in items) {
    if (indexedTableItems.ContainsKey (t[0].ToString ())) {
        indexedTableItems[t[0].ToString ()].Add(t);
    } else {
        indexedTableItems.Add (t[0].ToString (), new List<string>() {t});
    }
}
keys = indexedTableItems.Keys.ToArray ();

The UITableViewSource subclass then needs the following methods added or modified to use the Dictionary<> :

• NumberOfSections – this method is optional, by default the table assumes one section. When displaying an index this method should return the number of items in the index (for example, 26 if the index contains all the letters of the English alphabet).
• RowsInSection – returns the number of rows in a given section.
• SectionIndexTitles – returns the array of strings that will be used to display the index. The sample code returns an array of letters.

The updated methods in the sample file BasicTableIndex/TableSource.cs look like this:

public override nint NumberOfSections (UITableView tableView)
{
    return keys.Length;
}
public override nint RowsInSection (UITableView tableview, nint section)
{
    return indexedTableItems[keys[section]].Count;
}
public override string[] SectionIndexTitles (UITableView tableView)
{
    return keys;
}

Indexes are generally only used with the Plain table style.

Adding Headers and Footers

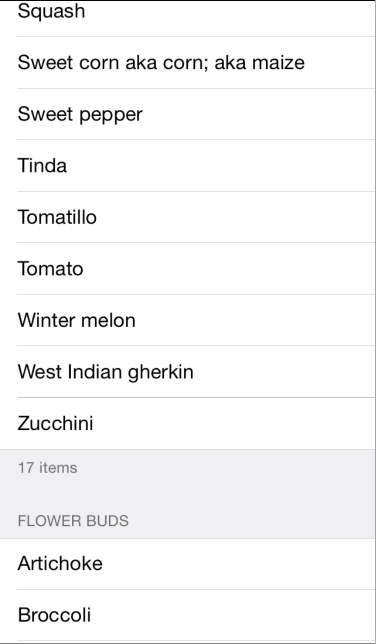

Headers and footers can be used to visually group rows in a table. The data structure required is very similar to adding an index – a Dictionary<> works really well. Instead of using the alphabet to group the cells, this example will group the vegetables by botanical type. The output looks like this:

To display headers and footers the UITableViewSource subclass requires these additional methods:

• TitleForHeader – returns the text to use as the header
• TitleForFooter – returns the text to use as the footer.

The updated methods in the sample file BasicTableHeaderFooter/Code/TableSource.cs look like this:

public override string TitleForHeader (UITableView tableView, nint section)
{
    return keys[section];
}
public override string TitleForFooter (UITableView tableView, nint section)
{
    return indexedTableItems[keys[section]].Count + " items";
}

You can further customize the appearance of the header and footer with a View object, using the GetViewForHeader and GetViewForFooter method overrides on UITableViewSource.
