Deadlocks guide
Applies to:
SQL Server
Azure SQL Database
Azure SQL Managed Instance
Azure Synapse Analytics
Analytics Platform System (PDW)
This article discusses deadlocks in the SQL Server Database Engine in depth. Deadlocks are caused competing, concurrent locks in the database, often in multi-step transactions. For more on transaction locking, see Transaction locking and row versioning guide.
For more specific information on identification and prevention of deadlocks in Azure SQL Database, see Analyze and prevent deadlocks in Azure SQL Database.
Understand deadlocks
A deadlock occurs when two or more tasks permanently block each other by each task having a lock on a resource that the other tasks are trying to lock. For example:
- Transaction A acquires a shared lock on row 1.
- Transaction B acquires a shared lock on row 2.
- Transaction A now requests an exclusive lock on row 2, and is blocked until transaction B finishes and releases the shared lock it has on row 2.
- Transaction B now requests an exclusive lock on row 1, and is blocked until transaction A finishes and releases the shared lock it has on row 1.
Transaction A cannot complete until transaction B completes, but transaction B is blocked by transaction A. This condition is also called a cyclic dependency: Transaction A has a dependency on transaction B, and transaction B closes the circle by having a dependency on transaction A.
Both transactions in a deadlock will wait forever unless the deadlock is broken by an external process. The SQL Server Database Engine deadlock monitor periodically checks for tasks that are in a deadlock. If the monitor detects a cyclic dependency, it chooses one of the tasks as a victim and terminates its transaction with an error. This allows the other task to complete its transaction. The application with the transaction that terminated with an error can retry the transaction, which usually completes after the other deadlocked transaction has finished.
Deadlocking is often confused with normal blocking. When a transaction requests a lock on a resource locked by another transaction, the requesting transaction waits until the lock is released. By default, SQL Server transactions do not time out, unless LOCK_TIMEOUT is set. The requesting transaction is blocked, not deadlocked, because the requesting transaction has not done anything to block the transaction owning the lock. Eventually, the owning transaction will complete and release the lock, and then the requesting transaction will be granted the lock and proceed. Deadlocks are resolved almost immediately, whereas blocking can, in theory, persist indefinitely. Deadlocks are sometimes called a deadly embrace.
Deadlock is a condition that can occur on any system with multiple threads, not just on a relational database management system, and can occur for resources other than locks on database objects. For example, a thread in a multithreaded operating system might acquire one or more resources, such as blocks of memory. If the resource being acquired is currently owned by another thread, the first thread might have to wait for the owning thread to release the target resource. The waiting thread is said to have a dependency on the owning thread for that particular resource. In an instance of the SQL Server Database Engine, sessions can deadlock when acquiring non-database resources, such as memory or threads.

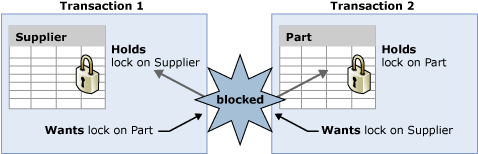

In the illustration, transaction T1 has a dependency on transaction T2 for the Part
table lock resource. Similarly, transaction T2 has a dependency on transaction T1 for the Supplier
table lock resource. Because these dependencies form a cycle, there is a deadlock between transactions T1 and T2.
Deadlocks can also occur when a table is partitioned and the LOCK_ESCALATION
setting of ALTER TABLE
is set to AUTO. When LOCK_ESCALATION
is set to AUTO, concurrency increases by allowing the SQL Server Database Engine to lock table partitions at the HoBT level instead of at the table level. However, when separate transactions hold partition locks in a table and want a lock somewhere on the other transactions partition, this causes a deadlock. This type of deadlock can be avoided by setting LOCK_ESCALATION
to TABLE
; although this setting will reduce concurrency by forcing large updates to a partition to wait for a table lock.
Detect and ending deadlocks
A deadlock occurs when two or more tasks permanently block each other by each task having a lock on a resource that the other tasks are trying to lock. The following graph presents a high level view of a deadlock state where:
- Task T1 has a lock on resource R1 (indicated by the arrow from R1 to T1) and has requested a lock on resource R2 (indicated by the arrow from T1 to R2).
- Task T2 has a lock on resource R2 (indicated by the arrow from R2 to T2) and has requested a lock on resource R1 (indicated by the arrow from T2 to R1).
- Because neither task can continue until a resource is available and neither resource can be released until a task continues, a deadlock state exists.
The SQL Server Database Engine automatically detects deadlock cycles within SQL Server. The SQL Server Database Engine chooses one of the sessions as a deadlock victim and the current transaction is terminated with an error to break the deadlock.
Resources that can deadlock
Each user session might have one or more tasks running on its behalf where each task might acquire or wait to acquire resources. The following types of resources can cause blocking that could result in a deadlock.
Locks. Waiting to acquire locks on resources, such as objects, pages, rows, metadata, and applications can cause a deadlock. For example, transaction T1 has a shared (S) lock on row r1 and is waiting to get an exclusive (X) lock on r2. Transaction T2 has a shared (S) lock on r2 and is waiting to get an exclusive (X) lock on row r1. This results in a lock cycle in which T1 and T2 wait for each other to release the locked resources.
Worker threads. A queued task waiting for an available worker thread can cause a deadlock. If the queued task owns resources that are blocking all worker threads, a deadlock will result. For example, session S1 starts a transaction and acquires a shared (S) lock on row r1 and then goes to sleep. Active sessions running on all available worker threads are trying to acquire exclusive (X) locks on row r1. Because session S1 cannot acquire a worker thread, it cannot commit the transaction and release the lock on row r1. This results in a deadlock.
Memory. When concurrent requests are waiting for memory grants that cannot be satisfied with the available memory, a deadlock can occur. For example, two concurrent queries, Q1 and Q2, execute as user-defined functions that acquire 10 MB and 20 MB of memory respectively. If each query needs 30 MB and the total available memory is 20 MB, then Q1 and Q2 must wait for each other to release memory, and this results in a deadlock.
Parallel query execution-related resources. Coordinator, producer, or consumer threads associated with an exchange port might block each other causing a deadlock usually when including at least one other process that is not a part of the parallel query. Also, when a parallel query starts execution, SQL Server determines the degree of parallelism, or the number of worker threads, based upon the current workload. If the system workload unexpectedly changes, for example, where new queries start running on the server or the system runs out of worker threads, then a deadlock could occur.
Multiple Active Result Sets (MARS) resources. These resources are used to control interleaving of multiple active requests under MARS. For more information, see Using Multiple Active Result Sets (MARS).
User resource. When a thread is waiting for a resource that is potentially controlled by a user application, the resource is considered to be an external or user resource and is treated like a lock.
Session mutex. The tasks running in one session are interleaved, meaning that only one task can run under the session at a given time. Before the task can run, it must have exclusive access to the session mutex.
Transaction mutex. All tasks running in one transaction are interleaved, meaning that only one task can run under the transaction at a given time. Before the task can run, it must have exclusive access to the transaction mutex.
In order for a task to run under MARS, it must acquire the session mutex. If the task is running under a transaction, it must then acquire the transaction mutex. This guarantees that only one task is active at one time in a given session and a given transaction. Once the required mutexes have been acquired, the task can execute. When the task finishes, or yields in the middle of the request, it will first release transaction mutex followed by the session mutex in reverse order of acquisition. However, deadlocks can occur with these resources. In the following pseudocode, two tasks, user request U1 and user request U2, are running in the same session.
U1: Rs1=Command1.Execute("insert sometable EXEC usp_someproc"); U2: Rs2=Command2.Execute("select colA from sometable");
The stored procedure executing from user request U1 has acquired the session mutex. If the stored procedure takes a long time to execute, it is assumed by the SQL Server Database Engine that the stored procedure is waiting for input from the user. User request U2 is waiting for the session mutex while the user is waiting for the result set from U2, and U1 is waiting for a user resource. This is deadlock state logically illustrated as:
Deadlock detection
All of the resources listed in the Resources that can deadlock section participate in the SQL Server Database Engine deadlock detection scheme. Deadlock detection is performed by a lock monitor thread that periodically initiates a search through all of the tasks in an instance of the SQL Server Database Engine. The following points describe the search process:
- The default interval is 5 seconds.
- If the lock monitor thread finds deadlocks, the deadlock detection interval drops from 5 seconds to as low as 100 milliseconds depending on the frequency of deadlocks.
- If the lock monitor thread stops finding deadlocks, the SQL Server Database Engine increases the intervals between searches to 5 seconds.
- If a deadlock has just been detected, it is assumed that the next threads that must wait for a lock are entering the deadlock cycle. The first couple of lock waits after a deadlock has been detected will immediately trigger a deadlock search rather than wait for the next deadlock detection interval. For example, if the current interval is 5 seconds, and a deadlock was just detected, the next lock wait will kick off the deadlock detector immediately. If this lock wait is part of a deadlock, it will be detected right away rather than during next deadlock search.
The SQL Server Database Engine typically performs periodic deadlock detection only. Because the number of deadlocks encountered in the system is usually small, periodic deadlock detection helps to reduce the overhead of deadlock detection in the system.
When the lock monitor initiates deadlock search for a particular thread, it identifies the resource on which the thread is waiting. The lock monitor then finds the owners for that particular resource and recursively continues the deadlock search for those threads until it finds a cycle. A cycle identified in this manner forms a deadlock.
After a deadlock is detected, the SQL Server Database Engine ends a deadlock by choosing one of the threads as a deadlock victim. The SQL Server Database Engine terminates the current batch being executed for the thread, rolls back the transaction of the deadlock victim, and returns a 1205 error to the application. Rolling back the transaction for the deadlock victim releases all locks held by the transaction. This allows the transactions of the other threads to become unblocked and continue. The 1205 deadlock victim error records information about the threads and resources involved in a deadlock in the error log.
By default, the SQL Server Database Engine chooses as the deadlock victim the session running the transaction that is least expensive to roll back. Alternatively, a user can specify the priority of sessions in a deadlock situation using the SET DEADLOCK_PRIORITY
statement. DEADLOCK_PRIORITY can be set to LOW, NORMAL, or HIGH, or alternatively can be set to any integer value in the range (-10 to 10). The deadlock priority defaults to NORMAL. If two sessions have different deadlock priorities, the session with the lower priority is chosen as the deadlock victim. If both sessions have the same deadlock priority, the session with the transaction that is least expensive to roll back is chosen. If sessions involved in the deadlock cycle have the same deadlock priority and the same cost, a victim is chosen randomly.
When working with CLR, the deadlock monitor automatically detects deadlock for synchronization resources (monitors, reader/writer lock, and thread join) accessed inside managed procedures. However, the deadlock is resolved by throwing an exception in the procedure that was selected to be the deadlock victim. It is important to understand that the exception does not automatically release resources currently owned by the victim; the resources must be explicitly released. Consistent with exception behavior, the exception used to identify a deadlock victim can be caught and dismissed.
Deadlock information tools
To view deadlock information, the SQL Server Database Engine provides monitoring tools in the form of the system_health
xEvent session, two trace flags, and the deadlock graph event in SQL Profiler.
Note
This section contains information on extended events, trace flags, and traces, but the Deadlock extended event is the recommended method for capturing deadlock information.
Deadlock extended event
Starting with SQL Server 2012 (11.x), the xml_deadlock_report
Extended Event (xEvent) should be used instead of the Deadlock graph event class in SQL Trace or SQL Profiler.
Also starting with SQL Server 2012 (11.x), when deadlocks occur, the system_health
session already captures all xml_deadlock_report
xEvents that contain the deadlock graph. Because the system_health
session is enabled by default, it's not required that a separate xEvent session is configured to capture deadlock information. No additional action to capture deadlock information with the xml_deadlock_report
xEvent is required.
The deadlock graph captured typically has three distinct nodes:
- victim-list. The deadlock victim process identifier.
- process-list. Information on all the processes involved in the deadlock.
- resource-list. Information about the resources involved in the deadlock.

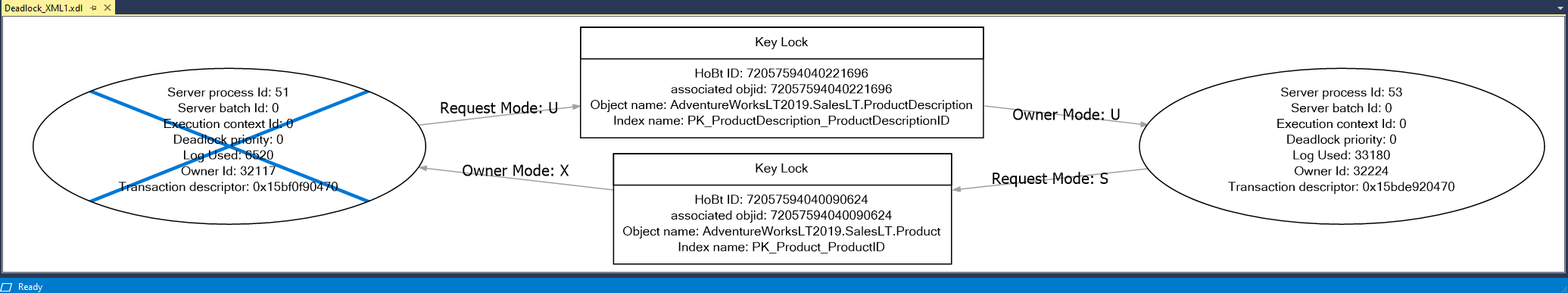

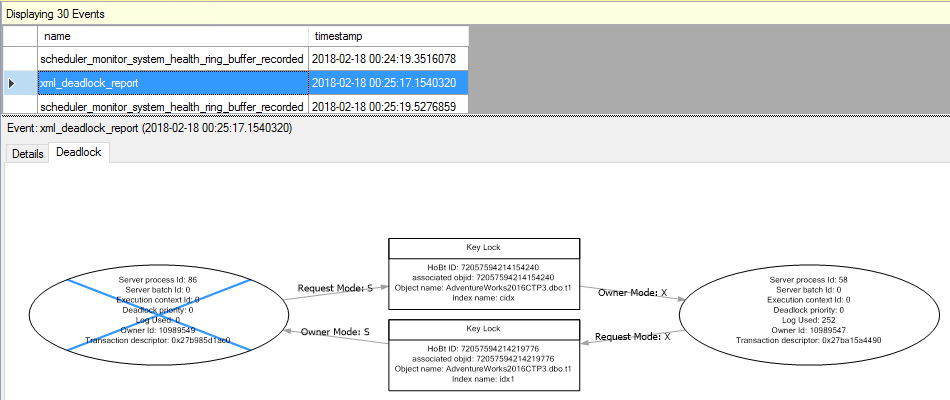

Opening the system_health
session file or ring buffer, if the xml_deadlock_report
xEvent is recorded, Management Studio presents a graphical depiction of the tasks and resources involved in a deadlock, as seen in the following example:
The following query can view all deadlock events captured by the system_health
session ring buffer:
SELECT xdr.value('@timestamp', 'datetime') AS [Date],
xdr.query('.') AS [Event_Data]
FROM (SELECT CAST([target_data] AS XML) AS Target_Data
FROM sys.dm_xe_session_targets AS xt
INNER JOIN sys.dm_xe_sessions AS xs ON xs.address = xt.event_session_address
WHERE xs.name = N'system_health'
AND xt.target_name = N'ring_buffer'
) AS XML_Data
CROSS APPLY Target_Data.nodes('RingBufferTarget/event[@name="xml_deadlock_report"]') AS XEventData(xdr)
ORDER BY [Date] DESC;

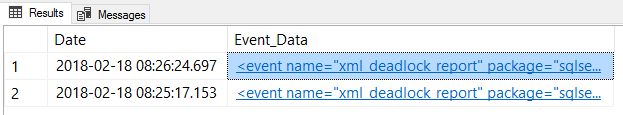

Here is the result set.
The following example shows the output, after selecting on the link in Event_Data
in the first row of the result:
<event name="xml_deadlock_report" package="sqlserver" timestamp="2022-02-18T08:26:24.698Z">
<data name="xml_report">
<type name="xml" package="package0" />
<value>
<deadlock>
<victim-list>
<victimProcess id="process27b9b0b9848" />
</victim-list>
<process-list>
<process id="process27b9b0b9848" taskpriority="0" logused="0" waitresource="KEY: 5:72057594214350848 (1a39e6095155)" waittime="1631" ownerId="11088595" transactionname="SELECT" lasttranstarted="2022-02-18T00:26:23.073" XDES="0x27b9f79fac0" lockMode="S" schedulerid="9" kpid="15336" status="suspended" spid="62" sbid="0" ecid="0" priority="0" trancount="0" lastbatchstarted="2022-02-18T00:26:22.893" lastbatchcompleted="2022-02-18T00:26:22.890" lastattention="1900-01-01T00:00:00.890" clientapp="SQLCMD" hostname="ContosoServer" hostpid="7908" loginname="CONTOSO\user" isolationlevel="read committed (2)" xactid="11088595" currentdb="5" lockTimeout="4294967295" clientoption1="538968096" clientoption2="128056">
<executionStack>
<frame procname="AdventureWorks2022.dbo.p1" line="3" stmtstart="78" stmtend="180" sqlhandle="0x0300050020766505ca3e07008ba8000001000000000000000000000000000000000000000000000000000000">
SELECT c2, c3 FROM t1 WHERE c2 BETWEEN @p1 AND @p1+ </frame>
<frame procname="adhoc" line="4" stmtstart="82" stmtend="98" sqlhandle="0x020000006263ec01ebb919c335024a072a2699958d3fcce60000000000000000000000000000000000000000">
unknown </frame>
</executionStack>
<inputbuf>
SET NOCOUNT ON
WHILE (1=1)
BEGIN
EXEC p1 4
END
</inputbuf>
</process>
<process id="process27b9ee33c28" taskpriority="0" logused="252" waitresource="KEY: 5:72057594214416384 (e5b3d7e750dd)" waittime="1631" ownerId="11088593" transactionname="UPDATE" lasttranstarted="2022-02-18T00:26:23.073" XDES="0x27ba15a4490" lockMode="X" schedulerid="6" kpid="5584" status="suspended" spid="58" sbid="0" ecid="0" priority="0" trancount="2" lastbatchstarted="2022-02-18T00:26:22.890" lastbatchcompleted="2022-02-18T00:26:22.890" lastattention="1900-01-01T00:00:00.890" clientapp="SQLCMD" hostname="ContosoServer" hostpid="15316" loginname="CONTOSO\user" isolationlevel="read committed (2)" xactid="11088593" currentdb="5" lockTimeout="4294967295" clientoption1="538968096" clientoption2="128056">
<executionStack>
<frame procname="AdventureWorks2022.dbo.p2" line="3" stmtstart="76" stmtend="150" sqlhandle="0x03000500599a5906ce3e07008ba8000001000000000000000000000000000000000000000000000000000000">
UPDATE t1 SET c2 = c2+1 WHERE c1 = @p </frame>
<frame procname="adhoc" line="4" stmtstart="82" stmtend="98" sqlhandle="0x02000000008fe521e5fb1099410048c5743ff7da04b2047b0000000000000000000000000000000000000000">
unknown </frame>
</executionStack>
<inputbuf>
SET NOCOUNT ON
WHILE (1=1)
BEGIN
EXEC p2 4
END
</inputbuf>
</process>
</process-list>
<resource-list>
<keylock hobtid="72057594214350848" dbid="5" objectname="AdventureWorks2022.dbo.t1" indexname="cidx" id="lock27b9dd26a00" mode="X" associatedObjectId="72057594214350848">
<owner-list>
<owner id="process27b9ee33c28" mode="X" />
</owner-list>
<waiter-list>
<waiter id="process27b9b0b9848" mode="S" requestType="wait" />
</waiter-list>
</keylock>
<keylock hobtid="72057594214416384" dbid="5" objectname="AdventureWorks2022.dbo.t1" indexname="idx1" id="lock27afa392600" mode="S" associatedObjectId="72057594214416384">
<owner-list>
<owner id="process27b9b0b9848" mode="S" />
</owner-list>
<waiter-list>
<waiter id="process27b9ee33c28" mode="X" requestType="wait" />
</waiter-list>
</keylock>
</resource-list>
</deadlock>
</value>
</data>
</event>
For more information, see Use the system_health Session
Trace Flag 1204 and Trace Flag 1222
When deadlocks occur, Trace Flag 1204 and Trace Flag 1222 return information that is captured in the SQL Server error log. Trace Flag 1204 reports deadlock information formatted by each node involved in the deadlock. Trace Flag 1222 formats deadlock information, first by processes and then by resources. It is possible to enable both trace flags to obtain two representations of the same deadlock event.
Important
Avoid using Trace Flag 1204 and 1222 on workload-intensive systems that are experiencing deadlocks. Using these trace flags might introduce performance issues. Instead, use the Deadlock Extended Event to capture the necessary information.
In addition to defining the properties of Trace Flag 1204 and 1222, the following table also shows the similarities and differences.
Property | Trace Flag 1204 and Trace Flag 1222 | Trace Flag 1204 only | Trace Flag 1222 only |
---|---|---|---|
Output format | Output is captured in the SQL Server error log. | Focused on the nodes involved in the deadlock. Each node has a dedicated section, and the final section describes the deadlock victim. | Returns information in an XML-like format that does not conform to an XML Schema Definition (XSD) schema. The format has three major sections. The first section declares the deadlock victim. The second section describes each process involved in the deadlock. The third section describes the resources that are synonymous with nodes in Trace Flag 1204. |
Identifying attributes | SPID:<x> ECID:<x>. Identifies the system process ID thread in cases of parallel processes. The entry SPID:<x> ECID:0 , where <x> is replaced by the SPID value, represents the main thread. The entry SPID:<x> ECID:<y> , where <x> is replaced by the SPID value and <y> is greater than 0, represents the subthreads for the same SPID.BatchID (sbid for Trace Flag 1222). Identifies the batch from which code execution is requesting or holding a lock. When Multiple Active Result Sets (MARS) is disabled, the BatchID value is 0. When MARS is enabled, the value for active batches is 1 to n. If there are no active batches in the session, BatchID is 0.Mode Specifies the type of lock for a particular resource that is requested, granted, or waited on by a thread. Mode can be IS (Intent Shared), S (Shared), U (Update), IX (Intent Exclusive), SIX (Shared with Intent Exclusive), and X (Exclusive).Line # (line for Trace Flag 1222). Lists the line number in the current batch of statements that was being executed when the deadlock occurred.Input Buf (inputbuf for Trace Flag 1222). Lists all the statements in the current batch. |
Node Represents the entry number in the deadlock chain.Lists The lock owner can be part of these lists:Grant List Enumerates the current owners of the resource.Convert List Enumerates the current owners that are trying to convert their locks to a higher level.Wait List Enumerates current new lock requests for the resource.Statement Type Describes the type of DML statement (SELECT , INSERT , UPDATE , or DELETE ) on which the threads have permissions.Victim Resource Owner Specifies the participating thread that SQL Server chooses as the victim to break the deadlock cycle. The chosen thread and all existing subthreads are terminated.Next Branch Represents the two or more subthreads from the same SPID that are involved in the deadlock cycle. |
deadlock victim Represents the physical memory address of the task (see sys.dm_os_tasks (Transact-SQL)) that was selected as a deadlock victim. It might be 0 (zero) in the case of an unresolved deadlock. A task that is rolling back cannot be chosen as a deadlock victim.executionstack Represents Transact-SQL code that is being executed at the time the deadlock occurs.priority Represents deadlock priority. In certain cases, the SQL Server Database Engine might opt to alter the deadlock priority for a short duration to achieve better concurrency.logused Log space used by the task.owner id The ID of the transaction that has control of the request.status State of the task. It is one of the following values:>> pending Waiting for a worker thread.>> runnable Ready to run but waiting for a quantum.>> running Currently running on the scheduler.>> suspended Execution is suspended.>> done Task has completed.>> spinloop Waiting for a spinlock to become free.waitresource The resource needed by the task.waittime Time in milliseconds waiting for the resource.schedulerid Scheduler associated with this task. See sys.dm_os_schedulers (Transact-SQL).hostname The name of the workstation.isolationlevel The current transaction isolation level.Xactid The ID of the transaction that has control of the request.currentdb The ID of the database.lastbatchstarted The last time a client process started batch execution.lastbatchcompleted The last time a client process completed batch execution.clientoption1 and clientoption2 Set options on this client connection. This is a bitmask that includes information about options usually controlled by SET statements such as SET NOCOUNT and SET XACTABORT .associatedObjectId Represents the HoBT (heap or B-tree) ID. |
Resource attributes | RID Identifies the single row within a table on which a lock is held or requested. RID is represented as RID: db_id:file_id:page_no:row_no . For example, RID: 6:1:20789:0 .OBJECT Identifies the table on which a lock is held or requested. OBJECT is represented as OBJECT: db_id:object_id . For example, TAB: 6:2009058193 .KEY Identifies the key range within an index on which a lock is held or requested. KEY is represented as KEY: db_id:hobt_id (index key hash value). For example, KEY: 6:72057594057457664 (350007a4d329) .PAG Identifies the page resource on which a lock is held or requested. PAG is represented as PAG: db_id:file_id:page_no . For example, PAG: 6:1:20789 .EXT Identifies the extent structure. EXT is represented as EXT: db_id:file_id:extent_no . For example, EXT: 6:1:9 .DB Identifies the database lock. DB is represented in one of the following ways:DB: db_id DB: db_id[BULK-OP-DB] , which identifies the database lock taken by the backup database.DB: db_id[BULK-OP-LOG] , which identifies the lock taken by the backup log for that particular database.APP Identifies the lock taken by an application resource. APP is represented as APP: lock_resource . For example, APP: Formf370f478 .METADATA Represents metadata resources involved in a deadlock. Because METADATA has many subresources, the value returned depends upon the subresource that has deadlocked. For example, METADATA.USER_TYPE returns user_type_id = *integer_value* . For more information about METADATA resources and subresources, see sys.dm_tran_locks (Transact-SQL).HOBT Represents a heap or B-tree involved in a deadlock. |
None exclusive to this trace flag. | None exclusive to this trace flag. |
Trace Flag 1204 example
The following example shows the output when Trace Flag 1204 is turned on. In this case, the table in Node 1 is a heap with no indexes, and the table in Node 2 is a heap with a nonclustered index. The index key in Node 2 is being updated when the deadlock occurs.
Deadlock encountered .... Printing deadlock information
Wait-for graph
Node:1
RID: 6:1:20789:0 CleanCnt:3 Mode:X Flags: 0x2
Grant List 0:
Owner:0x0315D6A0 Mode: X
Flg:0x0 Ref:0 Life:02000000 SPID:55 ECID:0 XactLockInfo: 0x04D9E27C
SPID: 55 ECID: 0 Statement Type: UPDATE Line #: 6
Input Buf: Language Event:
BEGIN TRANSACTION
EXEC usp_p2
Requested By:
ResType:LockOwner Stype:'OR'Xdes:0x03A3DAD0
Mode: U SPID:54 BatchID:0 ECID:0 TaskProxy:(0x04976374) Value:0x315d200 Cost:(0/868)
Node:2
KEY: 6:72057594057457664 (350007a4d329) CleanCnt:2 Mode:X Flags: 0x0
Grant List 0:
Owner:0x0315D140 Mode: X
Flg:0x0 Ref:0 Life:02000000 SPID:54 ECID:0 XactLockInfo: 0x03A3DAF4
SPID: 54 ECID: 0 Statement Type: UPDATE Line #: 6
Input Buf: Language Event:
BEGIN TRANSACTION
EXEC usp_p1
Requested By:
ResType:LockOwner Stype:'OR'Xdes:0x04D9E258
Mode: U SPID:55 BatchID:0 ECID:0 TaskProxy:(0x0475E374) Value:0x315d4a0 Cost:(0/380)
Victim Resource Owner:
ResType:LockOwner Stype:'OR'Xdes:0x04D9E258
Mode: U SPID:55 BatchID:0 ECID:0 TaskProxy:(0x0475E374) Value:0x315d4a0 Cost:(0/380)
Trace Flag 1222 example
The following example shows the output when Trace Flag 1222 is turned on. In this case, one table is a heap with no indexes, and the other table is a heap with a nonclustered index. In the second table, the index key is being updated when the deadlock occurs.
deadlock-list
deadlock victim=process689978
process-list
process id=process6891f8 taskpriority=0 logused=868
waitresource=RID: 6:1:20789:0 waittime=1359 ownerId=310444
transactionname=user_transaction
lasttranstarted=2022-02-05T11:22:42.733 XDES=0x3a3dad0
lockMode=U schedulerid=1 kpid=1952 status=suspended spid=54
sbid=0 ecid=0 priority=0 transcount=2
lastbatchstarted=2022-02-05T11:22:42.733
lastbatchcompleted=2022-02-05T11:22:42.733
clientapp=Microsoft SQL Server Management Studio - Query
hostname=TEST_SERVER hostpid=2216 loginname=DOMAIN\user
isolationlevel=read committed (2) xactid=310444 currentdb=6
lockTimeout=4294967295 clientoption1=671090784 clientoption2=390200
executionStack
frame procname=AdventureWorks2022.dbo.usp_p1 line=6 stmtstart=202
sqlhandle=0x0300060013e6446b027cbb00c69600000100000000000000
UPDATE T2 SET COL1 = 3 WHERE COL1 = 1;
frame procname=adhoc line=3 stmtstart=44
sqlhandle=0x01000600856aa70f503b8104000000000000000000000000
EXEC usp_p1
inputbuf
BEGIN TRANSACTION
EXEC usp_p1
process id=process689978 taskpriority=0 logused=380
waitresource=KEY: 6:72057594057457664 (350007a4d329)
waittime=5015 ownerId=310462 transactionname=user_transaction
lasttranstarted=2022-02-05T11:22:44.077 XDES=0x4d9e258 lockMode=U
schedulerid=1 kpid=3024 status=suspended spid=55 sbid=0 ecid=0
priority=0 transcount=2 lastbatchstarted=2022-02-05T11:22:44.077
lastbatchcompleted=2022-02-05T11:22:44.077
clientapp=Microsoft SQL Server Management Studio - Query
hostname=TEST_SERVER hostpid=2216 loginname=DOMAIN\user
isolationlevel=read committed (2) xactid=310462 currentdb=6
lockTimeout=4294967295 clientoption1=671090784 clientoption2=390200
executionStack
frame procname=AdventureWorks2022.dbo.usp_p2 line=6 stmtstart=200
sqlhandle=0x030006004c0a396c027cbb00c69600000100000000000000
UPDATE T1 SET COL1 = 4 WHERE COL1 = 1;
frame procname=adhoc line=3 stmtstart=44
sqlhandle=0x01000600d688e709b85f8904000000000000000000000000
EXEC usp_p2
inputbuf
BEGIN TRANSACTION
EXEC usp_p2
resource-list
ridlock fileid=1 pageid=20789 dbid=6 objectname=AdventureWorks2022.dbo.T2
id=lock3136940 mode=X associatedObjectId=72057594057392128
owner-list
owner id=process689978 mode=X
waiter-list
waiter id=process6891f8 mode=U requestType=wait
keylock hobtid=72057594057457664 dbid=6 objectname=AdventureWorks2022.dbo.T1
indexname=nci_T1_COL1 id=lock3136fc0 mode=X
associatedObjectId=72057594057457664
owner-list
owner id=process6891f8 mode=X
waiter-list
waiter id=process689978 mode=U requestType=wait

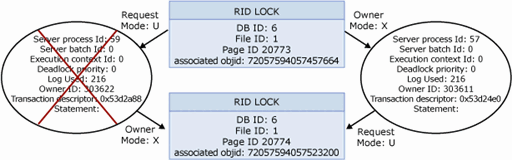

Profiler deadlock graph event
This is an event in SQL Profiler that presents a graphical depiction of the tasks and resources involved in a deadlock. The following example shows the output from SQL Profiler when the deadlock graph event is turned on.
Important
The SQL Profiler creates traces, which were deprecated in 2016 and replaced by Extended Events. Extended Events have far less performance overhead and are far more configurable than traces. Consider using the Extended Events deadlock event instead of traces.
For more information about the deadlock event, see Lock:Deadlock Event Class. For more information about running the SQL Profiler deadlock graph, see Save Deadlock Graphs (SQL Server Profiler).
There are equivalents for SQL Trace event classes in Extended Events, see Extended Events Equivalents to SQL Trace Event Classes. Extended events are recommended over SQL Traces.
Handle deadlocks
When an instance of the SQL Server Database Engine chooses a transaction as a deadlock victim, it terminates the current batch, rolls back the transaction, and returns error message 1205 to the application.
Your transaction (process ID #52) was deadlocked on {lock | communication buffer | thread} resources with another process and has been chosen as the deadlock victim. Rerun your transaction.
Because any application submitting Transact-SQL queries can be chosen as the deadlock victim, applications should have an error handler that can trap error message 1205. If an application does not trap the error, the application can proceed unaware that its transaction has been rolled back and errors can occur.
Implementing an error handler that traps error message 1205 allows an application to handle the deadlock situation and take remedial action (for example, automatically resubmitting the query that was involved in the deadlock). By resubmitting the query automatically, the user does not need to know that a deadlock occurred.
The application should pause briefly before resubmitting its query. This gives the other transaction involved in the deadlock a chance to complete and release its locks that formed part of the deadlock cycle. This minimizes the likelihood of the deadlock reoccurring when the resubmitted query requests its locks.
Minimize deadlocks
Although deadlocks cannot be completely avoided, following certain coding conventions can minimize the chance of generating a deadlock. Minimizing deadlocks can increase transaction throughput and reduce system overhead because fewer transactions are:
- Rolled back, undoing all the work performed by the transaction.
- Resubmitted by applications because they were rolled back when deadlocked.
To help minimize deadlocks:
- Access objects in the same order.
- Avoid user interaction in transactions.
- Keep transactions short and in one batch.
- Use a lower isolation level.
- Use a row versioning-based isolation level.
- Set
READ_COMMITTED_SNAPSHOT
database option on to enable read-committed transactions to use row versioning. - Use snapshot isolation.
- Set
- Use bound connections.

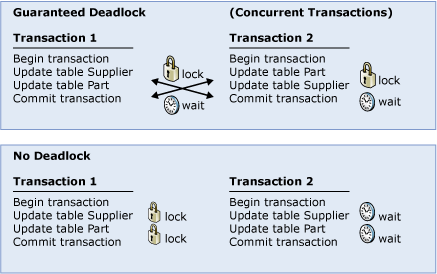

Access objects in the same order
If all concurrent transactions access objects in the same order, deadlocks are less likely to occur. For example, if two concurrent transactions obtain a lock on the Supplier
table and then on the Part
table, one transaction is blocked on the Supplier
table until the other transaction is completed. After the first transaction commits or rolls back, the second continues, and a deadlock does not occur. Using stored procedures for all data modifications can standardize the order of accessing objects.
Avoid user interaction in transactions
Avoid writing transactions that include user interaction, because the speed of batches running without user intervention is much faster than the speed at which a user must manually respond to queries, such as replying to a prompt for a parameter requested by an application. For example, if a transaction is waiting for user input and the user goes to lunch or even home for the weekend, the user delays the transaction from completing. This degrades system throughput because any locks held by the transaction are released only when the transaction is committed or rolled back. Even if a deadlock situation does not arise, other transactions accessing the same resources are blocked while waiting for the transaction to complete.
Keep transactions short and in one batch
A deadlock typically occurs when several long-running transactions execute concurrently in the same database. The longer the transaction, the longer the exclusive or update locks are held, blocking other activity and leading to possible deadlock situations.
Keeping transactions in one batch minimizes network roundtrips during a transaction, reducing possible delays in completing the transaction and releasing locks.
For more about update locks, see Transaction locking and row versioning guide.
Use a lower isolation level
Determine whether a transaction can run at a lower isolation level. Implementing read committed allows a transaction to read data previously read (not modified) by another transaction without waiting for the first transaction to complete. Using a lower isolation level, such as read committed, holds shared locks for a shorter duration than a higher isolation level, such as serializable. This reduces locking contention.
Use a row versioning-based isolation level
When the READ_COMMITTED_SNAPSHOT
database option is set ON
, a transaction running under read committed isolation level uses row versioning rather than shared locks during read operations.
Note
Some applications rely upon locking and blocking behavior of read committed isolation. For these applications, some change is required before this option can be enabled.
Snapshot isolation also uses row versioning, which does not use shared locks during read operations. Before a transaction can run under snapshot isolation, the ALLOW_SNAPSHOT_ISOLATION
database option must be set ON
.
Implement these isolation levels to minimize deadlocks that can occur between read and write operations.
Use bound connections
Using bound connections, two or more connections opened by the same application can cooperate with each other. Any locks acquired by the secondary connections are held as if they were acquired by the primary connection, and vice versa. Therefore they do not block each other.
Stop a transaction
In a deadlock scenario, the victim transaction is automatically stopped and rolled back. There is no need to stop a transaction in a deadlock scenario.
Cause a deadlock
Note
This example works in the AdventureWorksLT2019
sample database with the default schema and data when READ_COMMITTED_SNAPSHOT has been enabled. To download this sample, visit AdventureWorks sample databases.
To cause a deadlock, you will need to connect two sessions to the AdventureWorksLT2019
database. We'll refer to these sessions as Session A and Session B. You can create these two sessions simply by creating two query windows in SQL Server Management Studio (SSMS).
In Session A, run the following Transact-SQL. This code begins an explicit transaction and runs a single statement that updates the SalesLT.Product
table. To do this, the transaction acquires an update (U) lock on one row on table SalesLT.Product
which is converted to an exclusive (X) lock. We leave the transaction open.
BEGIN TRAN
UPDATE SalesLT.Product SET SellEndDate = SellEndDate + 1
WHERE Color = 'Red';
Now, in Session B, run the following Transact-SQL. This code doesn't explicitly begin a transaction. Instead, it operates in autocommit transaction mode. This statement updates the SalesLT.ProductDescription
table. The update will take out an update (U) lock on 72 rows on the SalesLT.ProductDescription
table. The query joins to other tables, including the SalesLT.Product
table.
UPDATE SalesLT.ProductDescription SET Description = Description
FROM SalesLT.ProductDescription as pd
JOIN SalesLT.ProductModelProductDescription as pmpd on
pd.ProductDescriptionID = pmpd.ProductDescriptionID
JOIN SalesLT.ProductModel as pm on
pmpd.ProductModelID = pm.ProductModelID
JOIN SalesLT.Product as p on
pm.ProductModelID=p.ProductModelID
WHERE p.Color = 'Silver';
To complete this update, Session B needs a shared (S) lock on rows on the table SalesLT.Product
, including the row that is locked by Session A. Session B will be blocked on SalesLT.Product
.
Return to Session A. Run the following Transact-SQL statement. This runs a second UPDATE statement as part of the open transaction.
UPDATE SalesLT.ProductDescription SET Description = Description
FROM SalesLT.ProductDescription as pd
JOIN SalesLT.ProductModelProductDescription as pmpd on
pd.ProductDescriptionID = pmpd.ProductDescriptionID
JOIN SalesLT.ProductModel as pm on
pmpd.ProductModelID = pm.ProductModelID
JOIN SalesLT.Product as p on
pm.ProductModelID=p.ProductModelID
WHERE p.Color = 'Red';
The second update statement in Session A will be blocked by Session B on the SalesLT.ProductDescription
.
Session A and Session B are now mutually blocking one another. Neither transaction can proceed, as they each need a resource that is locked by the other.
After a few seconds, the deadlock monitor will identify that the transactions in Session A and Session B are mutually blocking one another, and that neither can make progress. You should see a deadlock occur, with Session A chosen as the deadlock victim. Session B will complete successfully. An error message will appear in Session A with text similar to the following:
Msg 1205, Level 13, State 51, Line 7
Transaction (Process ID 51) was deadlocked on lock resources with another process and has been chosen as the deadlock victim. Rerun the transaction.
If a deadlock is not raised, verify that READ_COMMITTED_SNAPSHOT has been enabled in your sample database. Deadlocks can occur in any database configuration, but this example requires READ_COMMITTED_SNAPSHOT to be enabled.
You could then view details of the deadlock in the ring_buffer target of the system_health
Extended Events session, which is enabled and active by default in SQL Server. Consider the following query:
WITH cteDeadLocks ([Deadlock_XML]) AS (
SELECT [Deadlock_XML] = CAST(target_data AS XML)
FROM sys.dm_xe_sessions AS xs
INNER JOIN sys.dm_xe_session_targets AS xst
ON xs.[address] = xst.event_session_address
WHERE xs.[name] = 'system_health'
AND xst.target_name = 'ring_buffer'
)
SELECT
Deadlock_XML = x.Graph.query('(event/data/value/deadlock)[1]')
, when_occurred = x.Graph.value('(event/data/value/deadlock/process-list/process/@lastbatchstarted)[1]', 'datetime2(3)')
, DB = DB_Name(x.Graph.value('(event/data/value/deadlock/process-list/process/@currentdb)[1]', 'int')) --Current database of the first listed process
FROM (
SELECT Graph.query('.') AS Graph
FROM cteDeadLocks c
CROSS APPLY c.[Deadlock_XML].nodes('RingBufferTarget/event[@name="xml_deadlock_report"]') AS Deadlock_Report(Graph)
) AS x
ORDER BY when_occurred desc;
You can view the XML in the Deadlock_XML
column inside SSMS, by selecting the cell that will appear as a hyperlink. Save this output as a .xdl
file, close, then re-open the .xdl
file in SSMS for visual deadlock graph. Your deadlock graph should look something like the following image.
Optimized locking and deadlocks
Applies to: Azure SQL Database
Optimized locking introduced a different method for locking mechanics that changes how deadlocks involving exclusive TID locks might be reported. Under each resource in the deadlock report's <resource-list>
, each <xactlock>
element reports the underlying resources and specific information for locks of each member of a deadlock.
Consider the following example where optimized locking is enabled:
CREATE TABLE t2
(a int PRIMARY KEY not null
,b int null);
INSERT INTO t2 VALUES (1,10),(2,20),(3,30)
GO
The following TSQL commands in two sessions will create a deadlock on table t2
:
In session 1:
--session 1
BEGIN TRAN foo;
UPDATE t2 SET b = b+ 10 WHERE a = 1;
In session 2:
--session 2:
BEGIN TRAN bar
UPDATE t2 SET b = b+ 10 WHERE a = 2;
In session 1:
--session 1:
UPDATE t2 SET b = b + 100 WHERE a = 2;
In session 2:
--session 2:
UPDATE t2 SET b = b + 20 WHERE a = 1;
This scenario of competing UPDATE
statements results in a deadlock. In this case, a keylock resource, where each session holds an X lock on its own TID and is waiting on the S lock on the other TID, resulting in a deadlock. The following XML, captured as the deadlock report, contains elements and attributes specific to optimized locking:
Related content
- Extended Events
- sys.dm_tran_locks (Transact-SQL)
- Deadlock Graph Event Class
- ADO Remote Data Service: Deadlocks with Read Repeatable Isolation Level
- Lock:Deadlock Chain Event Class
- Lock:Deadlock Event Class
- SET DEADLOCK_PRIORITY (Transact-SQL)
- Analyze and prevent deadlocks in Azure SQL Database
- Open, view, and print a deadlock file in SQL Server Management Studio (SSMS)
