Python Environments window tabs reference in Python Tools for Visual Studio
To open the Python Environments window:
- Select the View > Other Windows > Python Environments menu command.
- Right-click the Python Environments node for a project in Solution Explorer and select View All Python Environments.

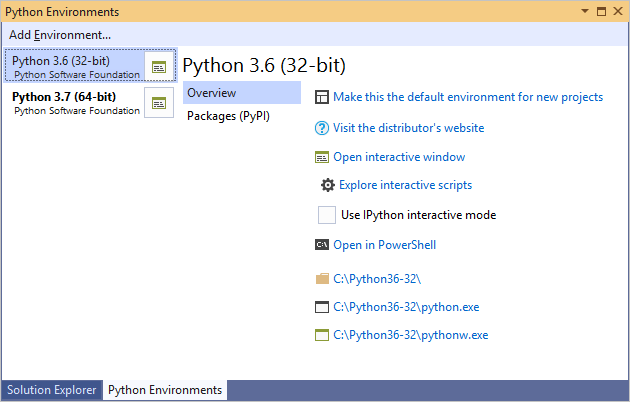

If you expand the Python Environments window wide enough, these options are shown as tabs, which you may find more convenient to work with. For clarity, the tabs in this article are shown in the expanded view.
Tab: Overview
Provides basic information and commands for the environment:
| Command | Description |
|---|---|
| Make this environment the default for new projects | Sets the active environment, which may cause Visual Studio (2017 version 15.5 and earlier) to briefly become non-responsive while it loads the IntelliSense database. Environments with many packages may be non-responsive for longer. |
| Visit the distributor's website | Opens a browser to the URL provided by the Python distribution. Python 3.x, for example, goes to python.org. |
| Open interactive window | Opens the interactive (REPL) window for this environment within Visual Studio, applying any startup scripts (see below). |
| Explore interactive scripts | See startup scripts. |
| Use IPython interactive mode | When set, opens the Interactive window with IPython by default. This enables inline plots as well as the extended IPython syntax such as name? to view help and !command for shell commands. This option is recommended when using an Anaconda distribution, as it requires extra packages. For more information, see Use IPython in the Interactive window. |
| Open in PowerShell | Starts the interpreter in a PowerShell command window. |
| (Folder and program links) | Provide you quick access to the environment's installation folder, the python.exe interpreter, and the pythonw.exe interpreter. The first opens in Windows Explorer, the latter two open a console window. |
Startup scripts
As you use interactive windows in your everyday workflow, you likely develop helper functions that you use regularly. For example, you may create a function that opens a DataFrame in Excel, and then save that code as a startup script so that it's always available in the Interactive window.
Startup scripts contain code that the Interactive window loads and runs automatically, including imports, function definitions, and literally anything else. Such scripts are referenced in two ways:
When you install an environment, Visual Studio creates a folder Documents\Visual Studio <version>\Python Scripts\<environment> where <version> is the Visual Studio version (such as 2017 or 2019) and <environment> matches the name of the environment. You can easily navigate to the environment-specific folder with the Explore interactive scripts command. When you start the Interactive window for that environment, it loads and runs whatever .py files are found here in alphabetical order.
The Scripts control in Tools > Options > Python > Interactive Windows tab (see Interactive windows options) is intended to specify an additional folder for startup scripts that are loaded and run in all environments. However, this feature doesn't work at present.
Configure tab
If available, the Configure tab contains details as described in the table below. If this tab isn't present, it means that Visual Studio is managing all the details automatically.
| Field | Description |
|---|---|
| Description | The name to give the environment. |
| Prefix path | The base folder location of the interpreter. By filling this value and clicking Auto Detect, Visual Studio attempts to fill in the other fields for you. |
| Interpreter path | The path to the interpreter executable, commonly the prefix path followed by python.exe |
| Windowed interpreter | The path to the non-console executable, often the prefix path followed by pythonw.exe. |
| Library path (if available) |
Specifies the root of the standard library, but this value may be ignored if Visual Studio is able to request a more accurate path from the interpreter. |
| Language version | Selected from the drop-down menu. |
| Architecture | Normally detected and filled in automatically, otherwise specifies 32-bit or 64-bit. |
| Path environment variable | The environment variable that the interpreter uses to find search paths. Visual Studio changes the value of the variable when starting Python so that it contains the project's search paths. Typically this property should be set to PYTHONPATH, but some interpreters use a different value. |
Packages tab
Also labeled "pip" in earlier versions.
Manages the packages installed in the environment using pip (the Packages (PyPI) tab) or conda (the Packages (Conda) tab, for conda environments in Visual Studio 2017 version 15.7 and later). In this tab you can also search for and install new packages, including their dependencies.
Packages that are already installed appear with controls to update (an up arrow) and uninstall (the X in a circle) the package:
Entering a search term filters the list of installed packages as well as packages that can be installed from PyPI.
As you can see in the image above, the search results show a number of packages that match the search term; the first entry in the list, however, is a command to run pip install <name> directly. If you're on the Packages (Conda) tab, you instead see conda install <name>:
In both cases, you can customize the install by adding arguments in the search box after the name of the package. When you include arguments, the search results shows pip install or conda install followed by the contents of the search box:
Installing a package creates subfolders within the environment's Lib folder on the file system. For example, if you have Python 3.6 installed in c:\Python36, packages are installed in c:\Python36\Lib; if you have Anaconda3 installed in c:\Program Files\Anaconda3 then packages are installed in c:\Program Files\Anaconda3\Lib. For conda environments, packages are installed in that environment's folder.
Grant administrator privileges for package install
When installing packages into an environment that's located in a protected area of the file system, such as c:\Program Files\Anaconda3\Lib, Visual Studio must run pip install elevated to allow it to create package subfolders. When elevation is required, Visual Studio displays the prompt, Administrator privileges may be required to install, update or remove packages for this environment:
Elevate now grants administrative privileges to pip for a single operation, subject also to any operating system prompts for permissions. Selecting Continue without Administrator privileges attempts to install the package, but pip fails when trying to create folders with output such as error: could not create 'C:\Program Files\Anaconda3\Lib\site-packages\png.py': Permission denied.
Selecting Always elevate when installing or removing packages prevents the dialog from appearing for the environment in question. To make the dialog appear again, go to Tools > Options > Python > General and select the button, Reset all permanently hidden dialogs.
In that same Options tab, you can also select Always run pip as administrator to suppress the dialog for all environments. For more information, see Options - Python General tab.
Security restrictions with older versions of Python
When using Python 2.6, 3.1 and 3.2, Visual Studio shows the warning, Due to new security restrictions, installing from the internet may not work on this version of Python:
The reason for the warning is that with these older versions of Python, pip install doesn't contain support for the Transport Security Layer (TLS) 1.2, which is required for downloading packages from the package source, pypi.org. Custom Python builds may support TLS 1.2 in which case pip install might work.
It may be possible to download the appropriate get-pip.py for a package from bootstrap.pypa.io, manually download a package from pypi.org, and then install the package from that local copy.
The recommendation, however, is to simply upgrade to a recent version of Python, in which case the warning does not appear.
