Tutorial: Add Azure Content Delivery Network to an Azure App Service web app

  • Raksts

Important

Azure CDN Standard from Microsoft (classic) will be retired on September 30, 2027. To avoid any service disruption, it is important that you migrate your Azure CDN Standard from Microsoft (classic) profiles to Azure Front Door Standard or Premium tier by September 30, 2027. For more information, see Azure CDN Standard from Microsoft (classic) retirement.

Azure CDN from Edgio will be retired on November 4, 2025. You must migrate your workload to Azure Front Door before this date to avoid service disruption. For more information, see Azure CDN from Edgio retirement FAQ.

This tutorial shows how to add Azure Content Delivery Network to a web app in Azure App Service. Web apps are services for hosting web applications, REST APIs, and mobile back ends.

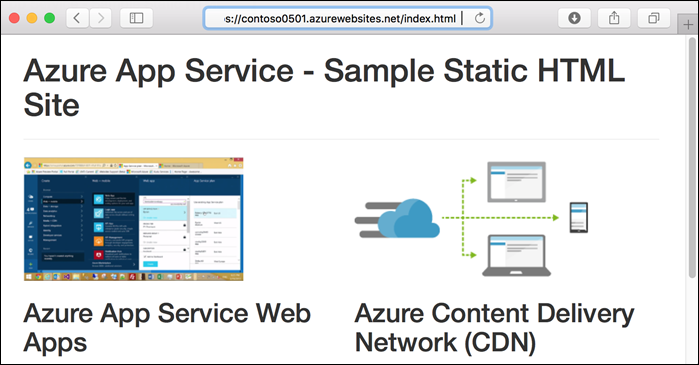

Here's the home page of the sample static HTML site that you work with:

Sample app home page

What you learn:

  • Create a content delivery network endpoint.
  • Refresh cached assets.
  • Use query strings to control cached versions.

Prerequisites

To complete this tutorial:

If you don't have an Azure subscription, create an Azure free account before you begin.

Create the web app

To create the web app that you work with, follow the static HTML quickstart through the Browse to the app step.

Sign in to the Azure portal

Open a browser and sign in to the Azure portal.

Dynamic site acceleration optimization

If you want to optimize your content delivery network endpoint for dynamic site acceleration (DSA), you should use the content delivery network portal to create your profile and endpoint. With DSA optimization, the performance of web pages with dynamic content is measurably improved. For instructions about how to optimize a content delivery network endpoint for DSA from the content delivery network portal, see content delivery network endpoint configuration to accelerate delivery of dynamic files. Otherwise, if you don't want to optimize your new endpoint, you can use the web app portal to create it by following the steps in the next section. For Azure CDN from Edgio profiles, you can't change the optimization of a content delivery network endpoint after it has been created.

Create a content delivery network profile and endpoint

In the left navigation, select App Services, and then select the app that you created in the static HTML quickstart.

Screenshot of select an App Service app in the portal.

In the App Service page, in the Settings section, select Networking > Azure CDN.

Screenshot of select Azure Content Delivery Network from networking setting of an App Service.

In the Azure Content Delivery Network page, provide the New endpoint settings as specified in the table.

Screenshot of create Azure Content Delivery Network profile and endpoint in the portal.

Setting Suggested value Description
content delivery network profile myCDNProfile A content delivery network profile is a collection of content delivery network endpoints with the same pricing tier.
Pricing tier Microsoft content delivery network (classic) The pricing tier specifies the provider and available features.
content delivery network endpoint name Any name that is unique in the azureedge.net domain You access your cached resources at the domain <endpointname>.azureedge.net.

Select Create to create a content delivery network profile.

Azure creates the profile and endpoint. The new endpoint appears in the Endpoints list, and when it's provisioned, the status is Running.

Screenshot of new Azure Content Delivery Network endpoint in list.

Test the content delivery network endpoint

Because it takes time for the registration to propagate, the endpoint isn't immediately available for use:

  • For Azure CDN Standard from Microsoft (classic) profiles, propagation usually completes in 10 minutes.
  • For Azure CDN Standard from Edgio and Azure CDN Premium from Edgio profiles, propagation usually completes within 90 minutes.

The sample app has an index.html file and css, img, and js folders that contain other static assets. The content paths for all of these files are the same at the content delivery network endpoint. For example, both of the following URLs access the bootstrap.css file in the css folder:

http://<appname>.azurewebsites.net/css/bootstrap.css

http://<endpointname>.azureedge.net/css/bootstrap.css

Navigate a browser to the following URL:

http://<endpointname>.azureedge.net/index.html

Screenshot of sample app home page served from content delivery network.

You see the same page that you ran earlier in an Azure web app. Azure Content Delivery Network has retrieved the origin web app's assets and is serving them from the content delivery network endpoint

To ensure that this page is cached in the content delivery network, refresh the page. Two requests for the same asset are sometimes required for the content delivery network to cache the requested content.

For more information about creating Azure Content Delivery Network profiles and endpoints, see Getting started with Azure Content Delivery Network.

Purge the content delivery network

The content delivery network periodically refreshes its resources from the origin web app based on the time to live (TTL) configuration. The default TTL is seven days.

At times you might need to refresh the content delivery network before the TTL expiration; for example, when you deploy updated content to the web app. To trigger a refresh, manually purge the content delivery network resources.

In this section of the tutorial, you deploy a change to the web app and purge the content delivery network to trigger the content delivery network to refresh its cache.

Deploy a change to the web app

Open the index.html file and add - V2 to the H1 heading, as shown in the following example:

<h1>Azure App Service - Sample Static HTML Site - V2</h1>

Commit your change and deploy it to the web app.

git commit -am "version 2"
git push azure main

Once deployment has completed, browse to the web app URL to see the change.

http://<appname>.azurewebsites.net/index.html

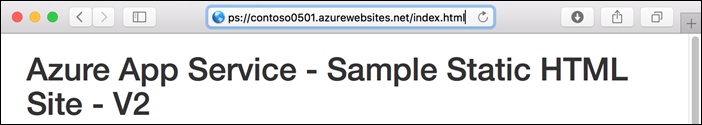

V2 in title in web app

If you browse to the content delivery network endpoint URL for the home page, you don't see the changes because the cached version in the content delivery network hasn't expired yet.

http://<endpointname>.azureedge.net/index.html

Screenshot of No V2 in title in content delivery network.

Purge the content delivery network in the portal

To trigger the content delivery network to update its cached version, purge the content delivery network.

In the portal left navigation, select Resource groups, and then select the resource group that you created for your web app (myResourceGroup).

Screenshot of selecting resource group from left menu pane in the portal.

In the list of resources, select your content delivery network endpoint.

Screenshot of Azure Content Delivery Network endpoint from resource group.

At the top of the Endpoint page, select Purge.

Screenshot of purge button in an Azure Content Delivery Network profile.

Enter the content paths you want to purge. You can pass a complete file path to purge an individual file, or a path segment to purge and refresh all content in a folder. Because you changed index.html, ensure that is in one of the paths.

At the bottom of the page, select Purge.

Screenshot of purge page in an Azure Content Delivery Network profile.

Verify that the content delivery network is updated

Wait until the purge request finishes processing, which is typically a couple of minutes. To see the current status, select the bell icon at the top of the page.

Screenshot of purge notification for an Azure Content Delivery Network profile.

When you browse to the content delivery network endpoint URL for index.html, you see the V2 that you added to the title on the home page, which indicates that the content delivery network cache has been refreshed.

http://<endpointname>.azureedge.net/index.html

Screenshot of V2 in title in content delivery network.

For more information, see Purge an Azure Content Delivery Network endpoint.

Use query strings to version content

Azure Content Delivery Network offers the following caching behavior options:

  • Ignore query strings
  • Bypass caching for query strings
  • Cache every unique URL

The first option is the default, which means there's only one cached version of an asset regardless of the query string in the URL.

In this section of the tutorial, you change the caching behavior to cache every unique URL.

Change the cache behavior

In the Azure portal CDN Endpoint page, select Cache.

Select Cache every unique URL from the Query string caching behavior dropdown list.

Select Save.

Screenshot of cache rules settings for an Azure Content Delivery Network profile.

Verify that unique URLs are cached separately

In a browser, navigate to the home page at the content delivery network endpoint, and include a query string:

http://<endpointname>.azureedge.net/index.html?q=1

Azure Content Delivery Network returns the current web app content, which includes V2 in the heading.

To ensure that this page is cached in the content delivery network, refresh the page.

Open index.html, change V2 to V3, then deploy the change.

git commit -am "version 3"
git push azure main

In a browser, go to the content delivery network endpoint URL with a new query string, such as q=2. Azure Content Delivery Network gets the current index.html file and displays V3. However, if you navigate to the content delivery network endpoint with the q=1 query string, you see V2.

http://<endpointname>.azureedge.net/index.html?q=2

Screenshot of V3 in title in content delivery network, query string 2.

http://<endpointname>.azureedge.net/index.html?q=1

Screenshot of V2 in title in content delivery network, query string 1.

This output shows that each query string is treated differently:

  • q=1 was used before, so cached contents are returned (V2).
  • q=2 is new, so the latest web app contents are retrieved and returned (V3).

For more information, see Control Azure Content Delivery Network caching behavior with query strings.

Clean up resources

In the preceding steps, you created Azure resources in a resource group. If you don't expect to need these resources in the future, delete the resource group by running the following command in the Cloud Shell:

az group delete --name myResourceGroup

This command may take a minute to run.

Next steps

What you learned:

  • Create a content delivery network endpoint.
  • Refresh cached assets.
  • Use query strings to control cached versions.

Learn how to optimize content delivery network performance in the following articles:

Tutorial: Optimize Azure Content Delivery Network for the type of content delivery.
