Copy data from Couchbase using Azure Data Factory (Preview)

  • Raksts

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Important

This connector will be deprecated on December 31, 2024. You are recommended to migrate to ODBC connector by installing a driver before that date.

This article outlines how to use the Copy Activity in an Azure Data Factory or Synapse Analytics pipeline to copy data from Couchbase. It builds on the copy activity overview article that presents a general overview of copy activity.

Supported capabilities

This Couchbase connector is supported for the following capabilities:

Supported capabilities IR
Copy activity (source/-) ① ②
Lookup activity ① ②

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources/sinks, see the Supported data stores table.

The service provides a built-in driver to enable connectivity, therefore you don't need to manually install any driver using this connector.

The connector supports the Couchbase version higher than 6.0.

Prerequisites

If your data store is located inside an on-premises network, an Azure virtual network, or Amazon Virtual Private Cloud, you need to configure a self-hosted integration runtime to connect to it.

If your data store is a managed cloud data service, you can use the Azure Integration Runtime. If the access is restricted to IPs that are approved in the firewall rules, you can add Azure Integration Runtime IPs to the allow list.

You can also use the managed virtual network integration runtime feature in Azure Data Factory to access the on-premises network without installing and configuring a self-hosted integration runtime.

For more information about the network security mechanisms and options supported by Data Factory, see Data access strategies.

Getting started

To perform the Copy activity with a pipeline, you can use one of the following tools or SDKs:

Create a linked service to Couchbase using UI

Use the following steps to create a linked service to Couchbase in the Azure portal UI.

  1. Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

  2. Search for Couchbase and select the Couchbase connector.

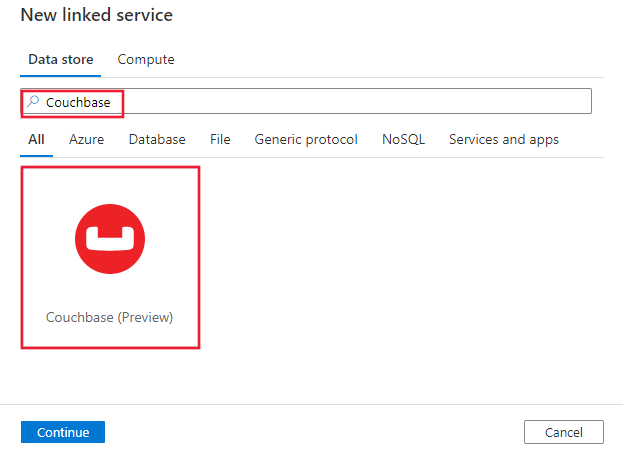

    Screenshot of the Couchbase connector.

  3. Configure the service details, test the connection, and create the new linked service.

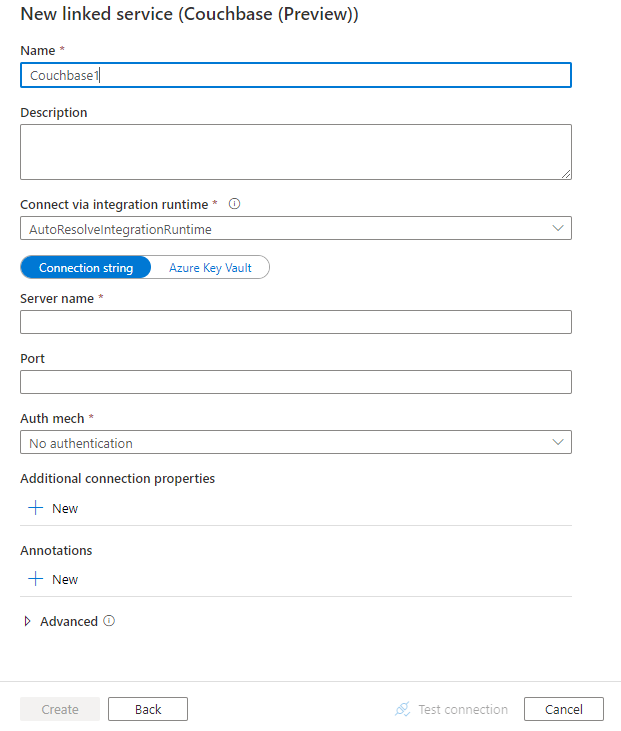

    Screenshot of linked service configuration for Couchbase.

Connector configuration details

The following sections provide details about properties that are used to define Data Factory entities specific to Couchbase connector.

Linked service properties

The following properties are supported for Couchbase linked service:

Property Description Required
type The type property must be set to: Couchbase Yes
connectionString An ODBC connection string to connect to Couchbase.
You can also put credential string in Azure Key Vault and pull the credString configuration out of the connection string. Refer to the following samples and Store credentials in Azure Key Vault article with more details.		 Yes
connectVia The Integration Runtime to be used to connect to the data store. Learn more from Prerequisites section. If not specified, it uses the default Azure Integration Runtime. No

Example:

{
    "name": "CouchbaseLinkedService",
    "properties": {
        "type": "Couchbase",
        "typeProperties": {
            "connectionString": "Server=<server>; Port=<port>;AuthMech=1;CredString=[{\"user\": \"JSmith\", \"pass\":\"access123\"}, {\"user\": \"Admin\", \"pass\":\"simba123\"}];"
        },
        "connectVia": {
            "referenceName": "<name of Integration Runtime>",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Example: store credential string in Azure Key Vault

{
    "name": "CouchbaseLinkedService",
    "properties": {
        "type": "Couchbase",
        "typeProperties": {
            "connectionString": "Server=<server>; Port=<port>;AuthMech=1;",
            "credString": {
                "type": "AzureKeyVaultSecret",
                "store": {
                    "referenceName": "<Azure Key Vault linked service name>",
                    "type": "LinkedServiceReference"
                },
                "secretName": "<secretName>"
            }
        },
        "connectVia": {
            "referenceName": "<name of Integration Runtime>",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the datasets article. This section provides a list of properties supported by Couchbase dataset.

To copy data from Couchbase, set the type property of the dataset to CouchbaseTable. The following properties are supported:

Property Description Required
type The type property of the dataset must be set to: CouchbaseTable Yes
tableName Name of the table. No (if "query" in activity source is specified)

Example

{
    "name": "CouchbaseDataset",
    "properties": {
        "type": "CouchbaseTable",
        "typeProperties": {},
        "schema": [],
        "linkedServiceName": {
            "referenceName": "<Couchbase linked service name>",
            "type": "LinkedServiceReference"
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Couchbase source.

CouchbaseSource as source

To copy data from Couchbase, set the source type in the copy activity to CouchbaseSource. The following properties are supported in the copy activity source section:

Property Description Required
type The type property of the copy activity source must be set to: CouchbaseSource Yes
query Use the custom SQL query to read data. For example: "SELECT * FROM MyTable". No (if "tableName" in dataset is specified)

Example:

"activities":[
    {
        "name": "CopyFromCouchbase",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "<Couchbase input dataset name>",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "<output dataset name>",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "CouchbaseSource",
                "query": "SELECT * FROM MyTable"
            },
            "sink": {
                "type": "<sink type>"
            }
        }
    }
]

Lookup activity properties

To learn details about the properties, check Lookup activity.

Related content

For a list of data stores supported as sources and sinks by the copy activity, see supported data stores.
