Add conditions to control workflow actions in Azure Logic Apps

Applies to: Azure Logic Apps (Consumption + Standard)

When you want to set up a condition that returns true or false and have the result determine whether your workflow runs one path of actions or another, add the Control action named Condition to your workflow. You can also nest conditions inside each other.

For example, suppose you have a workflow that sends too many emails when new items appear on a website's RSS feed. You can add the Condition action to send email only when the new item includes a specific word.

Note

If you want to specify more than two paths from which your workflow can choose or condition criteria that's not restricted to only true or false, use a switch action instead.

This guide shows how to add a condition to your workflow and use the result to help your workflow choose between two action paths.

Prerequisites

• An Azure account and subscription. If you don't have a subscription, sign up for a free Azure account.

• Basic knowledge about logic app workflows

• To follow the example in this how-to guide, create either an example Consumption logic app workflow or an example Standard logic app workflow and use either an Outlook.com account or a Microsoft work or school account.

Add a condition

Consumption

1. In the Azure portal, open your logic app workflow in the designer.

2. Follow these general steps to add the Condition action to your workflow.

3. In the Condition action, follow these steps to build your condition:

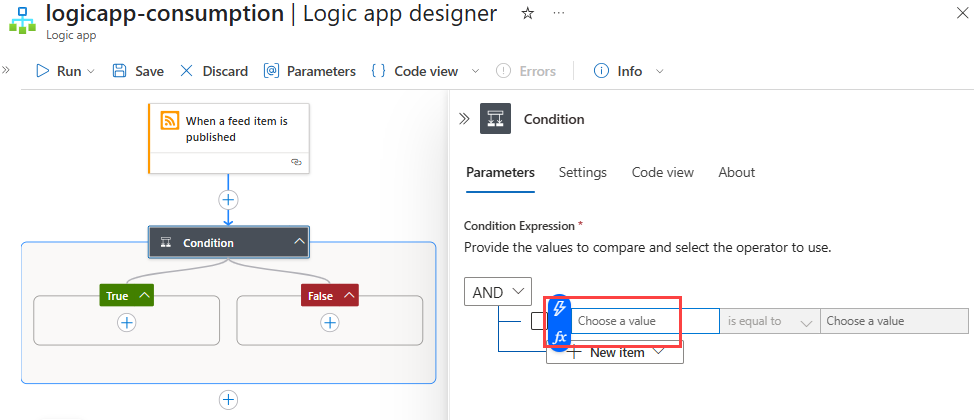

   1. In the left-side box named Choose a value, enter the first value or field that you want to compare.

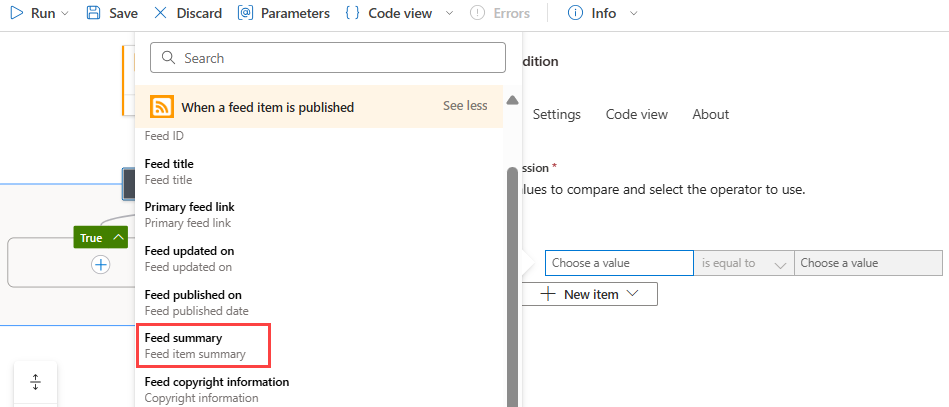

      When you select inside the Choose a value box, the dynamic content list opens automatically. From this list, you can select outputs from previous steps in your workflow.

      This example selects the RSS trigger output named Feed summary.



   2. Open the middle list, select the operation to perform.

      This example selects contains.

   3. In the right-side box named Choose a value, enter the value or field that you want to compare with the first.

      This example specifies the following string: Microsoft

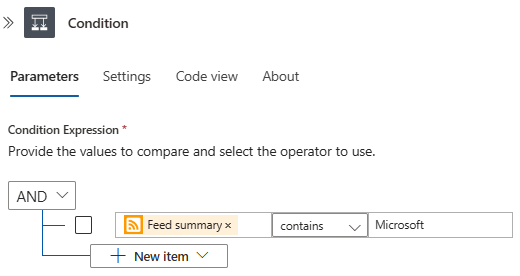

   The complete condition now looks like the following example:



   • To add another row to your condition, from the Add menu, select Add row.

   • To add a group with subconditions, from the Add menu, select Add group.

   • To group existing rows, select the checkboxes for those rows, select the ellipses (...) button for any row, and then select Make group.

4. In the True and False action paths, add the actions that you want to run, based on whether the condition is true or false respectively, for example:



   Tip

   You can drag existing actions into the True and False paths.

5. Save your workflow. On the designer toolbar, select Save.

Standard

1. In the Azure portal, open your logic app workflow in the designer.

2. Follow these general steps to add the Condition action to your workflow.

3. On the designer, select the Condition action to open the information pane. Follow these steps to build your condition:

   1. In the left-side box named Choose a value, enter the first value or field that you want to compare.

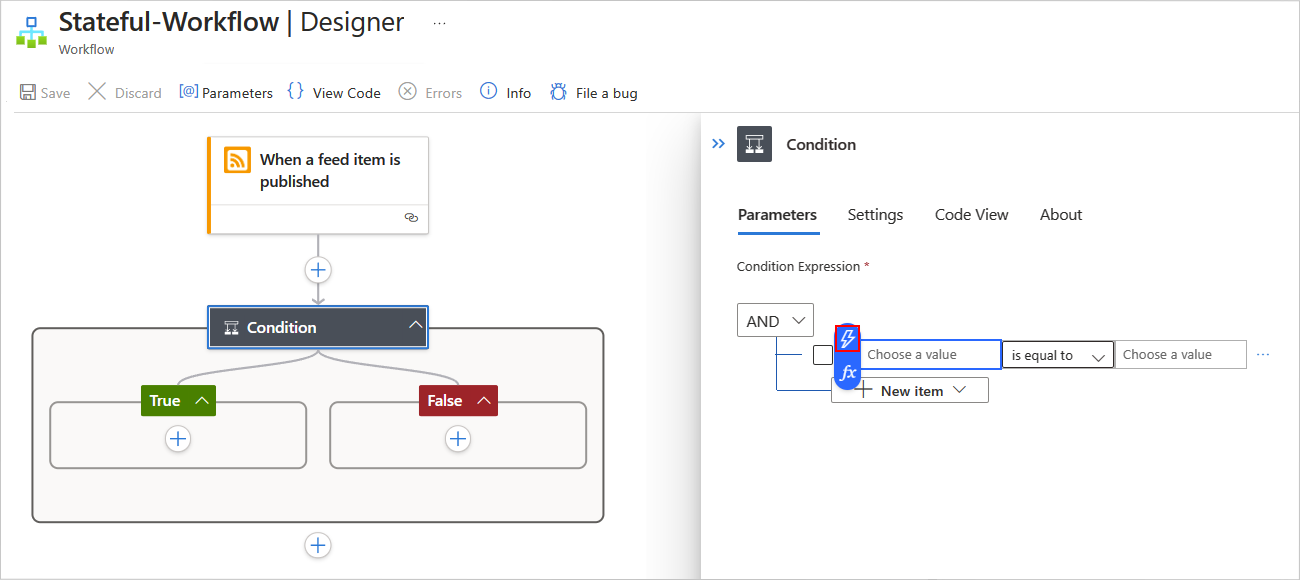

      After you select inside the Choose a value box, the options to open the dynamic content list (lightning icon) or expression editor (formula icon) appear.

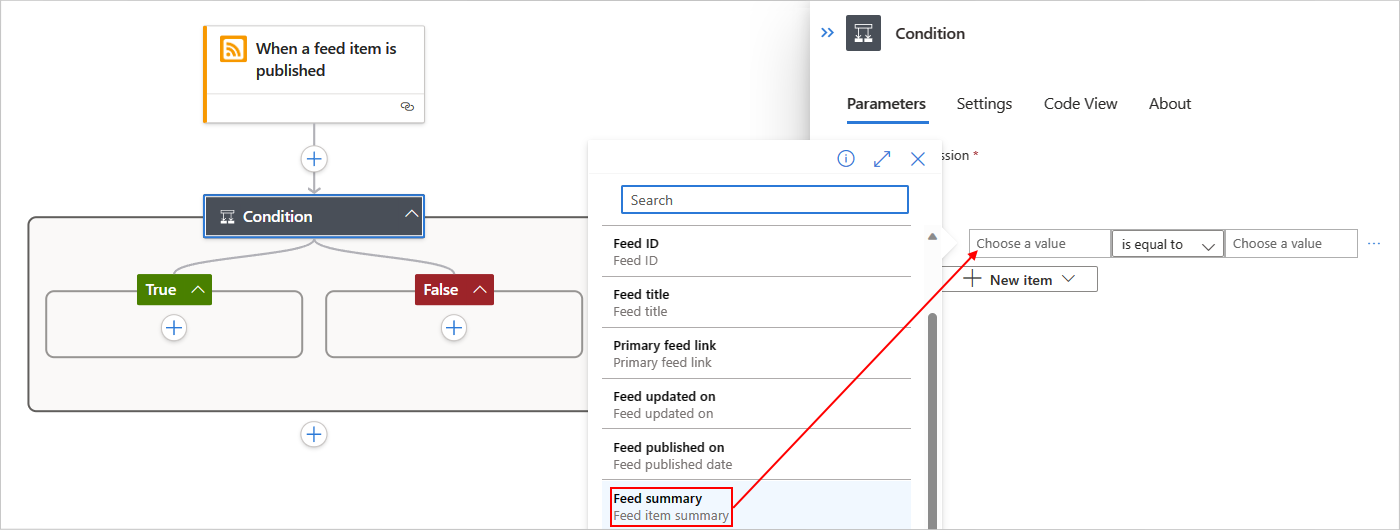

   2. Select the lightning icon to open the dynamic content list.

      From this list, you can select outputs from previous steps in your workflow.



      This example selects the RSS trigger output named Feed summary.



   3. From the middle list, select the operation to perform.

      This example selects contains.

   4. In the right-side box named Choose a value, enter the value or field that you want to compare with the first.

      This example specifies the following string: Microsoft

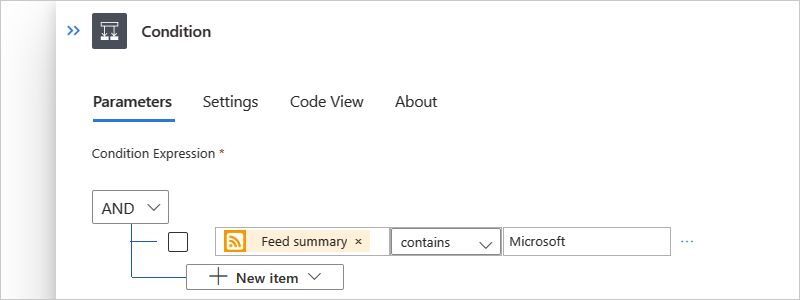

   The following example shows the complete condition:



   • To add another row to your condition, from the New item menu, select Add Row.

   • To add a group with subconditions, from the New item menu, select Add Group.

   • To group existing rows, select the checkboxes for those rows, select the ellipses (...) button for any row, and then select Make Group.

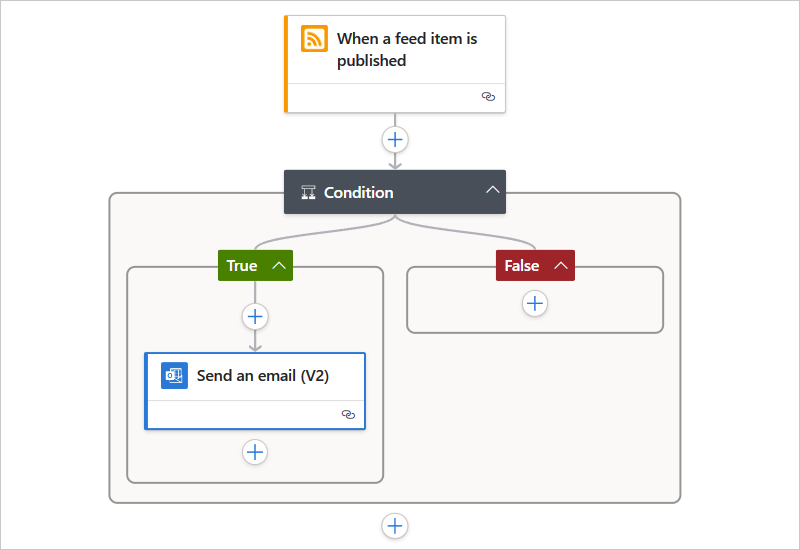

4. In the True and False action paths, add the actions to run, based on whether the condition is true or false respectively, for example:



   Tip

   You can drag existing actions into the True and False paths.

5. Save your workflow. On the designer toolbar, select Save.

This workflow now sends mail only when the new items in the RSS feed meet your condition.

JSON definition

The following code shows the high-level JSON definition for the Condition action. For the full definition, see If action - Schema reference guide for trigger and action types in Azure Logic Apps.

"actions": {
   "Condition": {
      "type": "If",
      "actions": {
         "Send_an_email_(V2)": {
            "inputs": {},
            "runAfter": {},
            "type": "ApiConnection"
         },
      },
      "expression": {
         "and": [
            {
               "contains": [
                  "@triggerBody()?['summary']",
                  "Microsoft"
               ]
            }
         ]
      },
      "runAfter": {
         "Condition": [
            "Succeeded"
         ]
      },
   }
},
