What is Model Builder and how does it work?

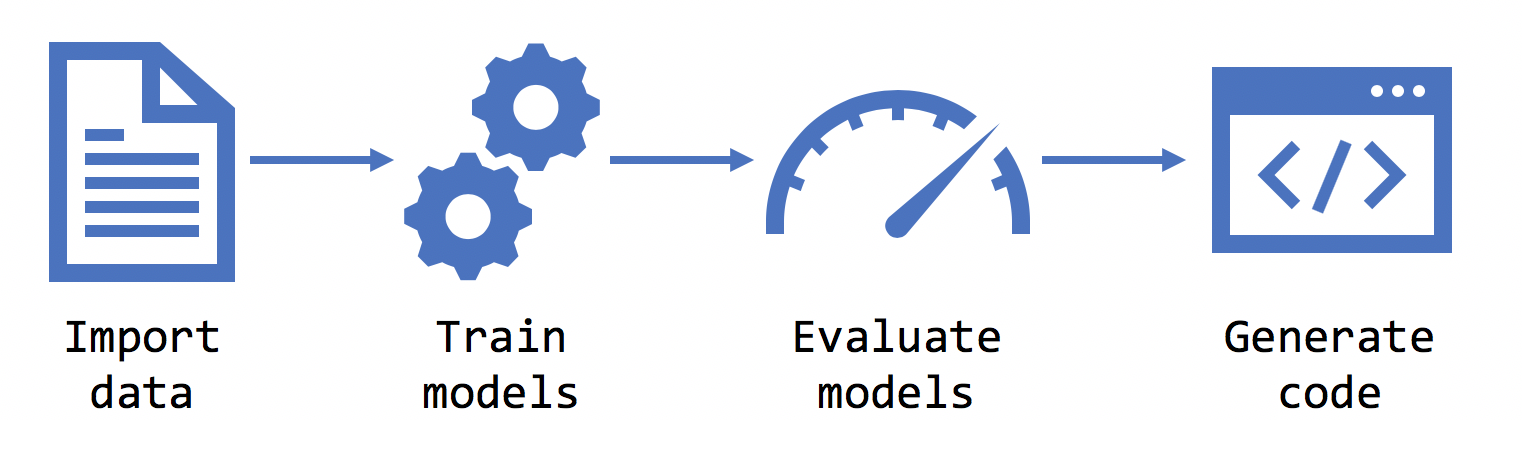

ML.NET Model Builder is an intuitive graphical Visual Studio extension to build, train, and deploy custom machine learning models. It uses automated machine learning (AutoML) to explore different machine learning algorithms and settings to help you find the one that best suits your scenario.

You don't need machine learning expertise to use Model Builder. All you need is some data, and a problem to solve. Model Builder generates the code to add the model to your .NET application.

Create a Model Builder project

When you first start up Model Builder, it asks you to name the project, and then creates an mbconfig configuration file inside of the project. The mbconfig file keeps track of everything you do in Model Builder to allow you to reopen the session.

After training, three files are generated under the *.mbconfig file:

• Model.consumption.cs: This file contains the ModelInput and ModelOutput schemas as well as the Predict function generated for consuming the model.
• Model.training.cs: This file contains the training pipeline (data transforms, algorithm, algorithm hyperparameters) chosen by Model Builder to train the model. You can use this pipeline for re-training your model.
• Model.zip: This is a serialized zip file which represents your trained ML.NET model.

When you create your mbconfig file, you're prompted for a name. This name is applied to the consumption, training, and model files. In this case, the name used is Model.

Scenario

You can bring many different scenarios to Model Builder, to generate a machine learning model for your application.

A scenario is a description of the type of prediction you want to make using your data. For example:

• Predict future product sales volume based on historical sales data.
• Classify sentiments as positive or negative based on customer reviews.
• Detect whether a banking transaction is fraudulent.
• Route customer feedback issues to the correct team in your company.

Each scenario maps to a different machine learning task, which include:

Task	Scenario
Binary classification	Data classification
Multiclass classification	Data classification
Image classification	Image classification
Text classification	Text classification
Regression	Value prediction
Recommendation	Recommendation
Forecasting	Forecasting

For example, the scenario of classifying sentiments as positive or negative would fall under the binary classification task.

For more information about the different ML Tasks supported by ML.NET see Machine learning tasks in ML.NET.

Which machine learning scenario is right for me?

In Model Builder, you need to select a scenario. The type of scenario depends on what type of prediction you're trying to make.

Tabular

Data classification

Classification is used to categorize data into categories.

Sample Input

Sample Output

SepalLength	SepalWidth	Petal Length	Petal Width	Species
5.1	3.5	1.4	0.2	setosa

Predicted species
setosa

Value prediction

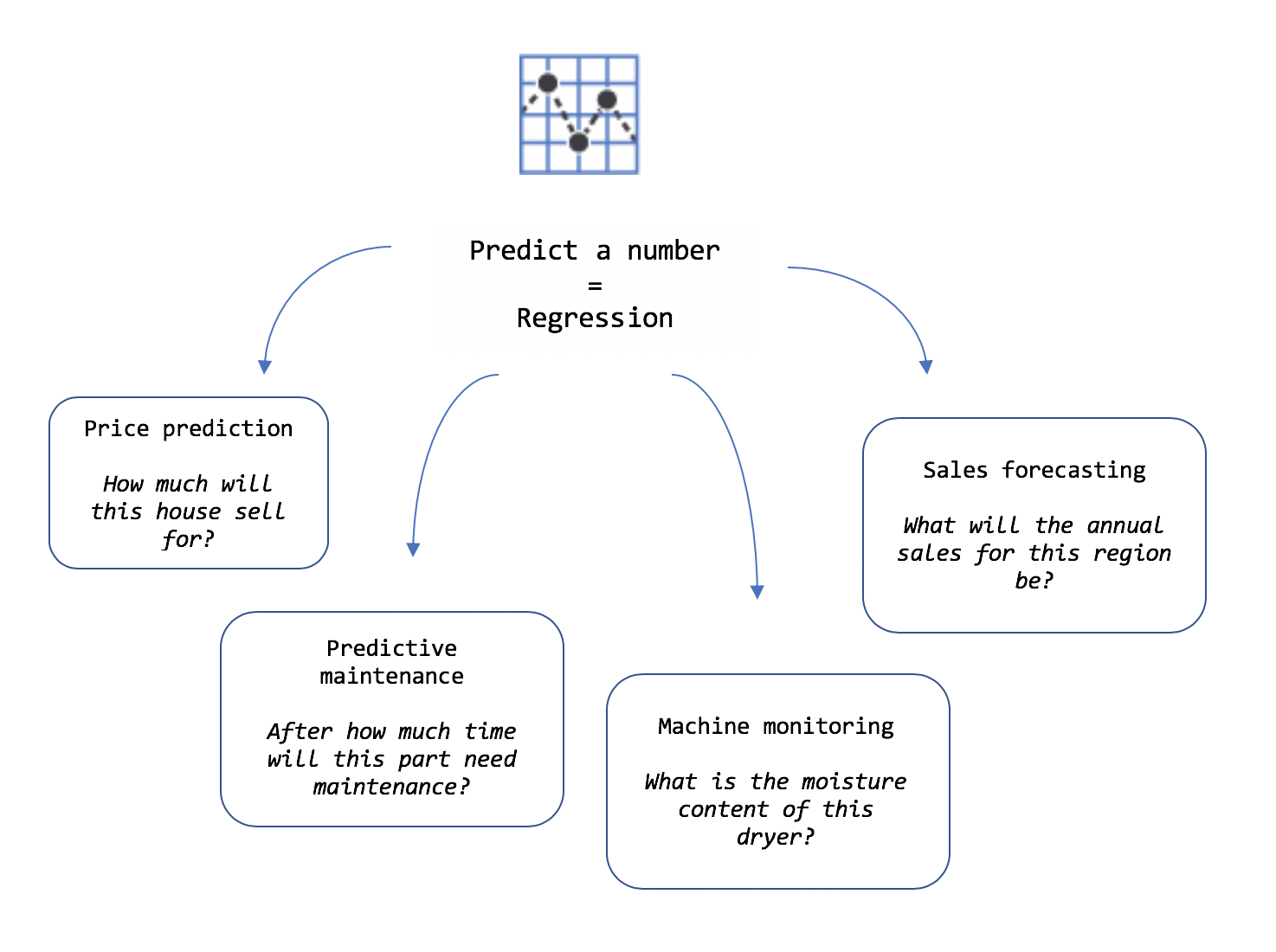

Value prediction, which falls under the regression task, is used to predict numbers.

Sample Input

Sample Output

vendor_id	rate_code	passenger_count	trip_time_in_secs	trip_distance	payment_type	fare_amount
CMT	1	1	1271	3.8	CRD	17.5

Predicted Fare
4.5

Recommendation

The recommendation scenario predicts a list of suggested items for a particular user, based on how similar their likes and dislikes are to other users'.

You can use the recommendation scenario when you have a set of users and a set of "products", such as items to purchase, movies, books, or TV shows, along with a set of users' "ratings" of those products.

Sample Input

Sample Output

UserId	ProductId	Rating
1	2	4.2

Predicted rating
4.5

Forecasting

The forecasting scenario uses historical data with a time-series or seasonal component to it.

You can use the forecasting scenario to forecast demand or sale for a product.

Sample Input

Sample Output

Date	SaleQty
1/1/1970	1000

3 Day Forecast
[1000,1001,1002]

Computer vision

Image classification

Image classification is used to identify images of different categories. For example, different types of terrain or animals or manufacturing defects.

You can use the image classification scenario if you have a set of images, and you want to classify the images into different categories.

Sample Input

Sample Output

Predicted Label
Dog

Object detection

Object detection is used to locate and categorize entities within images. For example, locating and identifying cars and people in an image.

You can use object detection when images contain multiple objects of different types.

Sample Input

Sample Output

Natural language processing

Text classification

Text classification categorizes raw text input.

You can use the text classification scenario if you have a set of documents or comments, and you want to classify them into different categories.

Example Input

Example Output

Review
I really like this steak!

Sentiment
Positive

Environment

You can train your machine learning model locally on your machine or in the cloud on Azure, depending on the scenario.

When you train locally, you work within the constraints of your computer resources (CPU, memory, and disk). When you train in the cloud, you can scale up your resources to meet the demands of your scenario, especially for large datasets.

Scenario	Local CPU	Local GPU	Azure
Data classification	✔️	❌	❌
Value prediction	✔️	❌	❌
Recommendation	✔️	❌	❌
Forecasting	✔️	❌	❌
Image classification	✔️	✔️	✔️
Object detection	❌	❌	✔️
Text classification	✔️	✔️	❌

Data

Once you've chosen your scenario, Model Builder asks you to provide a dataset. The data is used to train, evaluate, and choose the best model for your scenario.

Model Builder supports datasets in .tsv, .csv, .txt, and SQL database formats. If you have a .txt file, columns should be separated with ,, ;, or \t.

If the dataset is made up of images, the supported file types are .jpg and .png.

For more information, see Load training data into Model Builder.

Choose the output to predict (label)

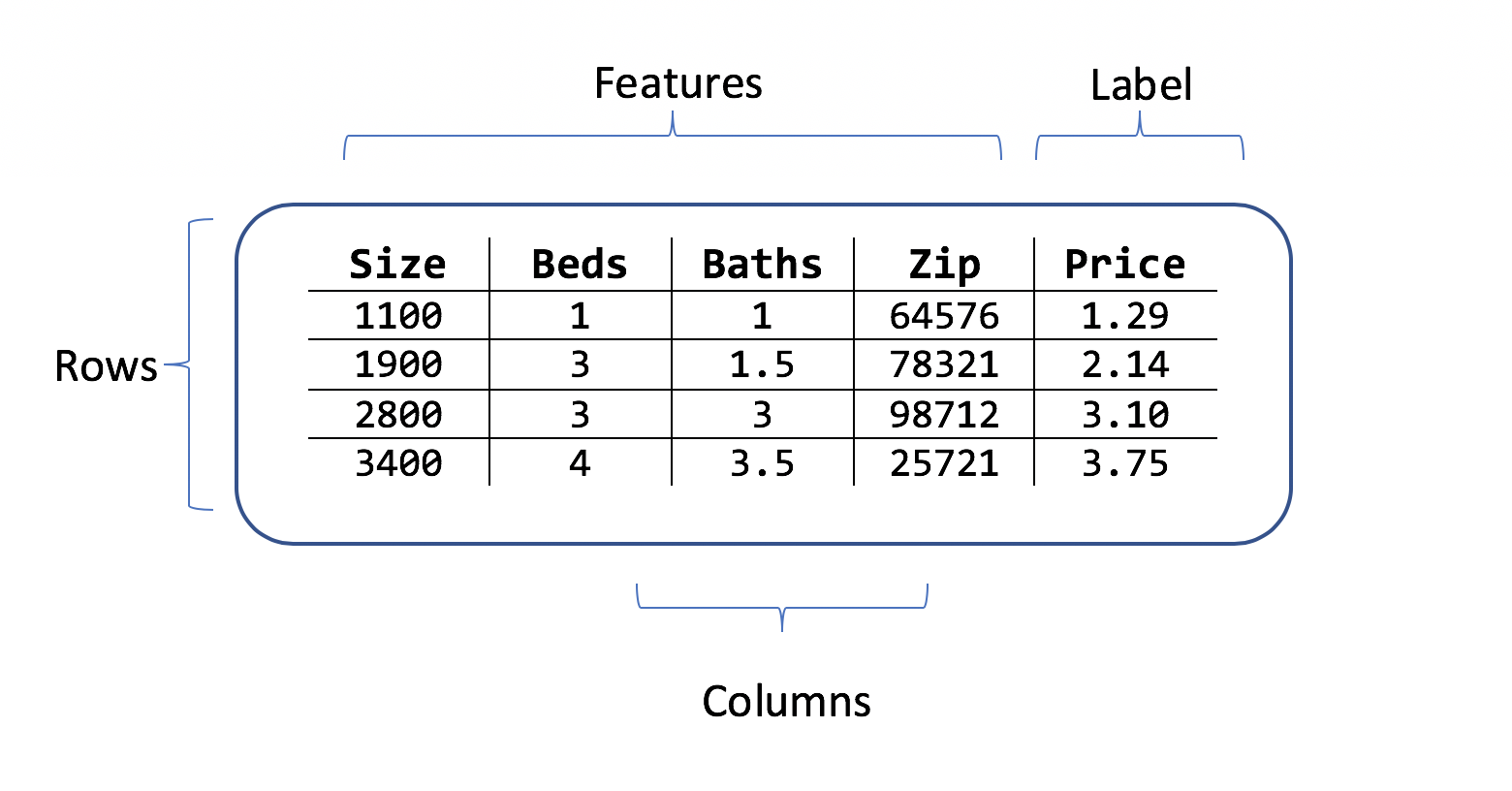

A dataset is a table of rows of training examples, and columns of attributes. Each row has:

• a label (the attribute that you want to predict)
• features (attributes that are used as inputs to predict the label)

For the house-price prediction scenario, the features could be:

• The square footage of the house.
• The number of bedrooms and bathrooms.
• The zip code.

The label is the historical house price for that row of square footage, bedroom, and bathroom values and zip code.

Example datasets

If you don't have your own data yet, try out one of these datasets:

Scenario	Example	Data	Label	Features
Classification	Predict sales anomalies	product sales data	Product Sales	Month
	Predict sentiment of website comments	website comment data	Label (1 when negative sentiment, 0 when positive)	Comment, Year
	Predict fraudulent credit card transactions	credit card data	Class (1 when fraudulent, 0 otherwise)	Amount, V1-V28 (anonymized features)
	Predict the type of issue in a GitHub repository	GitHub issue data	Area	Title, Description
Value prediction	Predict taxi fare price	taxi fare data	Fare	Trip time, distance
Image classification	Predict the category of a flower	flower images	The type of flower: daisy, dandelion, roses, sunflowers, tulips	The image data itself
Recommendation	Predict movies that someone will like	movie ratings	Users, Movies	Ratings

Train

Once you select your scenario, environment, data, and label, Model Builder trains the model.

What is training?

Training is an automatic process by which Model Builder teaches your model how to answer questions for your scenario. Once trained, your model can make predictions with input data that it has not seen before. For example, if you are predicting house prices and a new house comes on the market, you can predict its sale price.

Because Model Builder uses automated machine learning (AutoML), it does not require any input or tuning from you during training.

How long should I train for?

Model Builder uses AutoML to explore multiple models to find you the best performing model.

Longer training periods allow AutoML to explore more models with a wider range of settings.

The table below summarizes the average time taken to get good performance for a suite of example datasets, on a local machine.

Dataset size	Average time to train
0 - 10 MB	10 sec
10 - 100 MB	10 min
100 - 500 MB	30 min
500 - 1 GB	60 min
1 GB+	3+ hours

These numbers are a guide only. The exact length of training is dependent on:

• The number of features (columns) being used to as input to the model.
• The type of columns.
• The ML task.
• The CPU, disk, and memory performance of the machine used for training.

It's generally advised that you use more than 100 rows as datasets with less than that may not produce any results.

Evaluate

Evaluation is the process of measuring how good your model is. Model Builder uses the trained model to make predictions with new test data, and then measures how good the predictions are.

Model Builder splits the training data into a training set and a test set. The training data (80%) is used to train your model and the test data (20%) is held back to evaluate your model.

How do I understand my model performance?

A scenario maps to a machine learning task. Each ML task has its own set of evaluation metrics.

Value prediction

The default metric for value prediction problems is RSquared, the value of RSquared ranges between 0 and 1. 1 is the best possible value or in other words the closer the value of RSquared to 1 the better your model is performing.

Other metrics reported such as absolute-loss, squared-loss, and RMS loss are additional metrics, which can be used to understand how your model is performing and comparing it against other value prediction models.

Classification (2 categories)

The default metric for classification problems is accuracy. Accuracy defines the proportion of correct predictions your model is making over the test dataset. The closer to 100% or 1.0 the better it is.

Other metrics reported such as AUC (Area under the curve), which measures the true positive rate vs. the false positive rate should be greater than 0.50 for models to be acceptable.

Additional metrics like F1 score can be used to control the balance between Precision and Recall.

Classification (3+ categories)

The default metric for Multi-class classification is Micro Accuracy. The closer the Micro Accuracy to 100% or 1.0 the better it is.

Another important metric for Multi-class classification is Macro-accuracy, similar to Micro-accuracy the closer to 1.0 the better it is. A good way to think about these two types of accuracy is:

• Micro-accuracy: How often does an incoming ticket get classified to the right team?
• Macro-accuracy: For an average team, how often is an incoming ticket correct for their team?

More information on evaluation metrics

For more information, see model evaluation metrics.

Improve

If your model performance score is not as good as you want it to be, you can:

• Train for a longer period of time. With more time, the automated machine learning engine experiments with more algorithms and settings.

• Add more data. Sometimes the amount of data is not sufficient to train a high-quality machine learning model.This is especially true with datasets that have a small number of examples.

• Balance your data. For classification tasks, make sure that the training set is balanced across the categories. For example, if you have four classes for 100 training examples, and the two first classes (tag1 and tag2) are used for 90 records, but the other two (tag3 and tag4) are only used on the remaining 10 records, the lack of balanced data may cause your model to struggle to correctly predict tag3 or tag4.

Consume

After the evaluation phase, Model Builder outputs a model file, and code that you can use to add the model to your application. ML.NET models are saved as a zip file. The code to load and use your model is added as a new project in your solution. Model Builder also adds a sample console app that you can run to see your model in action.

In addition, Model Builder gives you the option to create projects that consume your model. Currently, Model Builder will create the following projects:

• Console app: Creates a .NET console application to make predictions from your model.
• Web API: Creates an ASP.NET Core Web API that lets you consume your model over the internet.

What's next?

Install the Model Builder Visual Studio extension.

Try price prediction or any regression scenario.
