Tutorial: Microsoft Entra SSO integration with AWS Single-Account Access

  • Raksts

In this tutorial, you learn how to integrate AWS Single-Account Access with Microsoft Entra ID. When you integrate AWS Single-Account Access with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to AWS Single-Account Access.
  • Enable your users to be automatically signed-in to AWS Single-Account Access with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Use the information below to make a decision between using the AWS Single Sign-On and AWS Single-Account Access applications in the Microsoft Entra application gallery.

AWS Single Sign-On

AWS Single Sign-On was added to the Microsoft Entra application gallery in February 2021. It makes it easy to manage access centrally to multiple AWS accounts and AWS applications, with sign-in through Microsoft Entra ID. Federate Microsoft Entra ID with AWS SSO once, and use AWS SSO to manage permissions across all of your AWS accounts from one place. AWS SSO provisions permissions automatically and keeps them current as you update policies and access assignments. End users can authenticate with their Microsoft Entra credentials to access the AWS Console, Command Line Interface, and AWS SSO integrated applications.

AWS Single-Account Access

AWS Single-Account Access has been used by customers over the past several years and enables you to federate Microsoft Entra ID to a single AWS account and use Microsoft Entra ID to manage access to AWS IAM roles. AWS IAM administrators define roles and policies in each AWS account. For each AWS account, Microsoft Entra administrators federate to AWS IAM, assign users or groups to the account, and configure Microsoft Entra ID to send assertions that authorize role access.

Feature AWS Single Sign-On AWS Single-Account Access
Conditional Access Supports a single Conditional Access policy for all AWS accounts. Supports a single Conditional Access policy for all accounts or custom policies per account
CLI access Supported Supported
Privileged Identity Management Supported Not supported
Centralize account management Centralize account management in AWS. Centralize account management in Microsoft Entra ID (will likely require a Microsoft Entra enterprise application per account).
SAML certificate Single certificate Separate certificates per app / account

AWS Single-Account Access architecture

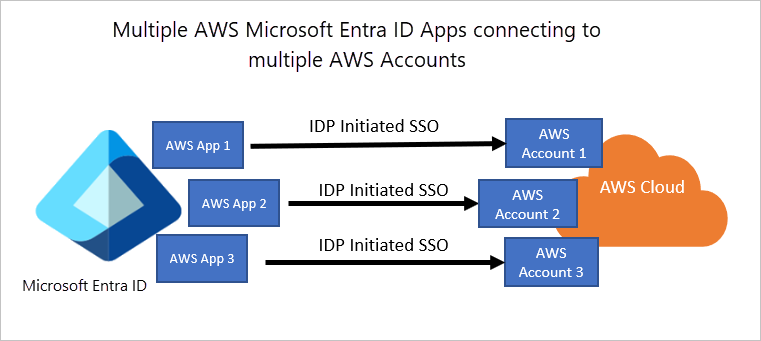

Screenshot showing Microsoft Entra ID and AWS relationship.

You can configure multiple identifiers for multiple instances. For example:

  • https://signin.aws.amazon.com/saml#1

  • https://signin.aws.amazon.com/saml#2

With these values, Microsoft Entra ID removes the value of #, and sends the correct value https://signin.aws.amazon.com/saml as the audience URL in the SAML token.

We recommend this approach for the following reasons:

  • Each application provides you with a unique X509 certificate. Each instance of an AWS app instance can then have a different certificate expiry date, which can be managed on an individual AWS account basis. Overall certificate rollover is easier in this case.

  • You can enable user provisioning with an AWS app in Microsoft Entra ID, and then our service fetches all the roles from that AWS account. You don't have to manually add or update the AWS roles on the app.

  • You can assign the app owner individually for the app. This person can manage the app directly in Microsoft Entra ID.

Note

Make sure you use a gallery application only.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • An AWS IAM IdP enabled subscription.
  • Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Note

Roles should not be manually edited in Microsoft Entra ID when doing role imports.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • AWS Single-Account Access supports SP and IDP initiated SSO.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of AWS Single-Account Access into Microsoft Entra ID, you need to add AWS Single-Account Access from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type AWS Single-Account Access in the search box.
  4. Select AWS Single-Account Access from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, and walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, and walk through the SSO configuration as well. You can learn more about O365 wizards here.

Configure and test Microsoft Entra SSO for AWS Single-Account Access

Configure and test Microsoft Entra SSO with AWS Single-Account Access using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in AWS Single-Account Access.

To configure and test Microsoft Entra SSO with AWS Single-Account Access, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure AWS Single-Account Access SSO - to configure the single sign-on settings on application side.
    1. Create AWS Single-Account Access test user - to have a counterpart of B.Simon in AWS Single-Account Access that is linked to the Microsoft Entra representation of user.
    2. How to configure role provisioning in AWS Single-Account Access
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > AWS Single-Account Access > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot showing Edit Basic SAML Configuration.

  5. In the Basic SAML Configuration section, update both Identifier (Entity ID) and Reply URL with the same default value: https://signin.aws.amazon.com/saml. You must select Save to save the configuration changes.

  6. AWS application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.

    Screenshot showing default attributes.

  7. In addition to above, AWS application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre populated but you can review them as per your requirements.

    Name Source attribute Namespace
    RoleSessionName user.userprincipalname https://aws.amazon.com/SAML/Attributes
    Role user.assignedroles https://aws.amazon.com/SAML/Attributes
    SessionDuration user.sessionduration https://aws.amazon.com/SAML/Attributes

    Note

    AWS expects roles for users assigned to the application. Please set up these roles in Microsoft Entra ID so that users can be assigned the appropriate roles. To understand how to configure roles in Microsoft Entra ID, see here

  8. On the Set up single sign-on with SAML page, in the SAML Signing Certificate (Step 3) dialog box, select Add a certificate.

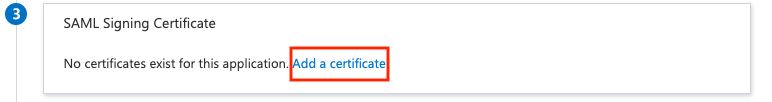

    Screenshot showing Create new SAML Certificate.

  9. Generate a new SAML signing certificate, and then select New Certificate. Enter an email address for certificate notifications.

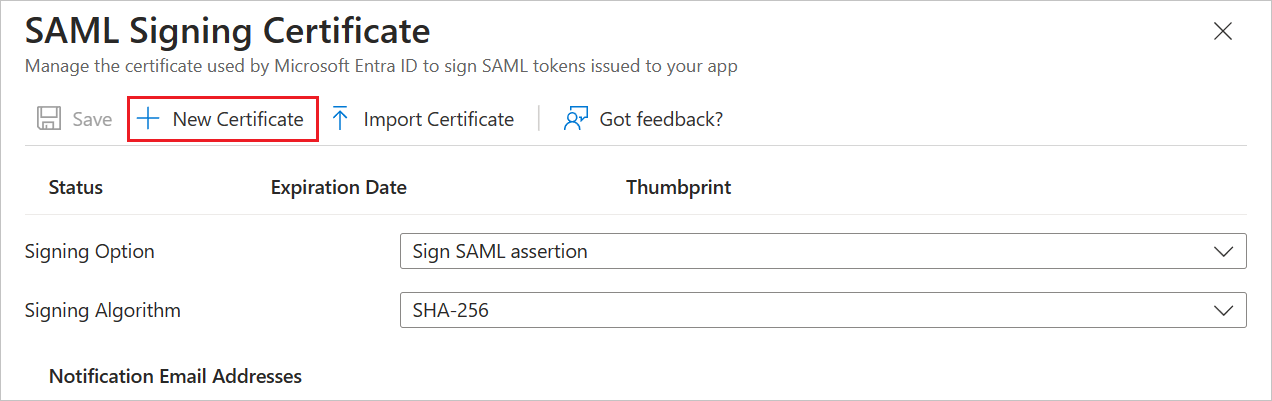

    Screenshot showing New SAML Certificate.

  10. (Optional) You can select Make certificate active.

  11. In the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

  12. In the Set up AWS Single-Account Access section, copy the appropriate URL(s) based on your requirement.

    Screenshot showing Copy configuration URLs.

Create a Microsoft Entra test user

In this section, you create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you enable B.Simon to use single sign-on by granting access to AWS Single-Account Access.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > AWS Single-Account Access.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you're expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure AWS Single-Account Access SSO

  1. In a different browser window, sign-on to your AWS company site as an administrator.

  2. In AWS home page, search for IAM and click it.

    Screenshot of AWS services page, with IAM highlighted.

  3. Go to Access management -> Identity Providers and click Add provider button.

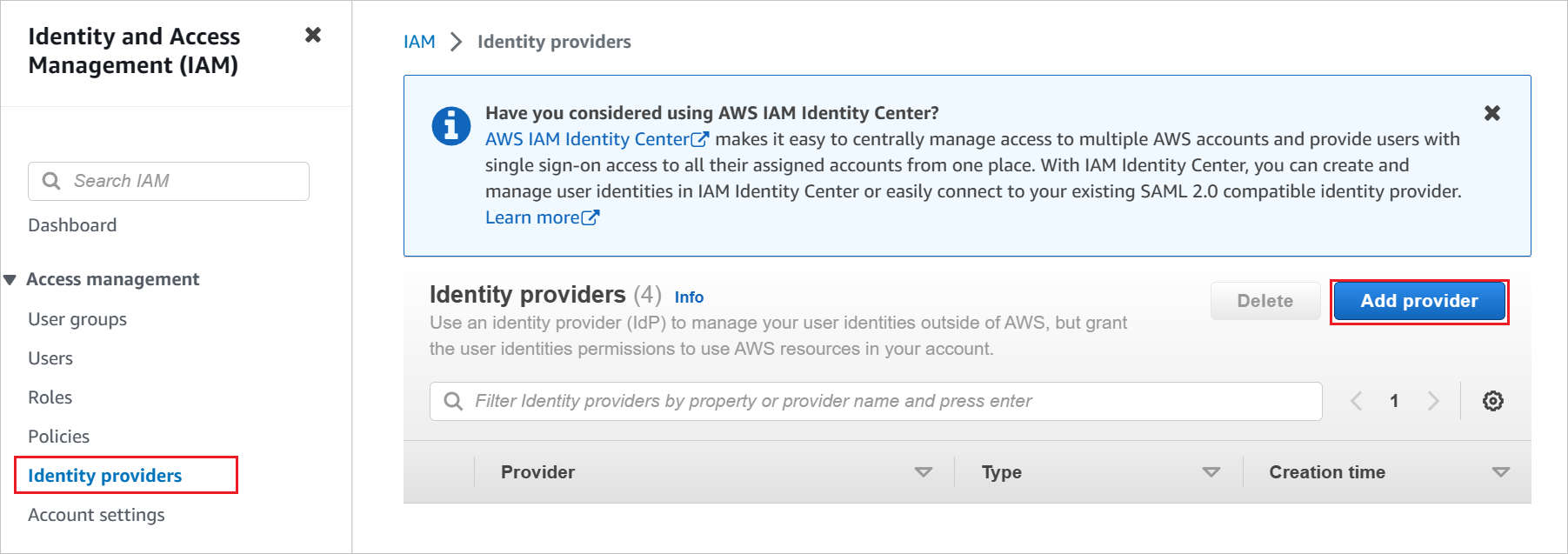

    Screenshot of IAM page, with Identity Providers and Create Provider highlighted.

  4. In the Add an Identity provider page, perform the following steps:

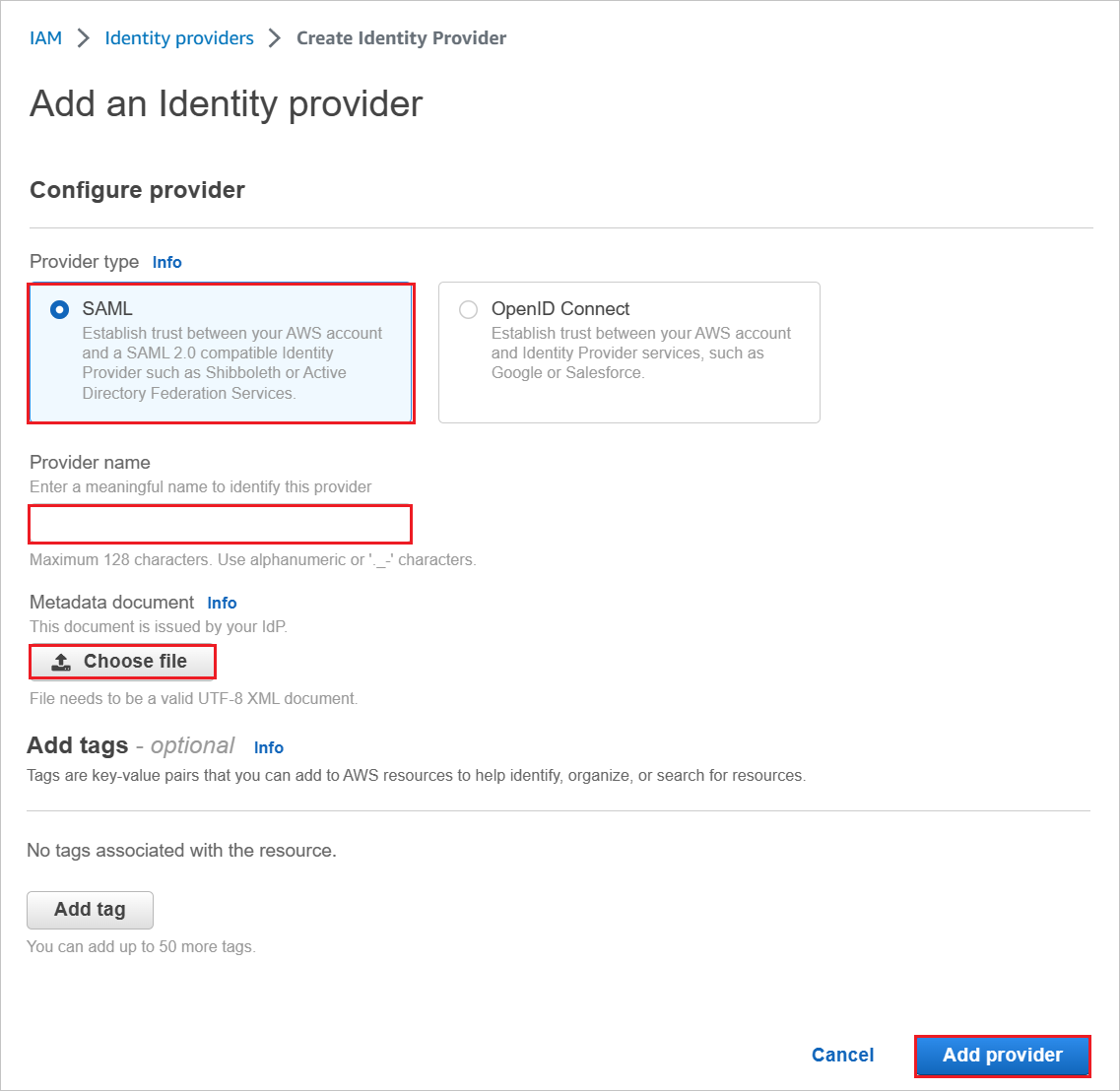

    Screenshot of Configure Provider.

    a. For Provider type, select SAML.

    b. For Provider name, type a provider name (for example: WAAD).

    c. To upload your downloaded metadata file, select Choose file.

    d. Click Add provider.

  5. Select Roles > Create role.

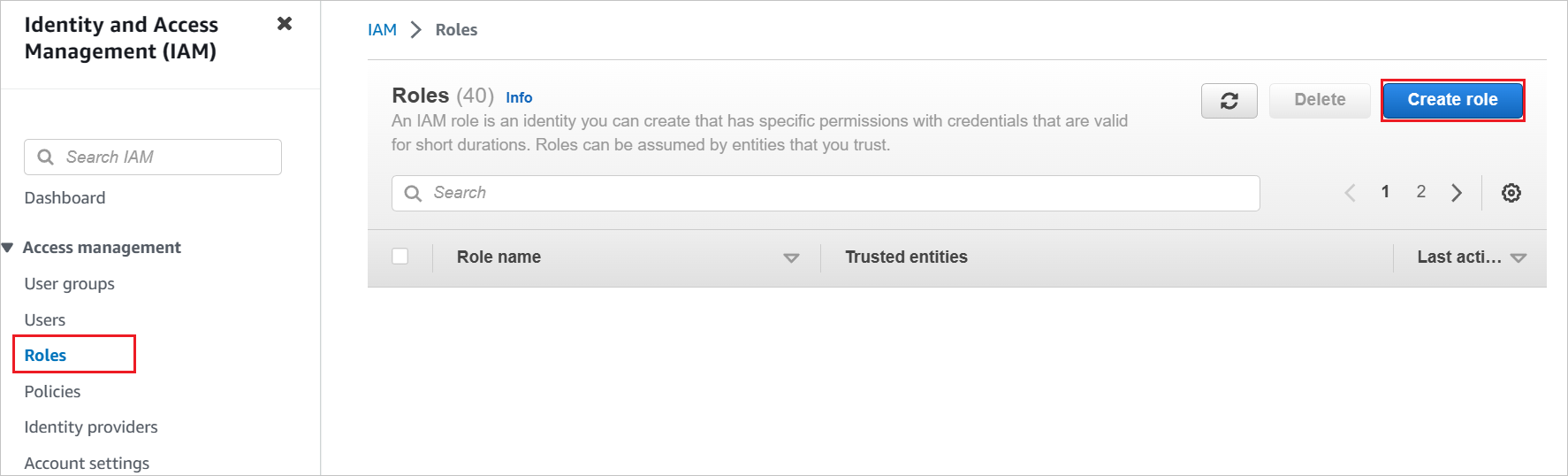

    Screenshot of Roles page.

  6. On the Create role page, perform the following steps:

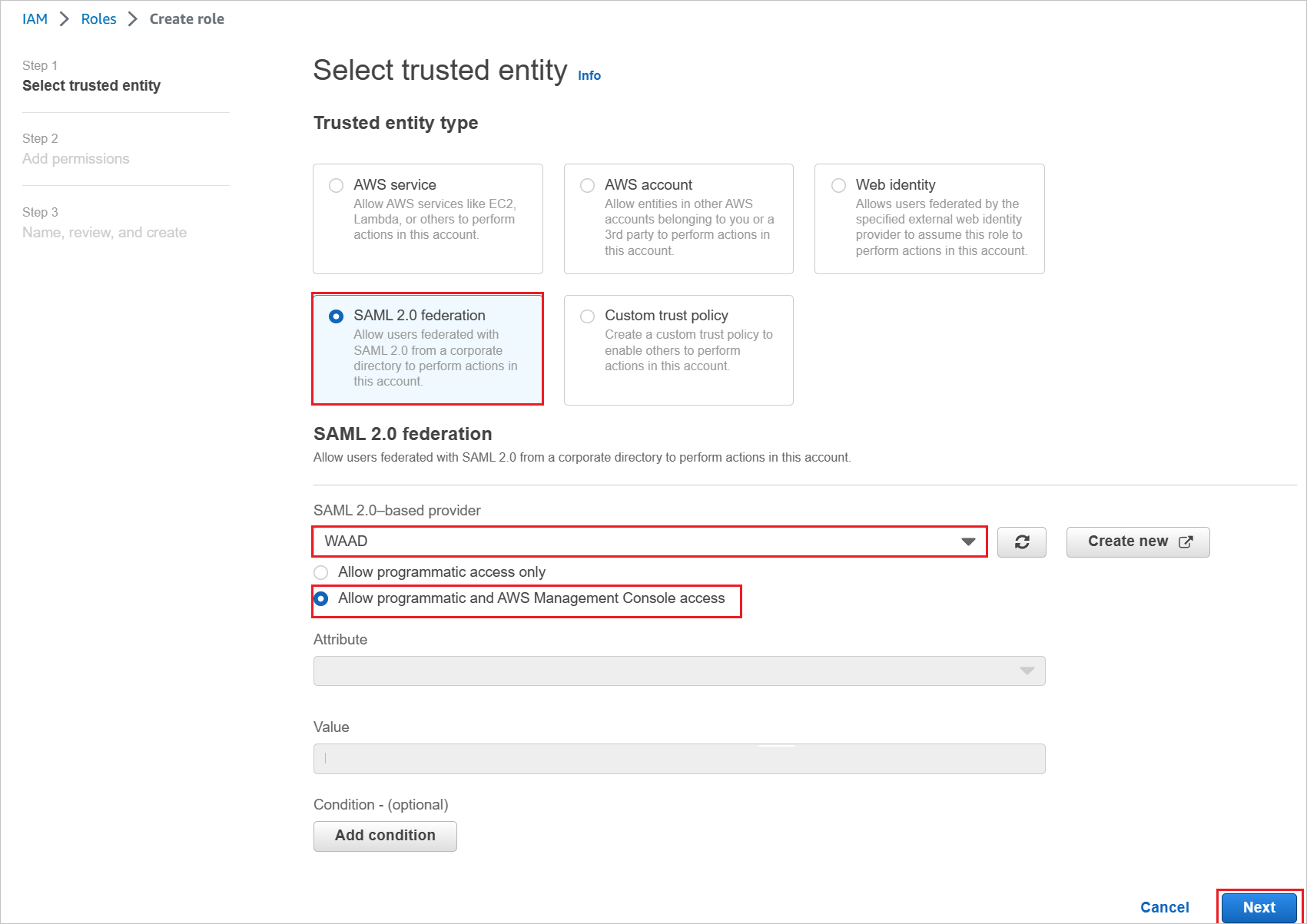

    Screenshot of Create role page.

    a. Choose Trusted entity type, select SAML 2.0 federation.

    b. Under SAML 2.0 based provider, select the SAML provider you created previously (for example: WAAD).

    c. Select Allow programmatic and AWS Management Console access.

    d. Select Next.

  7. On the Permissions policies dialog box, attach the appropriate policy, per your organization. Then select Next.

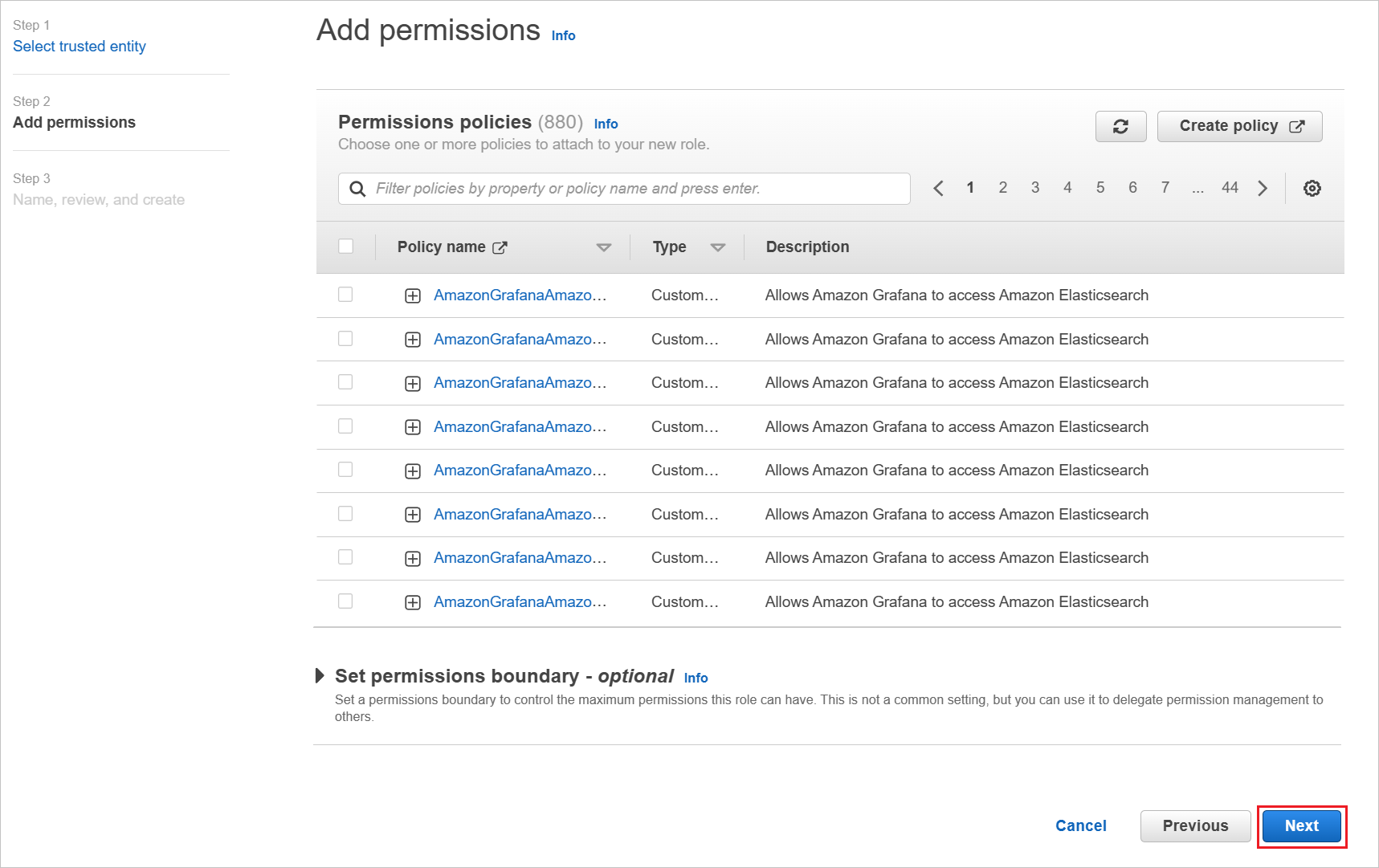

    Screenshot of Attach permissions policy dialog box.

  8. On the Review dialog box, perform the following steps:

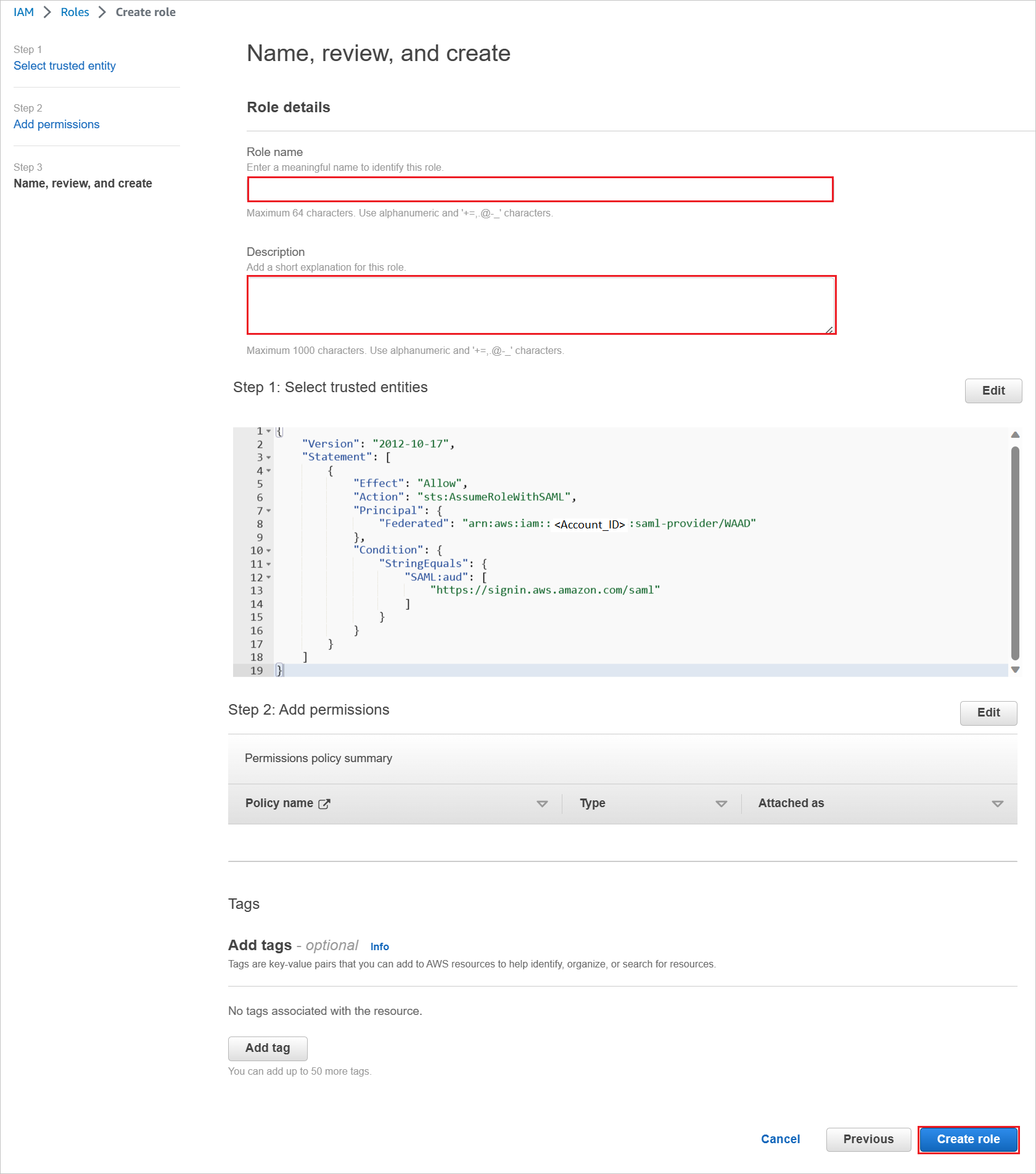

    Screenshot of Review dialog box.

    a. In Role name, enter your role name.

    b. In Description, enter the role description.

    c. Select Create role.

    d. Create as many roles as needed and map them to the identity provider.

  9. Use AWS service account credentials for fetching the roles from the AWS account in Microsoft Entra user provisioning. For this, open the AWS console home.

  10. In the IAM section, select Policies and click Create policy.

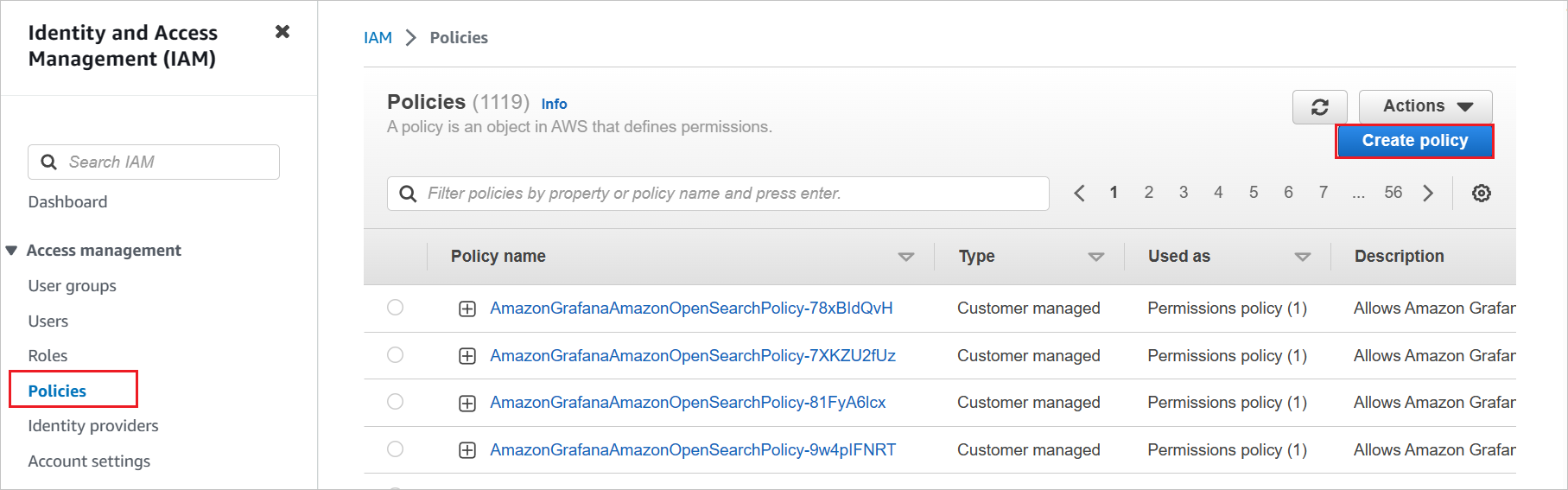

    Screenshot of IAM section, with Policies highlighted.

  11. Create your own policy to fetch all the roles from AWS accounts.

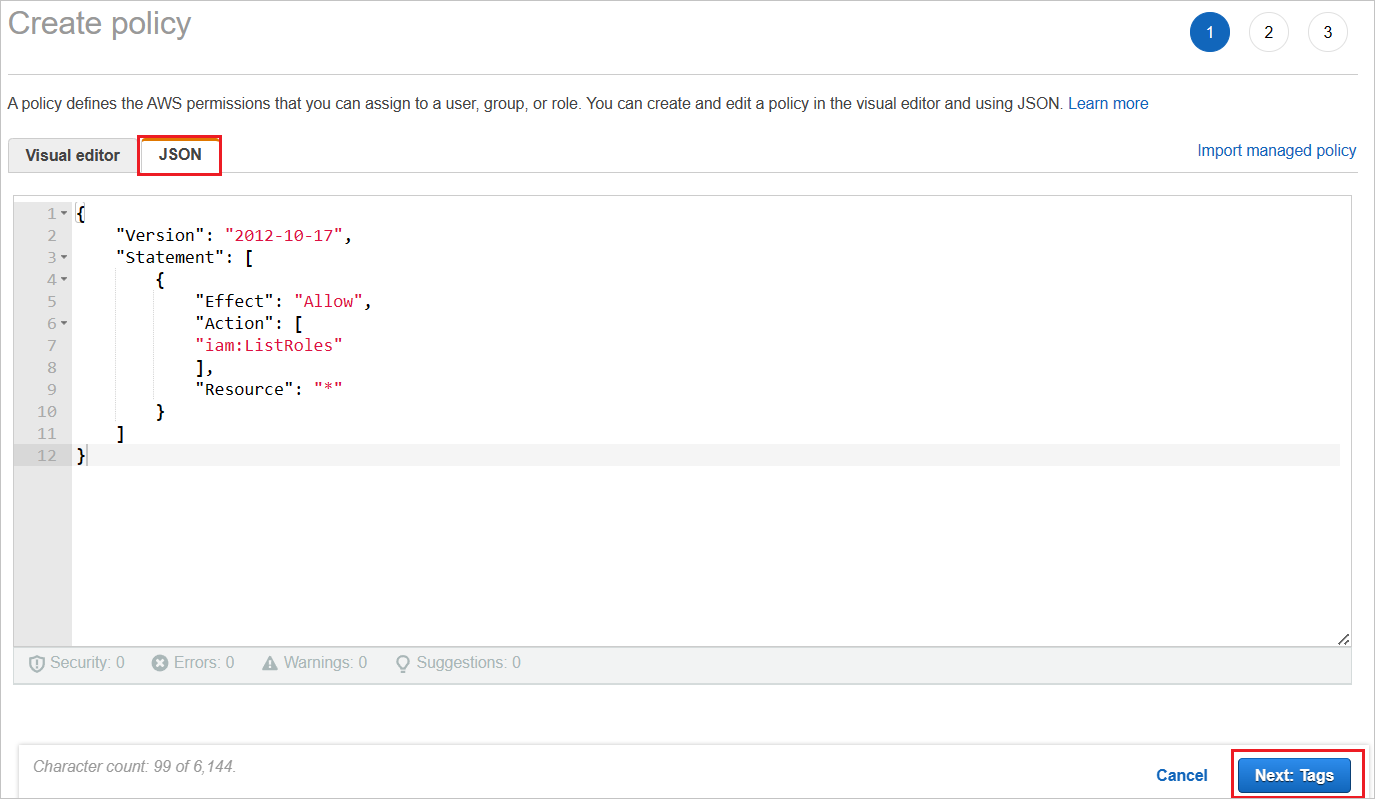

    Screenshot of Create policy page, with JSON highlighted.

    a. In Create policy, select the JSON tab.

    b. In the policy document, add the following JSON:

    {
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
            "iam:ListRoles"
            ],
            "Resource": "*"
        }
    ]
}

    c. Click Next: Tags.

  12. You can also add the required tags in the below page and click Next: Review.

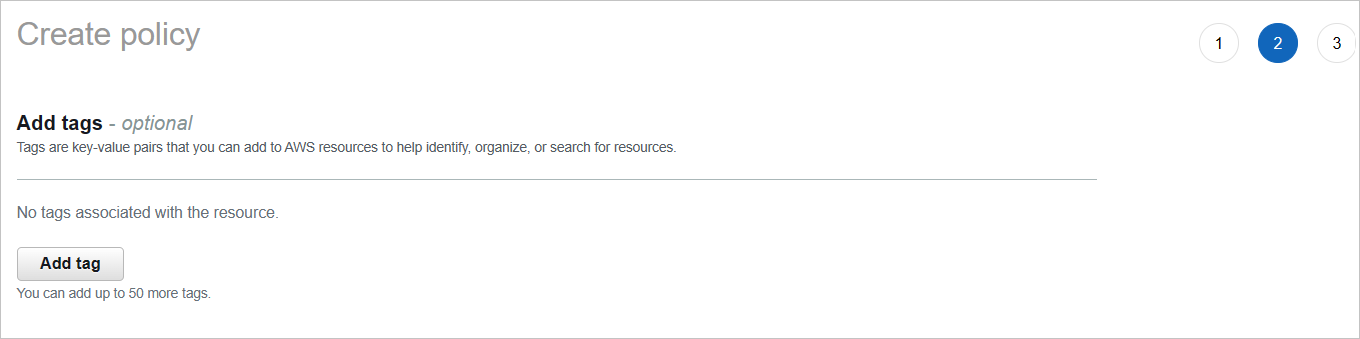

    Screenshot of Create policy tag page.

  13. Define the new policy.

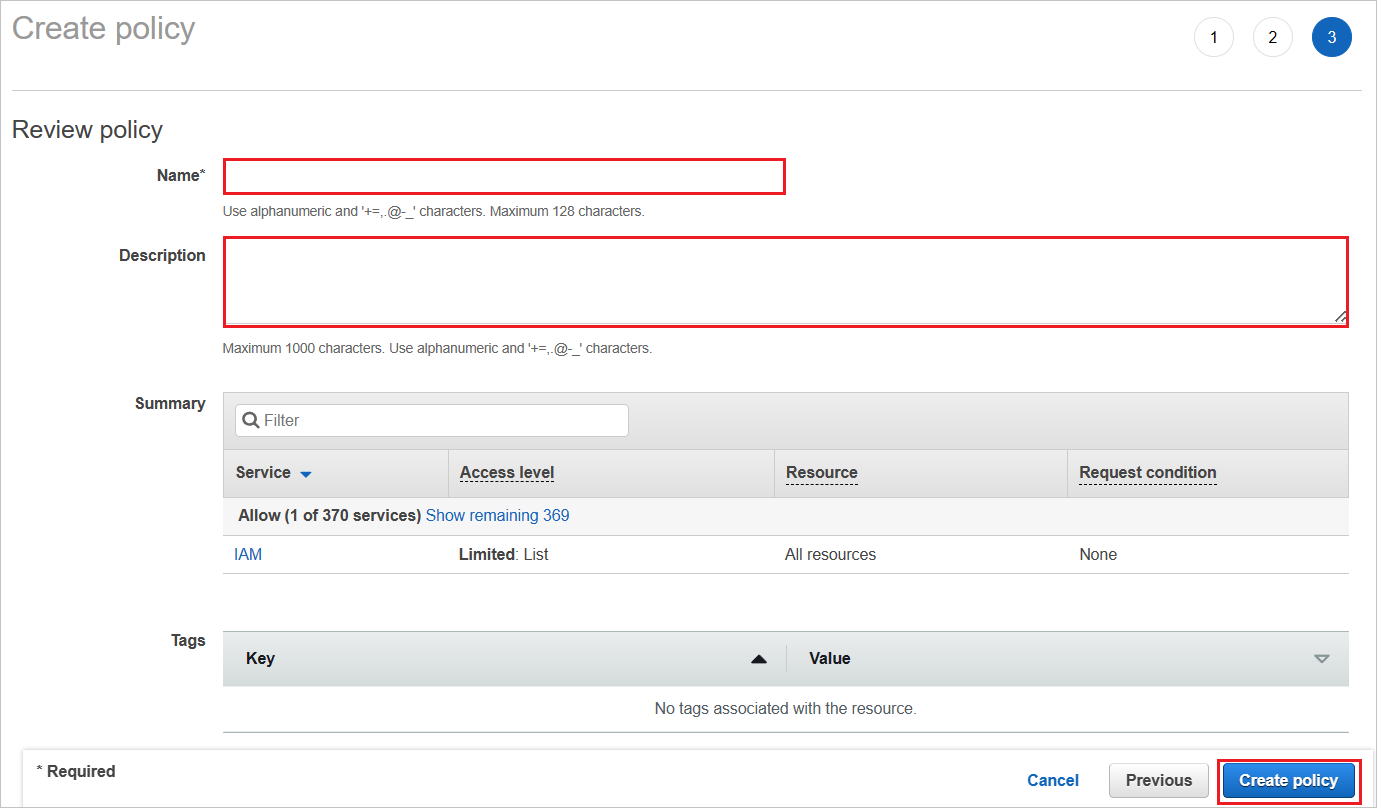

    Screenshot of Create policy page, with Name and Description fields highlighted.

    a. For Name, enter AzureAD_SSOUserRole_Policy.

    b. For Description, enter This policy will allow to fetch the roles from AWS accounts.

    c. Select Create policy.

  14. Create a new user account in the AWS IAM service.

    a. In the AWS IAM console, select Users and click Add users.

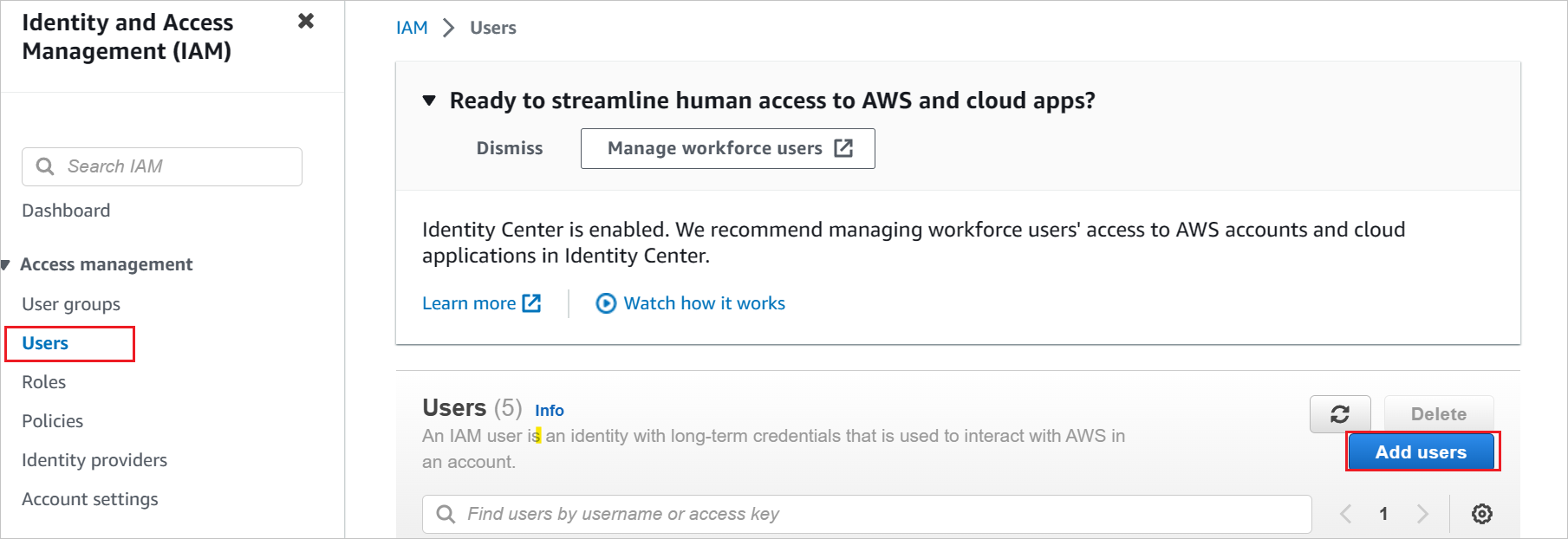

    Screenshot of AWS IAM console, with Users highlighted.

    b. In the Specify user details section, enter the user name as AzureADRoleManager and select Next.

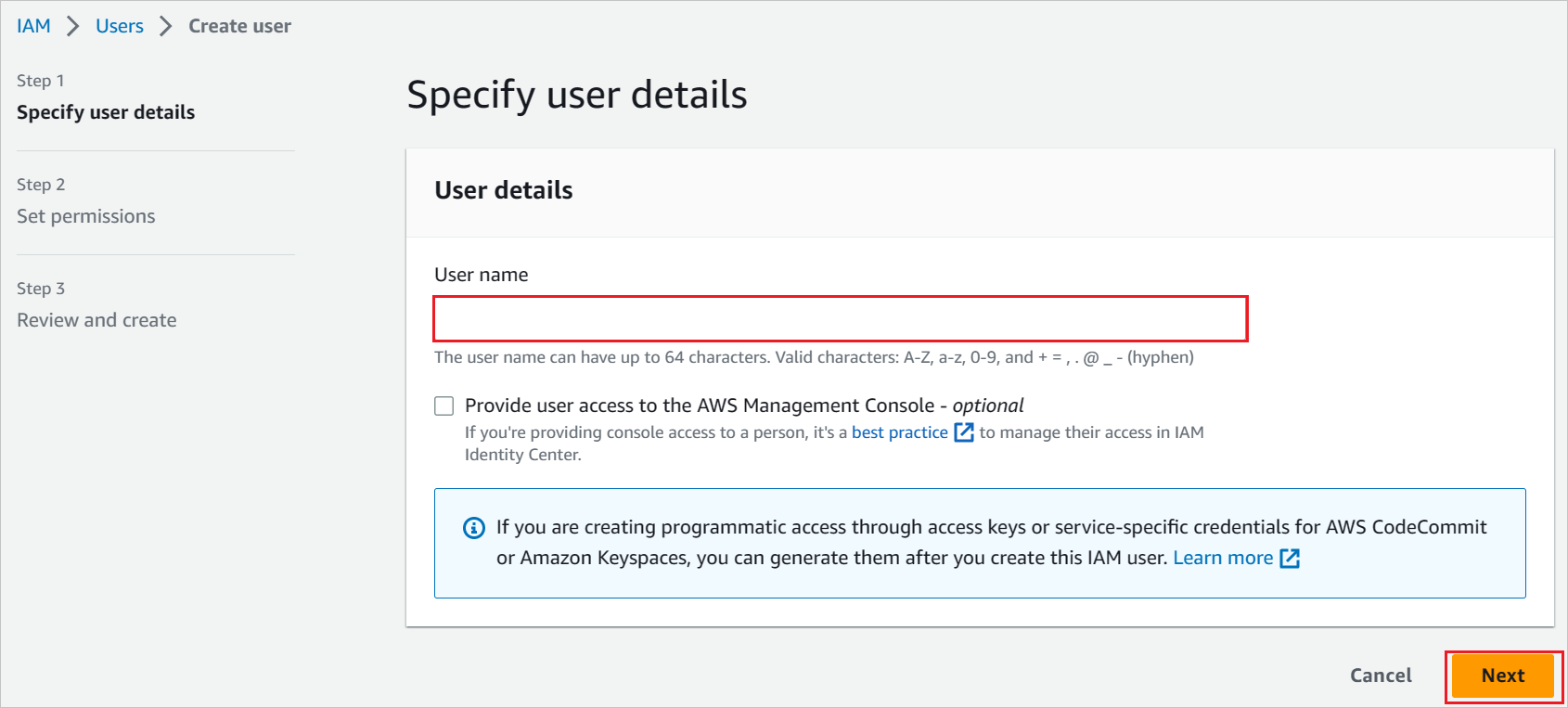

    Screenshot of Add user page, with User name and Access type highlighted.

    c. Create a new policy for this user.

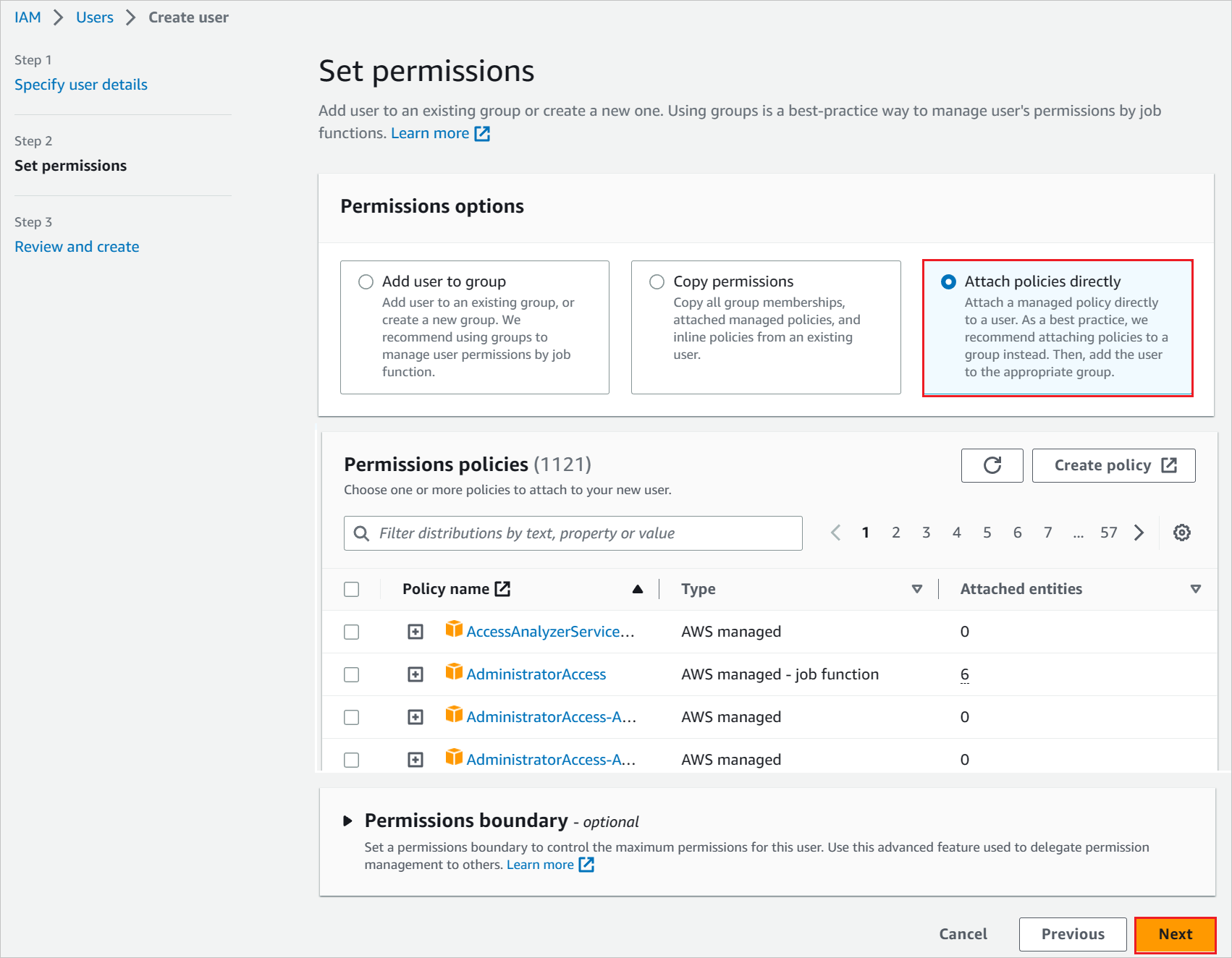

    Screenshot shows the Add user page where you can create a policy for the user.

    d. Select Attach existing policies directly.

    e. Search for the newly created policy in the filter section AzureAD_SSOUserRole_Policy.

    f. Select the policy, and then select Next.

  15. Review your choices and select Create user.

Note: Ensure to create and download the third-party access key for this user. This key will be used in the Microsoft Entra user provisioning section to fetch the roles from the AWS console.

  1. To download the user credentials of a user, enable the console access in Security credentials tab.

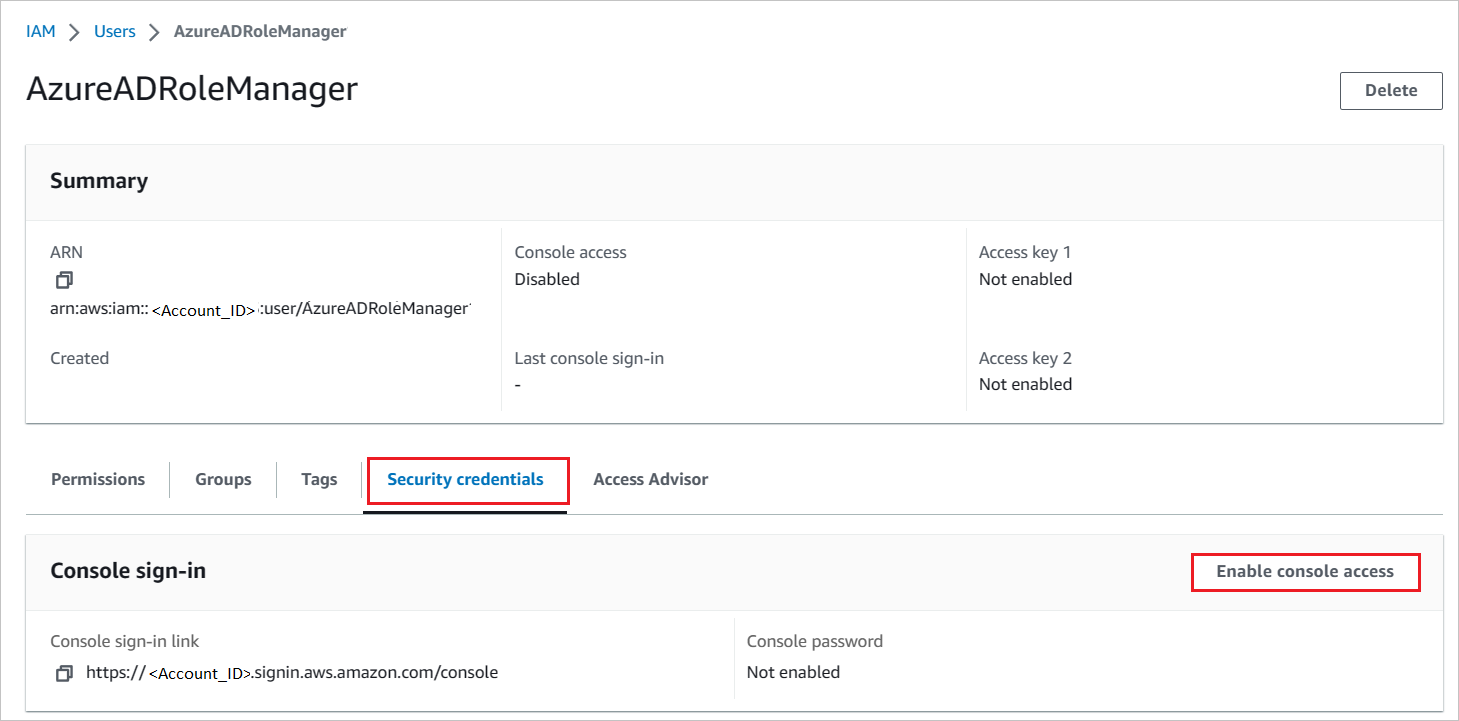

    Screenshot shows the Security credentials.

  2. Enter these credentials into the Microsoft Entra user provisioning section to fetch the roles from the AWS console.

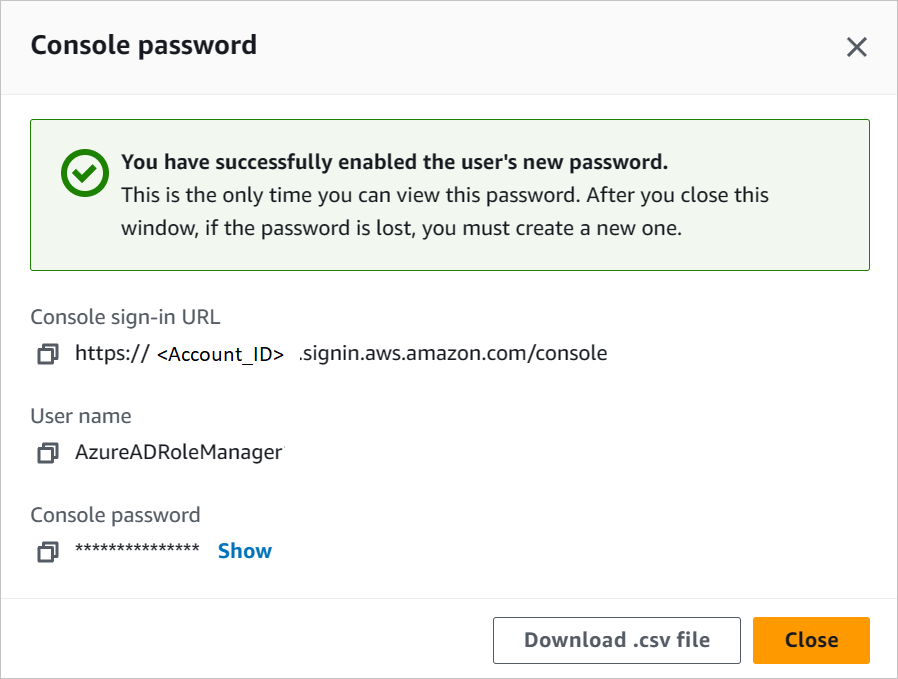

    Screenshot shows the download the user credentials.

Note

AWS has a set of permissions/limts are required to configure AWS SSO. To know more information on AWS limits, please refer this page.

How to configure role provisioning in AWS Single-Account Access

  1. In the Microsoft Entra management portal, in the AWS app, go to Provisioning.

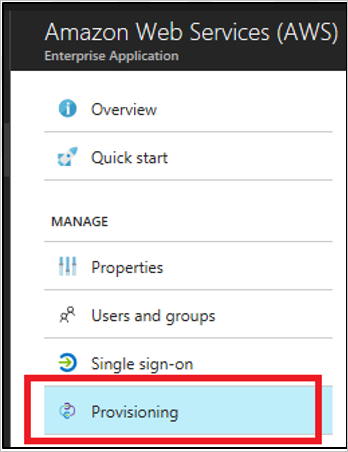

    Screenshot of AWS app, with Provisioning highlighted.

Note: The username and password returned when enabling console access are not what is needed for the clientsecret and Secret Token values. Instead, create a third-party access key for this step.

  1. Enter the access key and secret in the clientsecret and Secret Token fields, respectively.

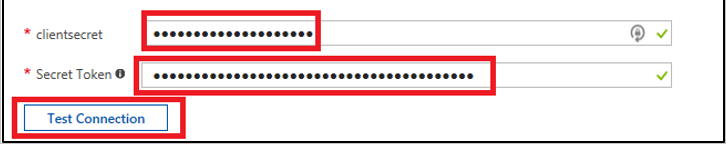

    Screenshot of Admin Credentials dialog box.

    a. Enter the AWS user access key in the clientsecret field.

    b. Enter the AWS user secret in the Secret Token field.

    c. Select Test Connection.

    d. Save the setting by selecting Save.

  2. In the Settings section, for Provisioning Status, select On. Then select Save.

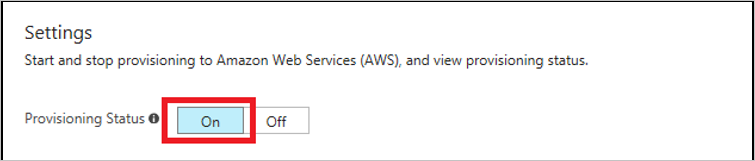

    Screenshot of Settings section, with On highlighted.

Note

The provisioning service imports roles only from AWS to Microsoft Entra ID. The service does not provision users and groups from Microsoft Entra ID to AWS.

Note

After you save the provisioning credentials, you must wait for the initial sync cycle to run. Sync usually takes around 40 minutes to finish. You can see the status at the bottom of the Provisioning page, under Current Status.

Create AWS Single-Account Access test user

The objective of this section is to create a user called B.Simon in AWS Single-Account Access. AWS Single-Account Access doesn't need a user to be created in their system for SSO, so you don't need to perform any action here.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to AWS Single-Account Access Sign on URL where you can initiate the login flow.

  • Go to AWS Single-Account Access Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the AWS Single-Account Access for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the AWS Single-Account Access tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the AWS Single-Account Access for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Known issues

  • AWS Single-Account Access provisioning integration can't be used in the AWS China regions.

  • In the Provisioning section, the Mappings subsection shows a "Loading..." message, and never displays the attribute mappings. The only provisioning workflow supported today is the import of roles from AWS into Microsoft Entra ID for selection during a user or group assignment. The attribute mappings for this are predetermined, and aren't configurable.

  • The Provisioning section only supports entering one set of credentials for one AWS tenant at a time. All imported roles are written to the appRoles property of the Microsoft Entra ID servicePrincipal object for the AWS tenant.

    Multiple AWS tenants (represented by servicePrincipals) can be added to Microsoft Entra ID from the gallery for provisioning. There's a known issue, however, with not being able to automatically write all of the imported roles from the multiple AWS servicePrincipals used for provisioning into the single servicePrincipal used for SSO.

    As a workaround, you can use the Microsoft Graph API to extract all of the appRoles imported into each AWS servicePrincipal where provisioning is configured. You can subsequently add these role strings to the AWS servicePrincipal where SSO is configured.

  • Roles must meet the following requirements to be eligible to be imported from AWS into Microsoft Entra ID:

    • Roles must have exactly one saml-provider defined in AWS
    • The combined length of the ARN(Amazon Resource Name) for the role and the ARN for the associated saml-provider must be less than 240 characters.

Change log

  • 01/12/2020 - Increased role length limit from 119 characters to 239 characters.

Next steps

Once you configure AWS Single-Account Access you can enforce Session Control, which protects exfiltration and infiltration of your organization's sensitive data in real time. Session Control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
