Microsoft Entra SSO integration with Onyxia

  • Raksts

In this tutorial, you'll learn how to integrate Onyxia with Microsoft Entra ID. When you integrate Onyxia with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Onyxia.
  • Enable your users to be automatically signed-in to Onyxia with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To integrate Microsoft Entra ID with Onyxia, you need:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Onyxia single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Onyxia supports both SP and IDP initiated SSO.
  • Onyxia supports Just In Time user provisioning.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of Onyxia into Microsoft Entra ID, you need to add Onyxia from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Onyxia in the search box.
  4. Select Onyxia from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, and walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Onyxia

Configure and test Microsoft Entra SSO with Onyxia using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Onyxia.

To configure and test Microsoft Entra SSO with Onyxia, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Onyxia SSO - to configure the single sign-on settings on application side.
    1. Create Onyxia test user - to have a counterpart of B.Simon in Onyxia that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO in the Microsoft Entra admin center.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Onyxia > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot shows how to edit Basic SAML Configuration.

  5. On the Basic SAML Configuration section, the application is pre-configured and the necessary URLs are already pre-populated with Microsoft Entra. The user needs to save the configuration by clicking the Save button.

  6. Perform the following step, if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://auth.onyxia.io/auth/saml/callback

  7. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.

    Screenshot shows the Certificate download link.

  8. On the Set up Onyxia section, copy the appropriate URLs based on your requirement.

    Screenshot shows to copy configuration URLs.

Create a Microsoft Entra test user

In this section, you'll create a test user in the Microsoft Entra admin center called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use Microsoft Entra single sign-on by granting access to Onyxia.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Onyxia.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Onyxia SSO

  1. Log in to Onyxia company site as an administrator.

  2. Go to Settings and click Account Settings.

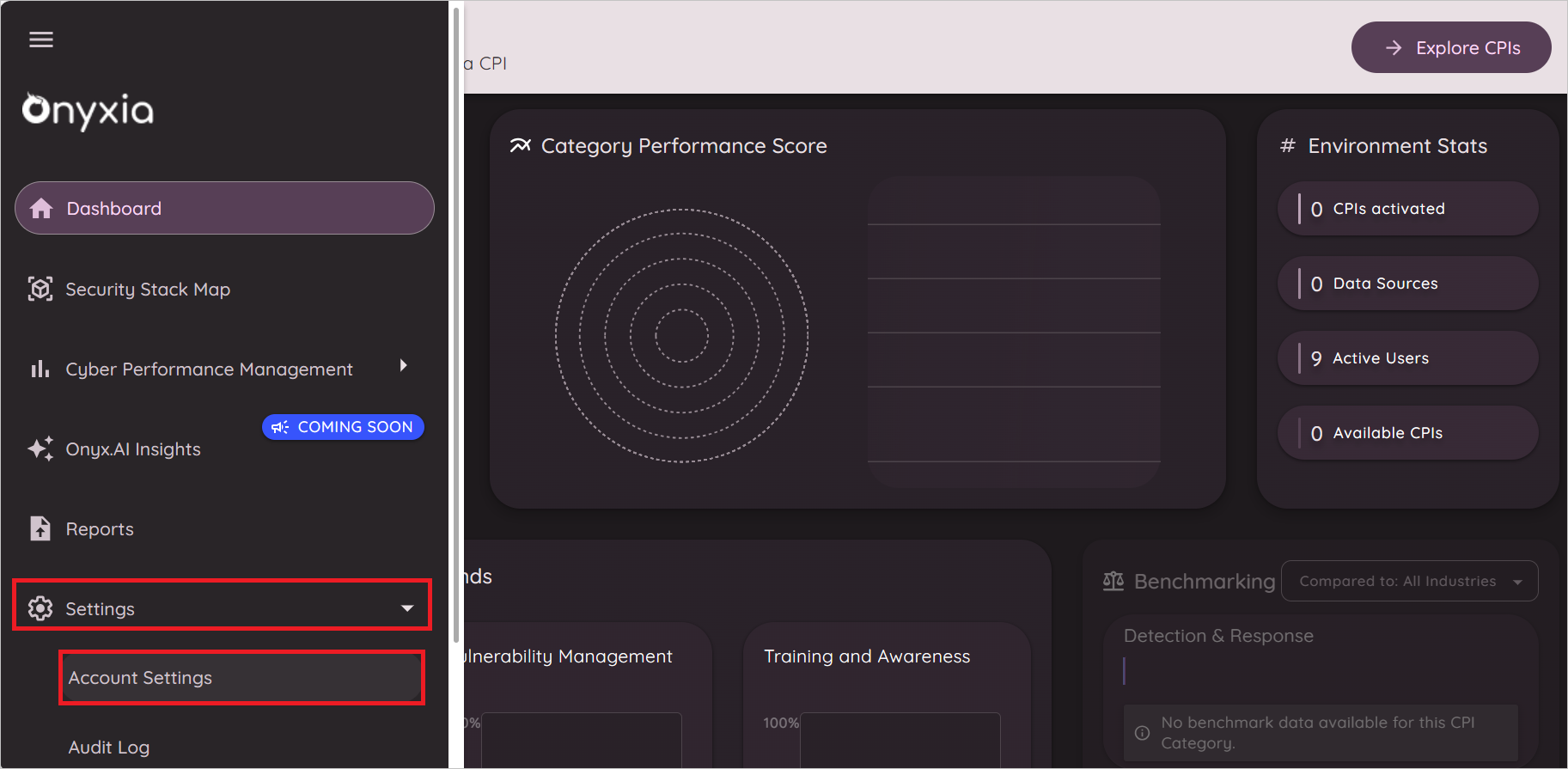

    Screenshot shows navigation to the settings.

  3. Navigate to SSO section and click + Add New Connection.

    Screenshot shows to add new connection.

  4. In the SSO Configuration section, perform the following steps:

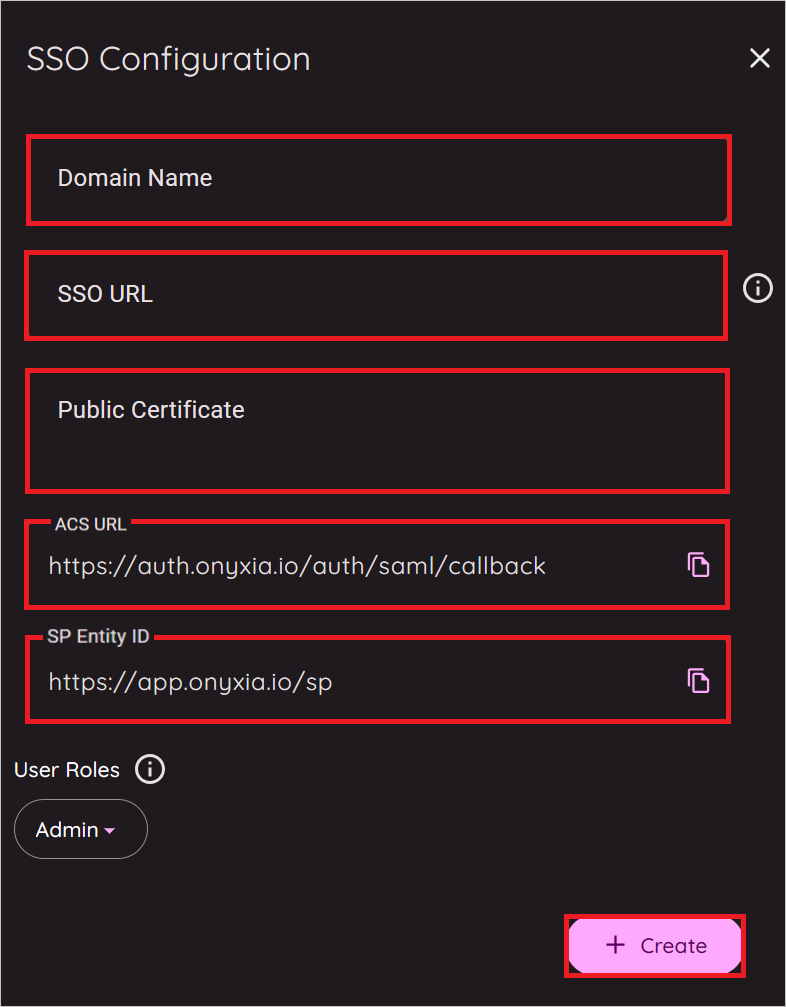

    Screenshot shows the configuration.

    1. In the Domain Name text box, enter a valid Domain name.

    2. In the SSO URL textbox, paste the Login URL which you have copied from the Microsoft Entra admin center.

    3. Open the downloaded Certificate (Base64) into Notepad and paste the content into the Public Certificate textbox.

    4. Copy the ACS URL and paste it in the Reply URL textbox in the Basic SAML Configuration section in the Microsoft Entra admin center.

    5. Copy the SP Entity ID and paste it in the Identifier (Entity ID) textbox in the Basic SAML Configuration section in the Microsoft Entra admin center.

    6. Click + Create.

Create Onyxia test user

In this section, a user called Britta Simon is created in Onyxia. Onyxia supports just-in-time user provisioning, which is enabled by default. There is no action item for you in this section. If a user doesn't already exist in Onyxia, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application in Microsoft Entra admin center. This will redirect to Onyxia Sign-on URL where you can initiate the login flow.

  • Go to Onyxia Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application in Microsoft Entra admin center and you should be automatically signed in to the Onyxia for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Onyxia tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Onyxia for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Onyxia you can enforce session control, which protects exfiltration and infiltration of your organization's sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
