Fabric API for GraphQL editor

Note

Microsoft Fabric API for GraphQL is in preview.

The Fabric API for GraphQL provides a graphical in-browser GraphQL development environment, which enables an interactive playground to compose, test, and see the live results of your GraphQL queries and mutations.

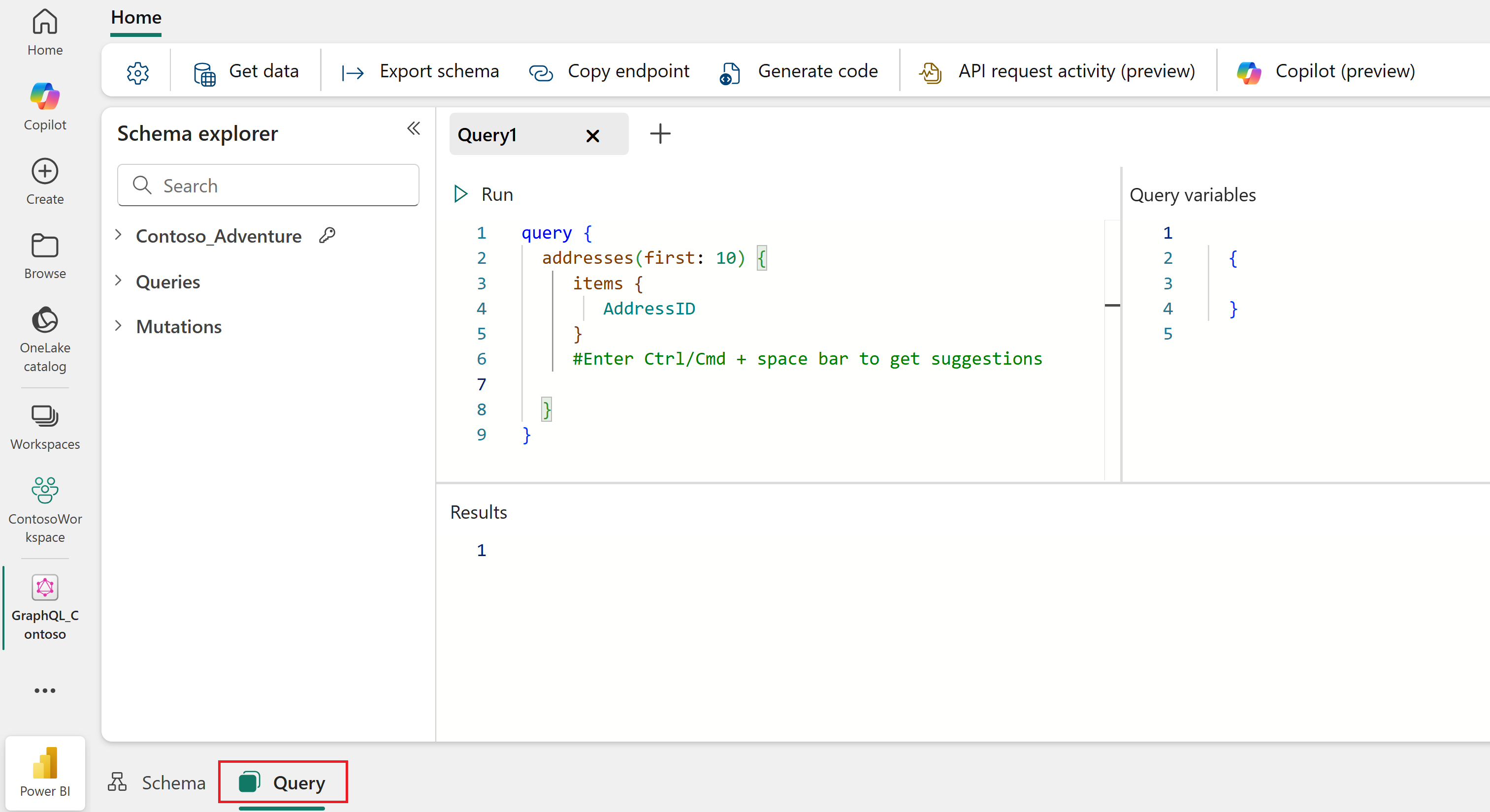

To go to the editor, open the API for GraphQL item in Fabric and select Query at the lower left corner of your portal screen.

You can type and execute GraphQL queries directly on the Query tab. Intellisense capabilities are available with a keyboard shortcut: CTRL + Space (Windows), or Command + Space (macOS). Select Run to execute the query and retrieve the data accordingly from the data source.

Generate code

Once you tested and prototyped the desired GraphQL operation, the API editor can generate boilerplate Python or Node.js code based on the query or mutation executed in the editor. You can run the generated code locally for testing purposes and re-use parts of it in the application development process.

Important

The generated code uses interactive browser credentials and should be used for testing purposes only. In production, always register an application in Microsoft Entra and use the appropriate client_id and scopes. You can find an end-to-end example with sample code at Connect Applications.

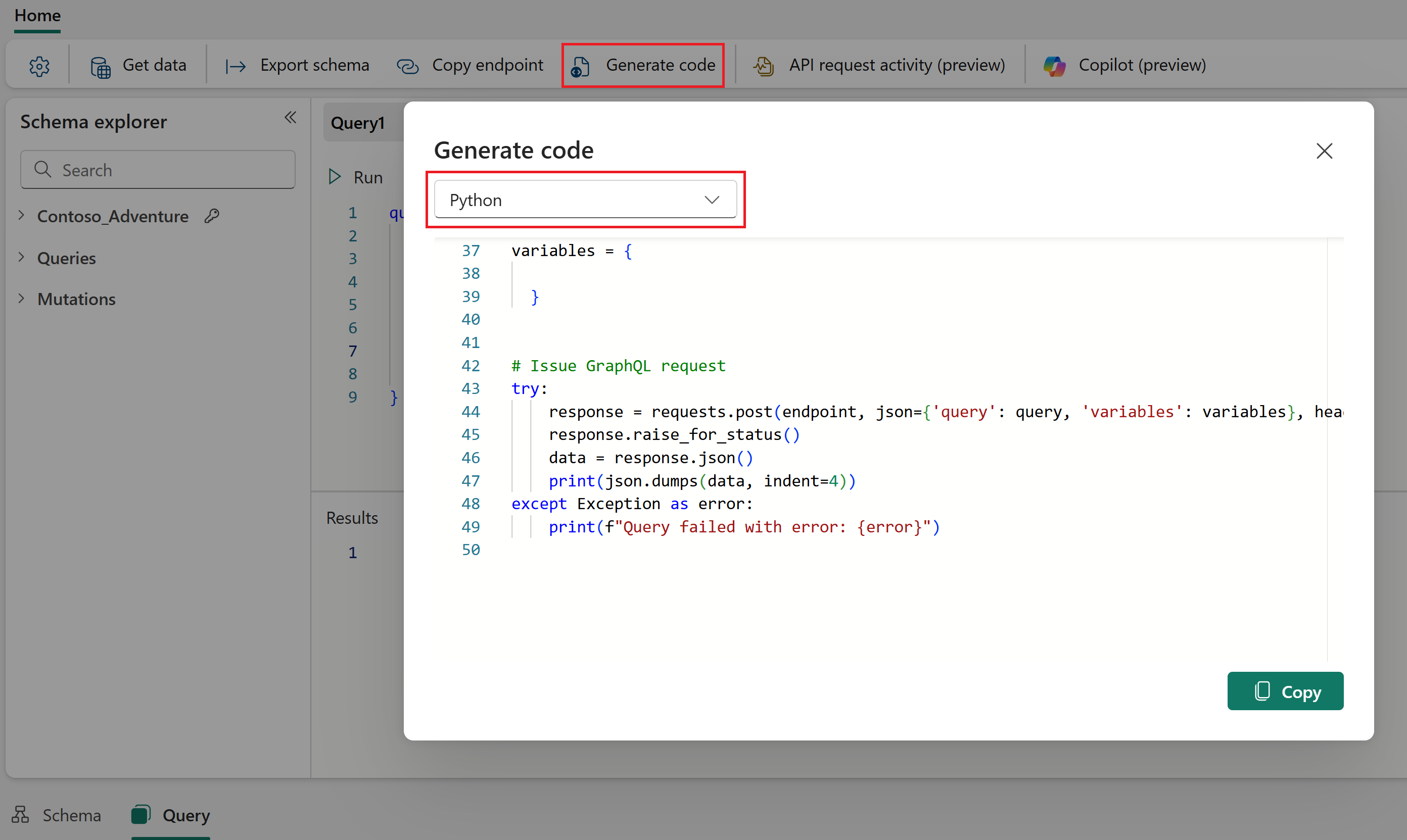

To get started, execute a query, select the Generate code button and chose the language accordingly:

You can then copy the generated code and save it as a file in a local folder. Depending on the language of choice, follow simple steps to test locally:

Python

1. Create a virtual environment with the command python -m venv .venv
2. Activate the venv using .venv\Scripts\activate or source .venv/bin/activate
3. Install the required dependency with the command pip install azure.identity
4. Execute the code with python <filename.py>

Node.JS

1. In the same folder as the file you saved, create a package.json file with the following content:

{
  "type": "module",
  "dependencies": {
  }
}

2. Run npm install --save @azure/identity or similar command in your package manager of choice to install the latest version of the identity library.
3. Execute the code with node <filename>.js

Development of queries and mutations

Review the following short GraphQL schema, which defines a single Post type with queries to read a single post or list all posts. It also defines mutations to create, update, or delete posts supporting all CRUDL (create, read, update, delete, list) use cases.

type Post {
  id: ID!
  title: String!
  content: String!
  author: String!
  published: Boolean
}

type Query {
  getPost(id: ID!): Post
  getAllPosts: [Post]
}

type Mutation {
  createPost(title: String!, content: String!, author: String!): Post
  updatePost(id: ID!, title: String, content: String, author: String, published: Boolean): Post
  deletePost(id: ID!): Boolean
}

You can read the data exposed via GraphQL using any query defined in the schema. The getPost query should look like the following example.

query MyQuery {
  getPost(id: "1234") {
    title
    content
    author
  }
}

Response:

{
  "data": {
    "getPost": {
      "title": "First Post",
      "content": "This is my first post.",
      "author": "Jane Doe"
    }
  }
}

Write data using mutations like createPost to create a post with the required parameters.

mutation MyMutation {
  createPost(title: "Second post", content: "This is my second post", author: "Jane Doe", published: false) {
    id
    title
    content
    author
  }
}

Response:

{
  "data": {
    "createPost": {
      "id": "5678",
      "title": "Second Post",
      "content": "This is my second post.",
      "author": "Jane Doe"
    }
  }
}

Query variables

Use the Query variables pane on the right side of the Query tab to pass any parameters as variables to your queries or mutations. Variables work the same way as variables in any other programming language. Each variable needs to be declared with a name that is used to access the value stored in it. With the previous mutation example, you can modify it slightly to use query variables.

mutation MyMutation ($title: String!, $content: String!, $author: String!){
  createPost(title: $title, content: $content, author: $author) {
    id
    title
    content
    author
  }
}

Define the variables in the pane like the following example.

    {
      "id": "5678",
      "title": "Second Post",
      "content": "This is my second post.",
      "author": "Jane Doe"
    }

Variables make the mutation code cleaner and easier to read, test, and modify the parameters.
