Common Scenarios – Offline Secure HoloLens 2

  • Raksts
  • Attiecas uz:
    HoloLens 2

Overview

This guide provides guidance for applying a sample Provisioning Package that will lock down a HoloLens 2 for use in secure environments with the following restrictions:

  • Disable WiFi.
  • Disable BlueTooth.
  • Disable Microphones.
  • Prevents adding or removing provisioning packages.
  • No user can enable any of the above restricted components.

Offline Secure scenario.

Prepare

Windows 10 PC Setup

  1. Download the latest HoloLens 2 OS file directly to a PC.
    1. Support for this configuration is included in Build 19041.1117 and above.
  2. Download/Install the Advanced Recovery Companion(ARC) tool from the Microsoft Store to your PC
  3. Download/Install the latest Windows Configuration Designer (WCD) tool from the Microsoft Store to your PC.
  4. Build the PPKG by downloading the OfflineSecureHL2_Sample folder with the project files.
  5. Prepare your offline Line of Business application for PPKG deployment.

Configure

Build a Secure Configuration Provisioning Package.

  1. Launch the WCD tool on your PC.

  2. Select File -> Open project.

    1. Navigate to the location of the previously saved OfflineSecureHL2_Sample folder, and select: OfflineSecureHL2_Sample.icdproj.xml

  3. The project should open and you should now have a list of Available Customizations:

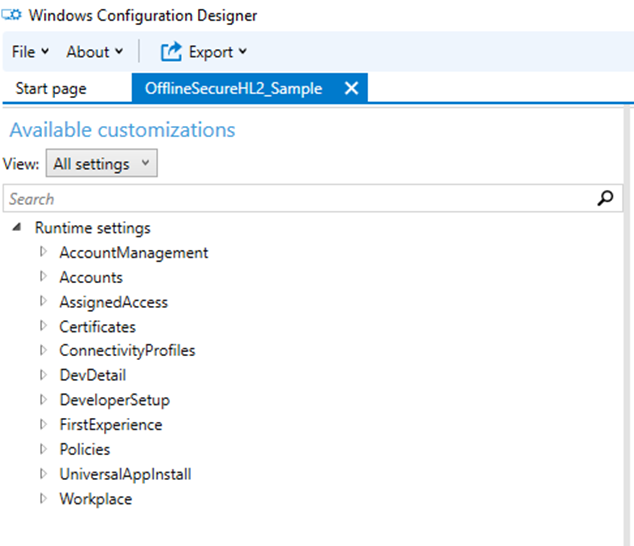

    Screenshot of the configuration package open in WCD.

    Configurations set in this provisioning package:

    Item Setting Description
    Accounts / Users Local User Name & Password For these offline devices, a single user name and password need to be set and shared by all users of the device.
    First Experience / HoloLens / SkipCalibration True Skips calibration during initial device setup only
    First Experience / HoloLens / SkipTraining True Skips device training during initial device setup
    First Experience / HoloLens / WiFi True Skips Wi-Fi config during initial device setup
    Policies/Connectivity/AllowBluetooth No Disables Bluetooth
    Policies/Experience/AllowCortana No Disables Cortana (to eliminate potential problems since the microphones are disabled)
    Policies/MixedReality/MicrophoneDisabled Yes Disables Microphone
    Policies/Privacy/LetAppsAccessLocation Force deny Prevents Apps from trying to access Location data (to eliminate potential problems since the Location tracking is disabled)
    Policies/Privacy/LetAppsAccessMicrophone Force deny Prevents Apps from trying to access Microphones (to eliminate potential problems since the Microphones are disabled)
    Policies/Security/AllowAddProvisioningPackage No Prevents anyone from adding provisioning packages that might attempt to override locked down policies.
    Policies/Security/AllowRemoveProvisioningPackage No Prevents anyone from removing this locked down provisioning package.
    Policies/System/AllowLocation No Prevents the device from trying to track location data.
    Policies/WiFi/AllowWiFi No Disables Wi-Fi

  4. Under Runtime Settings, Select Accounts / Users / UserName: Holo.

    Note the password and reset if desired.

  5. Navigate to UniversalAppInstall / UserContextApp and configure the LOB app you'll be deploying to these devices.

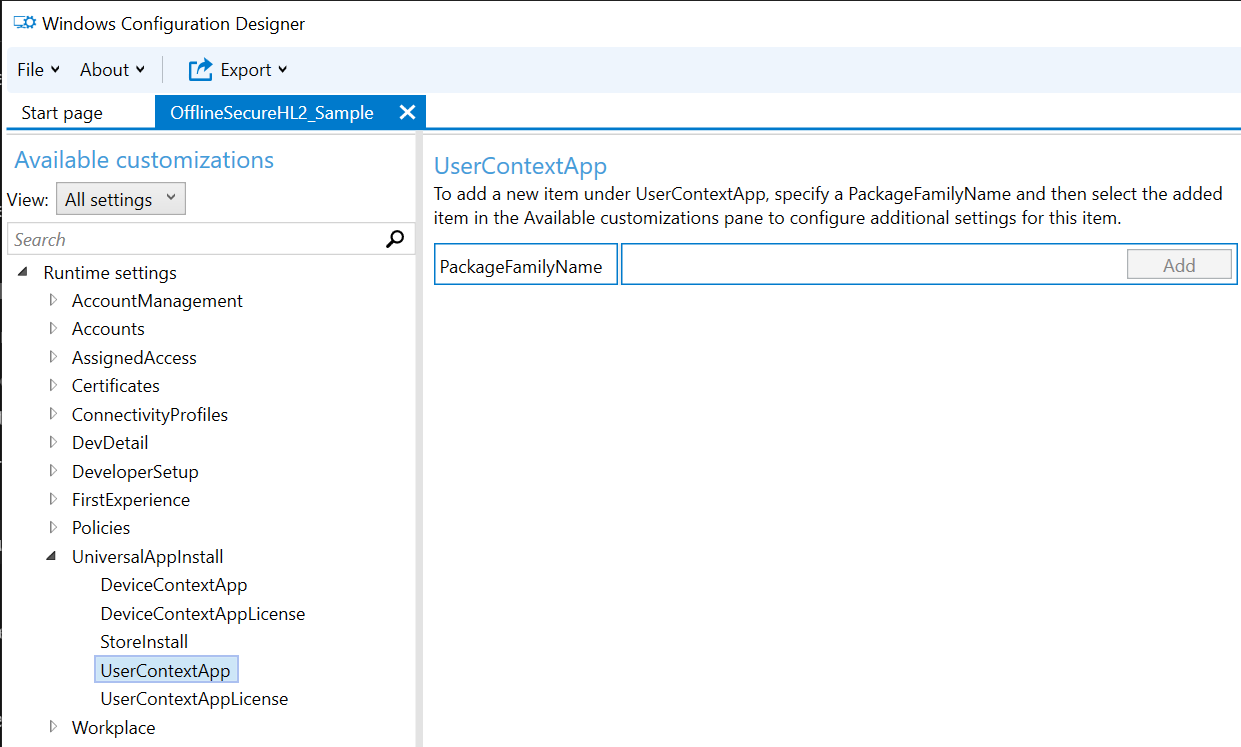

    Screenshot of where to add your app in WCD.

  6. Once complete, select the “Export” button and follow all prompts until your provisioning package is created.

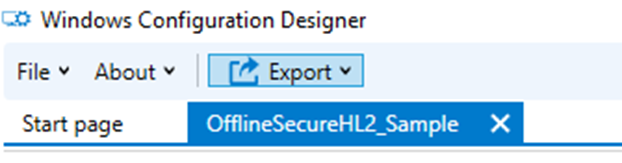

    Screenshot of the Export button for this package in WCD.

Deploy

  1. Connect the HL2 to your Windows 10 PC via USB cable.

  2. Launch the ARC tool and select HoloLens 2

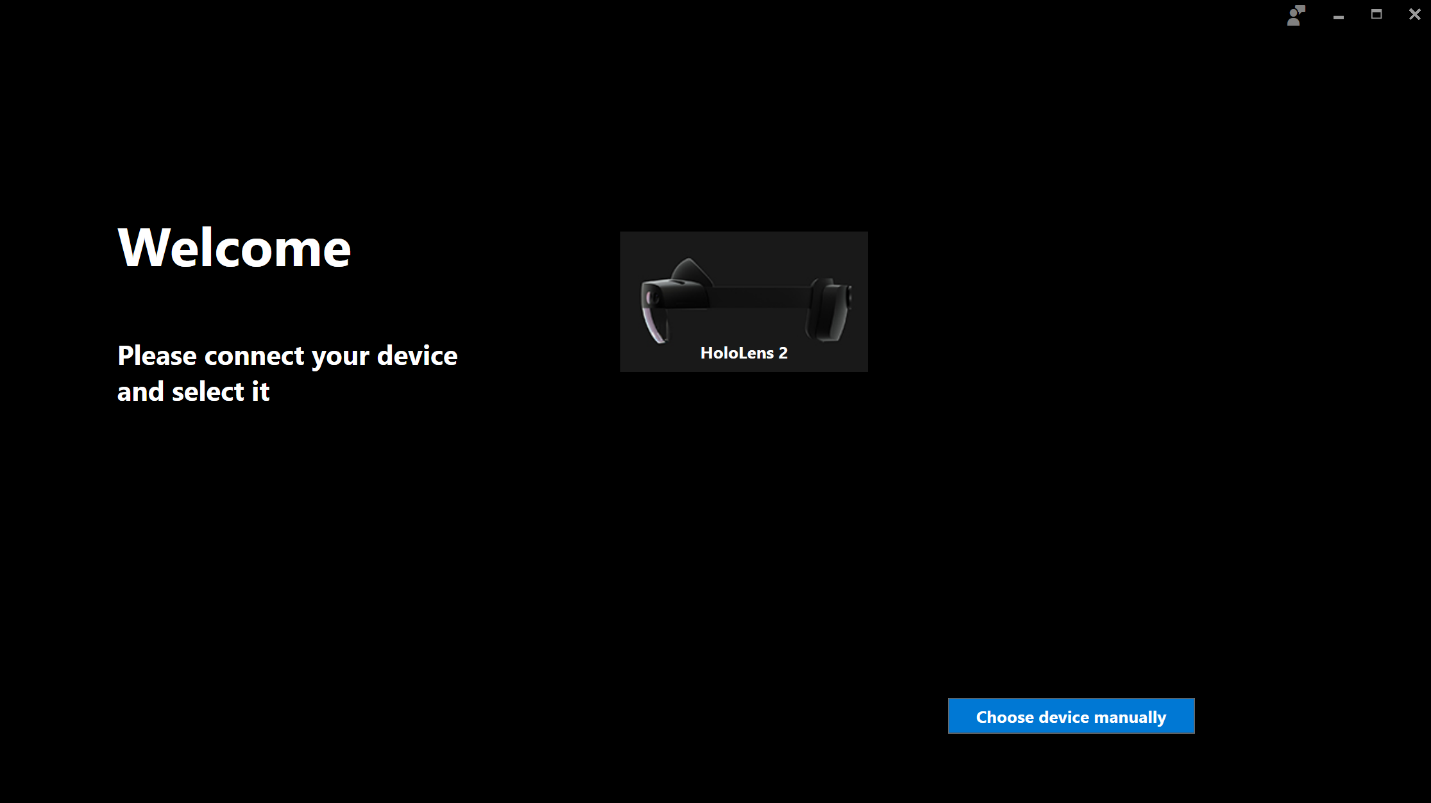

    HoloLens 2 clean reflash initial screen.

  3. On the next screen, select Manual package selection.

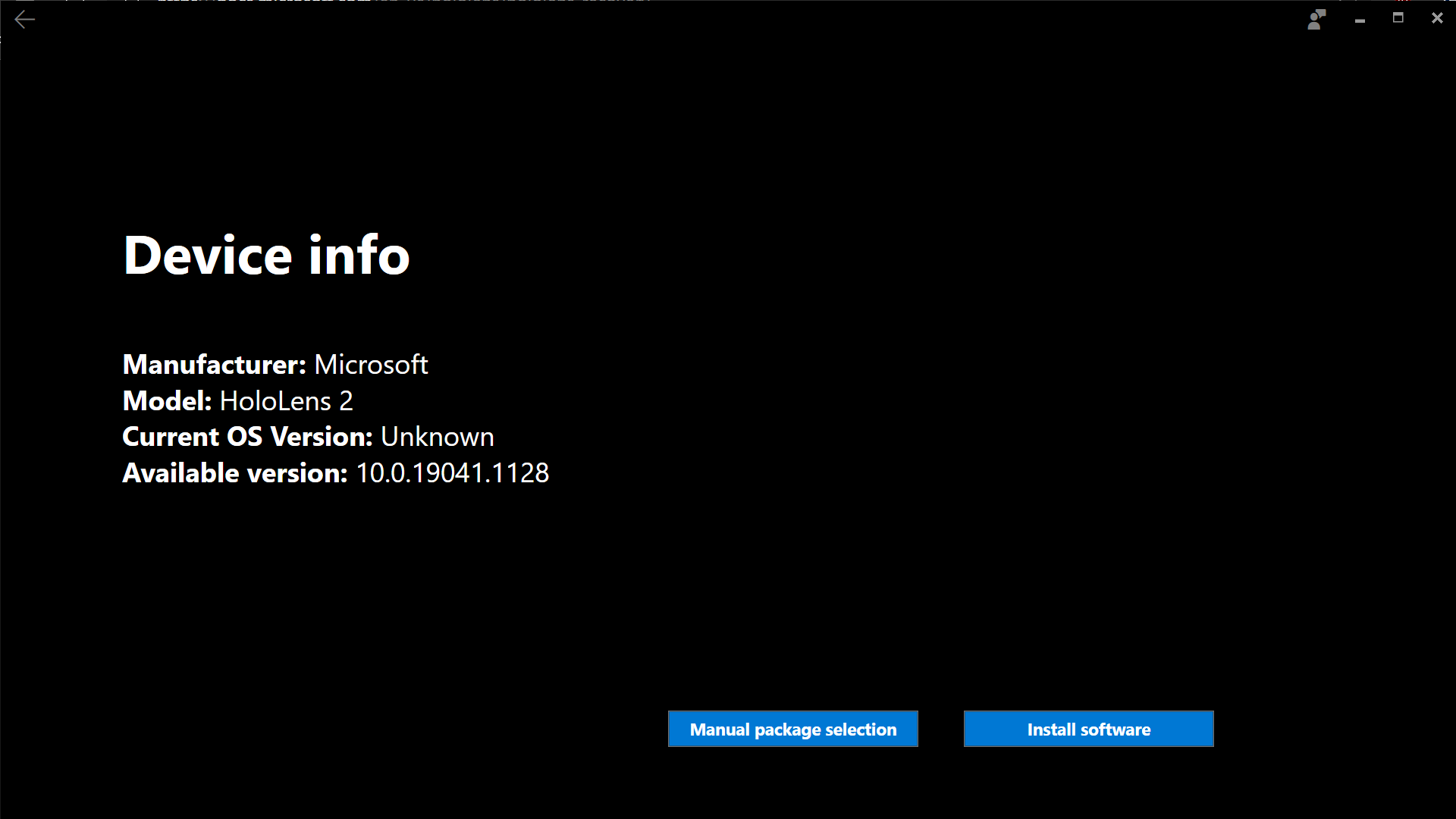

    HoloLens 2 ARC info screen.

  4. Navigate to the previously downloaded .ffu file, and select Open.

  5. At the Warning page, select Continue.

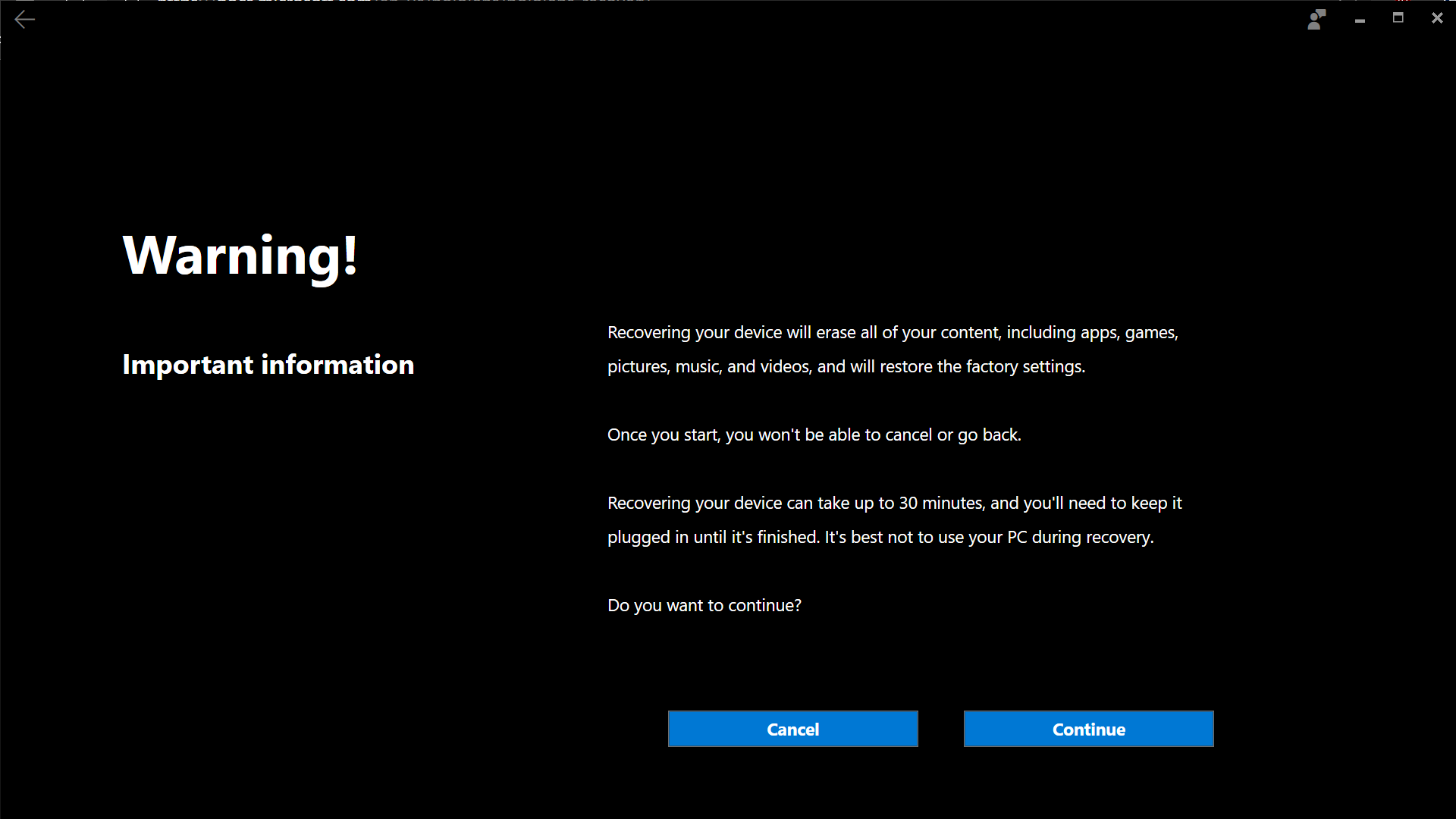

    HoloLens 2 ARC warning screen.

  6. Wait for the ARC tool to complete the HoloLens 2 OS install.

  7. Once the device completes the install and boots backup, from your PC navigate to File Explorer and copy the previously saved PPKG file over to the device folder.

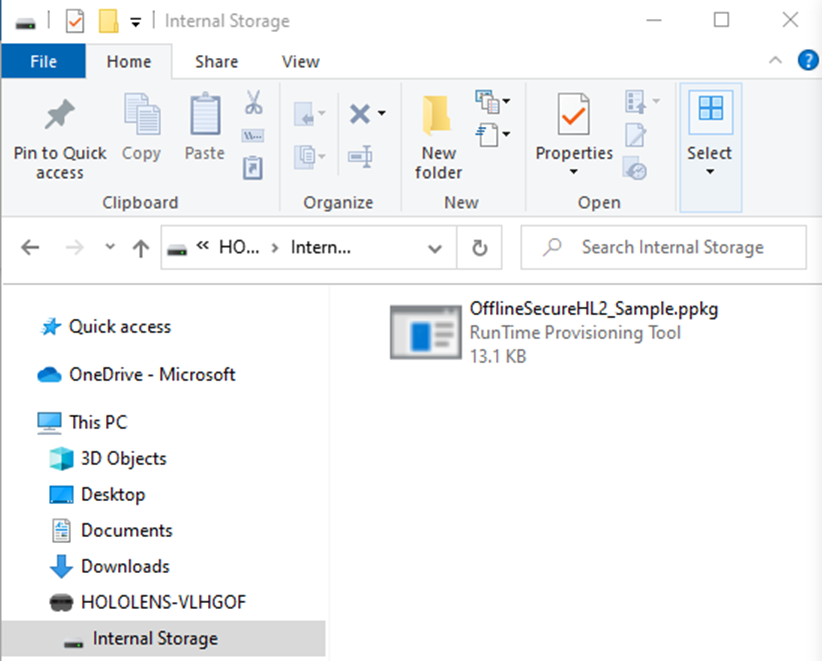

    PPKG file on PC in File Explorer window.

  8. On the HoloLens 2, press the following button combo to run the Provisioning Package: Tap Volume Down and Power Button at the same time.

  9. You'll be prompted to apply the Provisioning Package, select Confirm

  10. Once the provisioning package completes select OK.

  11. You should then be prompted to sign into the device with the shared local account and password.

Note

If you forgot to change the password from the default for this package, it's DC_Login!@.

Maintain

With this configuration, it's recommended to restart the process above and reflash the device with the ARC tool and apply a new PPKG to make any updates to the OS and/or application(s).
