Create custom Power BI visuals without data binding

  • Raksts

This article explains how to use the No data binding feature to create Power BI custom visuals without data roles. Ordinarily, when you create a visual in a Power BI report, the values are defined interactively by adding data fields to the Values well on the Visualizations pane.

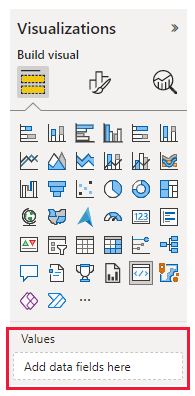

Screenshot of a Power BI visual that shows the Values well in the Visualizations pane.

By default, if no values are defined, the format settings are disabled, and you can't update the visual's formatting.

The dataRoles property of the capabilities model allows you to format graphics in Power BI without binding data.

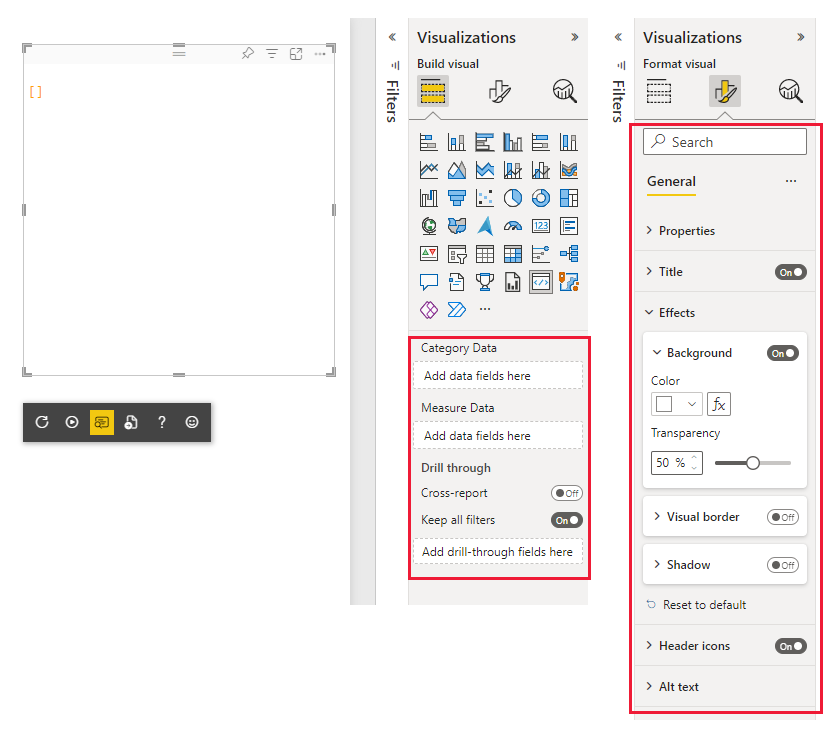

Using the dataRoles capabilities property, you can render a visual and use the update method to change the format settings. You can change settings even if the data buckets are empty, or if your visual doesn't use any data roles.

The following tabs show two examples of a Power BI visual. One visual requires binding data, and the other uses the no data roles feature and doesn't require binding data.

When binding data is required, the formatting settings are disabled if there are no data roles or the data wells are empty.

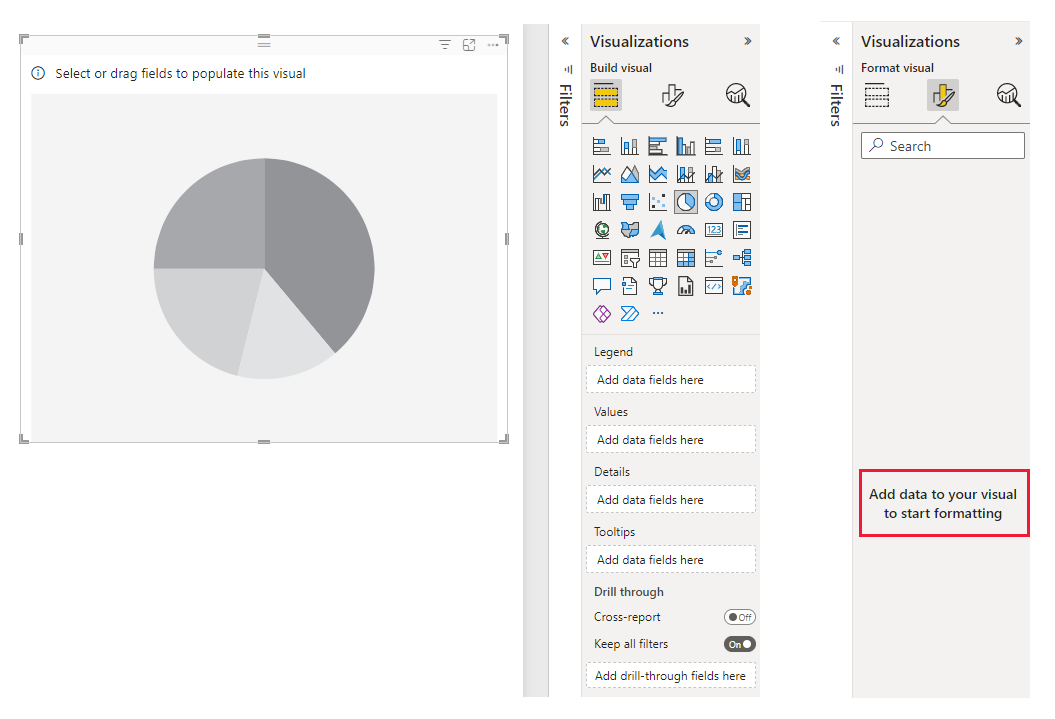

Screenshot of a Power BI visual that shows empty data and inactive visual settings in the Visualizations pane.

How to create a visual that doesn't require data binding

Note

This feature is available from API version 3.6.0 and above. To find out which version you’re using, check the apiVersion in the pbiviz.json file.

To enable the No data binding feature, set the following two parameters in the capabilities.json file to true.

  • supportsLandingPage allows you to display information on the Power BI card before it's loaded with data.

  • supportsEmptyDataView allows Power BI updates when the values field is empty.

    {
        "supportsLandingPage": true,
        "supportsEmptyDataView": true,
    }
