Frequently asked questions about Azure Disk Backup

Azure Backup offers side-by-side support for backup of managed disk using Disk backup and the Azure VM backup solutions. This is useful when you need once-a-day application consistent backup of virtual machines and also more frequent backups of the OS disk or a specific data disk, which are crash consistent without impacting the production application performance.

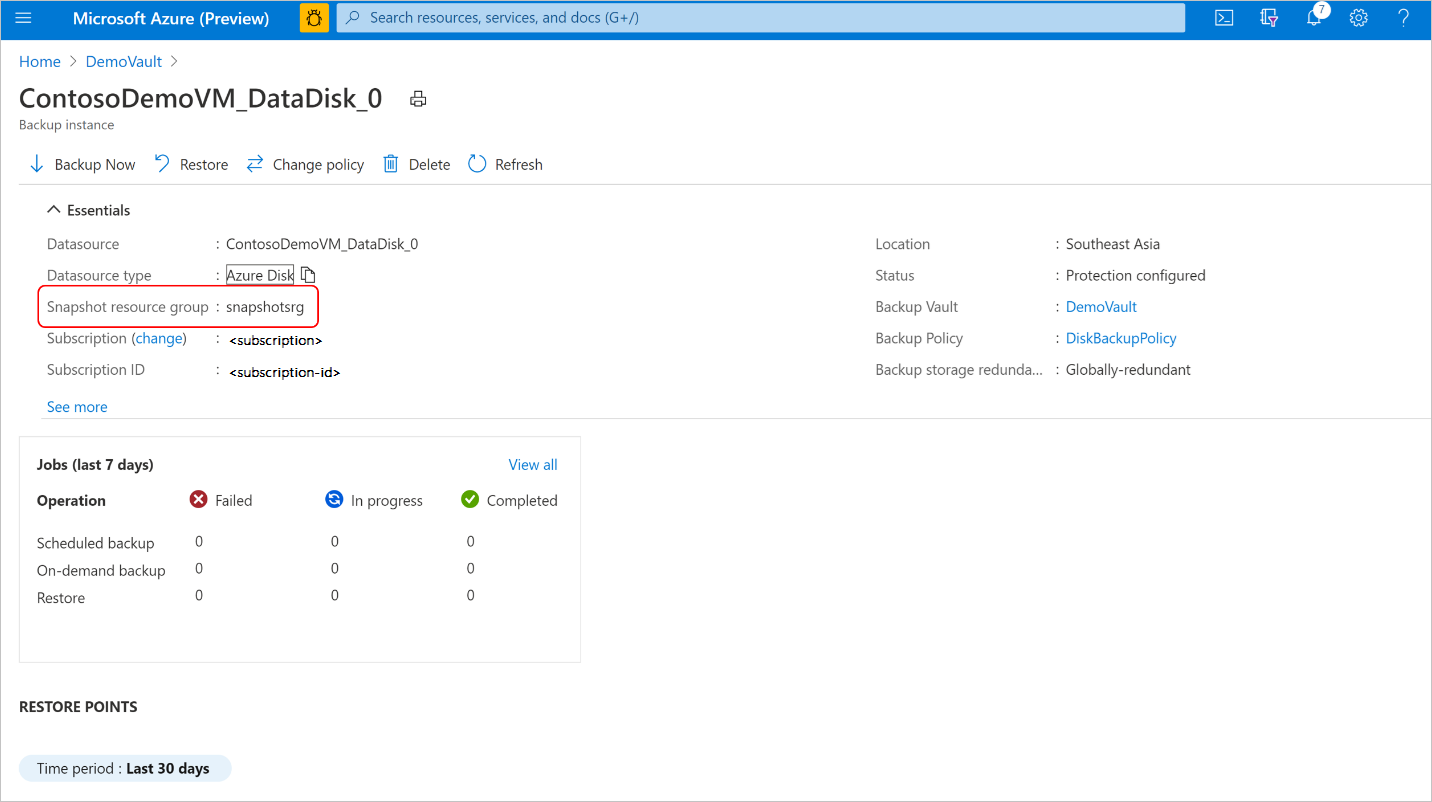

In the Backup Instance screen, you can find the snapshot resource group field in the Essentials section. You can search and select your backup instance of the corresponding disk from Backup center or the Backup vault.

Azure Disk Backup offers operational tier backup for managed disk. That is, the snapshots that are created during the scheduled and on-demand backup operations are stored in a resource group within your subscription. Azure Backup offers instant restore because the incremental snapshots are stored within your subscription. This resource group is known as the snapshot resource group. For more information, see Configure backup.

You can't create an incremental snapshot for a particular disk outside of that disk's subscription. So choose the resource group within the same subscription as that of the disk to be backed up. Learn more about incremental snapshot for managed disks.

Azure Disk Backup uses the least privilege approach to discover, protect, and restore the managed disks in your subscriptions. To achieve this, Azure Backup uses the managed identity of the Backup vault to access other Azure resources. A system assigned managed identity is restricted to one per resource and is tied to the lifecycle of this resource. You can grant permissions to the managed identity by using Azure role-based access control (Azure RBAC). Managed identity is a service principal of a special type that may only be used with Azure resources. Learn more about managed identities. By default, the Backup vault won't have permission to access the disk to be backed up, create periodic snapshots, delete snapshots after retention period, and to restore a disk from backup. By explicitly granting role assignments to the Backup vault's managed identity, you're in control of managing permissions to the resources on the subscriptions.

Azure Disk Backup uses incremental snapshots, which are limited to 500 snapshots per disk. To allow you to take on-demand backups aside from scheduled backups, backup policy limits the total backups to 450. Learn more about incremental snapshots for managed disks.

Azure Disk Backup offers multiple backups per day. If you require more frequent backups, choose the Hourly backup frequency. The backups are scheduled based on the Time interval selected. For example, if you select Every 4 hours, then the backups are taken at approximately every 4 hours so that the backups are distributed equally across the day. If once a day backup is sufficient enough, then choose the Daily backup frequency. In the daily backup frequency, you can specify the time of the day when your backups will be taken. It's important to note that the time of the day indicates the backup start time and not the time when the backup completes. The time required to complete the backup operation is dependent on various factors including the churn rate between consecutive backups. However, Azure Disk backup is an agentless backup that uses incremental snapshots that don't impact the production application performance.

Azure Backup uses incremental snapshots of managed disks that store only the delta changes to disks since the last snapshot on Standard HDD storage, regardless of the storage type of the parent disk. For more reliability, incremental snapshots are stored on Zone Redundant Storage (ZRS) by default in regions that support ZRS. Currently, Azure Disk Backup supports operational backups of managed disks that don't copy the backups to Backup vault storage. So the backup storage redundancy setting of the Backup vault doesn't apply to the recovery points.

Yes, Azure Disk Backup is integrated into Backup Center, which provides a single unified management experience in Azure for enterprises to govern, monitor, operate, and analyze backups at scale. You can also use Backup vault to back up, restore, and manage the backup instances that are protected within the vault.

A Backup vault is a storage entity in Azure that houses backup data for certain newer workloads that Azure Backup supports. You can use Backup vaults to hold backup data for various Azure services, such Azure Database for PostgreSQL servers, Azure Disks, and newer workloads that Azure Backup will support. Backup vaults make it easy to organize your backup data, while minimizing management overhead. Refer to Backup vaults to learn more.

Yes, the source-managed disk to be backed up and the Backup vault can be in different subscriptions.

No, currently the source-managed disk to be backed up and the Backup vault must be in the same region.

Yes, you can restore the disk onto a different subscription than that of the source-managed disk from which the backup is taken.

No, point-in-time snapshots of multiple disks attached to a virtual machine isn't supported. For more information, see Configure backup and to learn more about limitations, refer to the support matrix.

During a restore operation, you can choose the subscription and a resource group where you want to restore the disk to. Azure Backup will create new disks from the recovery point in the selected resource group. This is referred to as a target resource group. Note that the Backup vault's managed identity requires the role assignment on the target resource group to be able to perform restore operation successfully. For more information, see the restore documentation.

Following are the actions used in the Disk Backup Reader role assigned on the disk to be backed up:

"Microsoft.Compute/disks/read"

"Microsoft.Compute/disks/beginGetAccess/action"

"Microsoft.Authorization/*/read"

Following are the actions used in the Disk Snapshot Contributor role assigned on the Snapshot resource group:

"Microsoft.Compute/snapshots/delete"

"Microsoft.Compute/snapshots/write"

“Microsoft.Compute/snapshots/read"

"Microsoft.Storage/storageAccounts/write"

"Microsoft.Storage/storageAccounts/read"

"Microsoft.Storage/storageAccounts/delete"

"Microsoft.Resources/subscriptions/resourceGroups/read"

"Microsoft.Storage/storageAccounts/listkeys/action"

"Microsoft.Compute/snapshots/beginGetAccess/action"

"Microsoft.Compute/snapshots/endGetAccess/action"

"Microsoft.Compute/disks/beginGetAccess/action"

"Microsoft.Authorization/*/read"

Following are the actions used in the Disk Restore Operator role assigned on Target Resource Group:

"Microsoft.Compute/disks/write"

"Microsoft.Compute/disks/read"

"Microsoft.Resources/subscriptions/resourceGroups/read"

"Microsoft.Authorization/*/read"

Next steps

• Azure Disk Backup support matrix
